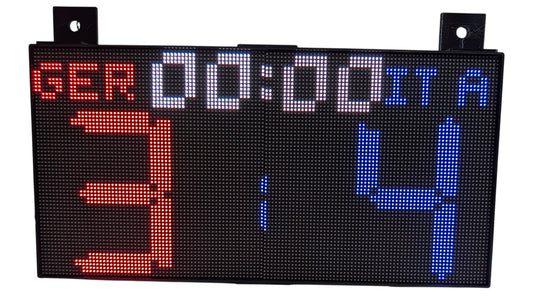

SIZE 4- Wi-Fi controlled Indoor digital scoreboard with 4 chained P5 64x32 pixels RGB LED matrix- 64 cm×32 cm / 25.2 inches×12.6 inches

This full-color indoor digital scoreboard is designed for hobbyists, personal sports facilities, community venues, and indoor sports clubs. It is available in several sizes and provides clear RGB displays for team names, scores, digital timing, and quarters, innings, or periods. Users can select different colors for the team names, timer, and scores to create their preferred display style. The scoreboard supports two convenient wireless control methods: a browser-based interface through WiFi and an RF remote control. For larger venues, long-range RF remote options are available in addition to standard short-range remotes. The scoreboard is built into a custom 3D-printed PETG enclosure for a lightweight, portable, and affordable design.

Features Common Across All Scoreboards

• Supports 2 Players/Teams: Designed for two-player or two-team games.
• ESP32 Controlled: The scoreboard is powered by the versatile ESP32 microcontroller for reliable performance.
• Wi-Fi Communication: Seamless connectivity between the scoreboard and the app via Wi-Fi.
• Team Names Display: Displays team names using up to 4 characters.
• Integrated Digital Timer: A clear and precise digital timer is positioned at the top.

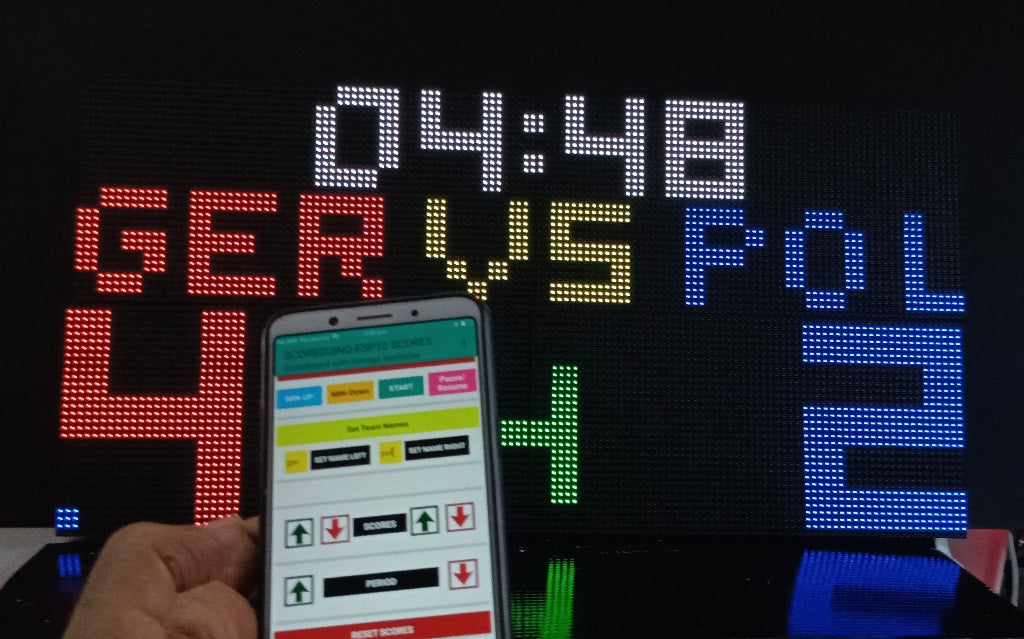

• Web Browser Control: Provides an alternative for users with computers or iOS devices, including iPhones, to manage the scoreboard via a browser.
• Dedicated long range(200m) remote control (Optional):  Once the team names are set up via browser based app, users can use the remote control to update scores, innings and timer.
• Set colors: Users can set the colors of team names, scores and timer via the browser based interface. You can choose these colors: RED, GREEN, WHITE, YELLOW and BLUE

Specifications:

• Display Size - 4 set (P5- 64x32 pixels): each display dimensions: 32cmx16cm. Total size after chaining 4 displays: 64cm x 32cm / 25.2 inches×12.6 inches

• Indoor Use Only: Designed for optimal performance in indoor settings.
• Power Supply: Operates on a 5V-6A power supply.

Available Models

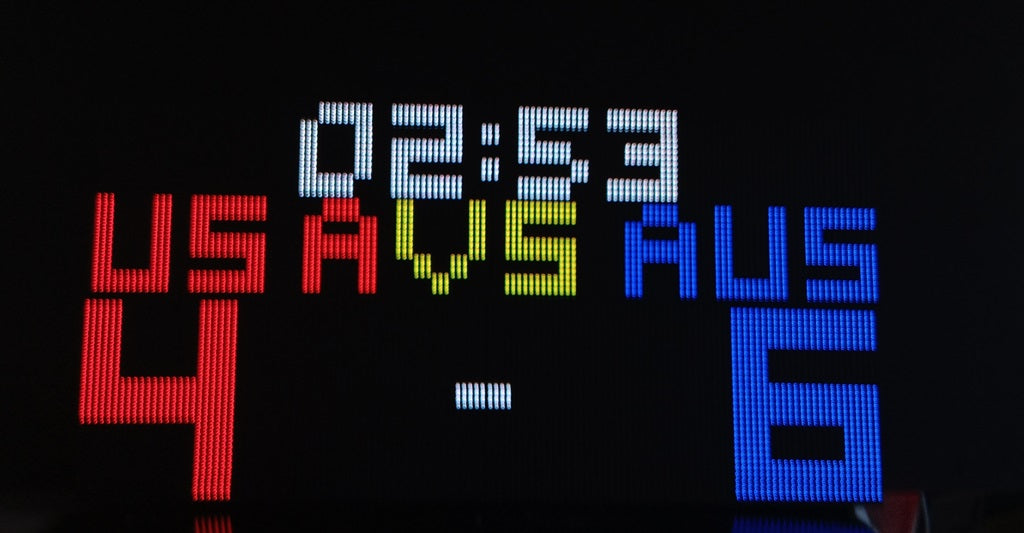

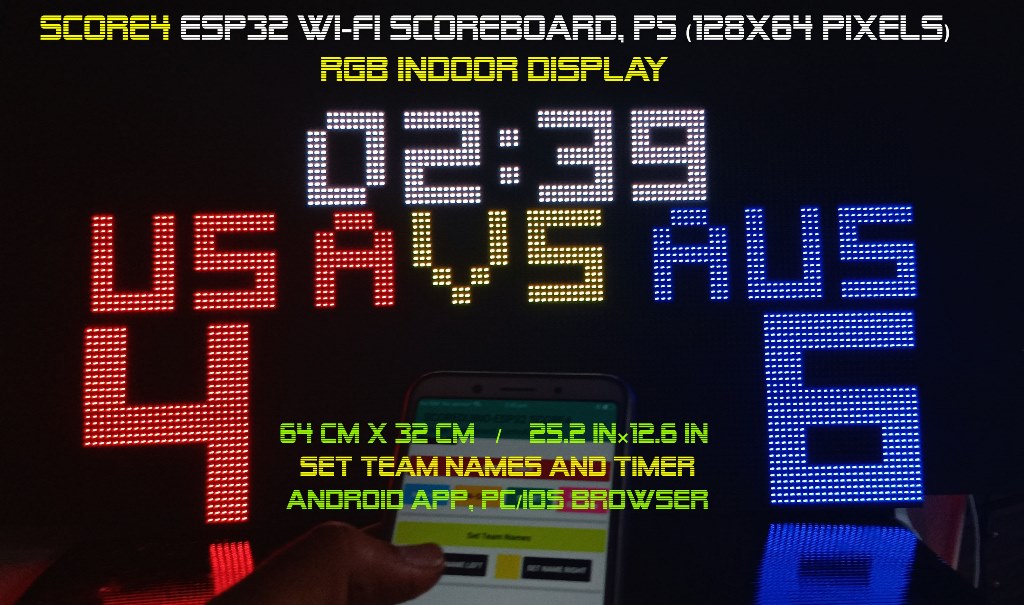

SCORE4 Scoreboard- with timer- Images on Google Photos

Assembly tutorial(FOR DIY Enthusiasts)

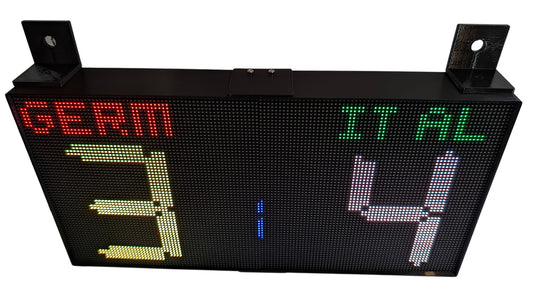

A basic scoreboard featuring:

• With Digital timer

• Team name display- 4 characters
• Score display (up to 4 digits)

• Total size after chaining 4 displays: 64cmx32cm / 25.2 inches×12.6 inches
• The name “SCORE4” reflects the maximum number of digits (4) available for displaying the score.
• You can use remote control(optional) to operate the scoreboard
• Enclosure is available (optional). Read about quality.
• Scores are saved in the memory even if the power is turned off.
• Change the colors of timer, team names and scores. Available color options are RED, GREEN, BLUE, YELLOW and WHITE

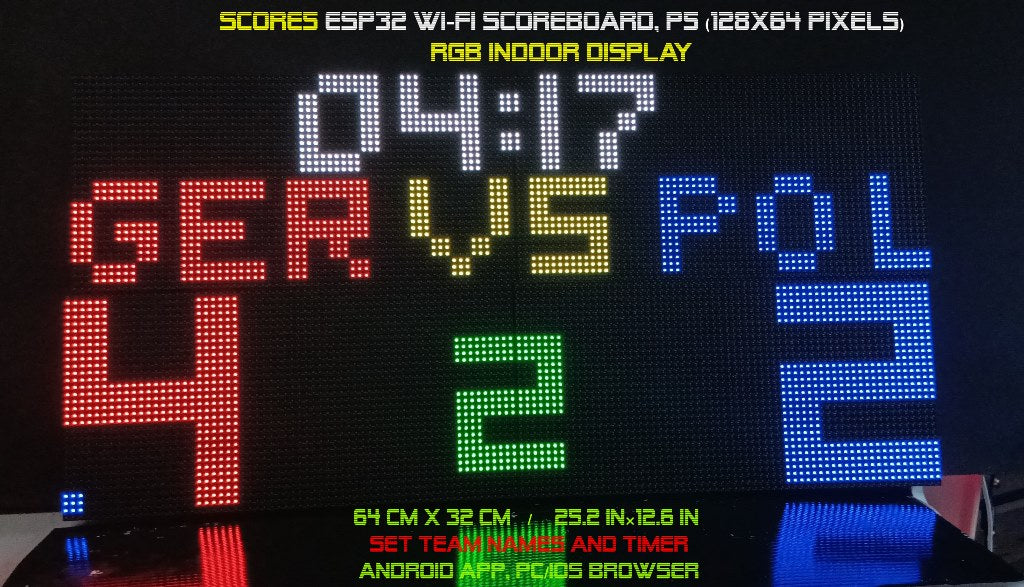

SCORE5 Scoreboard

Check out all the images on Google

Assembly tutorial(For DIY Enthusiasts)

An advanced version for sports requiring:

• With Digital timer

• Team name display- up to 4 characters for each team.
• Innings and scores (up to 5 digits)
• Total size after chaining 4 displays: 64cmx32cm / 25.2 inches×12.6 inches

• You can use remote control (optional) to operate the scoreboard
• Enclosure is available (optional)
• Scores are saved in the memory even if the power is turned off.
• Change the colors of timer, team names and scores. Available color options are RED, GREEN, BLUE, YELLOW and WHITE

The name “SCORE5” represents the capability to display scores up to 5 digits.

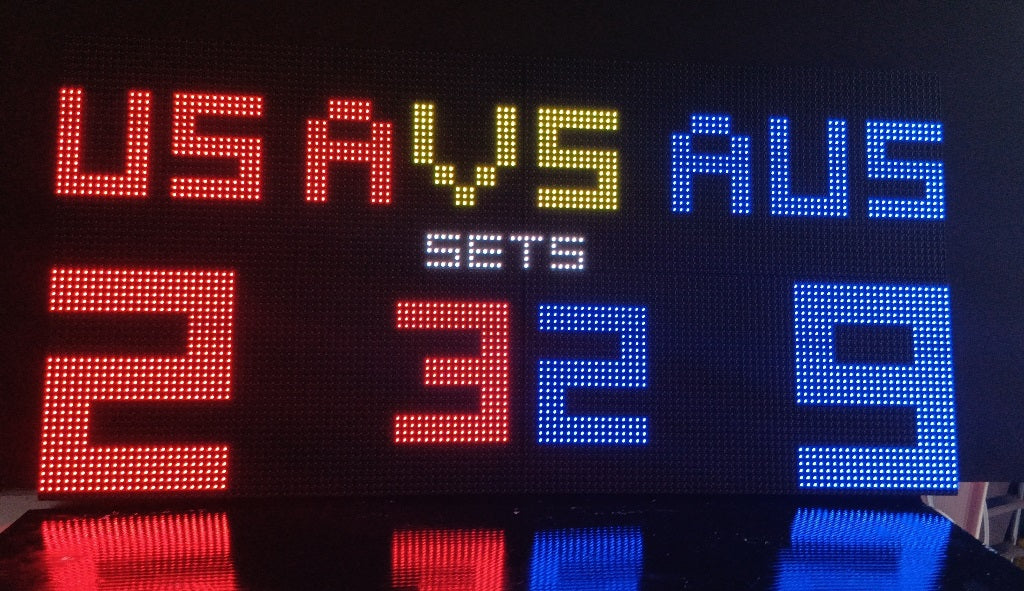

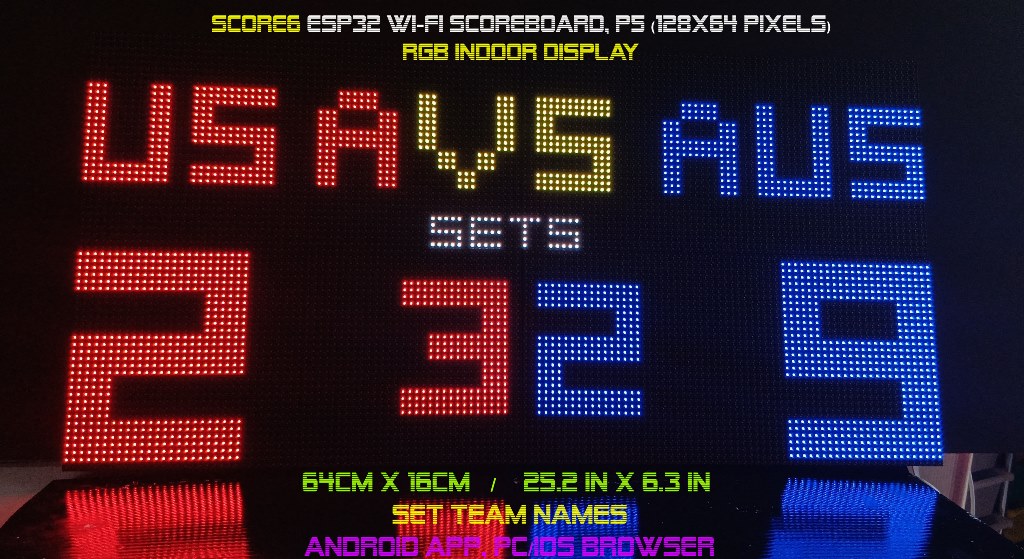

SCORE6 Ping Pong Table Tennis Scoreboard With Enclosure

Assembly tutorial

Designed for games like table tennis or ping pong, it includes:

• Team name display- 3 characters for each team
• Set score display
• Main score display (up to 6 digits, including set scores)
• Total size after chaining 4 displays: 64cmx32cm / 25.2 inches×12.6 inches

• You can use remote control (optional) to operate the scoreboard
• Enclosure is available (optional)
• Scores are saved in the memory even if the power is turned off.
• Change the colors of timer, team names and scores. Available color options are RED, GREEN, BLUE, YELLOW and WHITE

The name “SCORE6” signifies its ability to display up to 6 digits, catering to comprehensive scoring requirements.

DIY Package Includes:

1. 4 x P5- 64x32 Pixels RGB Matrix Display

2. Data Cable: Ensures seamless connectivity between modules.
3. Power Cable: For efficient and safe power delivery.
4. SCOREDUINO ESP32 Wi-Fi Module: The core controller of the scoreboard.
5. 5V-6A Power Supply: Provides sufficient power for stable operation.

DIY Package does not include Enclosure and Remote Control

Fully Assembled Scoreboard With Enclosure and Remote Control:

1. Fully Assembled Scoreboard with enclosure(with all the parts required)
2. 5V-6A Power supply
3. Remote Control

About 3D printed Enclosure:

Please note that this scoreboard uses a 3D printed enclosure rather than a folded metal enclosure.

Because large parts exceed the printing size of most 3D printers, the enclosure is manufactured in multiple sections which are permanently joined together.

As a result, you may notice:

• Small join lines

• Minor glue marks

• Slight surface blemishes

• Normal 3D printing layer lines

These cosmetic characteristics are normal and do not affect the performance, strength or durability of the scoreboard.

The enclosure is designed to:

• Securely hold the electronics

• Protect the display

• Keep the scoreboard lightweight

• Make transportation easy

Once installed during a game, the focus is on the bright LED display rather than the enclosure itself.

Whether you’re hosting a competitive game or just enjoying some friendly matches, these customizable, feature-rich digital scoreboards will elevate the experience for players and spectators alike.

Read more about the enclosure

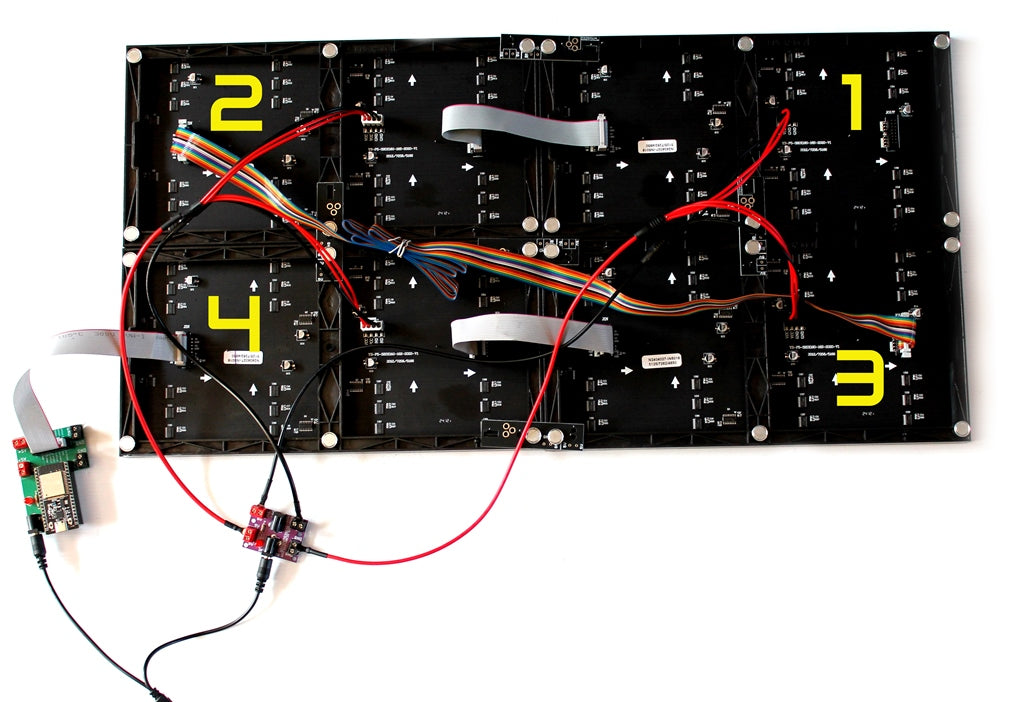

🔗Assembly and Wiring Guide for 4xRGB P5 64x32 Pixel Display

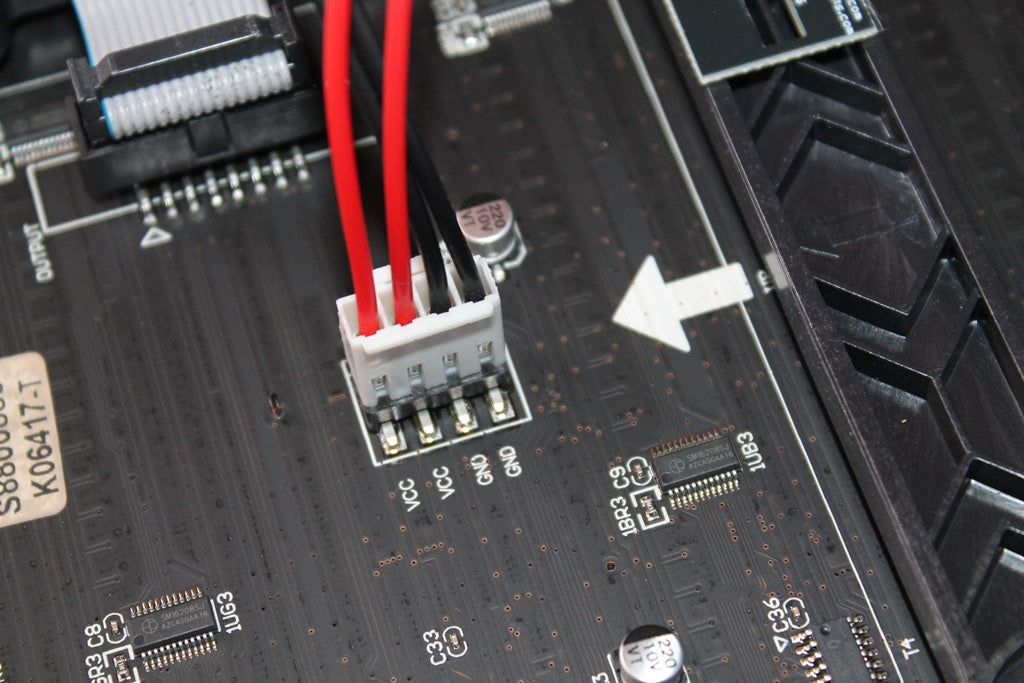

Place the panels with the arrows pointing upwards
