DIY Scoreboards - Build Your Own Scoreboard using SCOREDUINO-DMD module

There are two main features that distinguish Scoreduino DIY scoreboards from other scoreboards.

  1. Remote operation via Android app: The scoreboard can be controlled from anywhere using an Android app, eliminating the need for physical proximity to the scoreboard for operation. In simple words, you can control the scoreboard from the US keeping the scoreboard in Australia, in real-time. Control it from anywhere, any corner of your ground as well as there is INTERNET connection.

  2. Real-time cricket scores integration: The cricket scoreboard displays real-time scores sourced from websites such as cricclubs.com, cricheroes.in, and playhq.com, without requiring manual updates by an operator.

We follow a policy of 1 module-1 output, meaning each module provides only one output.

The Scoreduino DIY DMD P10 module is highly adaptable, designed to facilitate the creation of various scoreboards effortlessly. Controlled via the Scoreduino app through Bluetooth connectivity, it offers a user-friendly interface for tailoring your scoreboard settings.
With this DIY Scoreboard module, you enjoy the flexibility to design a wide array of scoreboards, ranging from general ones featuring timers to specialized boards tailored for cricket, football, and tennis. For cricket enthusiasts, the module retrieves live scores through the Scoreduino Android app from renowned platforms like cricclubs.com and playhq.com.
Whether you opt for a large-scale setup or a portable solution, the modular design enables scalability. Each module comes preloaded with a specific program to generate your desired output from the 30+ available options. If additional outputs are needed, acquiring extra modules is a straightforward process.

Wondering how it all comes together?

Step 1: Prepare the Scoreboard unit using the provided assembly documents tailored for various scoreboard types.
Step 2: Connect the Scoreboard unit to the Scoreduino DMD module.
Step 3: Power up both the module and the Scoreboard unit.
Step 4: Operate the Scoreboard effortlessly using the Scoreduino App.

Possible Outputs with single P10 dot matrix display

We do not share the codes of any of our counters and scoreboards. The module is preloaded with one output of your choice.


Output 1: 3 digits up down counter

SCOREDUINO-DMD module, paired with a single P10 dot matrix display, can effortlessly construct a 3-digit up-down counter. The display dimensions measure 32cm x 16cm (12.60 inches x 6.30 inches OR 1.05 feet x 0.52 feet)  and are available in vibrant colors including red, blue, white, green, and yellow.
Control over the counter is facilitated through the user-friendly scoreduino-app, utilizing Bluetooth for seamless communication between the counter and the application. The application enables users to modify the brightness settings for the display.

Output 2: Basic LIVE cricket scoreboard

The SCOREDUINO-DMD module, in combination with a single P10 dot matrix display, offers a straightforward solution for assembling a basic cricket scoreboard. This scoreboard effortlessly showcases LIVE scores sourced from cricheroes.com, cricclubs.com, and playhq.com. The display cycles through total runs, wickets, and overs, with each parameter displayed for 2 seconds in rotation.

Ideal for indoor settings, this scoreboard is simple to construct and operate. With dimensions measuring 32cm x 16cm(12.60 inches x 6.30 inches OR 1.05 feet x 0.52 feet), it is available in a variety of vibrant colors including red, blue, white, green, and yellow.



 Controlling the cricket scoreboard is made convenient through the user-friendly scoreduino-app, utilizing Bluetooth connectivity for seamless communication between the scoreboard and the application. Users have the ability to control the brightness levels of their display through the app.

Output 3: Basic scoreboard

The combination of the SCOREDUINO-DMD module and a single P10 dot matrix display provides a simple solution for creating a basic scoreboard. Designed for indoor use, this scoreboard is easy to assemble and use. Measuring 32cm x 16cm(12.60 inches x 6.30 inches OR 1.05 feet x 0.52 feet), it comes in a range of vibrant colors such as red, blue, white, green, and yellow.

Controlling the basic scoreboard is effortless with the user-friendly scoreduino-app, which utilizes Bluetooth connectivity for smooth communication between the scoreboard and the application. Adjusting the brightness of the display is made possible for users via the application.

Output 4: Basic Scoreboard with timer

The pairing of the SCOREDUINO-DMD module with a single P10 dot matrix display offers a straightforward solution for crafting a basic scoreboard complete with a digital timer. Intended for indoor applications, this scoreboard is user-friendly in both assembly and operation. It boasts dimensions of 32cm x 16cm(12.60 inches x 6.30 inches OR 1.05 feet x 0.52 feet) and is available in an array of vivid colors including red, blue, white, green, and yellow.

Effortlessly managing the basic scoreboard with timer is facilitated by the intuitive scoreduino-app, leveraging Bluetooth connectivity to ensure seamless communication between the scoreboard and the application. The app empowers users to customize the brightness of their display.

Output 5: Basic scoreboard with timer and characters

The combination of the SCOREDUINO-DMD module and a single P10 dot matrix display presents a simple solution for building a basic scoreboard featuring a digital timer and the display of characters A and B. Users cannot change the characters. They are fixed. Designed for indoor use, this scoreboard is easy to assemble and operate. Measuring 32cm x 16cm(12.60 inches x 6.30 inches OR 1.05 feet x 0.52 feet), it comes in various vibrant colors, such as red, blue, white, green, and yellow.

Effortlessly managing the scoreboard with timer functionality is made possible by the user-friendly scoreduino-app, which utilizes Bluetooth connectivity for seamless communication between the scoreboard and the application. Users can tailor the brightness of their display using the app.



Output 6: Basic scoreboard with characters A and B

The SCOREDUINO-DMD module, coupled with a lone P10 dot matrix display, offers a straightforward solution for crafting a rudimentary scoreboard showcasing characters A and B. Users cannot change the characters. They are fixed. Tailored for indoor environments, this scoreboard boasts simplicity in both assembly and operation. With dimensions of 32cm x 16cm(12.60 inches x 6.30 inches OR 1.05 feet x 0.52 feet), it comes in a spectrum of lively colors, including red, blue, white, green, and yellow.

The scoreboard functionality is facilitated by the intuitive scoreduino-app, leveraging Bluetooth connectivity for smooth interaction between the scoreboard and the application. Customizing display brightness is a feature offered by the app.

Output 7: Basic digital timer

The combination of the SCOREDUINO-DMD module and a single P10 dot matrix display provides a simple solution for a basic digital timer. Designed for indoor settings, this timer boasts ease of assembly and operation. Measuring 32cm x 16cm(12.60 inches x 6.30 inches OR 1.05 feet x 0.52 feet), it is available in vibrant colors such as red, blue, white, green, and yellow.



Managing the timer is made easy with the intuitive scoreduino-app, utilizing Bluetooth connectivity for seamless interaction between the timer and the application. The application offers users the option to tweak display brightness as desired.

Possible Outputs with double P10 dot matrix display

Output 8: Dual display digital scoreboard with timer and fixed characters

The pairing of the SCOREDUINO-DMD module with dual P10 dot matrix displays offers a straightforward solution for constructing a basic scoreboard. This scoreboard showcases a digital timer along with the fixed display of characters A and B. Designed for both indoor and outdoor settings, it's simple to set up and use. With dimensions of 32cm x 32cm(12.60 inches x 12.60 inches OR 1.05 feet x 1.05 feet), it's available in an array of vibrant colors including red, blue, white, green, and yellow.


Managing the scoreboard's timer function is effortlessly achieved through the intuitive scoreduino-app, which employs Bluetooth connectivity for smooth communication between the scoreboard and the application. Display brightness adjustment is a functionality integrated into the app.

Output 9: Dual display digital scoreboard teams titles

Combining the SCOREDUINO-DMD module with dual P10 dot matrix displays offers a simple solution for building a basic scoreboard. This scoreboard not only displays scores but also features team titles, typically as HOM and AWA. Designed for both indoor and outdoor use, it's easy to assemble and operate. With dimensions of 32cm x 32cm(12.60 inches x 12.60 inches OR 1.05 feet x 1.05 feet), it comes in various vibrant colors such as red, blue, white, green, and yellow.

Effortlessly managing the scoreboard's timer function is made possible through the user-friendly scoreduino-app. This app utilizes Bluetooth connectivity for seamless communication between the scoreboard and the application. Users are granted the capability to alter display brightness through the application.



Output 10: Dual display digital scoreboard with timer

The combination of the SCOREDUINO-DMD module with double P10 dot matrix displays provide a simple solution for creating a basic scoreboard with a digital timer. Designed for use indoors and outdoors, this scoreboard is easy to assemble and operate. It measures 32cm x 32cm(12.60 inches x 12.60 inches OR 1.05 feet x 1.05 feet) and comes in vibrant colors like red, blue, white, green, and yellow.





Effortlessly managing the scoreboard with the timer function is made easy with the intuitive scoreduino-app, which uses Bluetooth connectivity to ensure smooth communication between the scoreboard and the application. The app provides users with the means to change display brightness to their liking.

Output 11: Dual display digital timer

The SCOREDUINO-DMD module paired with dual P10 dot matrix displays offers a straightforward solution for a basic digital timer. Designed for both indoor and outdoor use, this timer is easy to assemble and operate. With dimensions of 32cm x 32cm(12.60 inches x 12.60 inches OR 1.05 feet x 1.05 feet), it comes in vibrant colors like red, blue, white, green, and yellow.



Managing the timer is effortless with the intuitive scoreduino-app, which utilizes Bluetooth connectivity for seamless interaction between the timer and the application. Adjusting the brightness of the display is one of the functionalities of the app.



Output 12: Dual display cricket scoreboard- Type 1- Full screen

The SCOREDUINO-DMD module, paired with dual P10 dot matrix displays, provides a simple solution for setting up a basic cricket scoreboard. This scoreboard effortlessly presents LIVE scores sourced from cricheroes.com, cricclubs.com, and playhq.com. It cycles through total runs, wickets, and overs, with each parameter displayed for 2 seconds in rotation.

Designed for indoor and outdoor use, this scoreboard is easy to assemble and operate. Measuring 32cm x 32cm(12.60 inches x 12.60 inches OR 1.05 feet x 1.05 feet), it comes in various vibrant colors like red, blue, white, green, and yellow.

Controlling the cricket scoreboard is made convenient through the user-friendly scoreduino-app, which utilizes Bluetooth connectivity for seamless communication between the scoreboard and the application. Users have control over display brightness thanks to the app.

Output 13: Dual display cricket scoreboard- Type 2- Character height: 10 inches

The SCOREDUINO-DMD module, combined with dual P10 dot matrix displays, offers a straightforward solution for creating a cricket scoreboard. This scoreboard effortlessly showcases live scores sourced from cricheroes.com, cricclubs.com, and playhq.com. It smoothly cycles through total runs, wickets, and overs, displaying each parameter for 2 seconds in rotation.

Crafted for both indoor and outdoor settings, this scoreboard is simple to set up and operate. With dimensions of 32cm x 32cm(12.60 inches x 12.60 inches OR 1.05 feet x 1.05 feet), it comes in a variety of vibrant colors including red, blue, white, green, and yellow.

Managing the cricket scoreboard is made easy with the user-friendly scoreduino-app, which utilizes Bluetooth connectivity for seamless communication between the scoreboard and the application. The app facilitates users in adjusting the brightness levels of their display.

Possible outputs with Dual color P10 Displays- Cricket and Football Scoreboard

Output 14: Dual display cricket scoreboard

The SCOREDUINO-DMD module, coupled with dual-color P10 dot matrix displays, each measuring 32cm x 16cm(12.60 inches x 12.60 inches OR 1.05 feet x 1.05 feet), offers a straightforward solution for setting up a basic cricket scoreboard. This scoreboard effortlessly showcases live scores sourced from cricheroes.com, cricclubs.com, and playhq.com.  The top part of the display shows runs and wickets, while the bottom part shows the overs of the match.

Tailored for indoor use, this scoreboard is simple to assemble and operate. With dimensions of 32cm x 32cm(12.60 inches x 12.60 inches OR 1.05 feet x 1.05 feet), it's available in various vibrant colors such as red, blue, white, green, and yellow.



Controlling the cricket scoreboard is made convenient through the user-friendly scoreduino-app, which utilizes Bluetooth connectivity for seamless communication between the scoreboard and the application. Customizing display brightness settings can be done by users using the app.



Output 15: Dual display digital scoreboard with timer and fixed characters

Combining the SCOREDUINO-DMD module with dual-color P10 dot matrix displays provides a simple solution for crafting a basic scoreboard. This scoreboard features a digital timer alongside fixed displays of characters A and B. The top half showcases the timer and characters, while the bottom half displays the scores. Designed for both indoor environment, it's easy to set up and operate. Measuring 32cm x 32cm(12.60 inches x 12.60 inches OR 1.05 feet x 1.05 feet), it comes in a variety of vibrant colors, including red, blue, white, green, and yellow.

Effortlessly managing the scoreboard's timer function is achieved through the intuitive scoreduino-app, which utilizes Bluetooth connectivity for seamless communication between the scoreboard and the application. Users are given the flexibility to adjust display brightness through the app.

Output 16: Dual display digital scoreboard with timer

Pairing the SCOREDUINO-DMD module with dual-color P10 dot matrix displays offers a simple solution for creating a basic scoreboard. This scoreboard features a digital timer, with the top half dedicated to showcasing it while the bottom half displays the scores. Designed for indoor use, it's straightforward to set up and operate. Measuring 32cm x 32cm(12.60 inches x 12.60 inches OR 1.05 feet x 1.05 feet), it can be built in vibrant colors such as red, blue, white, green, and yellow.

Effortlessly managing the scoreboard's timer function is made possible through the intuitive scoreduino-app, which employs Bluetooth connectivity for seamless communication between the scoreboard and the application. The app includes a feature that allows users to tweak display brightness.

Triple color P10 Cricket and Football Scoreboard

Output 17: Triple color basic cricket scoreboard

The SCOREDUINO-DMD module, combined with triple-color P10 dot matrix displays, offers a straightforward solution for establishing a basic cricket scoreboard. This scoreboard effortlessly showcases LIVE scores sourced from cricheroes.com, cricclubs.com, and playhq.com. The top display presents total runs, the middle displays the wickets, and the bottom shows the overs.

Designed for indoor use, this scoreboard is simple to assemble and operate. With dimensions of 48cm x 32cm(18.89 inches x 12.60 inches OR 1.5748 feet x 1.05 feet), it can be constructed in various vibrant colors like red, blue, white, green, and yellow.

Controlling the cricket scoreboard is made convenient through the user-friendly scoreduino-app, which utilizes Bluetooth connectivity for seamless communication between the scoreboard and the app. Users can modify display brightness settings conveniently within the app.

Output 18: Triple color basic scoreboard for football

Combining the SCOREDUINO-DMD module with triple-color P10 dot matrix displays offers a straightforward solution for setting up a basic football scoreboard. The top display showcases fixed titles as HOME and AWAY, the middle one features a timer, and the bottom one presents the scores.

Designed for indoor use, this scoreboard is easy to assemble and operate. With dimensions of 48cm x 32cm (18.89 inches x 12.60 inches OR 1.5748 feet x 1.05 feet), it's available in various vibrant colors like red, blue, white, green, and yellow.

Controlling the football scoreboard is made convenient through the user-friendly scoreduino-app, which utilizes Bluetooth connectivity for seamless communication between the scoreboard and the app. The app enables users to make adjustments to the brightness of their display.

Dual Color 4 displays P10 Table Tennis Scoreboard



Output 19: Dual color with 4 displays basic scoreboard for football

Combining the SCOREDUINO-DMD module with dual-color, 4-display P10 dot matrix displays offers a straightforward solution for setting up a basic football scoreboard. The scoreboard prominently features titles as HOME and AWAY, which cannot be altered, and displays the timer at the middle of the scores.

Designed for indoor use, this scoreboard is simple to assemble and operate. With dimensions of 64cm x 32cm(25.20 inches x 12.60 inches OR 2.10 feet x 1.05feet), it's available in various vibrant colors like red, blue, white, green, and yellow.

Controlling the football scoreboard is made convenient through the user-friendly scoreduino-app, which utilizes Bluetooth connectivity for seamless communication between the scoreboard and the app. Display brightness can be easily adjusted by users through the app.

Output 20: Dual color with 4 displays basic table tennis / Ping Pong scoreboard

Combining the SCOREDUINO-DMD module with dual-color, 4-display P10 dot matrix displays provides a straightforward solution for setting up a basic table tennis scoreboard. The scoreboard showcases scores along with the number of sets won by each team.

Designed for indoor use, this scoreboard is easy to assemble and operate. With dimensions of 64cm x 32cm(25.20 inches x 12.60 inches OR 2.10 feet x 1.05feet), it's available in various vibrant colors like red, blue, white, green, and yellow.

Controlling the table tennis scoreboard is made convenient through the user-friendly scoreduino-app, which utilizes Bluetooth connectivity for seamless communication between the scoreboard and the app. The app offers users the ability to fine-tune the brightness of their display.

Output 21: Dual color with 4 displays basic table tennis /

Ping Pong scoreboard with HOME and AWAY

Combining the SCOREDUINO-DMD module with dual-color, 4-display P10 dot matrix displays offers a straightforward solution for setting up a basic table tennis scoreboard with fixed team titles as HOME and AWAY. The scoreboard prominently showcases scores along with the number of sets won by each team, displaying the names of the teams as HOME and AWAY.

Designed for indoor use, this scoreboard is simple to assemble and operate. With dimensions of 64cm x 32cm(25.20 inches x 12.60 inches OR 2.10 feet x 1.05feet), it's available in various vibrant colors like red, blue, white, green, and yellow.





Controlling the table tennis scoreboard is made convenient through the user-friendly scoreduino-app, which utilizes Bluetooth connectivity for seamless communication between the scoreboard and the app. Users can conveniently set the brightness of their display using the app.

P10 - 6 displays RED and BLUE scoreboard for Cricket and Football



Output 22: Dual color with 6 displays basic cricket scoreboard

The SCOREDUINO-DMD module, paired with dual-color and six P10 dot matrix displays, provides a simple solution for setting up a basic cricket scoreboard. This scoreboard effortlessly showcases LIVE scores from cricheroes.com, cricclubs.com, and playhq.com, cycling through total runs, wickets, and overs, with each parameter displayed for 2 seconds.



The top display shows the name of the playing team, such as INN1 AUS or INN2 USA and the bottom display shows the runs, wickets and overs. Designed for both indoor and outdoor use, this scoreboard is easy to assemble and operate. With dimensions of 64cm x 48cm(25.20 inches x 18.90 inches OR 2.10 feet x 1.57 feet), it can be crafted in various vibrant colors like red, blue, white, green, and yellow. Controlling the cricket scoreboard is made convenient through the user-friendly scoreduino-app, utilizing Bluetooth connectivity for seamless communication between the scoreboard and the app. Users can conveniently set the brightness of their display using the app.

NOTE: The title display unit consists of 2 dot matrix displays, while the score unit comprises 4 matrix displays. Each unit requires separate power sources and operates with two distinct DMD modules. These units are packaged together in a single box and are controlled by a unified app. The app communicates simultaneously with two Bluetooth modules.

Output 23: Dual color with 6 displays basic football scoreboard

The SCOREDUINO-DMD module, combined with dual-color and six P10 dot matrix displays, offers a straightforward solution for setting up a basic football scoreboard.

The top display allows customization of team names, such as AUS or USA, while the bottom display shows the timer and scores. Designed for both indoor and outdoor environments, this scoreboard is simple to assemble and operate. With dimensions of 64cm x 48cm(25.20 inches x 18.90 inches OR 2.10 feet x 1.57 feet), it can be customized in various vibrant colors like red, blue, white, green, and yellow.

Controlling the football scoreboard is made convenient through the user-friendly scoreduino-app, utilizing Bluetooth connectivity for seamless communication between the scoreboard and the app. The application allows users to easily change the brightness of their display.

Please note: The title display unit comprises 2 dot matrix displays, while the score unit consists of 4 matrix displays. Each unit requires separate power sources and operates with two distinct DMD modules. These units are bundled together in a single box and are managed by a unified app, which communicates simultaneously with two Bluetooth modules.
See OUTPUT 33 for this scoreboard
See OUTPUT 32 for this scoreboard



P10 - 6 displays single/dual color scoreboard for Cricket and Football

Output 24: Single color six displays cricket scoreboard

The SCOREDUINO-DMD module, combined with single-color and six P10 dot matrix displays, offers a simple solution for setting up a basic cricket scoreboard. This scoreboard effortlessly showcases LIVE scores from cricheroes.com, cricclubs.com, and playhq.com, rotating through total runs, wickets, and overs, with each parameter displayed for 2 seconds.

Designed for both indoor and outdoor environments, this scoreboard is straightforward to assemble and operate. Measuring 96cm x 32cm(37.80 inches x 12.60 inches OR 3.15 feet x 1.05 feet), it can be customized in various vibrant colors like red, blue, white, green, and yellow. Controlling the cricket scoreboard is made convenient through the user-friendly scoreduino-app, which utilizes Bluetooth connectivity for seamless communication between the scoreboard and the app. Display brightness adjustment is at the fingertips of users with the app.

Output 25: Single color six displays cricket scoreboard with scrolling text

The SCOREDUINO-DMD module, when paired with single-color and six P10 dot matrix displays, presents an uncomplicated solution for setting up a basic cricket scoreboard. This scoreboard seamlessly showcases LIVE scores sourced from  cricclubs.com, and playhq.com, with the scores scrolling through the display from right to left.

Designed for both indoor and outdoor settings, this scoreboard is easy to assemble and operate. With dimensions of 96cm x 32cm(37.80 inches x 12.60 inches OR 3.15 feet x 1.05 feet), it can be customized in various vibrant colors like red, blue, white, green, and yellow. Managing the cricket scoreboard is made convenient through the user-friendly scoreduino-app, which utilizes Bluetooth connectivity for seamless communication between the scoreboard and the app. Users have the freedom to adjust display brightness levels through the app.

Output 26: Single color six displays football scoreboard with timer

Pairing the SCOREDUINO-DMD module with six P10 dot matrix displays offers a straightforward solution for crafting a basic scoreboard with a digital timer. Designed for both indoor and outdoor use, this scoreboard is simple to assemble and operate. With dimensions of 96cm x 32cm(37.80 inches x 12.60 inches OR 3.15 feet x 1.05 feet), it can be made in vibrant colors like red, blue, white, green, and yellow.

Effortlessly managing the scoreboard's score and timer function is facilitated by the intuitive scoreduino-app, which utilizes Bluetooth connectivity to ensure smooth communication between the scoreboard and the application. The app grants users the flexibility to tweak the brightness of their display.

Output 27: Single color six displays football scoreboard with timer and HOME & AWAY titles

Pairing the SCOREDUINO-DMD module with six P10 dot matrix displays provides a straightforward solution for creating a basic scoreboard with a digital timer and fixed team titles as HOME and AWAY. These titles are preset and cannot be changed.

Designed for both indoor and outdoor environments, this scoreboard is easy to assemble and operate. With dimensions of 96cm x 32cm(37.80 inches x 12.60 inches OR 3.15 feet x 1.05 feet), it can be customized in vibrant colors like red, blue, white, green, and yellow.

Effortlessly managing the scoreboard's score and timer function is facilitated by the intuitive scoreduino-app, which utilizes Bluetooth connectivity to ensure smooth communication between the scoreboard and the application. Users can seamlessly adjust display brightness via the app.

Output 28: Single color six displays football scoreboard with timer, innings display and HOME & AWAY titles

Pairing the SCOREDUINO-DMD module with six P10 dot matrix displays offers a simple solution for creating a basic scoreboard. This scoreboard features a digital timer, fixed team titles as HOME and AWAY, and displays innings from 1 to 9. These titles are preset and cannot be changed.

Designed for both indoor and outdoor use, this scoreboard is easy to assemble and operate. With dimensions of 96cm x 32cm(37.80 inches x 12.60 inches OR 3.15 feet x 1.05 feet), it can be customized in vibrant colors like red, blue, white, green, and yellow.

Effortlessly managing the scoreboard's score and timer function is facilitated by the intuitive scoreduino-app, which utilizes Bluetooth connectivity to ensure smooth communication between the scoreboard and the application. The app facilitates users in making necessary adjustments to display brightness.

 Output 29: Rugby League Rugby Union Digital Scoreboard

The SCOREDUINO-DMD module, combined with 13 P10 dot matrix displays, provides an effective and straightforward solution for creating a basic scoreboard for rugby league and rugby union.



Key Features

  • Digital Timer: Keeps track of game time.
  • Customizable Team Titles: Easily change team names on the display.
  • Essential Game Metrics: Displays Tries, Penalties, Drop/Field Goals, Conversions, and Total Score.

Design and Usability

  • Outdoor-Friendly: Specifically designed for outdoor use.
  • Easy Assembly and Operation: Quick setup and user-friendly interface.

App Integration
The scoreboard is effortlessly managed through the intuitive scoreduino-app, which connects via Bluetooth. This allows for seamless communication between the scoreboard and the app, enabling users to:

  • Adjust display brightness.
  • Manage score and timer functions with ease.

This combination of hardware and software creates a reliable and efficient scoreboard solution for rugby games.

Output 30: Triple colors  cricket scoreboard- Ultra Large Cricket Scoreboard with 3 large displays

The SCOREDUINO-DMD module, combined with tri-color P10 dot matrix displays, provides a simple and effective solution for creating a basic cricket scoreboard. This scoreboard displays LIVE scores from cricclubs.com and playhq.com, with the top section showing total runs, the middle section displaying wickets, and the bottom section showing overs. Designed for both indoor and outdoor use, it is easy to assemble and operate. The scoreboard measures 96cm x 32cm and can be built in vibrant colors such as red, blue, white, green, and yellow. You'll need an enclosure about 120cm x 40cm to house the scoreboard, allowing enough space between the total runs, wickets, and overs displays. Each display measures 32cm x 32cm.

The cricket scoreboard is conveniently controlled through the Scoreduino app, which uses Bluetooth for seamless communication. Remote operation is also possible by using two Android phones—one connected to the scoreboard via Bluetooth and the other communicating with the first phone through 4G. The app also allows you to easily adjust the display brightness.

  • Video- ▶️ Watch the output- coming soon
  • Images-📸 Flickr
  • Assembly document📑
  • Download App 📲
  • Power Supply ⚡
  • Product Page 🛒 Buy Now
    • Output 31: Dual color Futsal Scoreboard with timer, scores, fouls and period displays
    The SCOREDUINO-DMD module, paired with dual-color P10 dot matrix displays, offers an easy solution for setting up a basic futsal scoreboard. It features six P10 displays: the top section allows for customizable team names (e.g., AUS or USA), while the bottom section displays the timer, scores, fouls, and period. Suitable for both indoor and outdoor use, this scoreboard is simple to assemble and operate. Its compact dimensions of 64cm x 48cm (25.20 inches x 18.90 inches or 2.10 feet x 1.57 feet) make it versatile, and it can be customized in various colors like red, blue, white, green, and yellow.


    Control of the futsal scoreboard is made easy with the Scoreduino app, which uses Bluetooth for seamless communication between the app and the scoreboard. Users can also adjust the display brightness through the app.

    Note: The title display unit consists of two dot matrix displays, while the score unit contains four. Each unit requires its own power source and operates with separate DMD modules. These units are housed in a single box and controlled by a unified app that communicates with both Bluetooth modules simultaneously.
  • Video- ▶️ Watch the output- coming soon
  • Images-📸 Flickr
  • Assembly document📑
  • Download App 📲
  • Power Supply ⚡
  • Product Page 🛒 Buy Now

    •

    OUTPUT 32: DUAL DISPLAY Counter or Scoreboard.

    The SCOREDUINO-DMD module, paired with two P10 dot matrix displays, offers an easy setup for a 3-digit up-down counter or digital scoreboards for sports like cricket, soccer, and more. Each display measures 32 cm x 16 cm (12.60 inches x 6.30 inches or 1.05 feet x 0.52 feet) and is available in vibrant colors, including red, blue, white, green, and yellow. You can arrange two displays of the same or different colors.

    When joined horizontally, the display size expands to 64 cm x 16 cm (25.2 inches x 6.3 inches or approximately 2 feet 1.2 inches x 0.5 feet).

    If stacked vertically, the combined display size is 32 cm x 32 cm (12.60 inches x 12.60 inches or 1.05 feet x 1.05 feet).

    Control is managed through the Scoreduino Android app, which connects via Bluetooth for seamless operation. The app allows brightness adjustments, optimizing visibility in various lighting conditions.

    With multiple output options, each SCOREDUINO-DMD module can be customized to your selected output. The display is easily readable from up to 30 meters, and it supports text messages and numbers. If you have specific customization requests, please let us know—we’ll be happy to build it for you.

  • Video- ▶️ Watch the output- coming soon
  • Images-📸 Flickr
  • Assembly document📑
  • Download App 📲
  • Power Supply ⚡
  • Product Page 🛒 Buy Now

    •

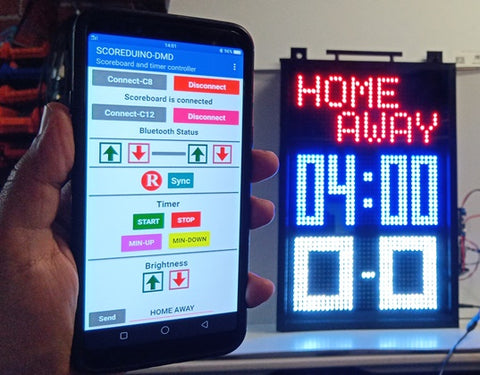

    Output 33: Dual color Futsal Scoreboard with timer, scores, and period displays

    The SCOREDUINO-DMD module, combined with dual-color P10 dot matrix displays, provides an effortless solution for building a basic futsal or soccer scoreboard. This setup includes six P10 displays: the top section displays customizable team names (e.g., AUS or USA), while the bottom section shows the timer, scores, and period. Designed for both indoor and outdoor use, the scoreboard is compact, measuring 64cm x 48cm (25.20 x 18.90 inches or approximately 2.10 x 1.57 feet). It is available in various colors, including red, blue, white, green, and yellow, offering a range of customization options.

    Key Features:

    • User-Friendly Control: The Scoreduino Android app, leveraging Bluetooth technology, ensures seamless communication with the scoreboard. The app also allows users to adjust the display brightness effortlessly.

    • Display Configuration:

      • The title display unit uses two dot matrix displays.
      • The score unit comprises four dot matrix displays.
      • Each unit operates with its own power source and DMD module.

    All components are housed in a single enclosure, and the unified app efficiently controls both Bluetooth modules simultaneously, ensuring smooth operation.

    This scoreboard is easy to assemble, simple to use, and versatile for different environments, making it an ideal choice for futsal and soccer applications.
