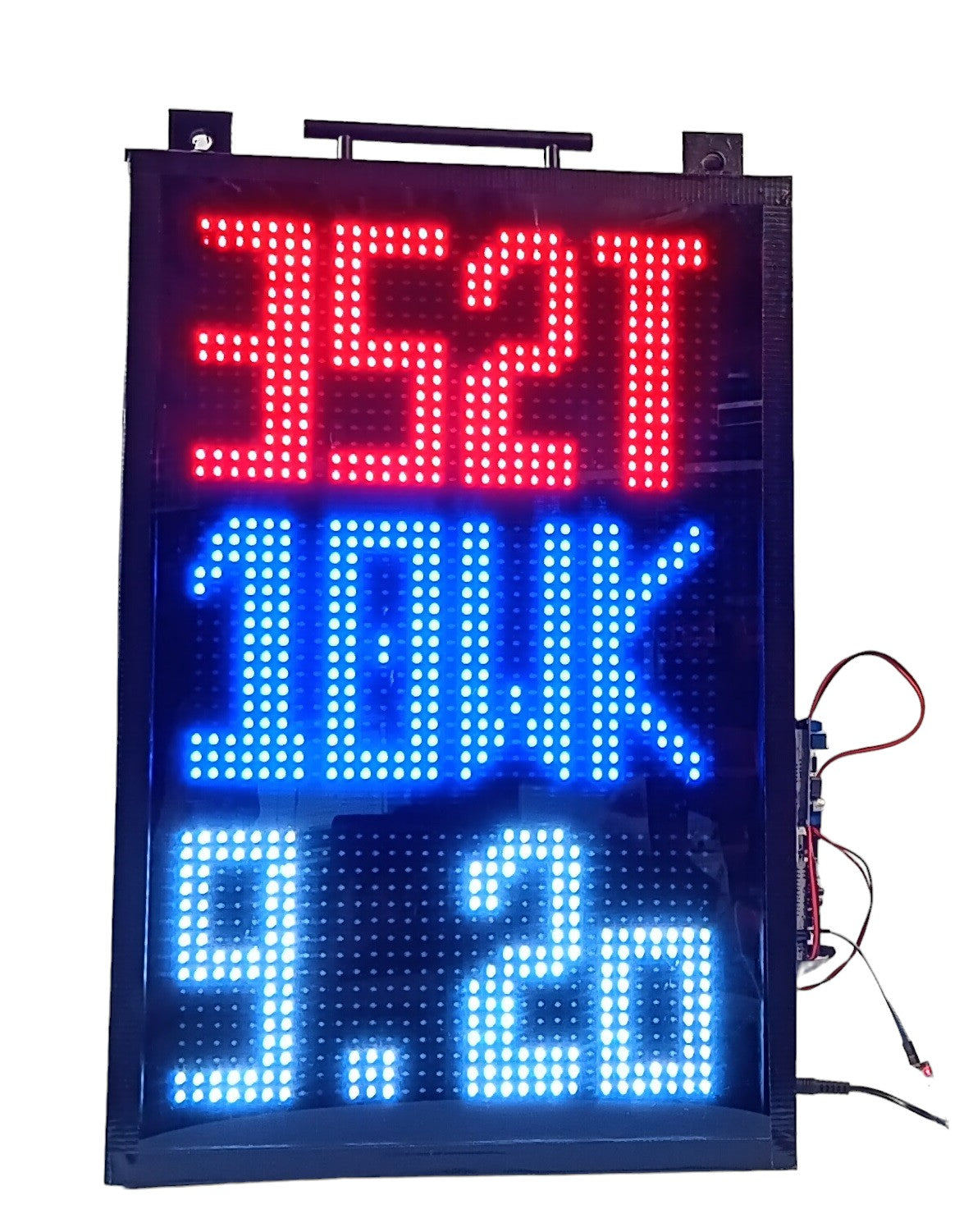

DIY Cricket Scoreboard with 3 color displays- 48cmx32cm

Introducing the SCOREDUINO-DMD Cricket Scoreboard Module

The SCOREDUINO-DMD module, paired with triple-color P10 dot matrix displays, provides an efficient solution for creating a basic cricket scoreboard. This scoreboard prominently features live scores sourced from cricclubs.com and playhq.com via API integration.

Key Display Features:

• Top Display: Total runs
• Middle Display: Wickets
• Bottom Display: Overs

Versatile and User-Friendly Design

Designed for both indoor and outdoor settings, this scoreboard is straightforward to assemble and operate. With dimensions of 48cm x 32cm (18.90 inches x 12.60 inches OR 1.57 feet x 1.05 feet), it is available in vibrant colors such as red, blue, white, green, and yellow.

Control and Connectivity

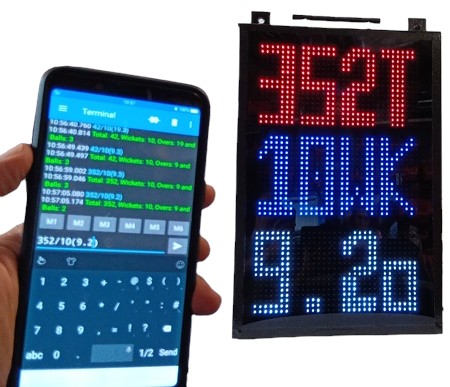

Controlling the scoreboard is made easy with the scoreduino-app, which utilizes Bluetooth connectivity. Users can adjust display brightness directly from the app for optimal visibility.

Features:

• Large Display: Dot Matrix Cricket Scoreboard with a substantial 480mm x 320mm (18.90 inches x 12.60 inches OR 1.57 feet x 1.05 feet) display size.
• Dynamic Score Display: Shows total runs (top), wickets (middle), and overs (bottom).
• Reliable Power: Operates efficiently on a 5V, 6Amp power supply.
• Live Score Integration: Updates scores in real-time from cricclubs.com and playhq.com via API.
• Bluetooth Connectivity: Seamless score updates through an Android app.
• Flexible Range: Manual score updates within 10m (Bluetooth) or unlimited range via 4G/WiFi.
• Portability: Compact design for easy transportation to cricket events.

Options for Purchase

Choose between purchasing just the Scoreduino-DMD module or the complete set with all necessary components and accessories, excluding the enclosure.

Package Includes:

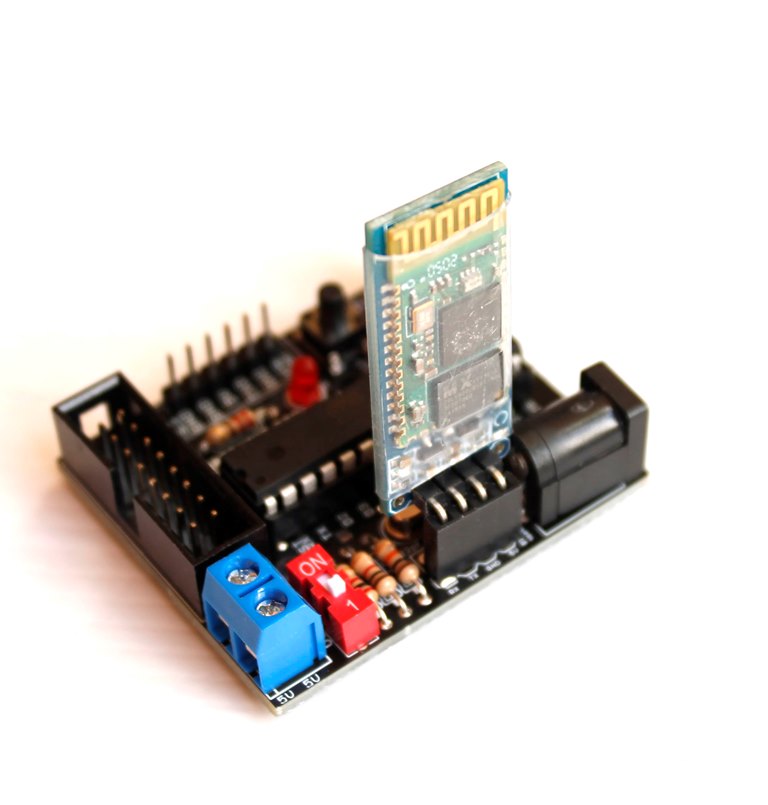

• Option 1: Scoreduino P10 DMD Scoreboard Controller module + Bluetooth module (displays and enclosure sold separately).
• Option 2: Scoreduino P10 DMD Scoreboard Controller module + Bluetooth module + All accessories (excluding enclosure and acrylic).

These parts are included:

• 3 x OUTDOOR- Through hole- P10 Dot matrix Display 32cmx16cm dot matrix display- choose your color. In inches: 12.60 inches x 6.30 inches and In feet: 1.05 feet x 0.52 feet
• 2 x 80cm long cable
• 1 x 20cm long cable
• 1 x Box for keeping Scoreduino module (108mmx56mmx40mm)
• 1 x SCOREDUINO DMD Module
• 1 x 5V-6A Power supply EU/UK/USA/AU
• 1 x strips set to connect the displays
• 1 x Bluetooth module
• 1 x DC barrel female


• Option 3: Fully assembled scoreboard with wooden enclosure and acrylic (no additional assembly required, handmade enclosure).

Assembly Requirements

Customers must assemble the components themselves, including P10 dot matrix displays, cables, power supply, and mounting brackets. An assembly tutorial and manual score update app are provided for assistance.

Important information:

• Assembly tutorial
• Check out all the images on Flickr
• Check out all output options
