Description
The SCOREDUINO-DMD module, paired with dual-color and six P10 dot matrix displays, offers a straightforward solution for setting up a basic cricket scoreboard. This scoreboard effortlessly showcases LIVE scores from cricclubs.com and playhq.com (via API), cycling through total runs, wickets, and overs, with each parameter displayed for 2 seconds.
For example, scores are displayed as 22R, 5W, 4.3ov, representing 22 runs, 5 wickets, and 4.3 overs.

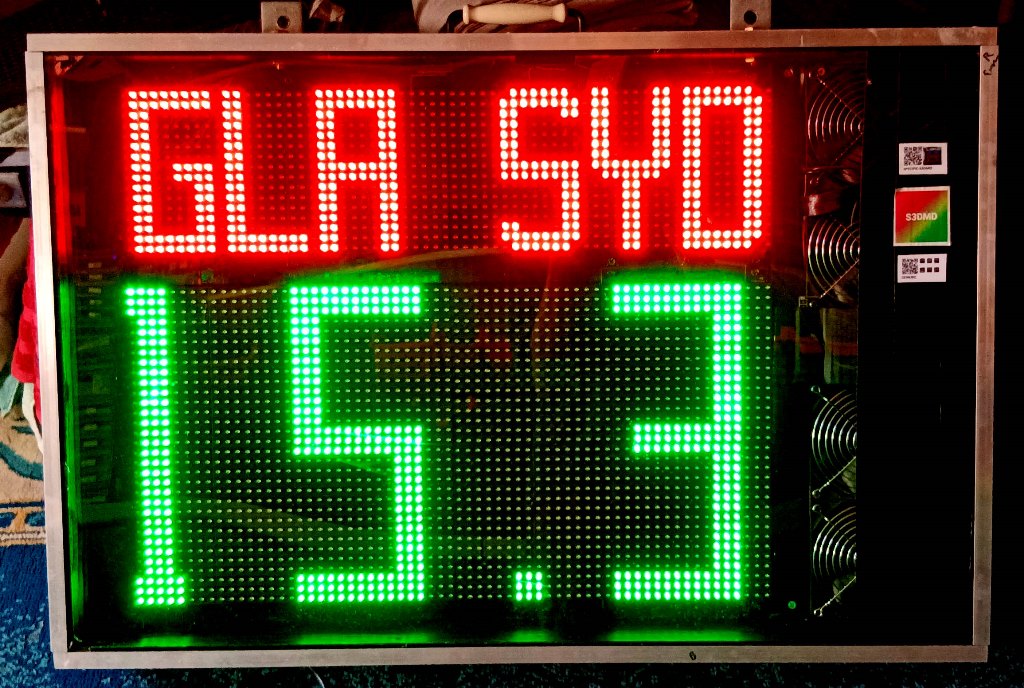

The top display shows the name of the playing team, such as INN1 AUS or INN2 USA, while the bottom display shows runs, wickets, and overs. Designed for both indoor and outdoor use, this scoreboard is easy to assemble and operate. With dimensions of 64 cm x 48 cm (25.20 inches x 18.90 inches OR 2.10 feet x 1.57 feet.)
, it is available in vibrant colors like red, blue, white, green, and yellow. The scoreboard is managed through the user-friendly Scoreduino app, utilizing Bluetooth connectivity for seamless communication between the scoreboard and the app. Users can conveniently adjust the display's brightness using the app.
Scores can also be updated manually using our app: Download Manual Score Update App
NOTE: The title display unit consists of 2 dot matrix displays, while the score unit comprises 4 matrix displays. Each unit requires separate power sources and operates with two distinct DMD modules. These units are packaged together in a single box and controlled by a unified app that communicates with two Bluetooth modules simultaneously.
You can either purchase the Scoreduino-DMD module alone or buy the entire set of components and accessories to build your own scoreboard. The enclosure and front acrylic are not included.
Check out the video outputs:
Package includes:
Option 1:
- 2 x Scoreduino P10 DMD Scoreboard Controller module
- 2 x Bluetooth module ONLY.
- The Scoreduino controller module comes preprogrammed to drive the scoreboard. Customers will need to purchase the P10 dot matrix displays and other accessories separately.
Option 2:
- Scoreduino P10 DMD Scoreboard Controller module
- Bluetooth module
- All accessories (Excludes enclosure and acrylic).
Included Parts:
- 6 x OUTDOOR Through-Hole P10 Dot Matrix Display (32 cm x 16 cm) - choose your color. In inches: 12.60 inches x 6.30 inches In feet: 1.05 feet x 0.52 feet
- 1 x 80 cm long cable
- 2 x Boxes for keeping Scoreduino module (108 mm x 56 mm x 40 mm)
- 2 x SCOREDUINO DMD Module
- 2 x 5V-6A Power Supply (EU/UK/USA/AU)
- 1 x Strips to join the displays
- 1 x Top carrier/handle
- 2 x Bluetooth module
- 2 x DC barrel female
- 4 x Aluminum frames (2 pcs 900 mm and 2 pcs 600 mm)
- 2 x Metal brackets to hang the scoreboard
- 2 x Nut bolts
Customers need to purchase front screen acrylic and timber and build their own wooden enclosure (90 cm x 60 cm). You will need a drill machine, cutter, grinder, etc.
Option 3: Fully assembled scoreboard with wooden enclosure and acrylic. Customers don't need to do anything. NOTE: The scoreboard enclosure will be handmade, so do not expect perfect output.
This tutorial will help you assemble the parts
Download Manual Score Update App
Important Notes
- Our source codes are not shared.
- All modules are preprogrammed.
- Check out all the images on Flickr
-
Check out all output options
Shipping & Return
SHIPPING
Our default shipping method is Registered International Post with a tracking code. Alternatively, you may opt for express shipping via DHL or FedEx.
Please note that we endeavor to ship all orders within 24 to 48 hours. The typical delivery time frame ranges between 2 to 4 weeks.
Kindly be aware that unforeseen circumstances, including customs or postal delays, may occasionally affect delivery times beyond our control.
Customers are responsible for any customs charges and should verify their country's customs policy.
RETURNS
If you are dissatisfied with the product, you may initiate a return within one month from the date of delivery. Please ensure that the product is sent back to our address in Sydney, Australia. Kindly note that all shipping charges associated with the return are the responsibility of the customer.
