SCOREDUINO-ESP32 Modules For P3, P4 and P5 Indoor RGB LED Matrix Display

This is the SCOREDUINO-ESP32 module, designed for use with P3, P4, and P5 RGB LED matrix displays.

It is ideal for building digital scoreboards, digital menus, personal work organizers, and digital notice boards.

The module features two pairs of screw terminals, allowing you to connect 1-4 displays with ease.

Simply power the module using a 5V adapter for seamless operation.

While you can use this module for various other applications, basic source codes are provided to help you get started. However, source codes specific to digital scoreboards, menus, personal work organizers, and digital notice boards are not shared with customers.

SCOREDUINO-ESP32 Module Features:

1. 🔧 Powered by ESP32 Module

   • Advanced and reliable ESP32 technology ensuring seamless operation.

2. 🌐 Wi-Fi or Bluetooth Operated

   • Effortless connection to your local or ESP32 network for enhanced control and accessibility. You can use Bluetooth also.


3. 📱 Multi-Platform Control

   • Operate via a dedicated Android app, iPhone browser, or computer browser for maximum flexibility. Build your own app using Mit Media lab app inventor


4. 🛠️ Easy Assembly

   • Simple setup process with minimal effort; perfect for quick installations.

5. 📏 Versatile Sizing Options

   • Suitable for RGB Matrix display sizes ranging from 19.2cm x 19.2cm to 64cm x 32cm, (approximately 7.5 inches x 7.5 inches to 25.2 inches x 12.6 inches) catering to different display needs.

6. 🏟️ Designed for Indoor Displays

   • Ideal for sports like table tennis, futsal, and more, with clear and vibrant displays. Suitable for digital notice board, digital menu, etc.


7. 💡 Drives LED Matrix Displays

   • Built for  P3, P4, and P5 RGB LED matrix display

8. 🔢 Wide Range of Combinations

   • Up to 20 different size combinations available to suit your specific requirements.

9. 🔌 Simple Plug-and-Play

   • Just connect the SCOREDUINO-ESP32 module to the LED displays, power it up, and start using immediately.

10. 👜 Portable and Adaptable

    • Easy to assemble and reassemble, making it a convenient solution for various events.

We have 4 types of modules for 30 pins and 38 pins ESP32:

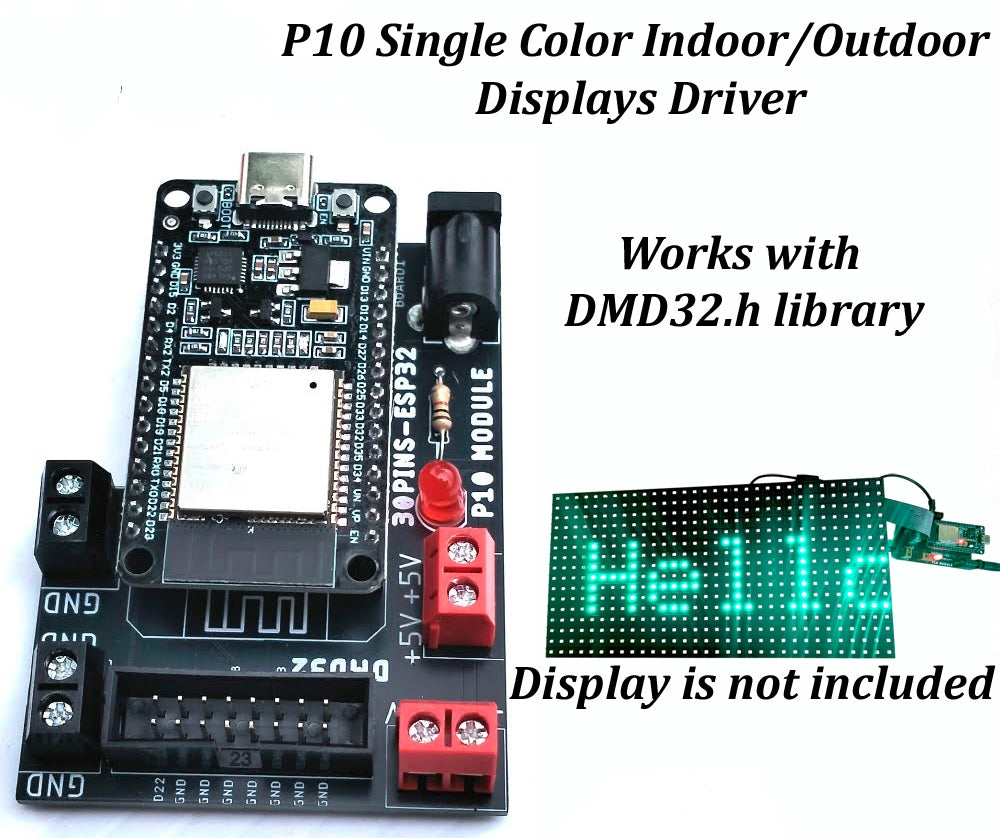

TYPE 1: SCOREDUINO-ESP32 30 pins Module for P10 single color displays

• This module is designed to support DMD32 library.

• Schematic of this module is based on this image.
• You can use this module to build a scrolling text display
• Install ESP 32 board version 1.0.6 in board manager. It does not work with other versions.

• Check out all the images on FLickr

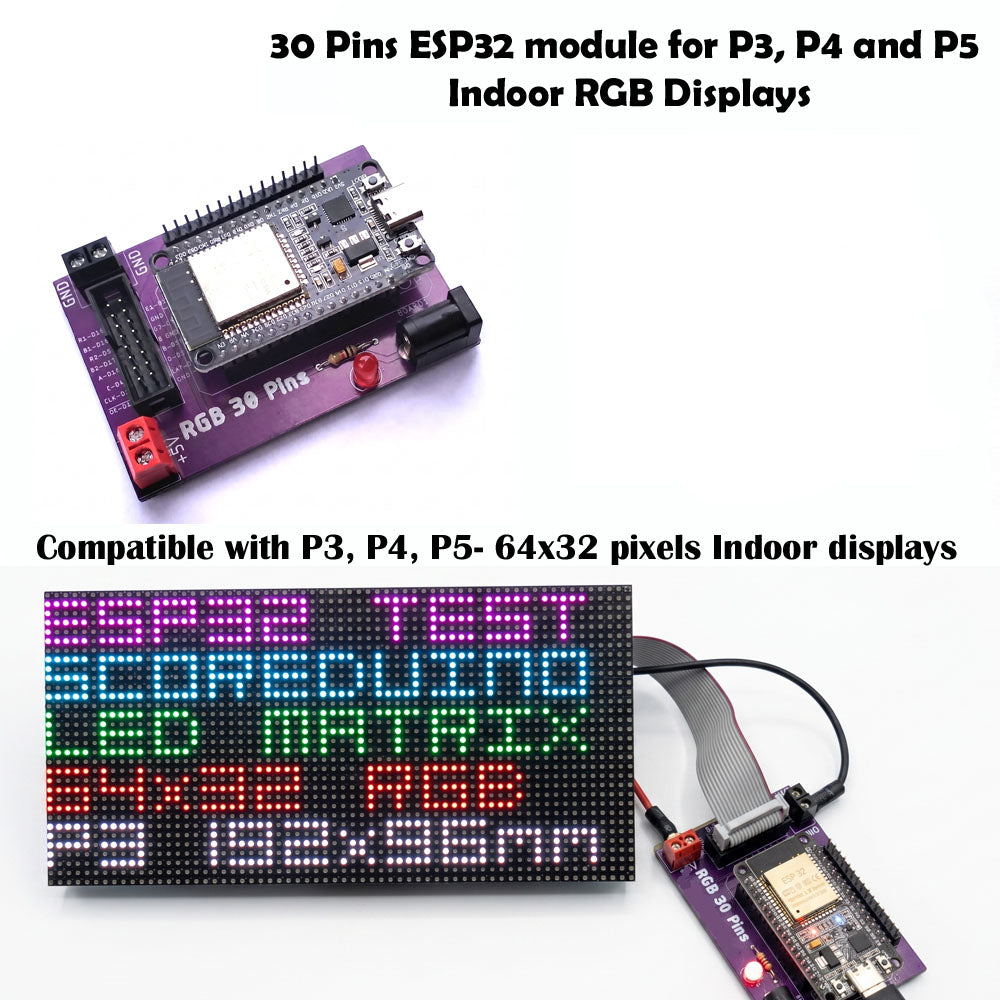

TYPE 2: SCOREDUINO-ESP32 30 pins Module for RGB LED matrix displays

• This module is designed to support ESP32-HUB75-MatrixPanel-DMA library.
• Check out all the images on Flickr

• 1 x SCOREDUINO-ESP32 Module of your choice
• 1 x ESP32 30pins/38 pins depending upon which SCOREDUINO-ESP32 module you choose
