SIZE 5- Wi-Fi controlled Indoor digital scoreboard with P4 64x64 pixels RGB LED matrix- 25.6cmx25.6cm / 10.08inches×10.08inches

Indoor Digital Scoreboards for Indoor Games

Bring a more professional look to indoor games with this full-color RGB digital scoreboard, designed especially for hobbyists and personal or community sports venues. The scoreboard is available in different sizes and can display team names, scores, a digital timer, and the current quarter, inning, or period. The colors of the displayed information can be customized to match different preferences or team colors. Easy wireless operation is provided through a browser-based WiFi control interface as well as an RF remote. Users can choose between short- and long-range RF remote controls depending on the size and layout of their venue. Each scoreboard is manufactured with a custom 3D-printed PETG enclosure, keeping the design portable, simple, and affordable.

Features Common Across All Scoreboards

• Supports 2 Players/Teams: Designed for two-player or two-team games.
• ESP32 Controlled: The scoreboard is powered by the versatile ESP32 microcontroller for reliable performance.
• Wi-Fi Communication: Seamless connectivity between the scoreboard and the app via Wi-Fi.
• Team Names Display: Displays team names using up to 3 characters.
• Integrated Digital Timer: A clear and precise digital timer is positioned at the top.

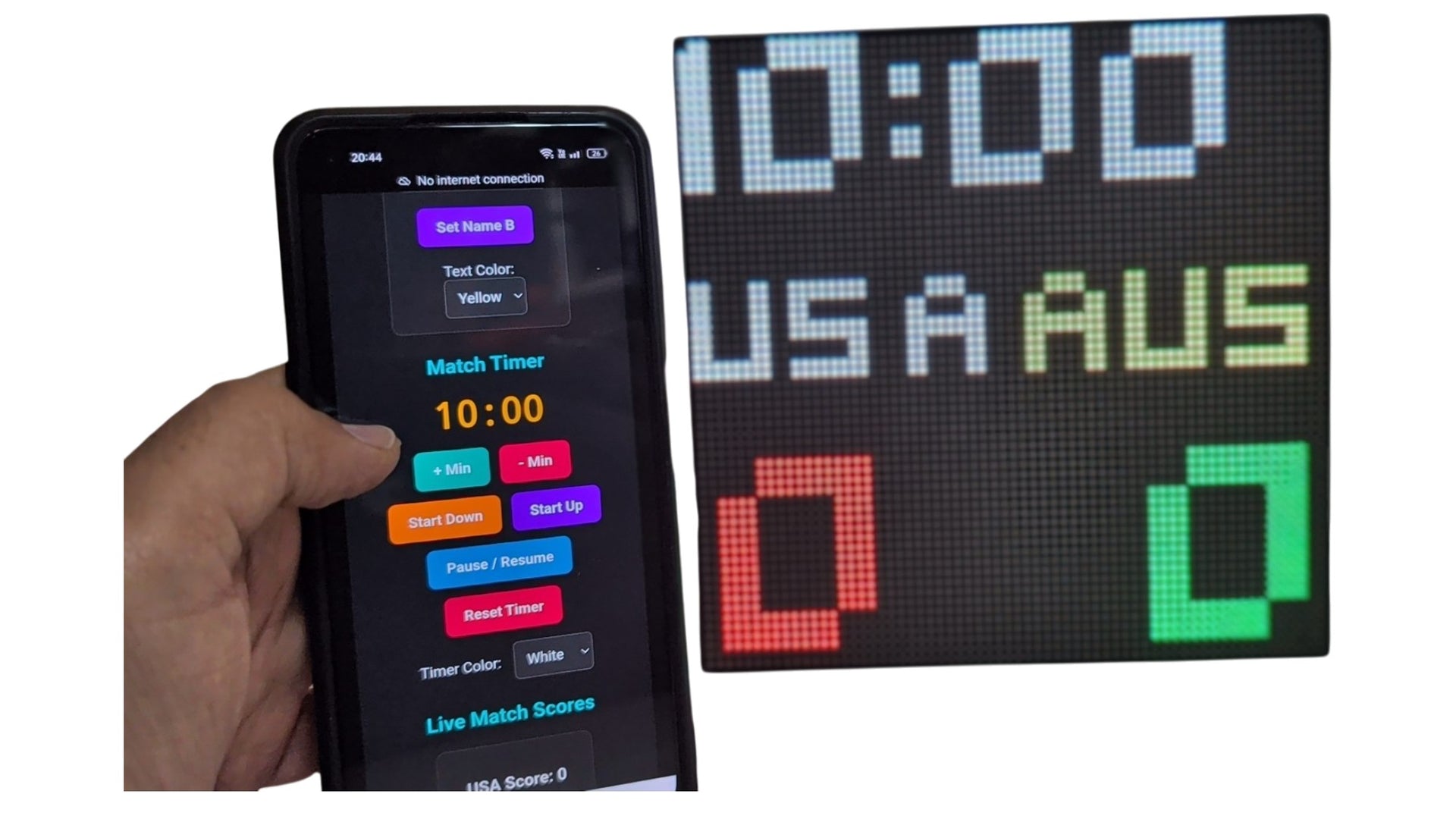

• Web Browser Control: Provides an alternative for users with computers or iOS devices, including iPhones, to manage the scoreboard via a browser.
• Dedicated long range(200m) remote control (Optional):  Once the team names are set up via browser based app, users can use the remote control to update scores, innings and timer.
• Set colors: Users can set the colors of team names, scores and timer via the browser based interface. You can choose these colors: RED, GREEN, WHITE, YELLOW and BLUE


Specifications:

• Display Size - 1 set (P4- 64x64 pixels): each display dimensions: 25.6cm x 25.6cm / 10.08inches×10.08inches

• Indoor Use Only: Designed for optimal performance in indoor settings.
• Power Supply: Operates on a 5V-4A power supply.

Available Models

SCORE4 Scoreboard- with timer

Check out all the images on Google Photos

A basic scoreboard featuring:

• Digital timer

• Team name display- 3 characters
• Score display (up to 4 digits)

• Total size:  25.6cmx25.6cm / 10.08inches×10.08inches
• The name “SCORE4” reflects the maximum number of digits (4) available for displaying the score.
• You can use remote control(optional) to operate the scoreboard
• Enclosure is available (optional). Read about quality.
• Scores are saved in the memory even if the power is turned off.
• Change the colors of timer, team names and scores. Available color options are RED, GREEN, BLUE, YELLOW and WHITE

SCORE5 Scoreboard

Check out all the images on Google Photos

An advanced version for sports featuring:

• Digital timer

• Team name display- up to 3 characters for each team.
• Innings and scores (up to 5 digits)
• Dimensions: 25.6cmx25.6cm / 10.08inches×10.08inches
• You can use remote control (optional) to operate the scoreboard
• Enclosure is available (optional). Read about quality.

• Scores are saved in the memory even if the power is turned off.
• Change the colors of timer, team names and scores. Available color options are RED, GREEN, BLUE, YELLOW and WHITE

The name “SCORE5” represents the capability to display scores up to 5 digits.

Package Includes

1. Fully Assembled Scoreboard with enclosure(with all the parts required)
2. 5V-4A Power supply
3. Remote Control

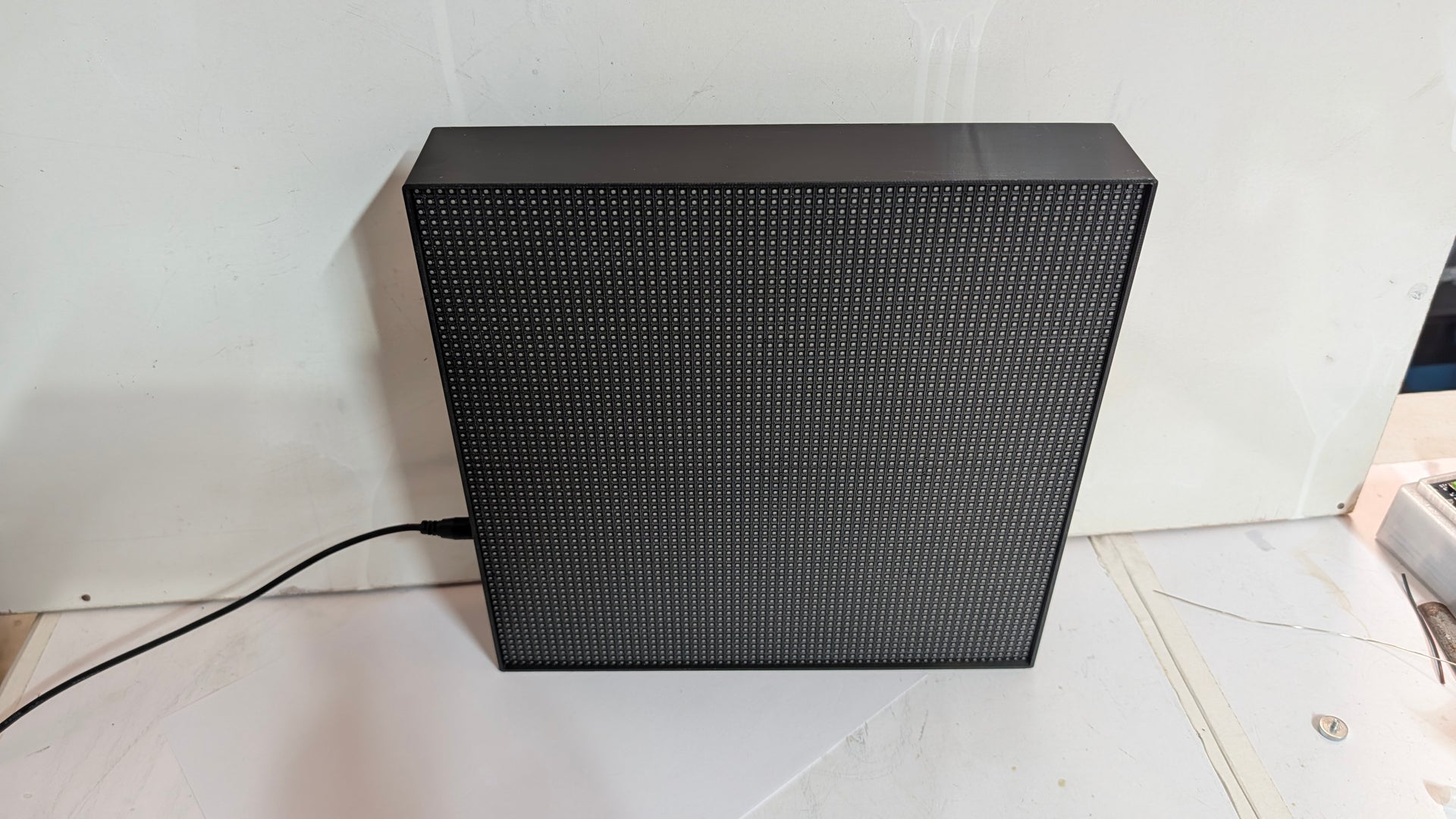

About 3D printed Enclosure:

Please note that this scoreboard uses a 3D printed enclosure rather than a folded metal enclosure.

Because large parts exceed the printing size of most 3D printers, the enclosure is manufactured in multiple sections which are permanently joined together.

As a result, you may notice:

• Small join lines

• Minor glue marks

• Slight surface blemishes

• Normal 3D printing layer lines

These cosmetic characteristics are normal and do not affect the performance, strength or durability of the scoreboard.

The enclosure is designed to:

• Securely hold the electronics

• Protect the display

• Keep the scoreboard lightweight

• Make transportation easy

Once installed during a game, the focus is on the bright LED display rather than the enclosure itself.

Whether you’re hosting a competitive game or just enjoying some friendly matches, these customizable, feature-rich digital scoreboards will elevate the experience for players and spectators alike.

Read more about the enclosure
