Description
This product is shipped from Sydney, Australia. Worldwide shipping available- we ship to USA, Canada, New Zealand, UK, EU and Non-EU countries.

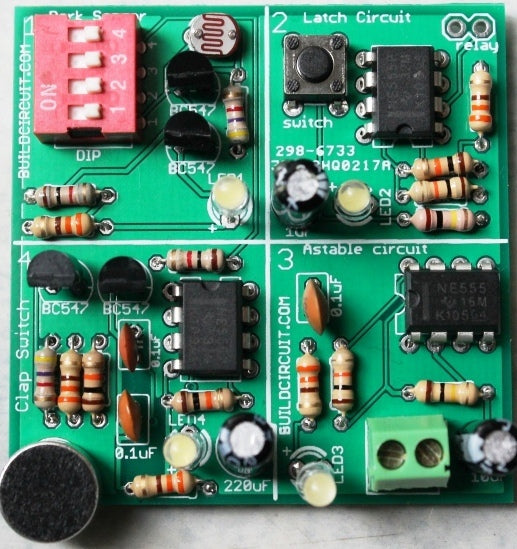

Description: This is a simple 4-in-1 do-it-yourself (DIY) kit from BuildCircuit. The kit has four different circuits that can be switched on separately or together at a time using a DIP switch.
The four circuits are:
2. A latch circuit using NE555 timer.
3. Astable circuit using NE555 timer.
Besides these 4 circuits, by changing the values of the resistors and capacitors, you can change the behavior of the circuits. For example, in the astable circuit, if you change the resistance values, it works as an Infrared (IR) transmitter and you can use it in remote operated switch circuits.
Get the schematic and description from this page.

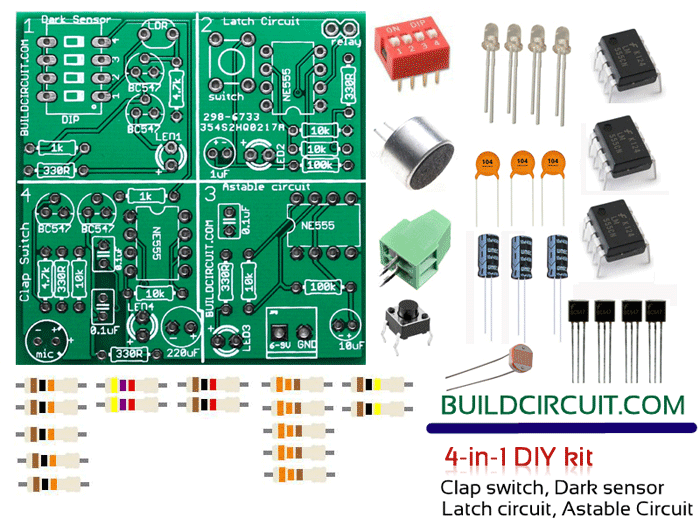

You get the following components with this kit package:
1. LDR- 1 pc
2. 8 pin DIP switch- 1pc
3. Electret Microphone- 1pc
4. Screw terminal- 1pc
5. Tactile switch- 1pc
6. 3mm LED- 4 pcs (color: red/white/yellow/green/blue)- Can be any color
7. 0.1uF ceramic disc capacitor- 3 pcs
8. Electrolytic capacitors- 3 pcs (1uF, 10uF and 220uF)
9. NE555 timer- 3 pcs
10. BC547(NPN transistor)- 4 pcs
11. PCB- 1pc
12. 9V battery clip- 1 piece
13. Resistors pack(click on the links for color codes ): 10K (5 pcs), 330R (5 pcs), 4.7K (2 pcs), 1K (2 pcs), 100K (2 pcs)

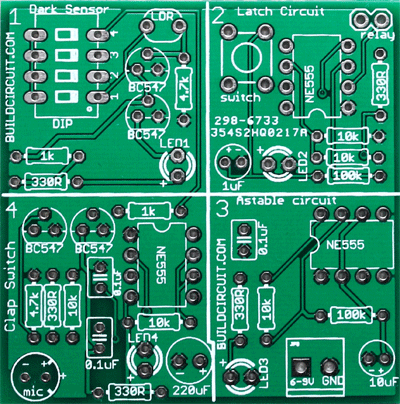

The PCB:
Other documents:
