Description
This product is shipped from Sydney, Australia. Worldwide shipping available- we ship to USA, Canada, New Zealand, UK, EU and Non-EU countries.
This is a dependent DIY kit module that has to be used with a clap switch available at buildcircuits.com. This kit DOES NOT work independently as a clap switch. It is useless without this clap switch kit. So, you need to order that kit also.
It comes as a pack of parts kit and is easily assembled if you can follow the silkscreen indicators (labels) and have beginning experience with a soldering iron. You will need to read the resistor bands or use a multimeter to determine the resistor sizes. The kit operates with a 9V battery.
Features:
- A DIY kit module that works with this clap switch kit. It is useless without the clap switch.
- Operates a 100-240V lamp with clap/loud sound.
- Supply voltage: 6V-9V. The same power supply can be used for this clap switch kit.
- There are two supply input points: a DC barrel and a screw terminal. You can use one of the points to power up the kit.
- Dimension: 48.26mm x 49.53mm.
- Relay specification: Activation voltage: 5V DC. Controls appliances operating at 10A 250VAC, 10A 125VAC, 10A 30VDC, 10A 28VDC. Suitable for Europe, North America, Australia and New Zealand.

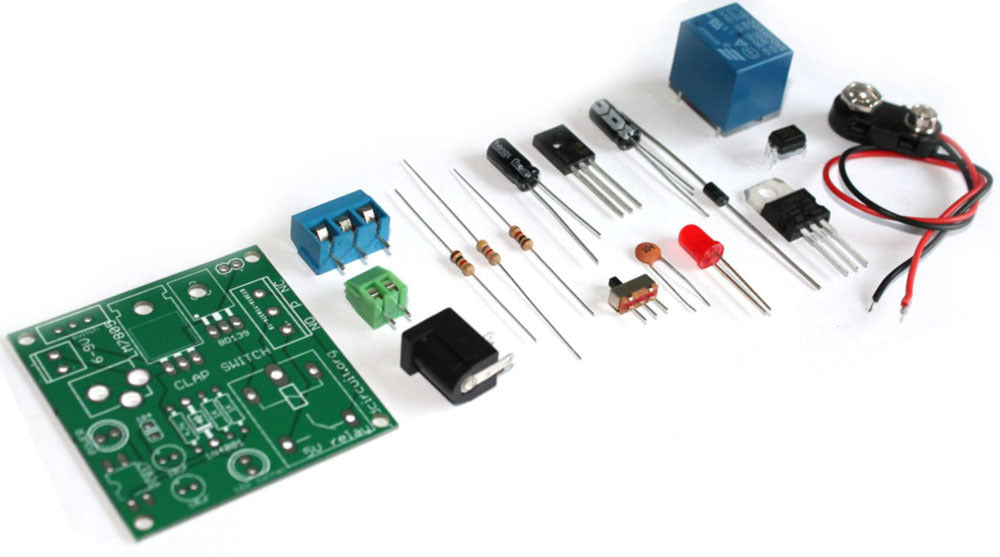

The kit package contains the following components:
- 1 x Bare PCB with Silkscreen indicators
- 2 x 1K carbon film resistor
- 1 x 4.7K carbon film resistor
- 1 x 1N4001 diode
- 1 x LM7805
- 1 x BD139
- 1 x 0.1uF (code- 104)
- 2 x 10uF capacitor
- 1 x PC817 optocoupler
- 1 x SPDT switch
- 1 x 5V relay
- 1 x 3 pin screw terminal
- 1 x 2 pin screw terminal
- 1 x DC barrel
- 1 x 5mm LED
- 1 x 9V battery connector

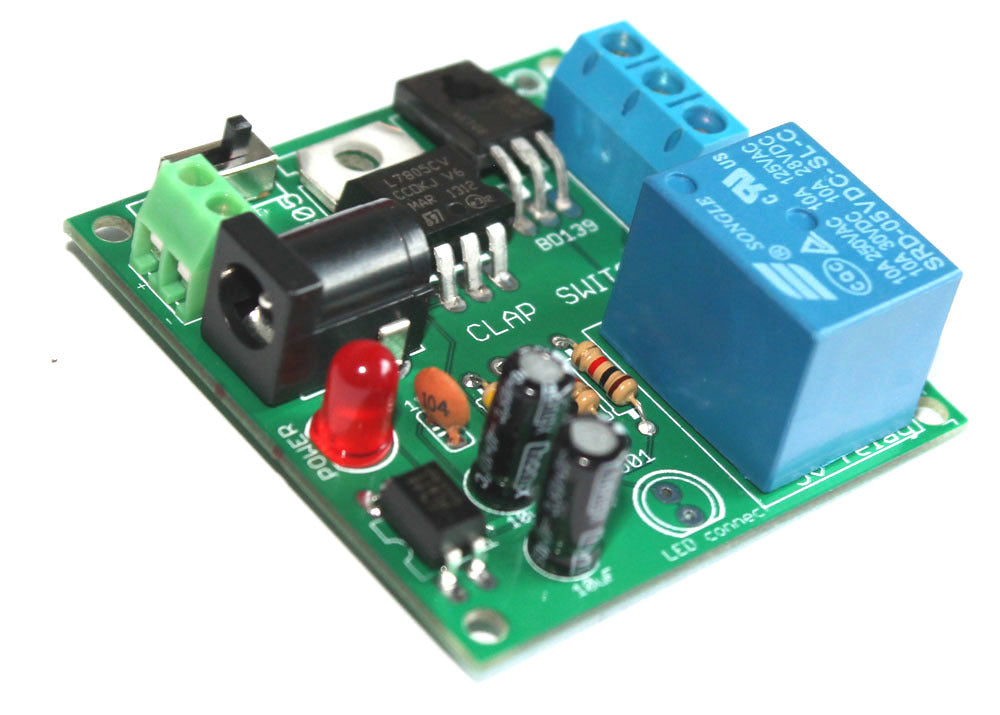

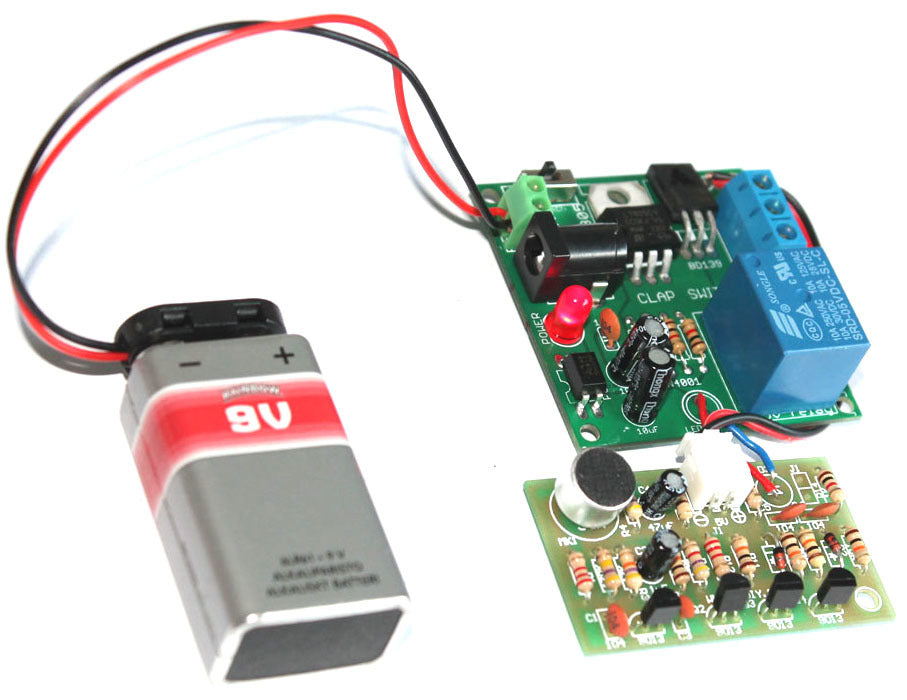

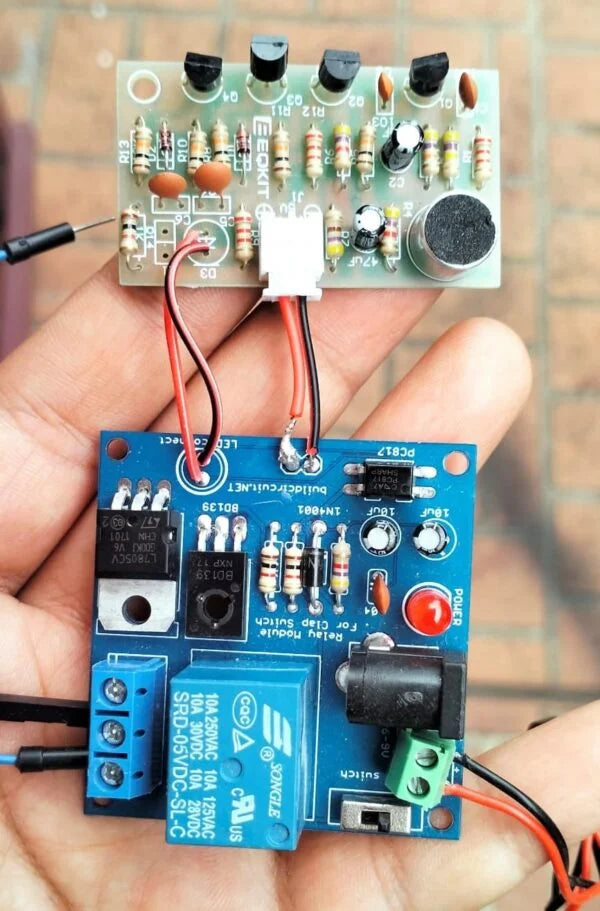

NOTE: We are selling a slightly different PCB, this will make your job easier. This is better than the previous one. Available in BLUE color. See the image below to know how you can connect the relay module to the clap switch
Documents:
- About relay module and its schematic
- Assembly tutorial
- Connecting clap switch to the relay module
- How to connect a lamp to the relay module
- Relay module assembly steps
- Relay & clap switch together
Order the clap switch kit also. The relay module is useless is without the clap switch.
