Easy Clap switch- DIY kit

NOW, IT IS POSSIBLE TO CONNECT A RELAY MODULE TO THIS KIT TO OPERATE APPLIANCES WORKING AT 100-240V AC.

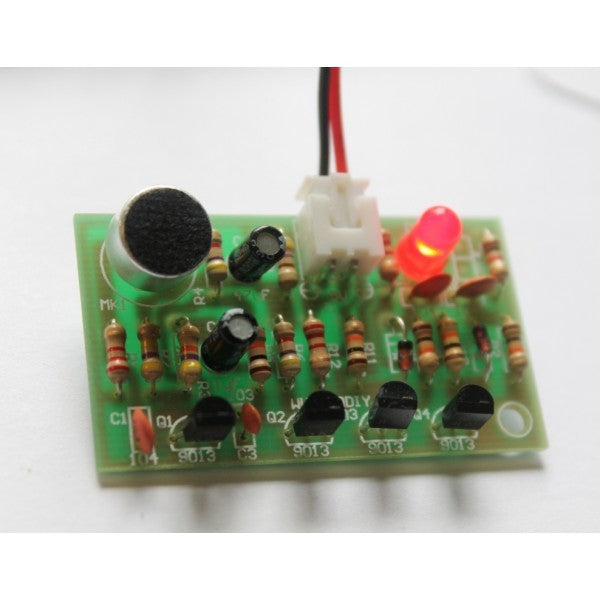

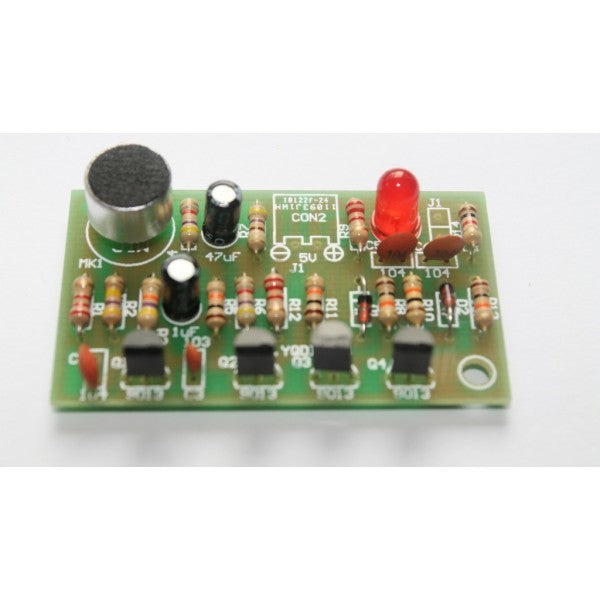

It's simple DIY clap switch for electronics beginners and amateurs. The circuit operates in two permanent states- ON and OFF. On the first clap, it switches on the LED and on the second clap, it switches off. This circuit can be a good start for amateurs.

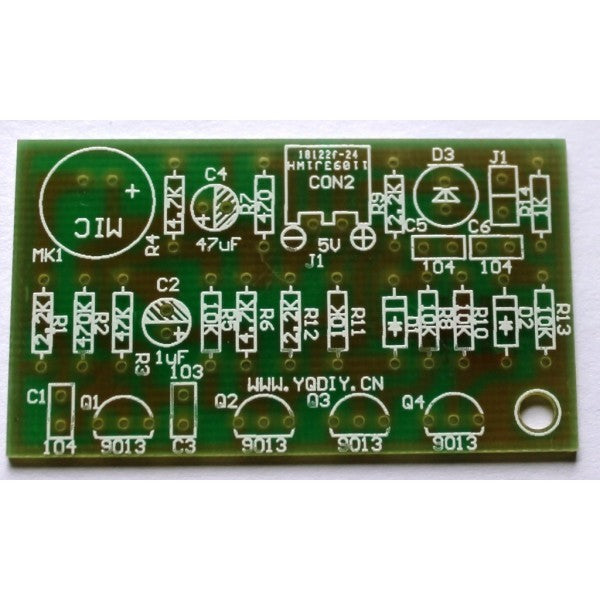

Comes as a pack of parts kit and is easily assembled if you can follow the silkscreen indicators(labels) and have beginning experience with a soldering iron. You will need to read the resistor bands or use a multimeter to determine the resistor sizes.

The kit operates with a 6V-9V battery.

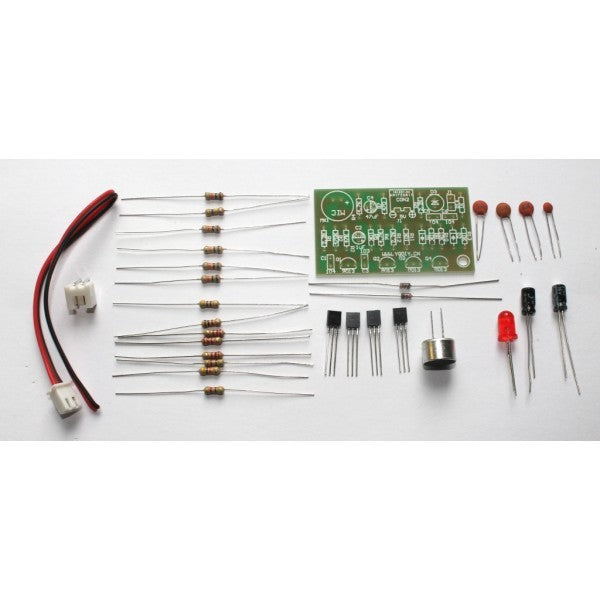

Kit package contains the following components:

• 2 x 4.7K resistor
• 1 x 470R resistor
• 3 x 2.2K resistor
• 1 x 470K resistor
• 1 x 1K resistor
• 1 x 47K resistor
• 5 x 10K resistor
• 2 x 1N4148 diode
• 4 x 9013 Transistor
• 1 x LED
• 3 x 0.1uF ceramic capacitor (code 104)
• 1 x 0.01uF ceramic capacitor (code 103)
• 1 x 47uF electrolytic capacitor
• 1 x 1uF electrolytic capacitor
• 1 x Electret microphone.
• 1 x Bare PCB with Silkscreen Indicators
• 1 x JST connector for power supply

We may send 4 color or 5 color code resistors. Click on the resistors link to see the color code.

Documents:

• About clap switch-DIY kit
• Assembly
• Schematic.
• Flickr Images
• Video

Now, it is possible to connect a relay to this clap switch and operate lamps working at 100-240V AC. Check out the kit below:

Relay module for clap switch

Posts related to relay module for the clap switch

VIDEO
