2 Digit Digital Object Counter module and Infrared Transmitter

WE HAVE UPGRADED THE KIT. NOW, IT WORKS WITH INFRARED AND LASER LIGHT. IT GIVES HIGHLY STABLE OUTPUT, NO FALSE TRIGGERING AT ALL.

CHECK OUT THE NEW PRODUCT.

Description: A digital object counter can be used for counting objects. It can be used for fun at home for counting objects or people entering a room. Since it's a DIY kit, it can obviously be used for learning basic electronics.

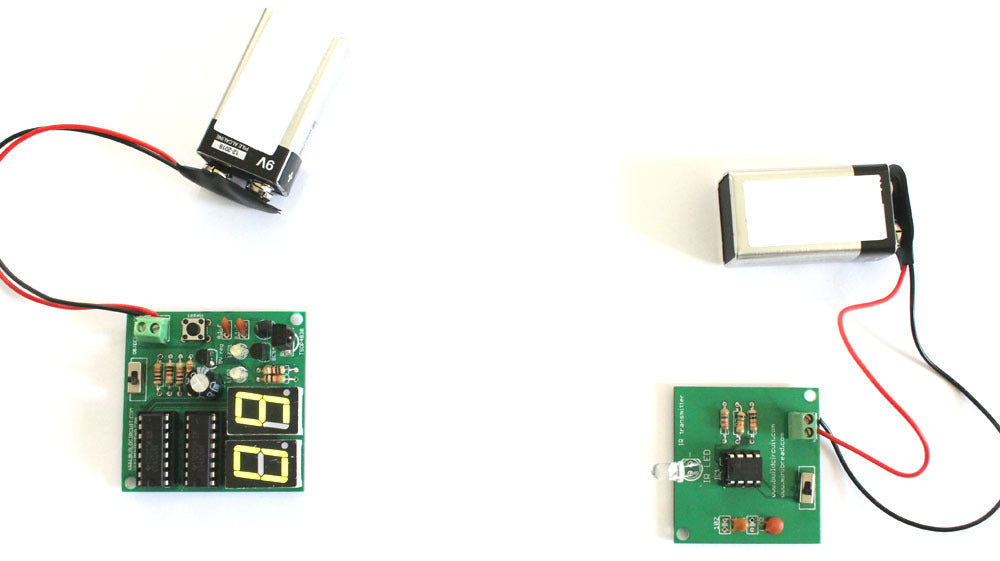

This DIY digital object counter works with TSOP4838 infrared receiver and there are two seven segment displays displaying numbers from 0 to 99. An IR transmitter is oriented towards the TSOP4838 infrared receiver of the counter module and objects are moved between the two modules. Each time an object passes between the two modules, the seven-segment displays show increment in numbers.

It comes as a pack of parts kit and is easily assembled if you can follow the silkscreen indicators(labels) and have beginning experience with a soldering iron. You will need to read the resistor bands or use a multimeter to determine the resistor sizes.

Both the kits operate with 9V batteries.

Features:

The distance between the transmitter and receiver modules can be around 1 meter.

The counter module can be reset to 0 at any time and restart the counting.

The counter module can be operated with any kind of remote control. Therefore, it can also be used as a remote tester. For each press on the remote control, there is an increment in number.

Kit package contains components for counter and IR transmitter modules:

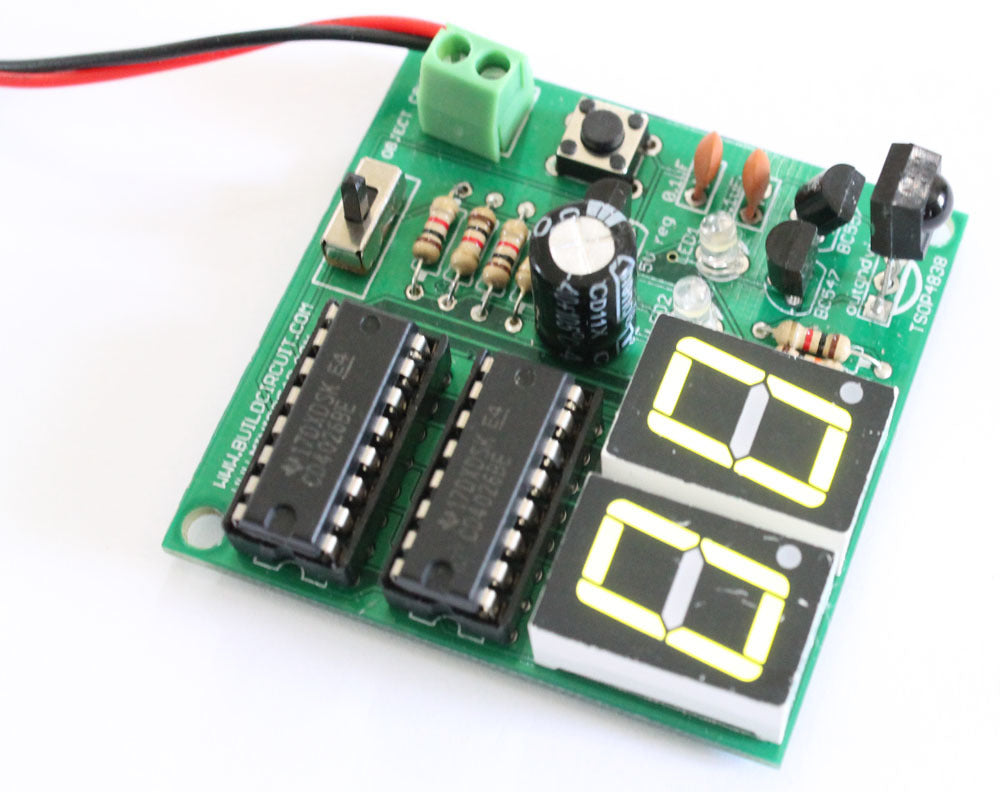

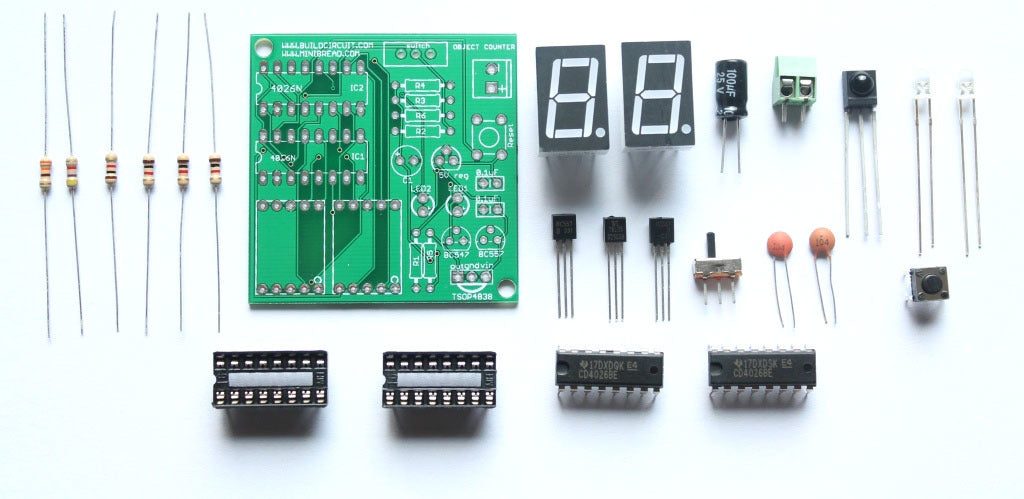

A. Components for the counter module (altogether 26 components)

1. 1 x TO-92 5V Voltage Regulator(78L05)
2. 2 x CD4026 Decade counter
3. 2 x 16-pin IC socket.
4. 2 x common cathode seven segment display-(Can be in red, yellow and blue colors)
5. 1 x TSOP4838 Infrared sensor
6. 1 x 100uF Capacitor- (Voltage rating can be between 16V to 50V- causes no problem in operation)
7. 2 x 0.1uF 50V Ceramic Capacitor
8. 2 x 3mm LED- (can be any color)
9. 1 x BC547
10. 1 x BC557
11. 1 x SPDT Slide Switch
12. 1 x Tactile reset switch
13. 1 x Screw terminal- (can be in blue/green colors)
14. 4 x 1K Ohm Resistor 1/4W
15. 1 x 330R Resistor 1/4W
16. 1 x 10K Ohm Resistor 1/4W
17. 1 x Bare PCB with Silkscreen Indicators- now in RED Color
18. 1 x 9V battery connector

We may send 4 color or 5 color code resistors.

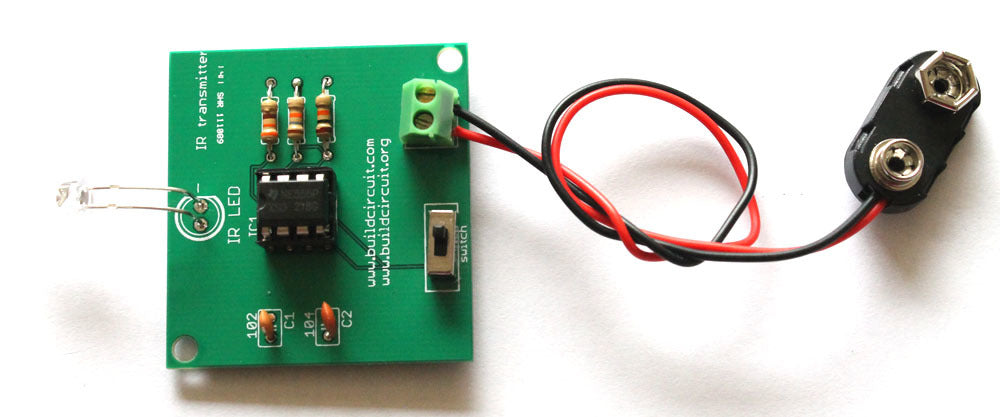

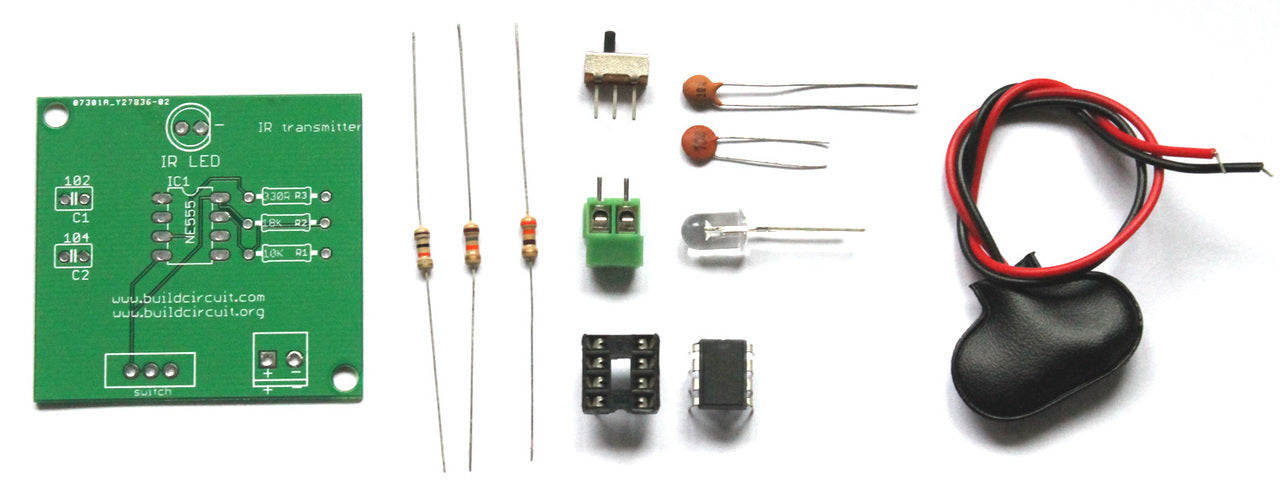

B. Components for IR transmitter module (altogether 12 components)

1. 1 x NE555 timer chip
2. 1 x 8-pin IC socket.
3. 1 x Infrared LED
4. 1 x 0.1uF 50Vceramic Capacitor - code 104
5. 1 x 0.001uF 50V ceramic Capacitor - code 102
6. 1 x SPDT Slide Switch
7. 1 x Screw terminal
8. 1 x 330R Resistor 1/4W
9. 1 x 10K Ohm Resistor 1/4W
10. 1 x 18K Ohm Resistor 1/4W
11. 1 x Bare PCB with Silkscreen Indicators
12. 1 x 9V battery connector

We may send 4 color or 5 color code resistors.

Documents:

• About digital object counter
• Assembly tutorial- Counter module
• Assembly tutorial- IR transmitter module
• Schematic
• Object counter manual- in pdf format
• Flickr Images
