SIZE 2- Wi-Fi controlled Indoor digital scoreboard with 2 chained P5 64x32 pixels RGB LED matrix- 64 cm×16 cm / 25.2inches×6.3inches / 2.1 feet × 0.52 feet

Please Contact us  before placing your order to ensure you're purchasing the right scoreboard for your needs. We also offer customization, as we design and manufacture our own scoreboards and enclosures.

The scoreboard will be shipped within 10–20 days from the date of your order.

This lead time is required to manufacture, print, and assemble the enclosure to our quality standards. Additionally, we do not keep all components in stock at our Sydney facility. Some parts are imported specifically after an order is placed to ensure you receive the latest and highest-quality components.

RGB Digital Scoreboards for Indoor Games

BUILDCIRCUITS/SCOREDUINO's DIY digital scoreboards are designed to make your indoor games more engaging and professional. While all modules come pre-assembled, you have the flexibility to mount the display on a wooden board or any other setup of your choice. With a little creativity, you can customize the design to make it visually appealing and functional for your sport.

We are now selling 3D printed enclosures(material: PETG).

Features Common Across All Scoreboards

• Supports 2 Players/Teams: Designed for two-player or two-team games.
• ESP32 Controlled: The scoreboard is powered by the versatile ESP32 microcontroller for reliable performance.
• Wi-Fi Communication: Seamless connectivity between the scoreboard and the app via Wi-Fi.
• Team Names Display: Displays team names using up to 3 characters.
• Integrated Digital Timer: A clear and precise digital timer is positioned at the top.
• Web Browser Control: Provides an alternative for users with computers or iOS devices, including iPhones, to manage the scoreboard via a browser.
• Dedicated long range(200m) remote control (Optional):  Once the team names are set up via browser based app, users can use the remote control to update scores, innings and timer.
• Set colors: Users can set the colors of team names, scores and timer via the browser based interface. You can choose these colors: RED, GREEN, WHITE, YELLOW and BLUE


Specifications:

• Display Size - 2 set (P5- 64x32 pixels): each display dimensions: 32cmx16cm. Total size after chaining 2 displays: 64cmx16cm / 25.2inches×6.3inches / 2.1feet×0.52feet

• Indoor Use Only: Designed for optimal performance in indoor settings.
• Power Supply: Operates on a 5V-4A power supply.

Available Models

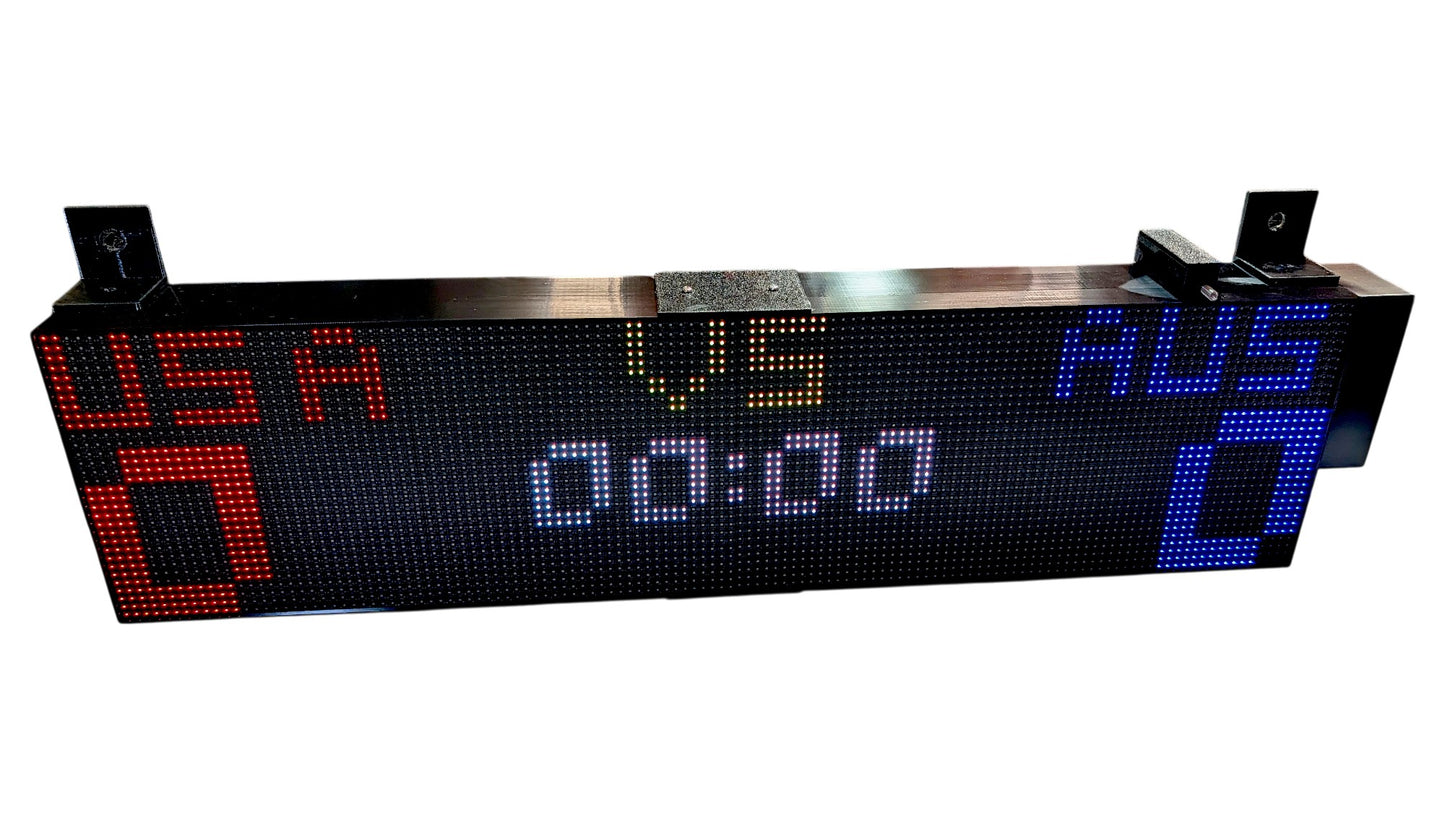

SCORE4 Scoreboard- with timer

Check out all the images on Google Photos

• Digital timer

• Team name display- 3 characters
• Score display (up to 4 digits)

• Total size after chaining 2 displays:  64 cm×16 cm /  25.2inches×6.3inches
• The name “SCORE4” reflects the maximum number of digits (4) available for displaying the score.
• You can use remote control(optional) to operate the scoreboard
• Enclosure is available (optional). Read about quality.
• Scores are saved in the memory even if the power is turned off.
• Change the colors of timer, team names and scores. Available color options are RED, GREEN, BLUE, YELLOW and WHITE

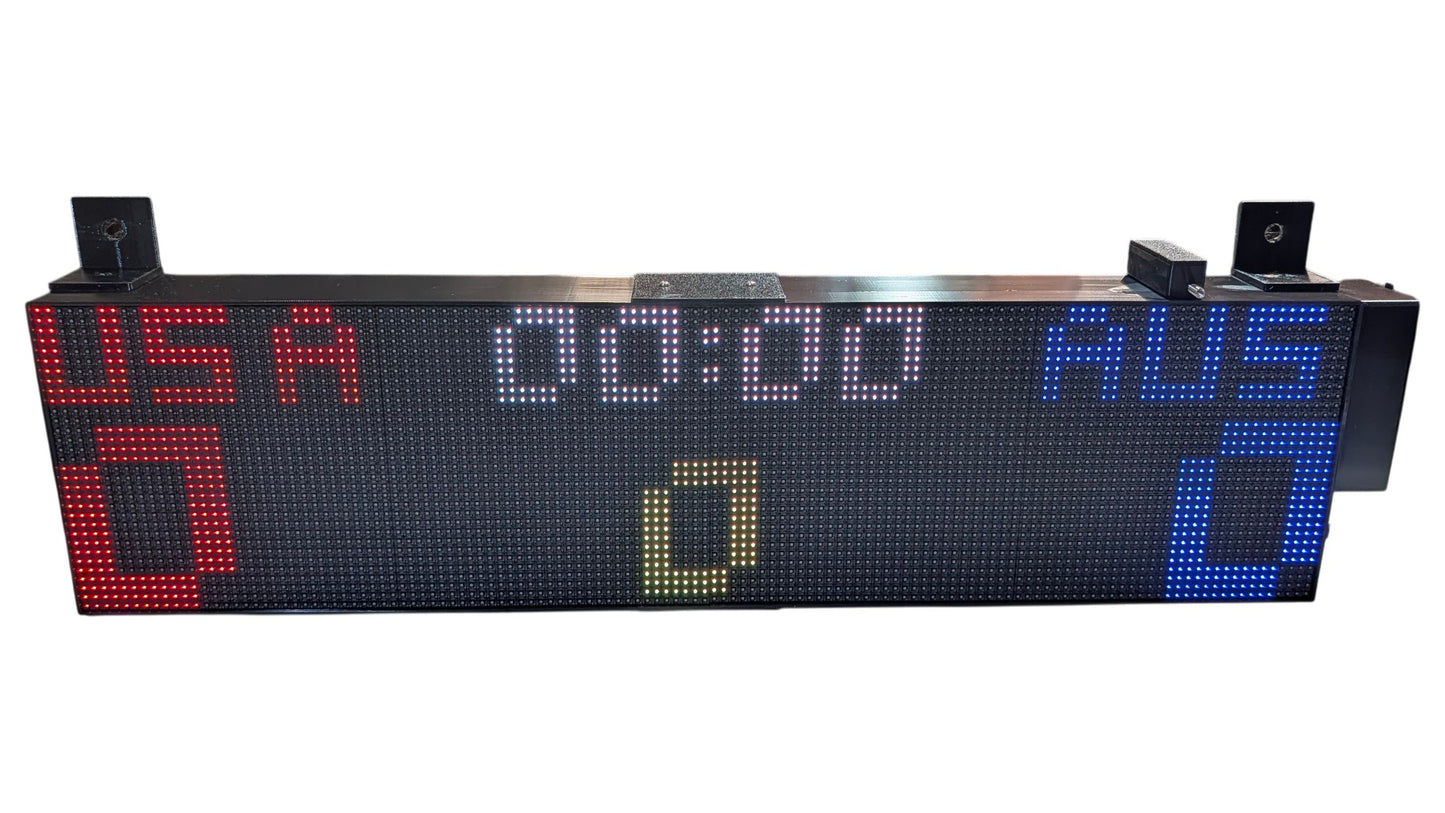

SCORE5 Scoreboard

Check out all the images on Google Photos

An advanced version for sports featuring:

• Digital timer

• Team name display- up to 3 characters for each team.
• Innings and scores (up to 5 digits)
• Total size after chaining 2 displays: 64 cm×16 cm /  25.2inches×6.3inches
• You can use remote control (optional) to operate the scoreboard
• Enclosure is available (optional). Read about quality.

• Scores are saved in the memory even if the power is turned off.
• Change the colors of timer, team names and scores. Available color options are RED, GREEN, BLUE, YELLOW and WHITE

The name “SCORE5” represents the capability to display scores up to 5 digits.

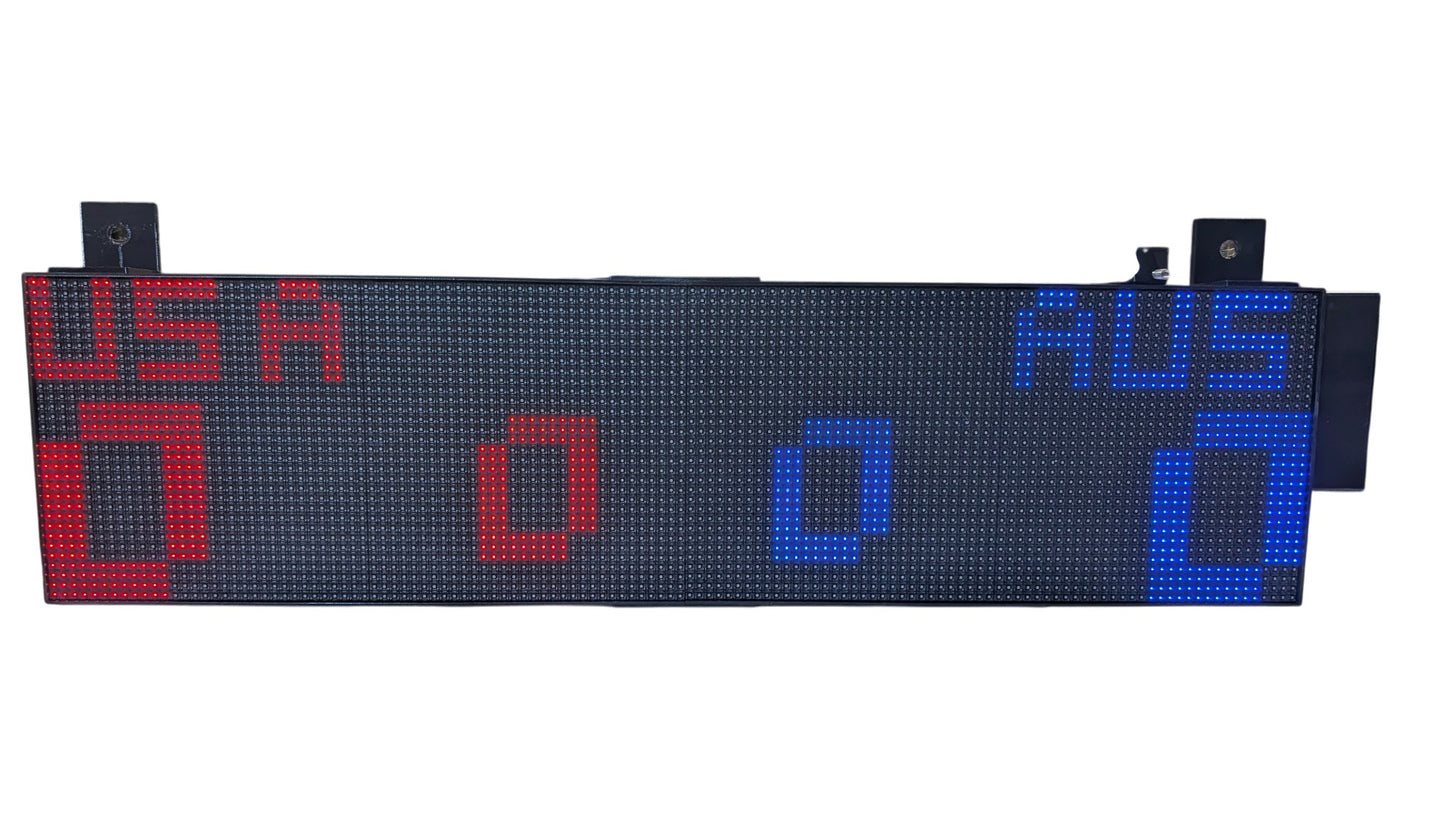

SCORE6 Ping Pong Table Tennis Scoreboard

Check out all the images on Google Photos

Designed for games like table tennis or ping pong, it includes:

• Team name display- 3 characters for each team
• Set score display
• Main score display (up to 6 digits, including set scores)
• Total size after chaining 2x P4 displays: 51.2cmx25.6cm / 20.16 in×10.08
• You can use remote control (optional) to operate the scoreboard
• Enclosure is available (optional). Read about quality.

• Scores are saved in the memory even if the power is turned off.
• Change the colors of timer, team names and scores. Available color options are RED, GREEN, BLUE, YELLOW and WHITE

The name “SCORE6” signifies its ability to display up to 6 digits, catering to comprehensive scoring requirements.

Package Includes

1. 2 x P5- 64x32 Pixels RGB Matrix Display

2. Data Cable: Ensures seamless connectivity between modules.
3. Power Cable: For efficient and safe power delivery.
4. SCOREDUINO Wi-Fi Module: The core controller of the scoreboard.
5. 5V-4A Power Supply: Provides sufficient power for stable operation.
