SIZE 3- Wi-Fi controlled Indoor digital scoreboard with 2 chained P3 64x64 pixels RGB LED matrix- 38.4cm x 19.2cm / 15.12 inches ×7.56 inches

Designed for indoor sports venues and hobbyists, this portable digital scoreboard combines full-color RGB displays with simple wireless operation. Depending on the model, the scoreboard displays team names, scores, a digital timer, and the current quarter, inning, or period. Display colors can be customized for the team names, timer, and scores. The scoreboard can be controlled using a convenient browser-based WiFi application or an RF remote control. Different RF remote ranges are available, allowing users to select a suitable option based on their venue size. Each scoreboard is enclosed in a custom 3D-printed PETG housing and designed to be simple, portable, reliable, and affordable.

Features Common Across All Scoreboards

• Supports 2 Players/Teams: Designed for two-player or two-team games.
• ESP32 Controlled: The scoreboard is powered by the versatile ESP32 microcontroller for reliable performance.
• Wi-Fi Communication: Seamless connectivity between the scoreboard and the app via Wi-Fi.
• Team Names Display: Displays team names using up to 3 characters.
• Integrated Digital Timer: A clear and precise digital timer is positioned at the top.
• Web Browser Control: Provides an alternative for users with computers or iOS devices, including iPhones, to manage the scoreboard via a browser.
• Dedicated long range(200m) remote control (Optional):  Once the team names are set up via browser based app, users can use the remote control to update scores, innings and timer.
• Set colors: Users can set the colors of team names, scores and timer via the browser based interface. You can choose these colors: RED, GREEN, WHITE, YELLOW and BLUE


Specifications:

• Display Size - 2 set (P3- 64x64 pixels): each display dimensions: 19.2cm x 19.2cm. Total size: 38.4cm x 19.2cm   /    15.12 inches ×7.56 inches

• Indoor Use Only: Designed for optimal performance in indoor settings.
• Power Supply: Operates on a 5V-4A power supply.

Available Models

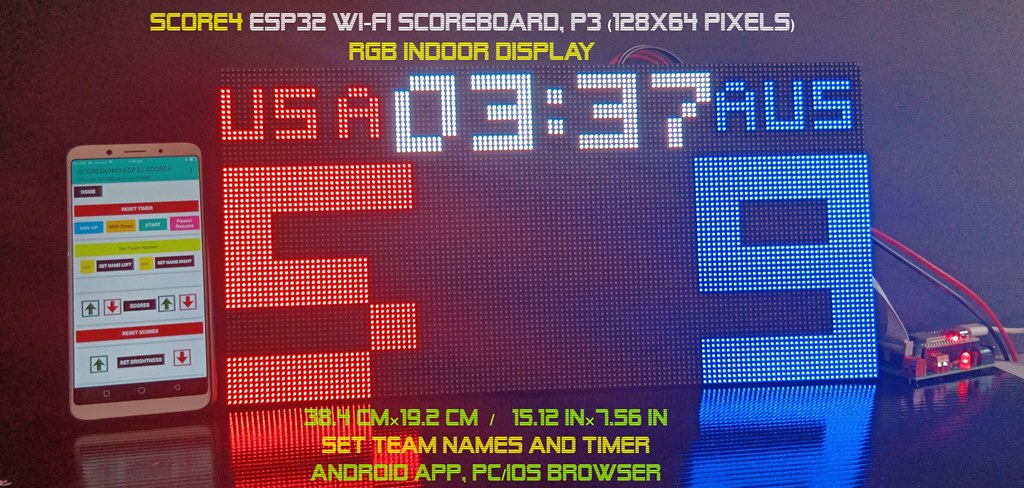

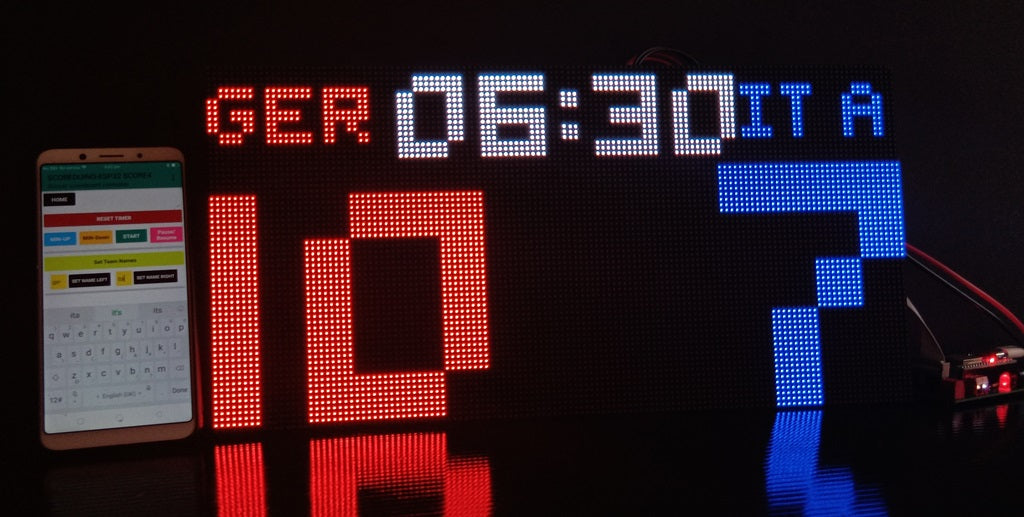

SCORE4 Scoreboard- with timer

A basic scoreboard featuring:

• Digital timer

• Team name display- 3 characters
• Score display (up to 4 digits)

• Total size after chaining 2 displays:  38.4cm x 19.2cm   /    15.12 inches ×7.56 inches
• The name “SCORE4” reflects the maximum number of digits (4) available for displaying the score.
• You can use remote control(optional) to operate the scoreboard
• Enclosure is available (optional). Read about quality.
• Scores are saved in the memory even if the power is turned off.
• Change the colors of timer, team names and scores. Available color options are RED, GREEN, BLUE, YELLOW and WHITE

SCORE4 without digital Timer:

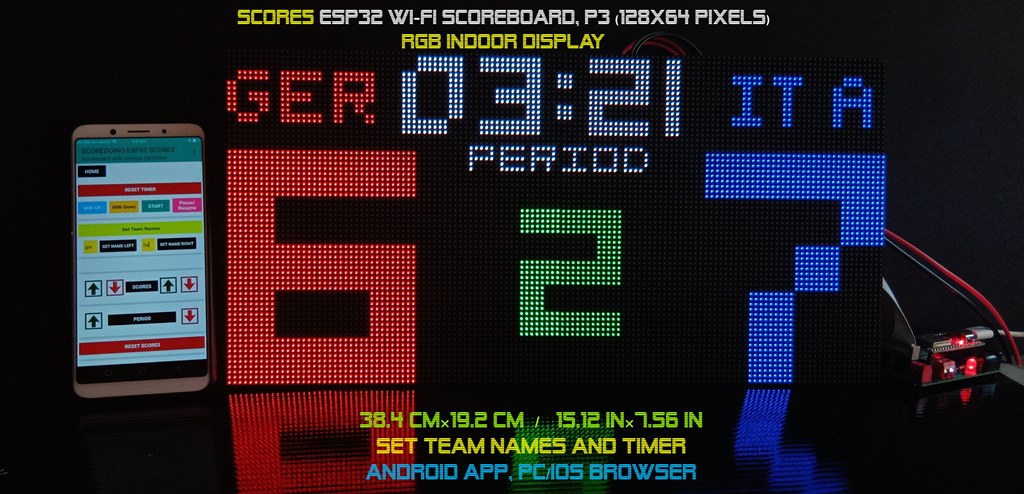

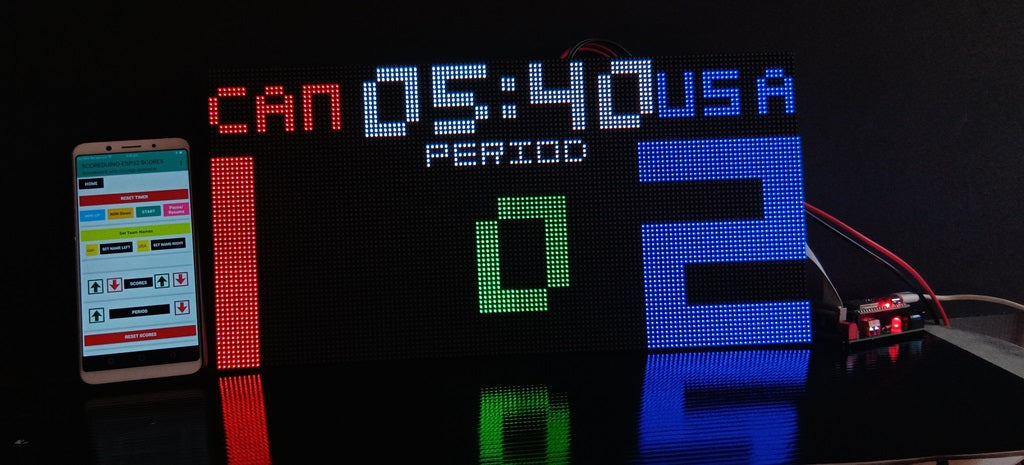

SCORE5 Scoreboard with digital timer

Check out all the images on Google photos

Assembly tutorial

An advanced version for sports featuring:

• Digital timer

• Team name display- up to 3 characters for each team.
• Innings and scores (up to 5 digits)
• Total size after chaining 2 displays: 38.4cm x 19.2cm / 15.12 inches ×7.56 inches
• You can use remote control (optional) to operate the scoreboard
• Enclosure is available (optional). Read about quality.

• Scores are saved in the memory even if the power is turned off.
• Change the colors of timer, team names and scores. Available color options are RED, GREEN, BLUE, YELLOW and WHITE

The name “SCORE5” represents the capability to display scores up to 5 digits.

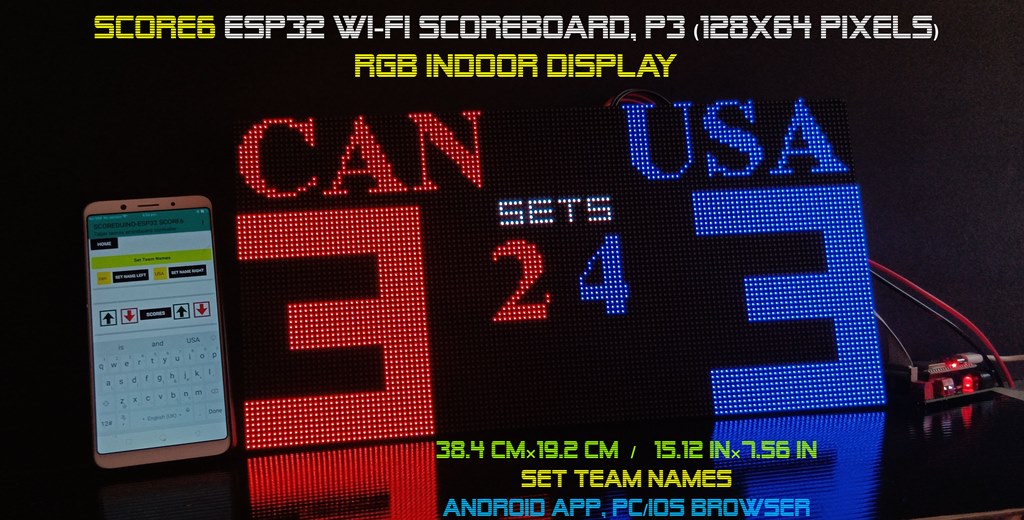

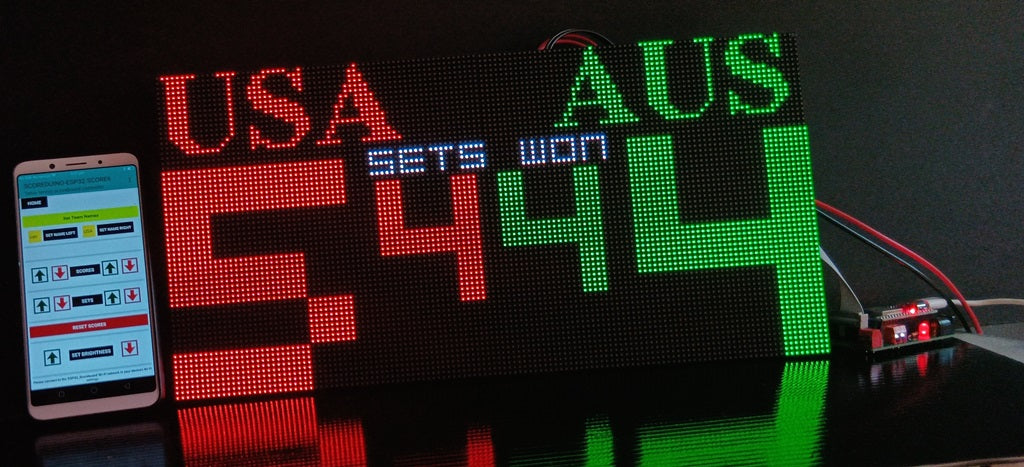

SCORE6 Ping Pong Table Tennis Scoreboard

Check out all the images on Google

Assembly tutorial

Designed for games like table tennis or ping pong, it includes:

• Team name display- 3 characters for each team
• Set score display
• Main score display (up to 6 digits, including set scores)
• Total size after chaining 2x P3 displays: 38.4cm x 19.2cm / 15.12 inches ×7.56 inches
• You can use remote control (optional) to operate the scoreboard
• Enclosure is available (optional). Read about quality.

• Scores are saved in the memory even if the power is turned off.
• Change the colors of timer, team names and scores. Available color options are RED, GREEN, BLUE, YELLOW and WHITE

The name “SCORE6” signifies its ability to display up to 6 digits, catering to comprehensive scoring requirements.

Assembly tutorial

Package Includes

1. 2 x P3- 64x64 Pixels RGB Matrix Displays

2. Data Cable: Ensures seamless connectivity between modules.
3. Power Cable: For efficient and safe power delivery.
4. SCOREDUINO Wi-Fi Module: The core controller of the scoreboard.
5. 5V-4A Power Supply: Provides sufficient power for stable operation.

DIY Package does not include Enclosure and Remote Control

Fully Assembled Scoreboard With Enclosure and Remote Control:

1. Fully Assembled Scoreboard with enclosure(with all the parts required)
2. 5V-4A Power supply
3. Remote Control

About 3D printed Enclosure:

Please note that this scoreboard uses a 3D printed enclosure rather than a folded metal enclosure.

Because large parts exceed the printing size of most 3D printers, the enclosure is manufactured in multiple sections which are permanently joined together.

As a result, you may notice:

• Small join lines

• Minor glue marks

• Slight surface blemishes

• Normal 3D printing layer lines

These cosmetic characteristics are normal and do not affect the performance, strength or durability of the scoreboard.

The enclosure is designed to:

• Securely hold the electronics

• Protect the display

• Keep the scoreboard lightweight

• Make transportation easy

Once installed during a game, the focus is on the bright LED display rather than the enclosure itself.

Whether you’re hosting a competitive game or just enjoying some friendly matches, these customizable, feature-rich digital scoreboards will elevate the experience for players and spectators alike.

Read more about the enclosure

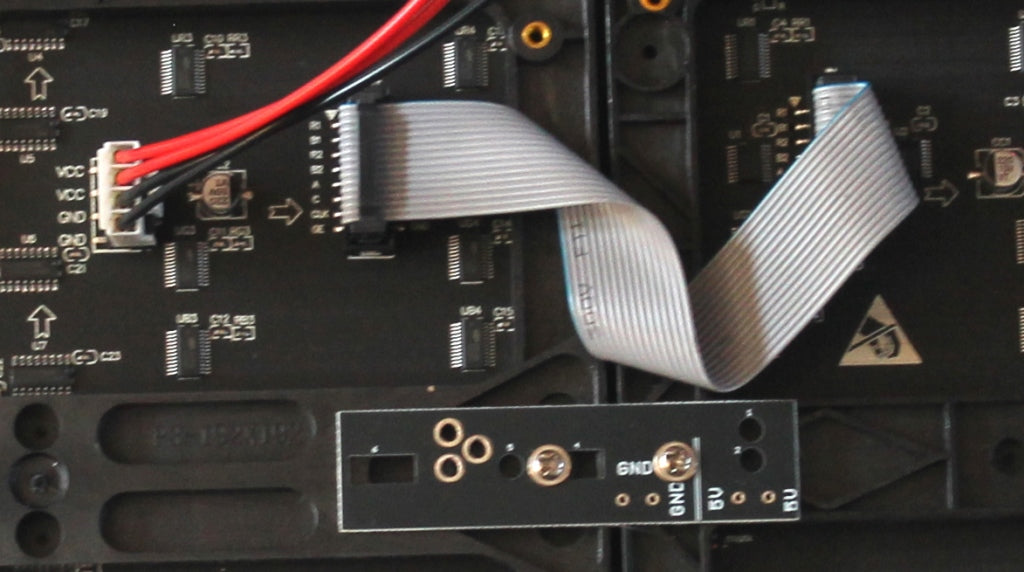

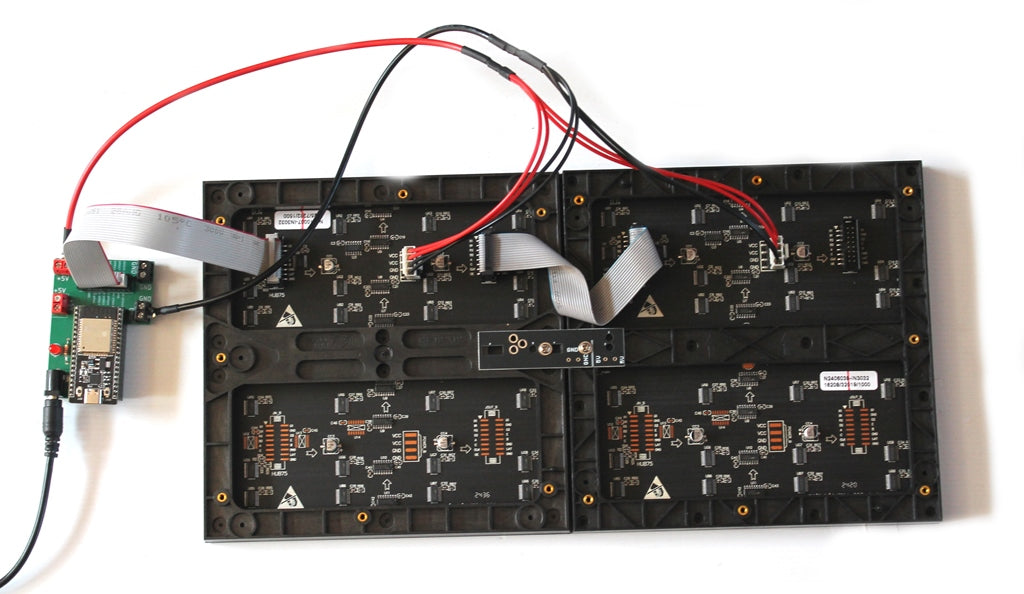

🔗Assembly and Wiring Guide for 2 chained RGB P3 64x64 Pixel Display

Place the panels with the arrows pointing upwards
