SIZE 6- Wi-Fi controlled Indoor digital scoreboard with P3 64x64 pixels RGB LED matrix- 19.2cmx19.2cm / 7.56 inches×7.56 inches

⚠️ Important Notice ⚠️
🚫 Source Codes Are Not Shared
To maintain the integrity and exclusivity of our products, the source codes for our digital scoreboards are not shared.

Customize Your Display with Ease
Our customers can request color changes for the display to suit their preferences or team colors, ensuring your scoreboard stands out while enhancing the gaming experience.

DIY Digital Scoreboards for Indoor Games

SCOREDUINO's DIY digital scoreboards are designed to make your indoor games more engaging and professional. While all modules come pre-assembled, you have the flexibility to mount the display on a wooden board or any other setup of your choice. With a little creativity, you can customize the design to make it visually appealing and functional for your sport.

Features Common Across All Scoreboards

• Supports 2 Players/Teams: Designed for two-player or two-team games.
• ESP32 Controlled: The scoreboard is powered by the versatile ESP32 microcontroller for reliable performance.
• Wi-Fi Communication: Seamless connectivity between the scoreboard and the app via Wi-Fi.
• Team Names Display: Displays team names using up to 3 characters.
• Integrated Digital Timer: A clear and precise digital timer is positioned at the top.
• SCOREDUINO Android App Compatibility: Effortlessly control the scoreboard using our user-friendly app.
• Web Browser Control: Provides an alternative for users with computers or iOS devices, including iPhones, to manage the scoreboard via a browser.

Specifications:

• Display Size - 1 set (P3- 64x64 pixels): each display dimensions: 19.2cmx19.2cm / 7.56 inches×7.56 inches

• Indoor Use Only: Designed for optimal performance in indoor settings.
• Power Supply: Operates on a 5V-4A power supply.

Available Models

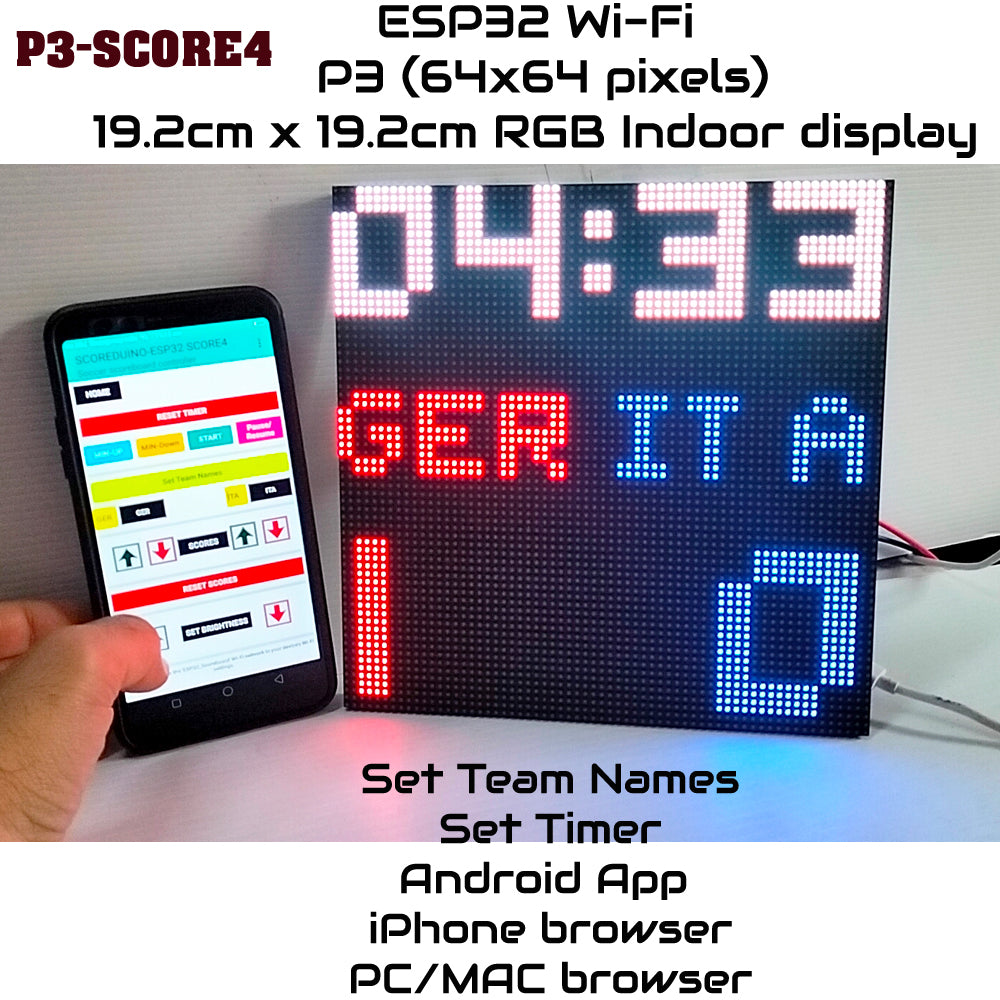

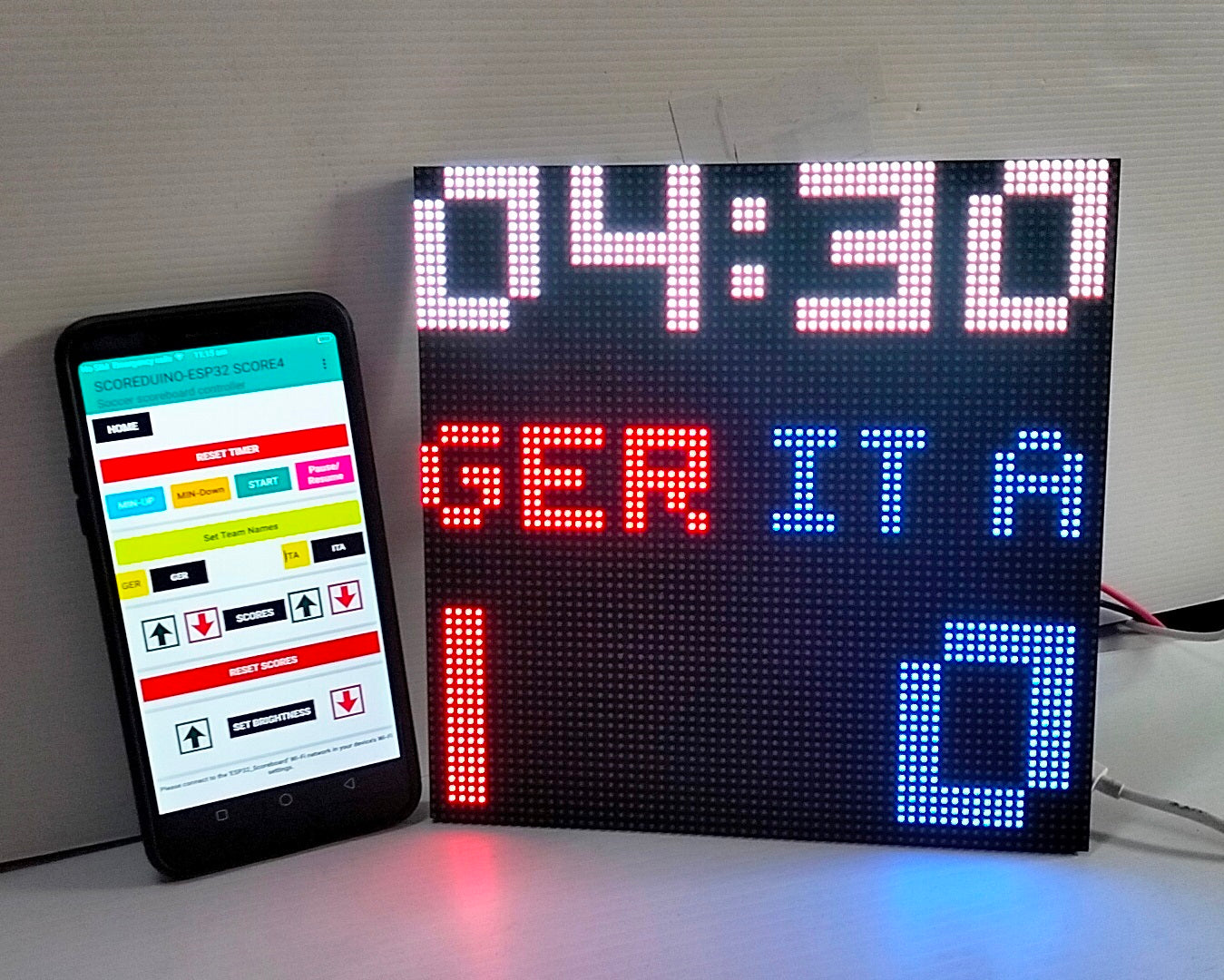

SCORE4 Scoreboard- with timer- Images on Flickr

Assembly/Wiring Tutorial

A basic scoreboard featuring:

• With Digital timer

• Team name display
• Score display (up to 4 digits)

• Available size: 19.2cmx19.2cm / 7.56 inches×7.56 inches

• The name “SCORE4” reflects the maximum number of digits (4) available for displaying the score.

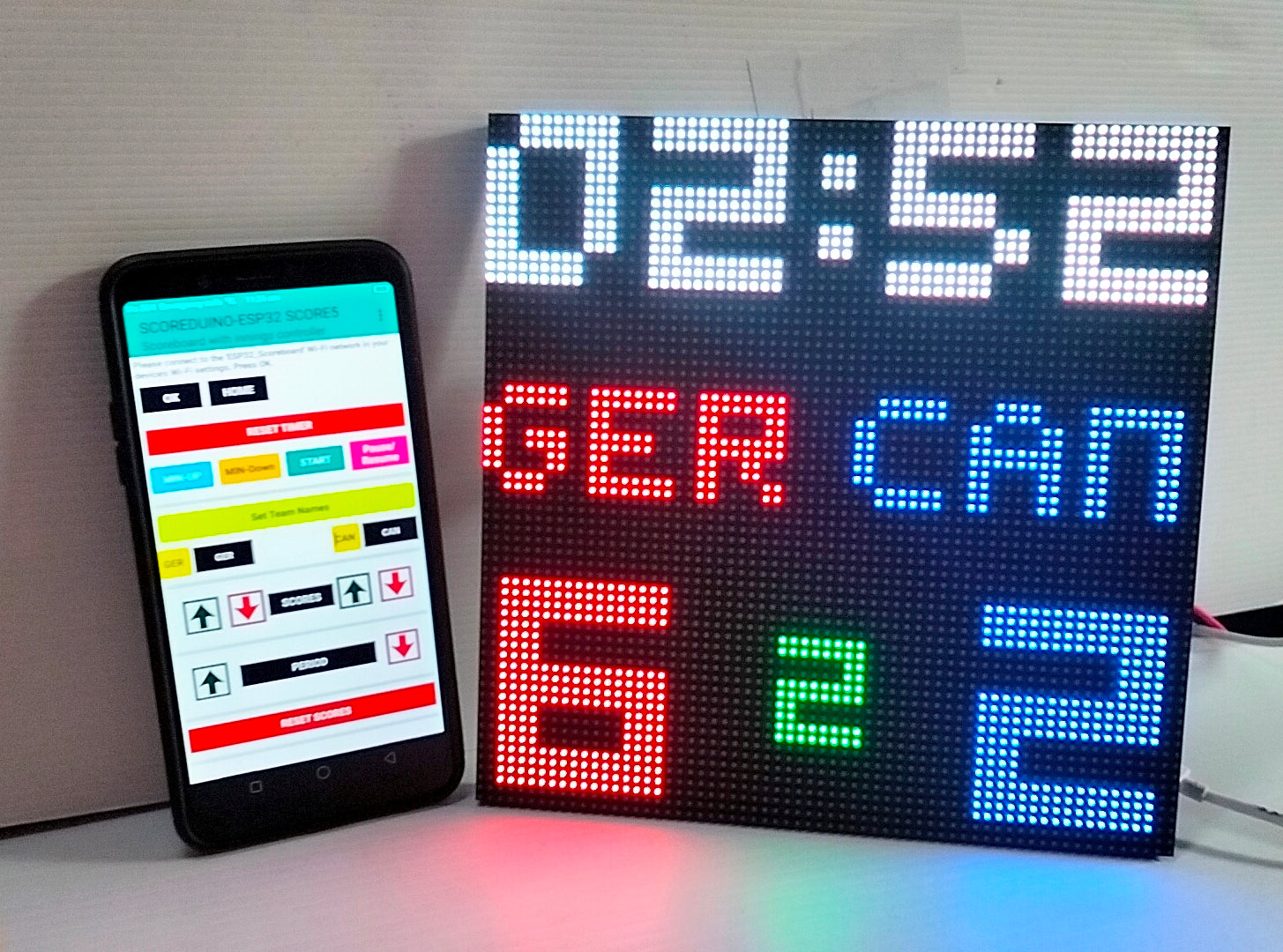

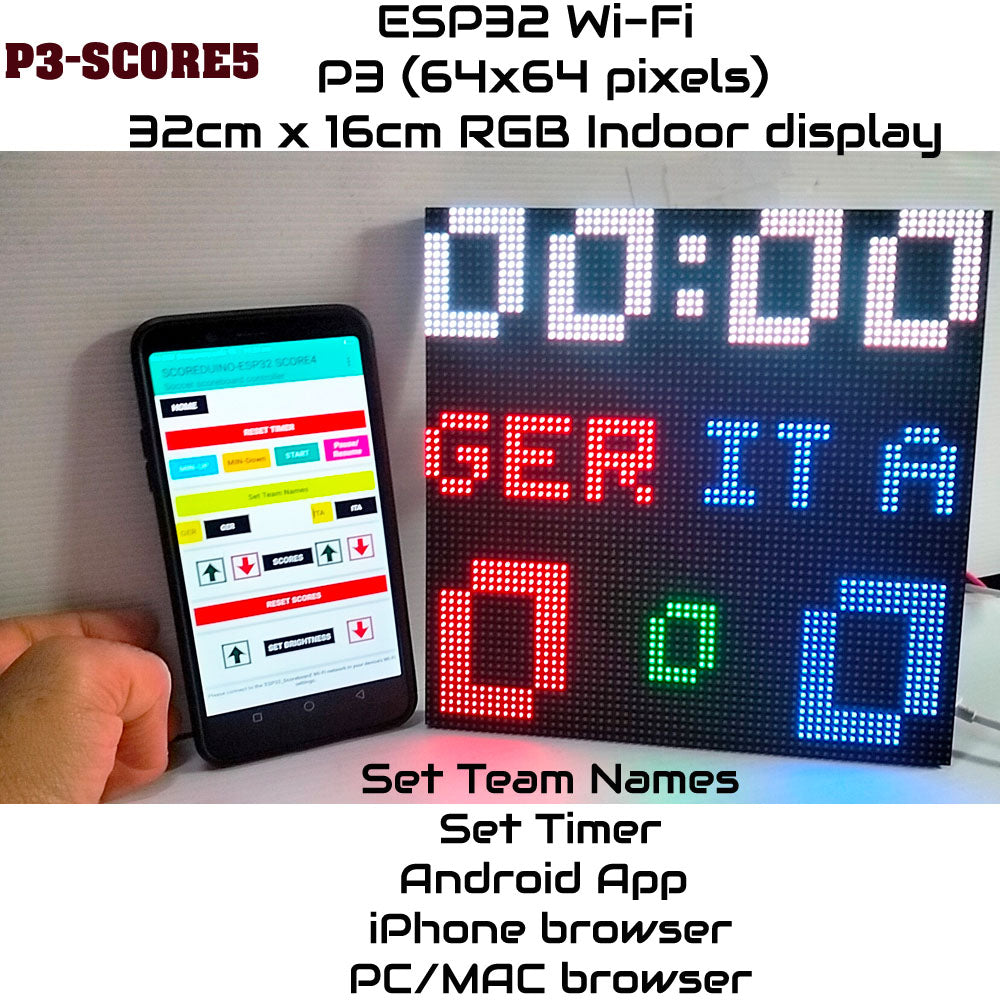

SCORE5 Scoreboard

Check out all the images on Flickr

Assembly/Wiring Tutorial

An advanced version for sports requiring:

• With Digital timer

• Team name display
• Innings and scores (up to 5 digits)
• Available size: 19.2cmx19.2cm / 7.56 inches×7.56 inches


The name “SCORE5” represents the capability to display scores up to 5 digits.

Assembly/Wiring Tutorial

Package Includes

Check out all the images on Flickr-

1. 1 x P3- 64x64 Pixels RGB Matrix Displays

2. Data Cable: Ensures seamless connectivity between modules.
3. Power Cable: For efficient and safe power delivery.
4. SCOREDUINO ESP32 Wi-Fi Module: The core controller of the scoreboard.
5. 5V-4A Power Supply: Provides sufficient power for stable operation.

Whether you’re hosting a competitive game or just enjoying some friendly matches, these customizable, feature-rich digital scoreboards will elevate the experience for players and spectators alike.

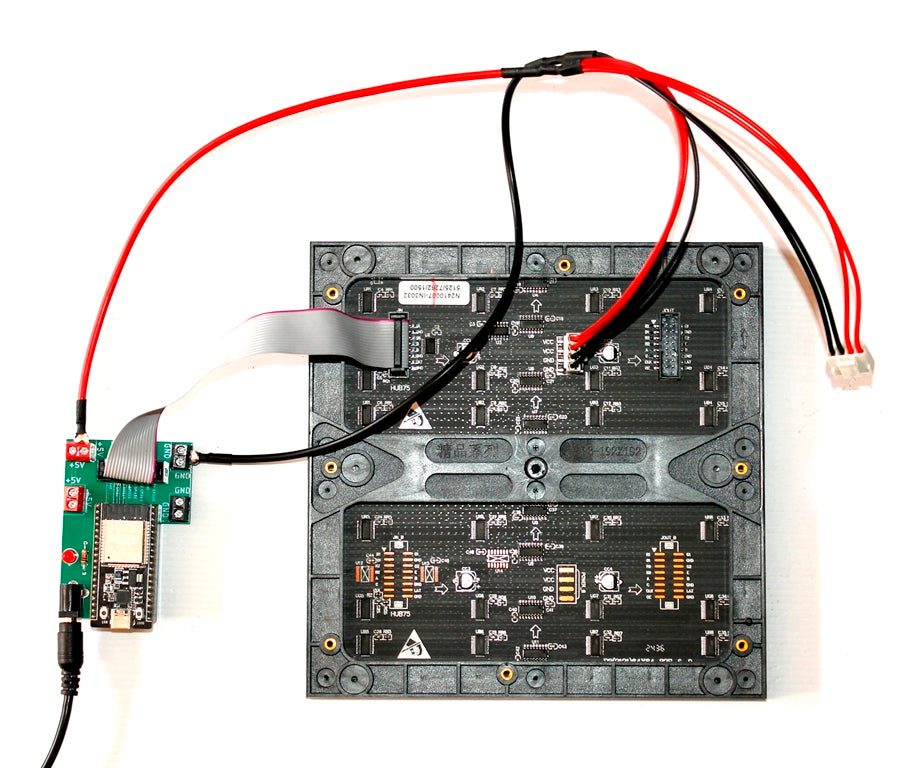

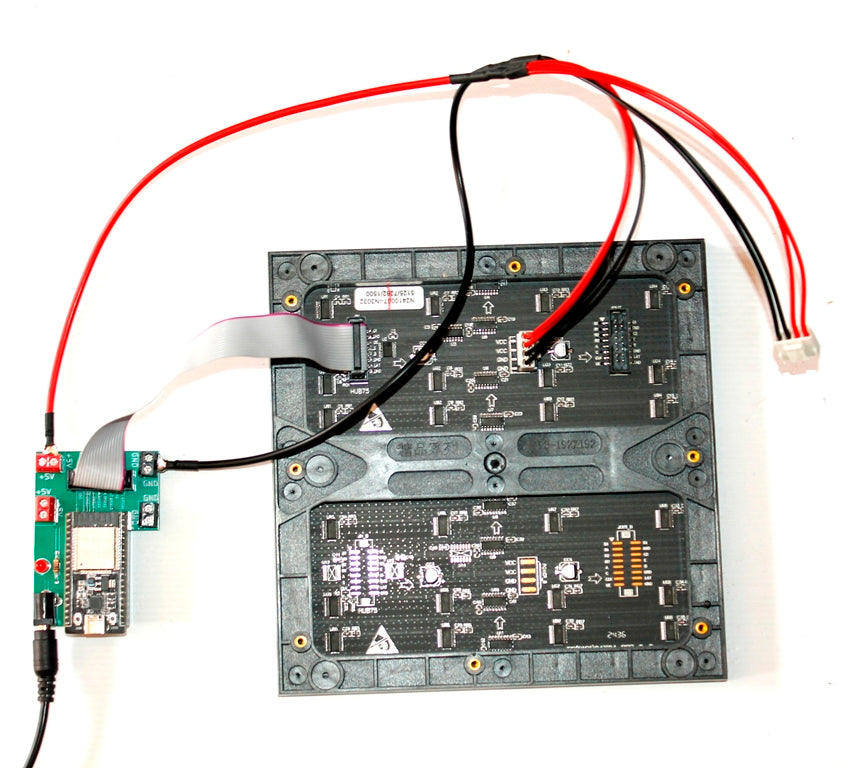

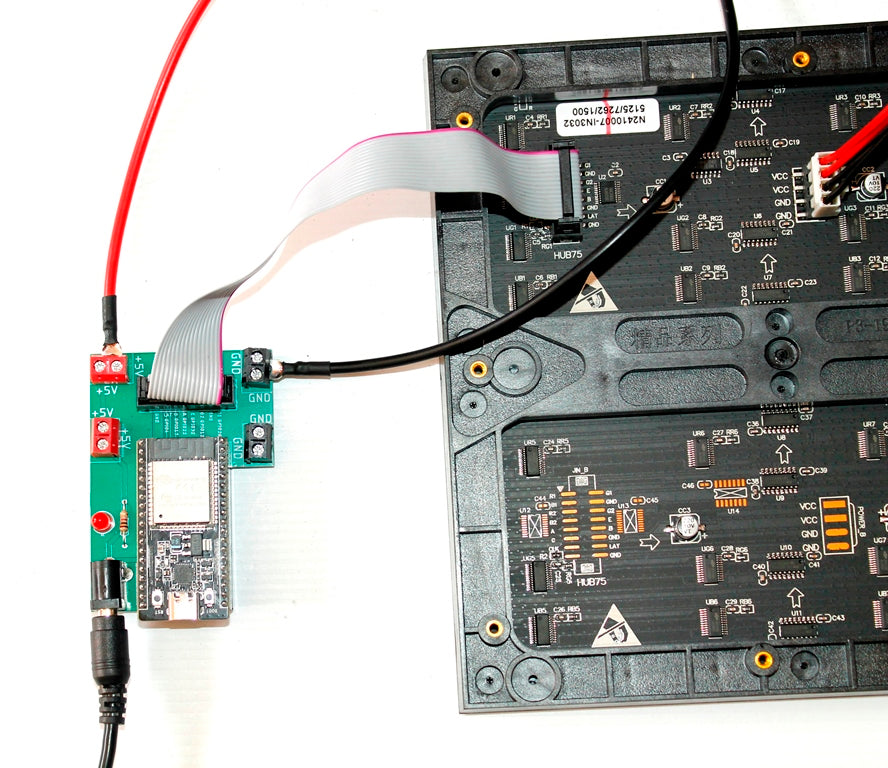

🔗Assembly and Wiring Guide for a Single RGB P5 64x32 Pixel Display

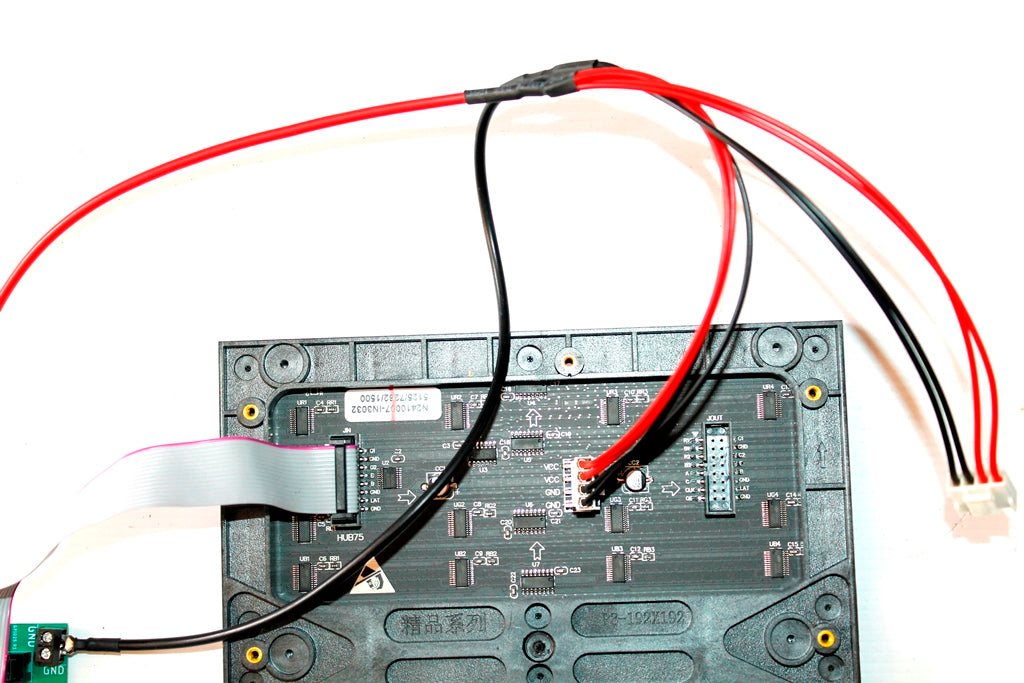

Place the panels with the arrows pointing upwards
