64cmx16cm Basic Digital Cricket Scoreboard with Runs, Wickets and Overs

The scoreboard will be shipped within 10–20 days from the date of your order.

This lead time is required to manufacture, print, and assemble the enclosure to our quality standards. Additionally, we do not keep all components in stock at our Sydney facility. Some parts are imported specifically after an order is placed to ensure you receive the latest and highest-quality components.

Digital Cricket Scoreboard – Product Description

A compact and portable digital cricket scoreboard designed for clear outdoor visibility and simple match scoring operation.

📺 Display Information

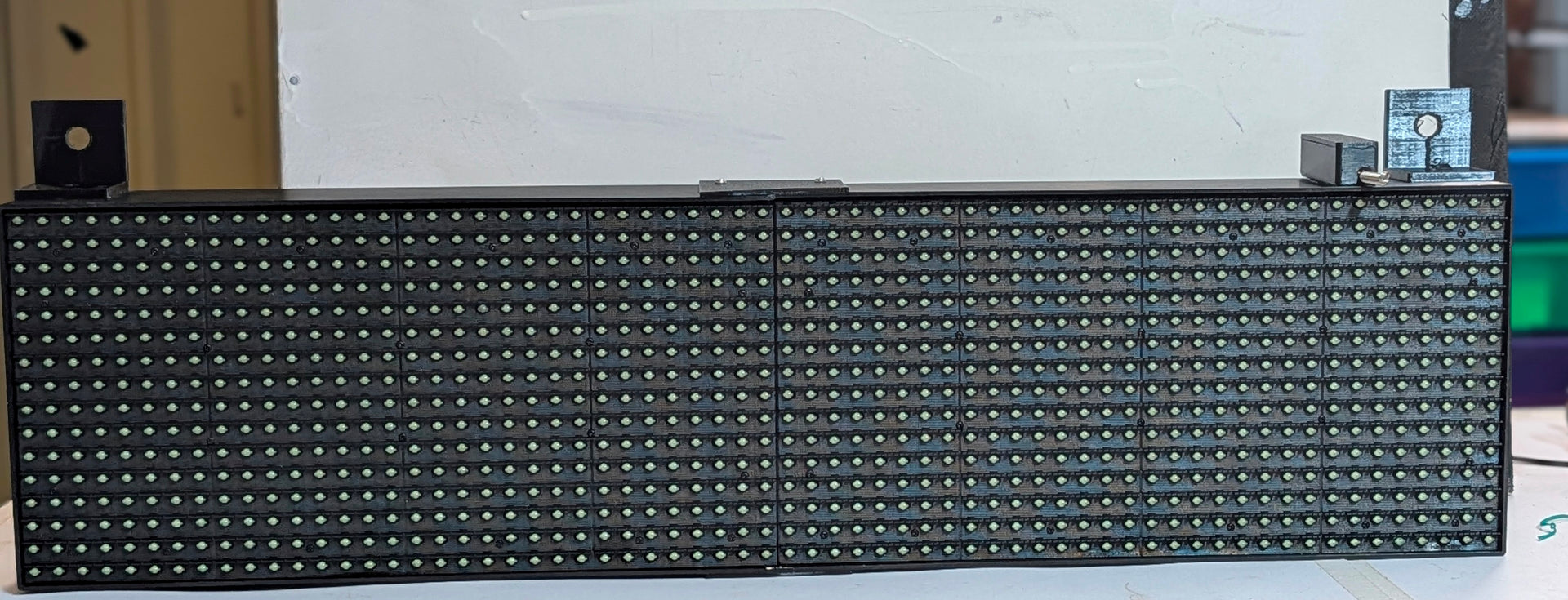

• Includes 2 × P10 outdoor GREEN LED display modules

• Each module size: 32 cm × 16 cm

• Combined display size: 64 cm × 16 cm

• Digit height: 16 cm for clear visibility from a distance

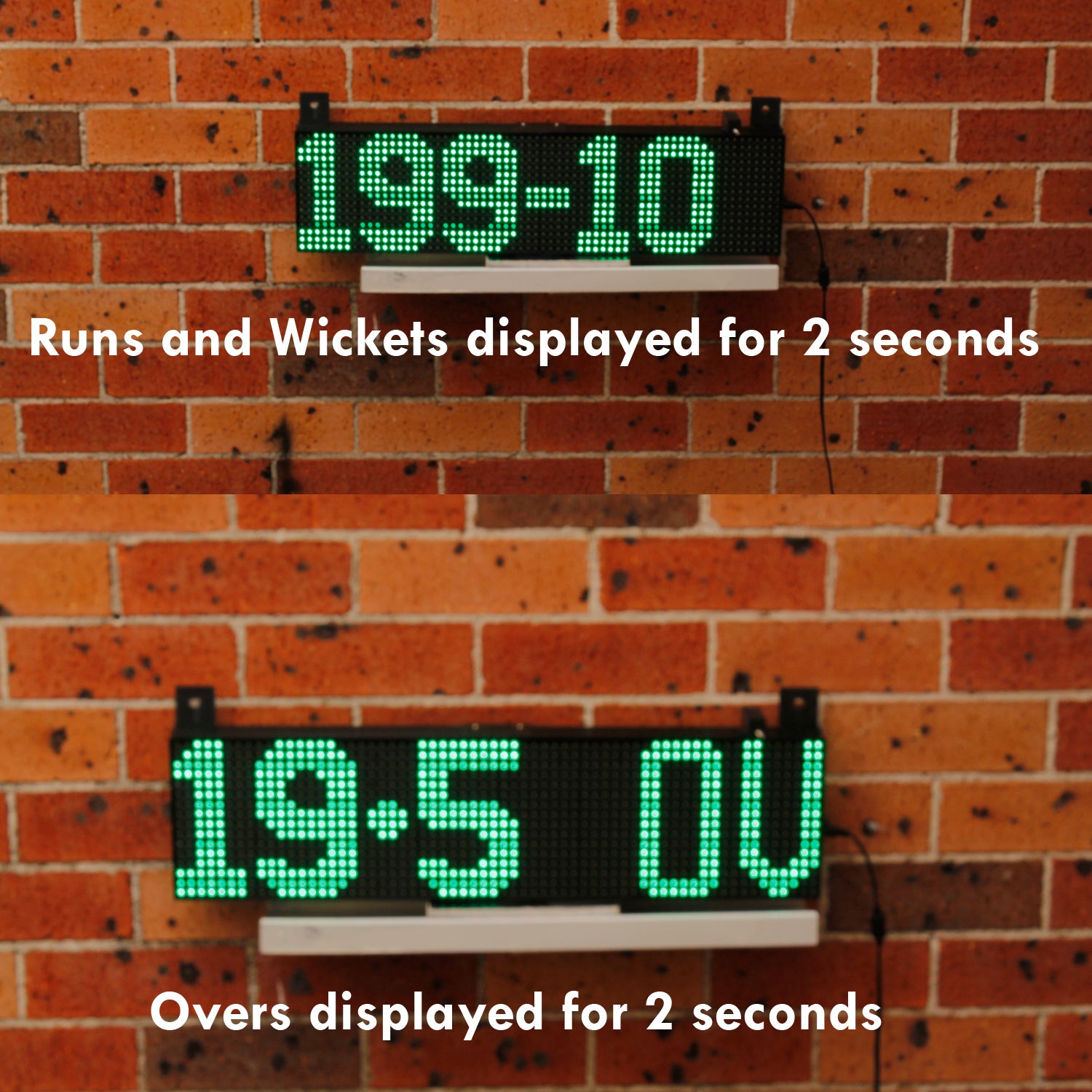

• Displays key match data in rotation:

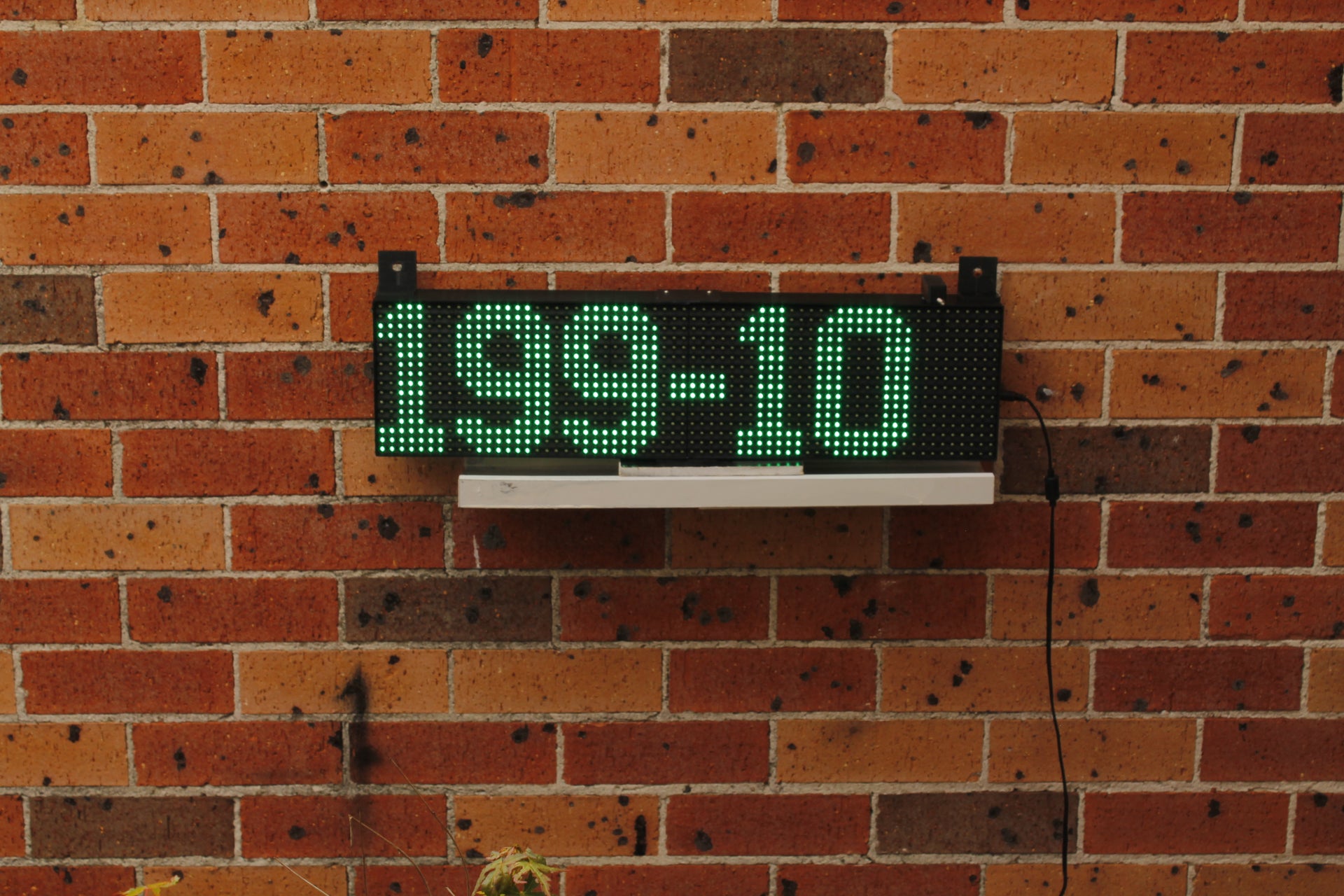

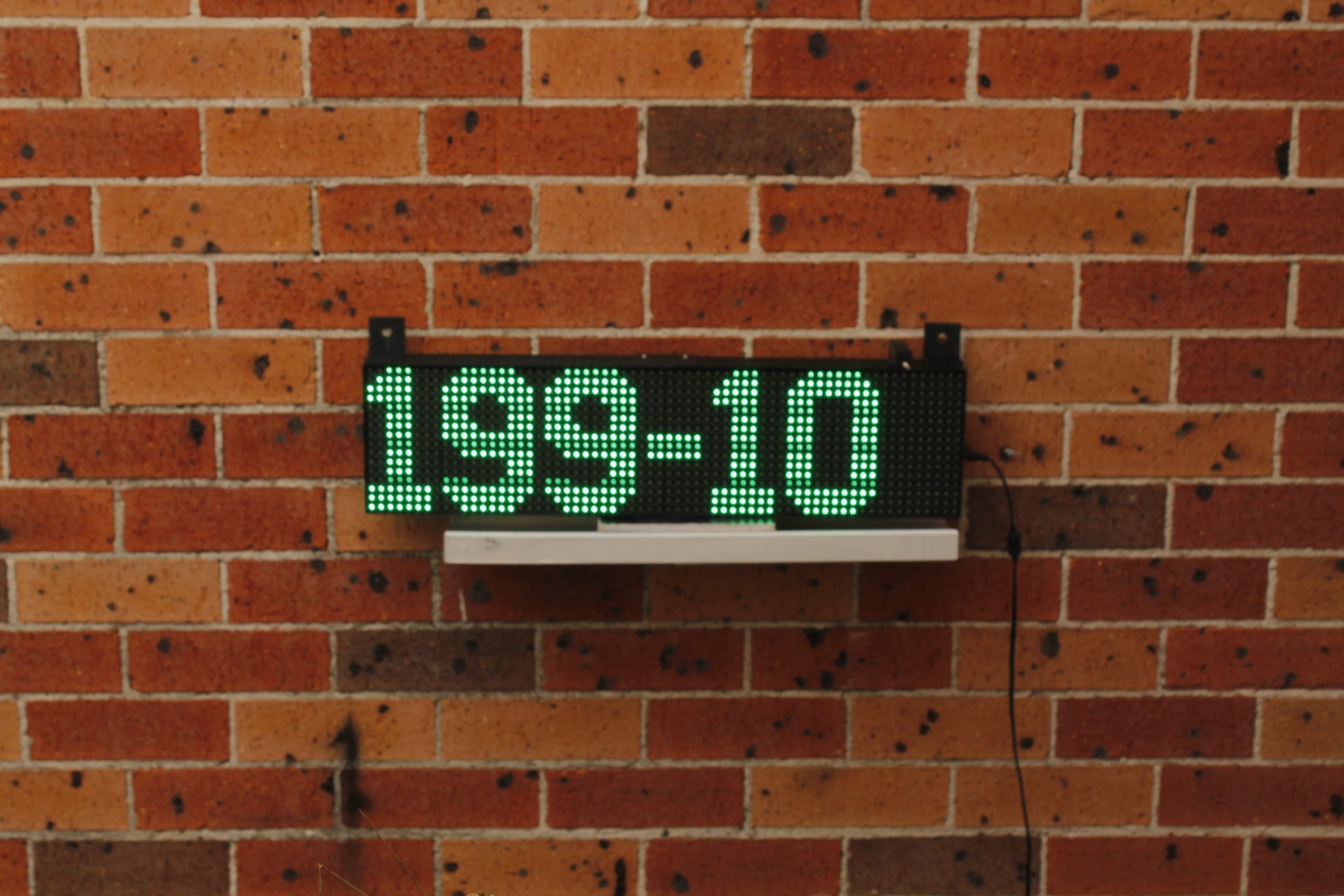

  • Runs & Wickets (displayed for approx. 2 seconds)

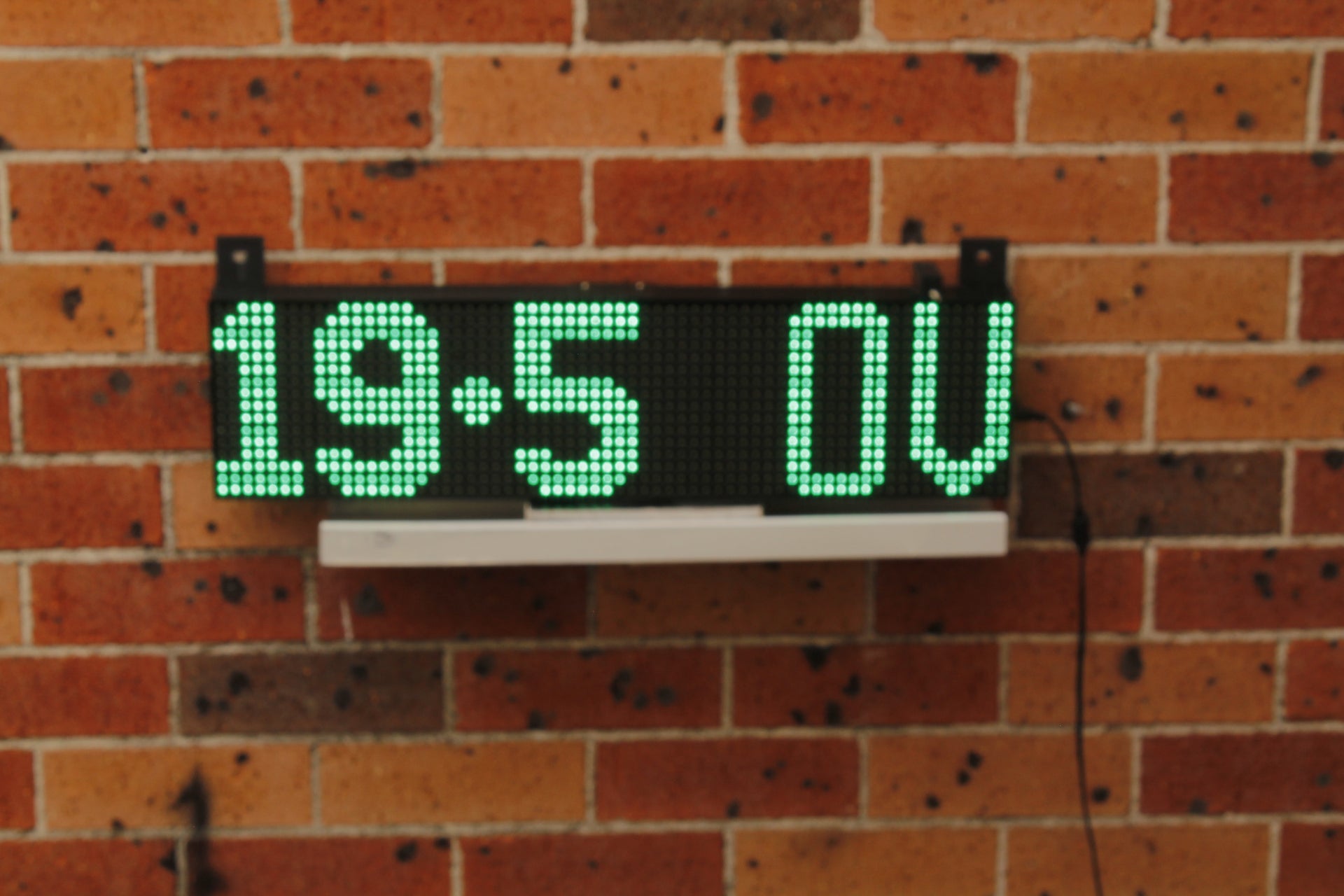

  • Overs (displayed for approx. 2 seconds)

• Continuous automatic rotation between score views

Check out all the images at https://photos.app.goo.gl/xiKeg3BfnLepZq5CA

⚙️ Key Features

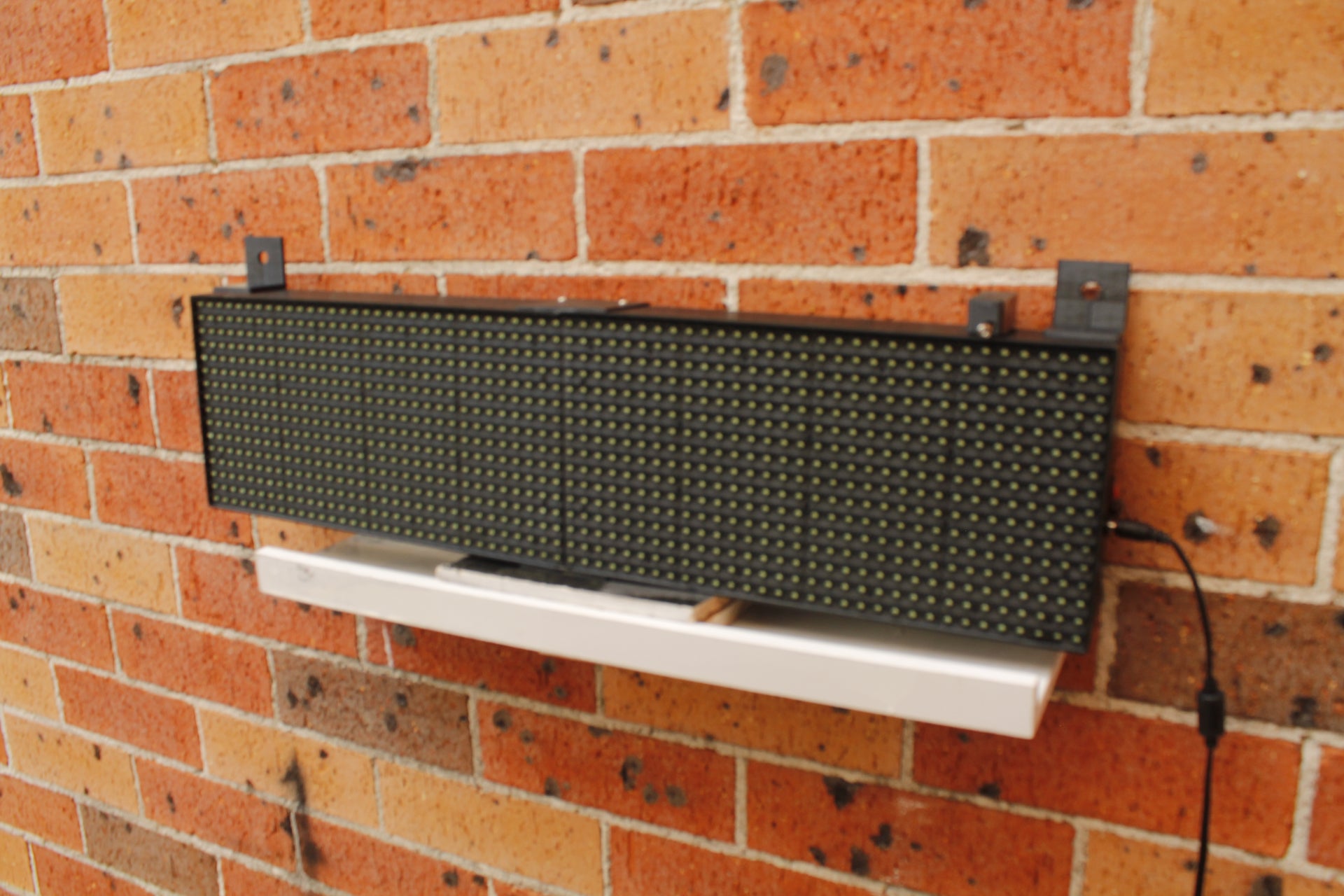

• Lightweight and portable design (approx. 1.5 kg)

• Can be installed on:

  • Wall mounting setup

  • Custom-built stand

• Designed for outdoor cricket ground visibility

• Easy transport and setup

📡 Connectivity & Operation

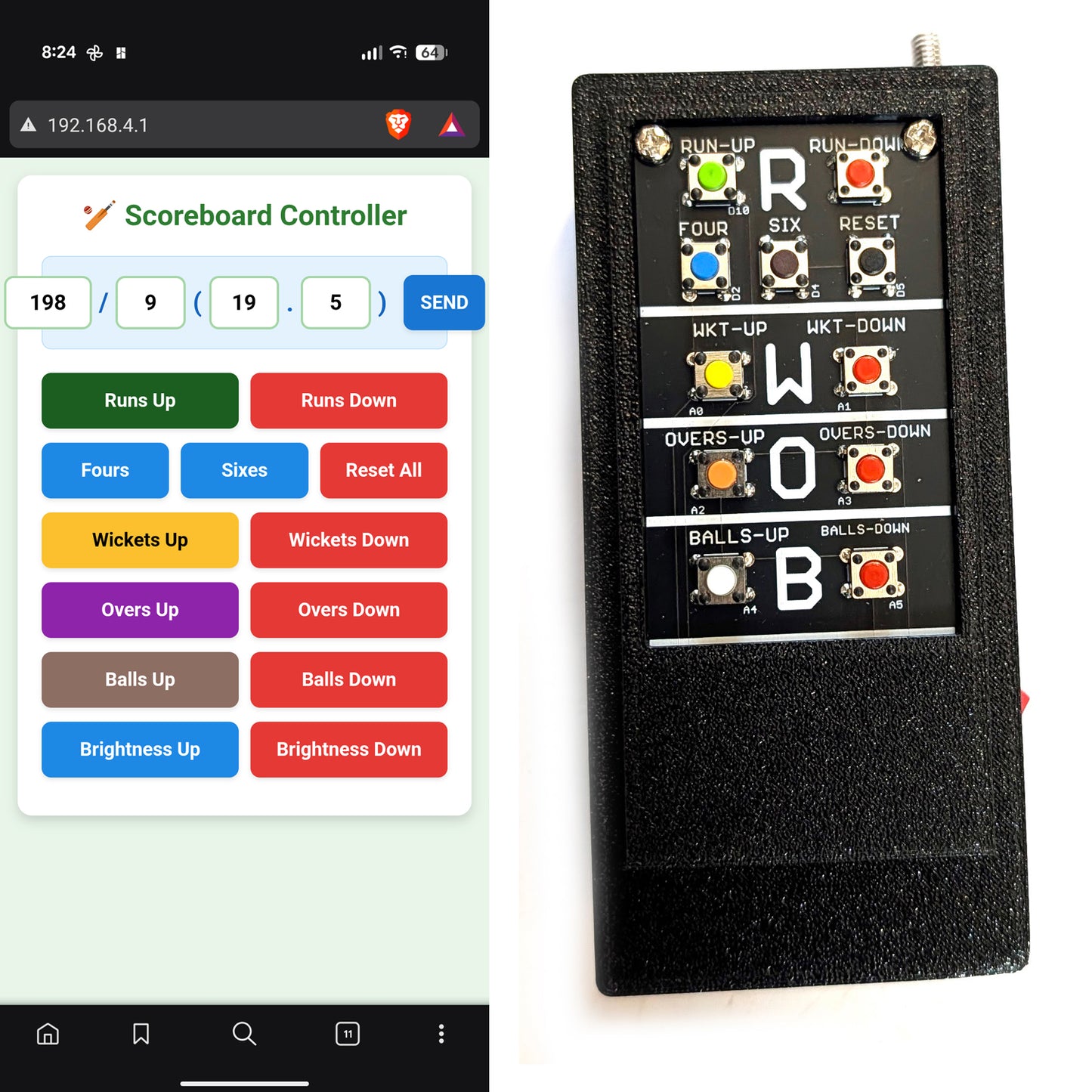

The scoreboard can be operated using:

• WiFi-based web interface

  • Connect via scoreboard WiFi

  • Open interface on any browser (iPhone, Android, tablet, or computer)

• Physical remote control

  • Dedicated buttons for score updates

  • Operates independently from WiFi interface

  • Long-range signal up to 500 m (open field conditions)

🎮 Remote Control System

• Includes remote control unit with built-in control electronics

• Can be powered by:

  • 5V power bank, or

  • 9V battery (rechargeable or standard)

• Allows easy scoring updates from a distance where the operator can clearly view the scoreboard

🧱 Enclosure & Build Quality

• Supplied with 3D-printed enclosure

• Manufactured using PETG material

Important Notes on 3D Printed PETG Enclosure:

• PETG (Polyethylene Terephthalate Glycol) is:

  • Strong and impact-resistant

  • More heat-resistant than PLA

  • UV resistant to a moderate level (suitable for outdoor use with care)

  • Slightly flexible to reduce cracking under stress

• Due to large size constraints:

  • Enclosure is printed in multiple parts and joined using adhesive

  • Minor visible seams, glue marks, or surface imperfections may be present

• This is a functional enclosure designed for durability and portability, not a polished industrial metal finish

🔌 5V 4A Power Supply Information

• Power supplies are NOT included

• Users must source their own power supply separately

Important Usage Note:

• In high-temperature regions (e.g., Australia summer conditions), power supplies exposed to direct sunlight may:

  • Overheat

  • Melt or get damaged

• Recommended:

  • Install power supplies inside a protective box (cardboard or plastic enclosure)

  • Keep the unit shaded and ventilated

  • Consider keeping a spare power supply for backup use

📌 Important Summary

• No onboard controller is installed on the scoreboard itself

• Operation is handled via:

  • WiFi browser interface

  • External remote control system

• Designed for portability, visibility, and easy match operation

Package Includes

• Digital Cricket Scoreboard with 2 x P10 outdoor displays

• Wireless Remote Controller that includes Browser-Based WiFi Control System

• Integrated Onboard Controller

Power supplies are not included and must be purchased separately.

Check out all the images at https://photos.app.goo.gl/xiKeg3BfnLepZq5CA
