The scoreboard will be shipped within 10–20 days from the date of your order.

This lead time is required to manufacture, print, and assemble the enclosure to our quality standards. Additionally, we do not keep all components in stock at our Sydney facility. Some parts are imported specifically after an order is placed to ensure you receive the latest and highest-quality components.

Product Overview

This portable Digital Cricket Scoreboard is designed for cricket clubs, schools, local competitions, and community grounds. It provides a bright, easy-to-read display for live cricket scores and can be operated in multiple ways, making it simple for scorers to update the match from almost anywhere on the ground.

Check out all the images at https://photos.app.goo.gl/RMCzWRAx5GeeATUt5

If you require a similar scoreboard with an additional Target display for second innings matches, we also offer another model. Please visit the product link to view that version.

Display Specifications

• LED Modules: 6 × P10 Outdoor LED Displays

• LED Colour: Green

• Individual Display Size: 320 mm × 160 mm (32 cm × 16 cm)

• Overall Display Size: 640 mm × 480 mm (64 cm × 48 cm)

• Suitable for Outdoor Use

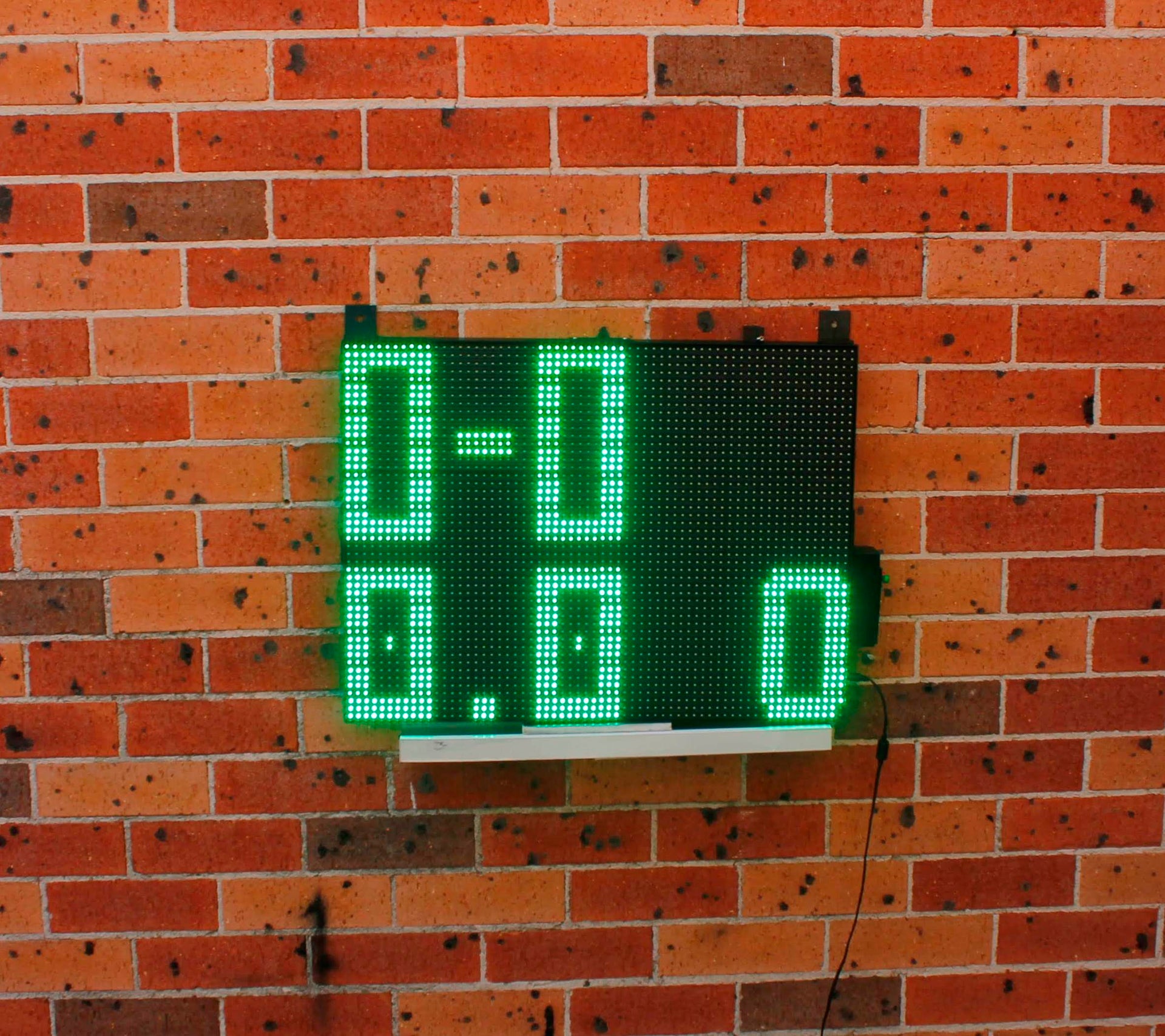

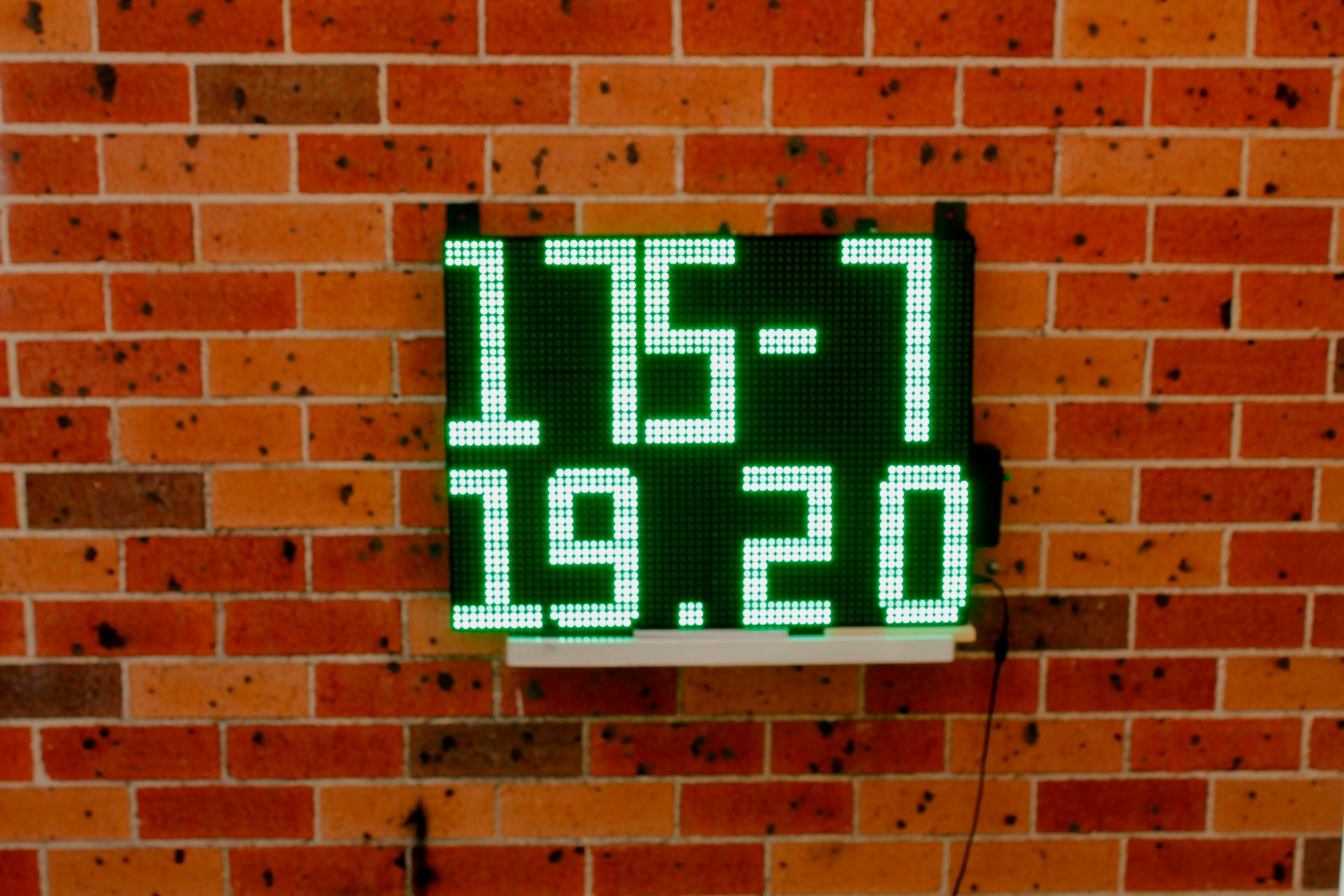

Score Display Layout

First Line

• Total Runs – Wickets

• Display Format: 155-6

Second Line

• Overs

• Display Format: 19.5

Character Size

• Runs & Wickets: Approximately 10 inches high

• Overs: Approximately 8 inches high

The large character size ensures excellent visibility from long distances around the cricket ground.

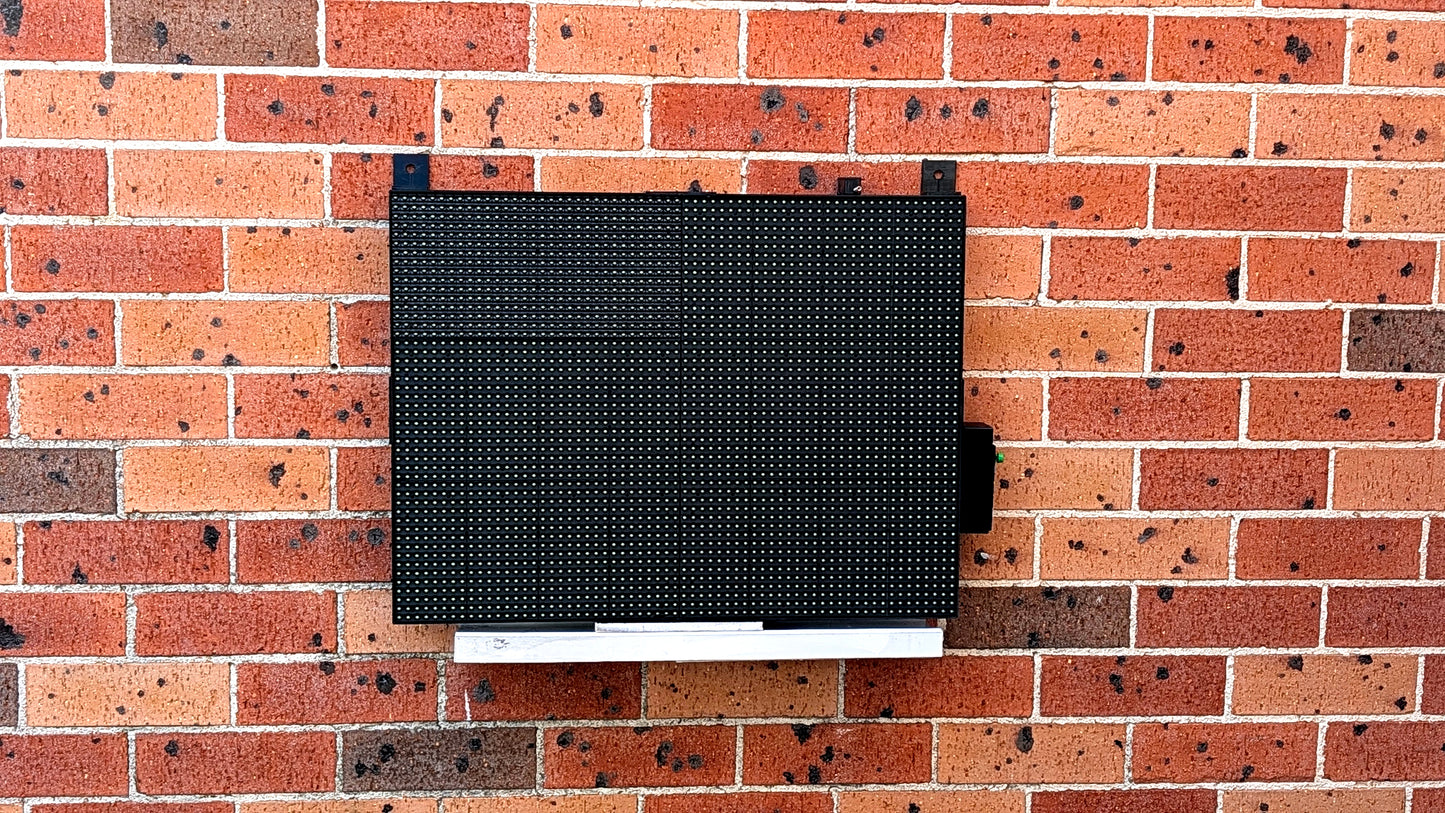

Installation

The scoreboard is designed to be portable and easy to install.

It can be:

• Mounted on a wall

• Installed on a custom-made stand

• Easily carried between venues

Weight

• Approximately 4.5 kg

Three Ways to Operate the Scoreboard

The scoreboard offers three convenient control methods.

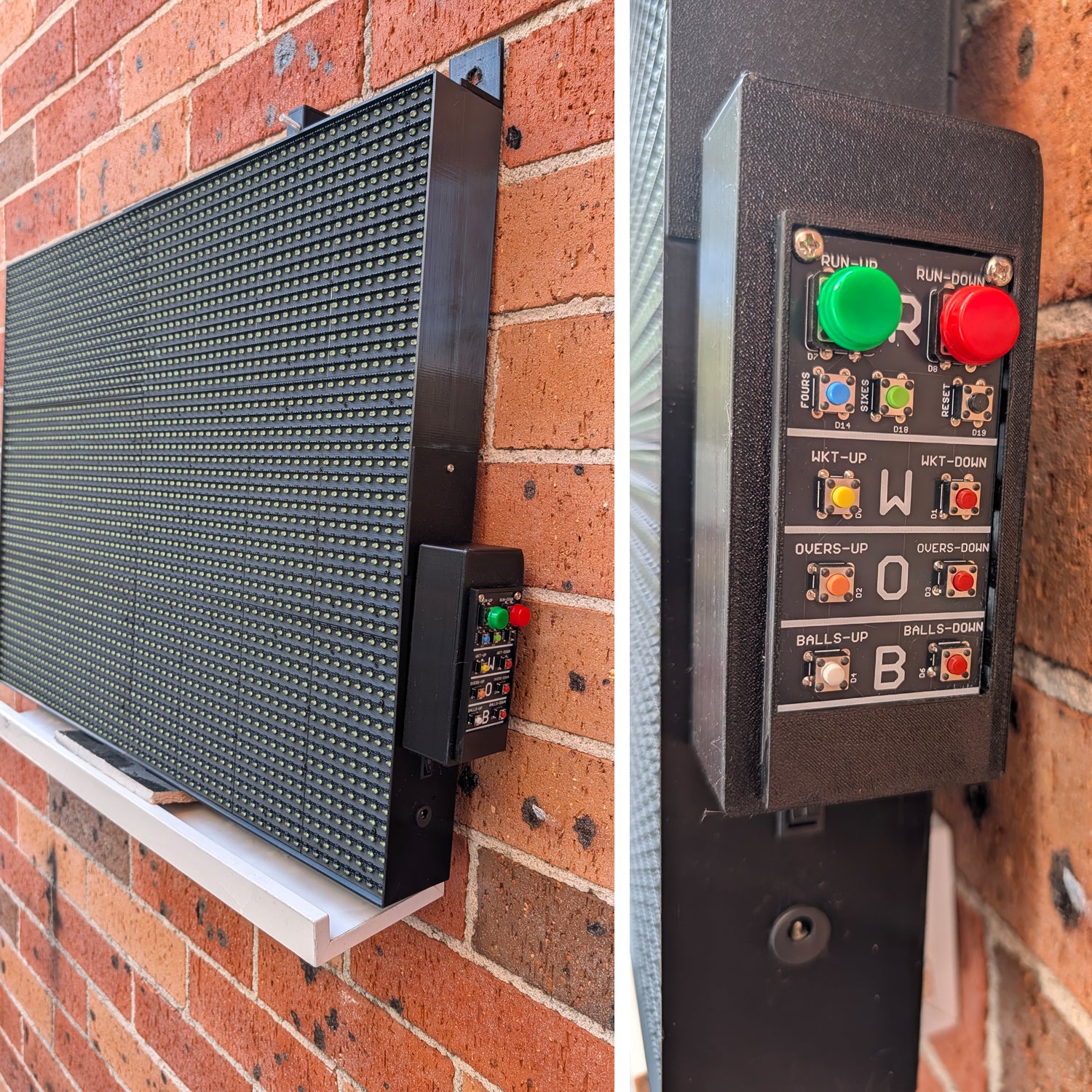

1. Built-in Controller

Physical control buttons are installed directly on the scoreboard for local operation.

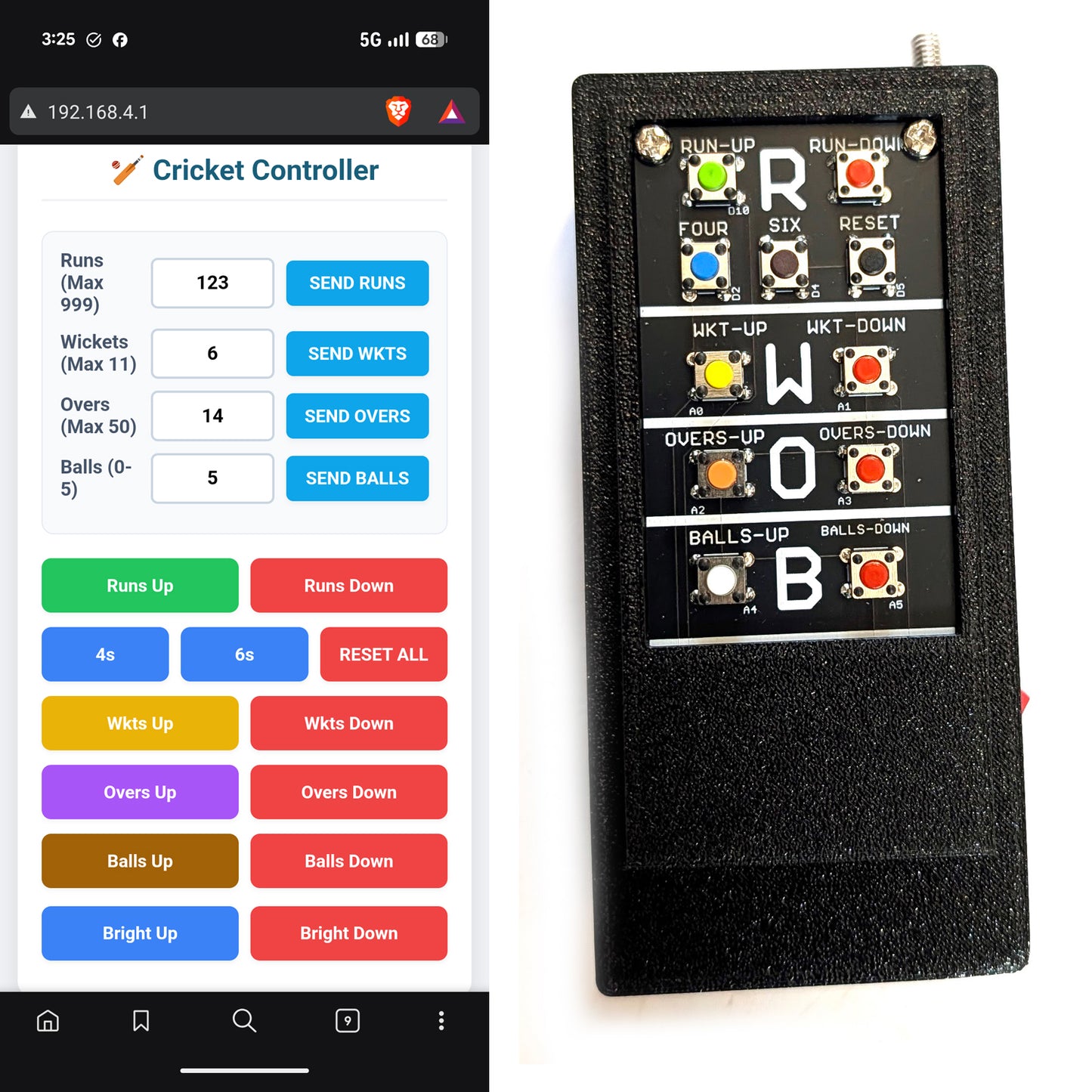

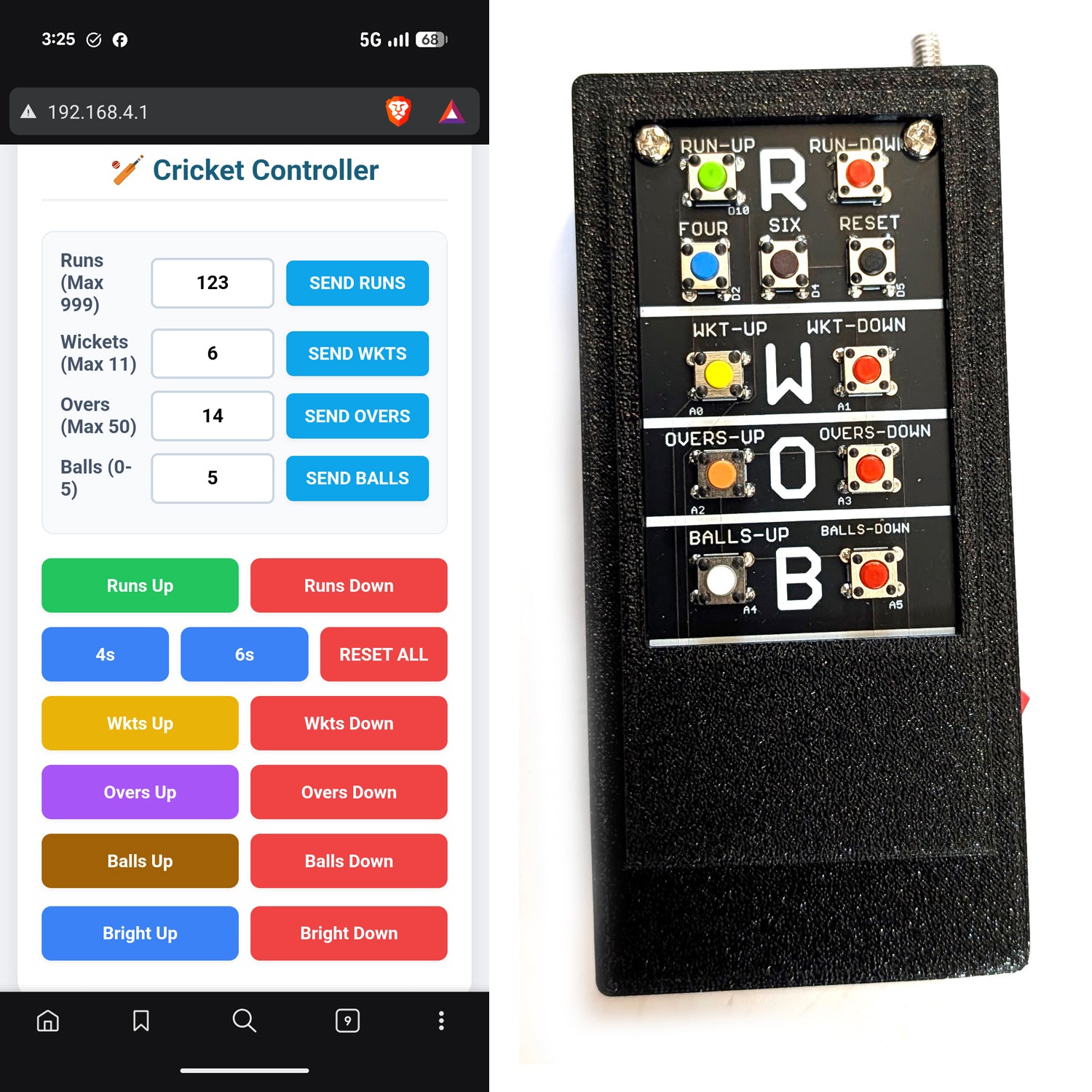

2. Wireless Remote Control

The supplied remote control allows the scorer to update the scoreboard from anywhere around the ground.

Features include:

• Physical push-button controls

• Wireless operating range of up to 500 metres in an open cricket ground

• Allows the scorer to operate the scoreboard while maintaining a clear view of the match

Remote Control Power Options

The remote control can be powered by:

• A standard 5V USB power bank, or

• A 9V battery (rechargeable or non-rechargeable)

3. WiFi Web Browser Control

The scoreboard creates its own WiFi network.

Simply:

• Connect your phone, tablet, or computer to the scoreboard's WiFi

• Open the web-based control interface in your browser

• Update scores instantly

No app installation is required.

Compatible with:

• iPhone

• Android phones

• Tablets

• Windows computers

• Mac computers

Portable Design

The lightweight construction makes the scoreboard easy to transport, set up, and store after matches.

Ideal for:

• Cricket clubs

• School competitions

• Community cricket

• Practice matches

• Temporary or permanent installations

3D Printed PETG Enclosure

The enclosure is manufactured using PETG (Polyethylene Terephthalate Glycol), a durable engineering-grade plastic widely used for functional outdoor products.

Benefits of PETG

• Strong and impact resistant

• Lightweight

• Good UV resistance compared with many common plastics

• Better heat resistance than PLA

• Excellent durability for portable equipment

• Does not rust or corrode

Important Information About the Enclosure

The enclosure is designed to provide strength and portability rather than a cosmetic showroom finish.

Because of the size limitations of 3D printing:

• Larger enclosure sections are printed separately

• Individual sections are permanently joined together

• Small glue marks, joint lines, layer lines, or minor cosmetic blemishes may be visible

These are normal characteristics of large-format 3D printed products and do not affect the operation or durability of the scoreboard.

Once installed, the focus is on the clear LED score display rather than the appearance of the enclosure.

An Example:

5V 8A Power Supply (Not Included)

Power supplies are NOT included and must be purchased separately by the customer.

This allows customers to source replacements locally whenever required.

Why are power supplies not supplied?

In countries such as Australia, outdoor sporting equipment is often exposed to:

• Extremely high temperatures

• Strong sunlight

• High UV levels

If standard power supplies are left in direct sunlight, they may overheat or get damaged.

Recommended Installation

For maximum reliability, we recommend:

• Installing the power supply inside a cardboard or weather-protected enclosure to minimise direct heat exposure

• Keeping the power supply out of direct sunlight whenever possible

• Keeping one spare power supply available as a backup for uninterrupted operation

Package Includes

• 6 × P10 Outdoor Green LED display modules

• Portable 3D printed PETG enclosure

• Built-in physical controller

• Wireless remote control with WiFi browser-based control interface

Ideal For

• Cricket clubs

• Schools

• Local leagues

• Community grounds

• Indoor and outdoor cricket

• Practice matches

• Tournament scoring

Check out all the images at https://photos.app.goo.gl/RMCzWRAx5GeeATUt5
