32cmx32cm Digital Cricket Scoreboard with Runs, Wickets And Overs

The scoreboard will be shipped within 10–20 days from the date of your order.

This lead time is required to manufacture, print, and assemble the enclosure to our quality standards. Additionally, we do not keep all components in stock at our Sydney facility. Some parts are imported specifically after an order is placed to ensure you receive the latest and highest-quality components.

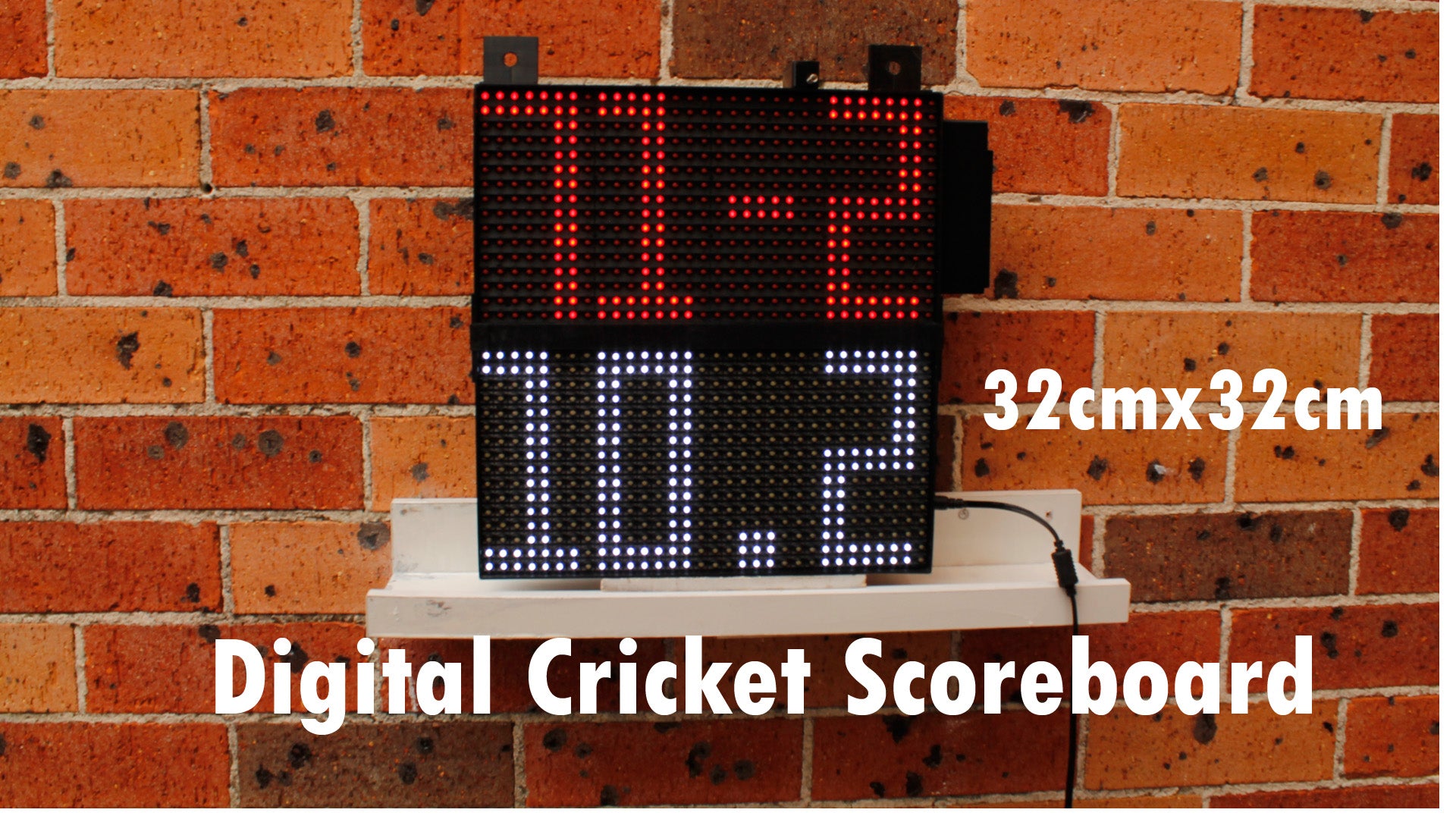

Digital Cricket Scoreboard – 2pcs P10 Dual Colour Outdoor Display (WiFi + Remote + On-Board Control)

A compact, lightweight, and fully wireless digital cricket scoreboard designed for clear match visibility and flexible control options. Ideal for clubs, training grounds, school sports facilities, and community cricket setups.

Check out all the images at https://photos.app.goo.gl/9bEzoVmbUWQiojLJ9

📺 Display Configuration

• Type: 2PCS P10 dual-colour outdoor LED display

• Recommended Colours:

  • Top line: Green

  • Bottom line: White

• Individual Module Size: 32cm × 16cm each

• Total Assembled Display Size: 32cm × 32cm

• Spacing Between Modules: Approx. 2cm gap

🏏 Score Display Layout

The scoreboard is designed for clear, real-time match updates:

• Top Line (Main Score):

  • Format: Total Runs – Wickets

  • Example: 155-6

  • Digit Height: Approx. 16cm

• Bottom Line (Overs):

  • Format: Overs

  • Example: 19.5

  • Digit Height: Approx. 16cm

All information is displayed in a bright, high-visibility format suitable for outdoor viewing.

🎮 Control System (3 Operating Modes)

The scoreboard can be operated in multiple ways for maximum convenience:

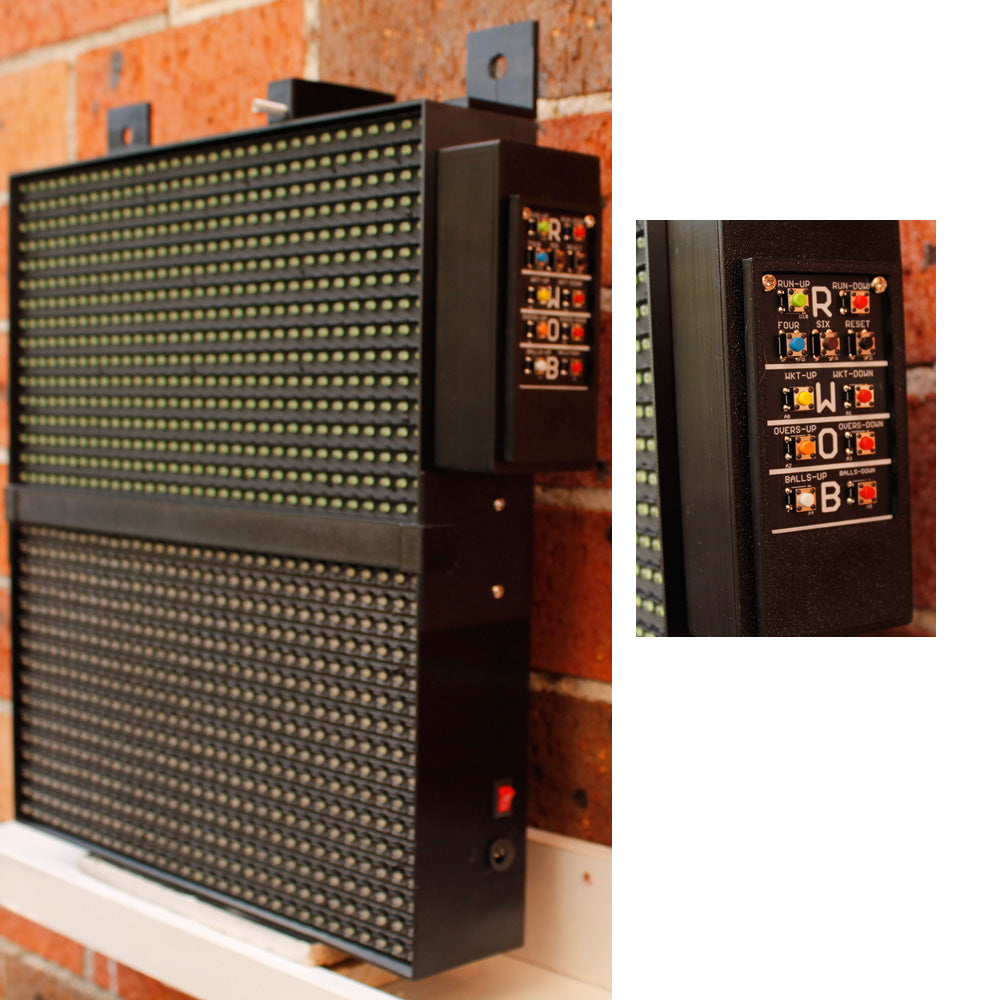

1. Built-in Controller (On-Board Control)

• Physical controller/switches installed directly on the scoreboard

• Quick manual score updates on-site

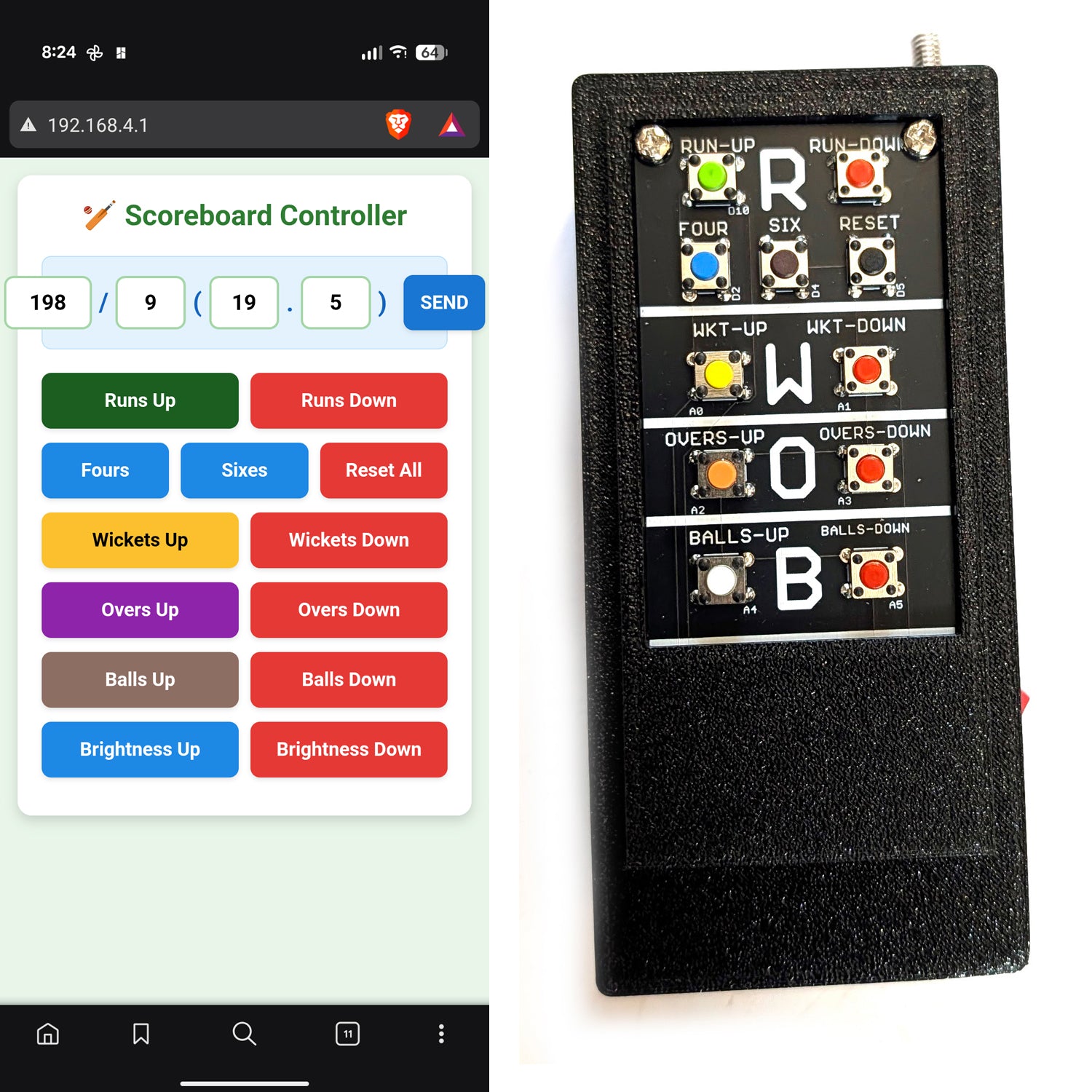

2. Wireless Remote Control

• Dedicated remote control box included

• Operates independently or alongside WiFi system

• Range: Up to 500m in open cricket ground conditions

• Allows operators to update scores from a distance where visibility is still clear

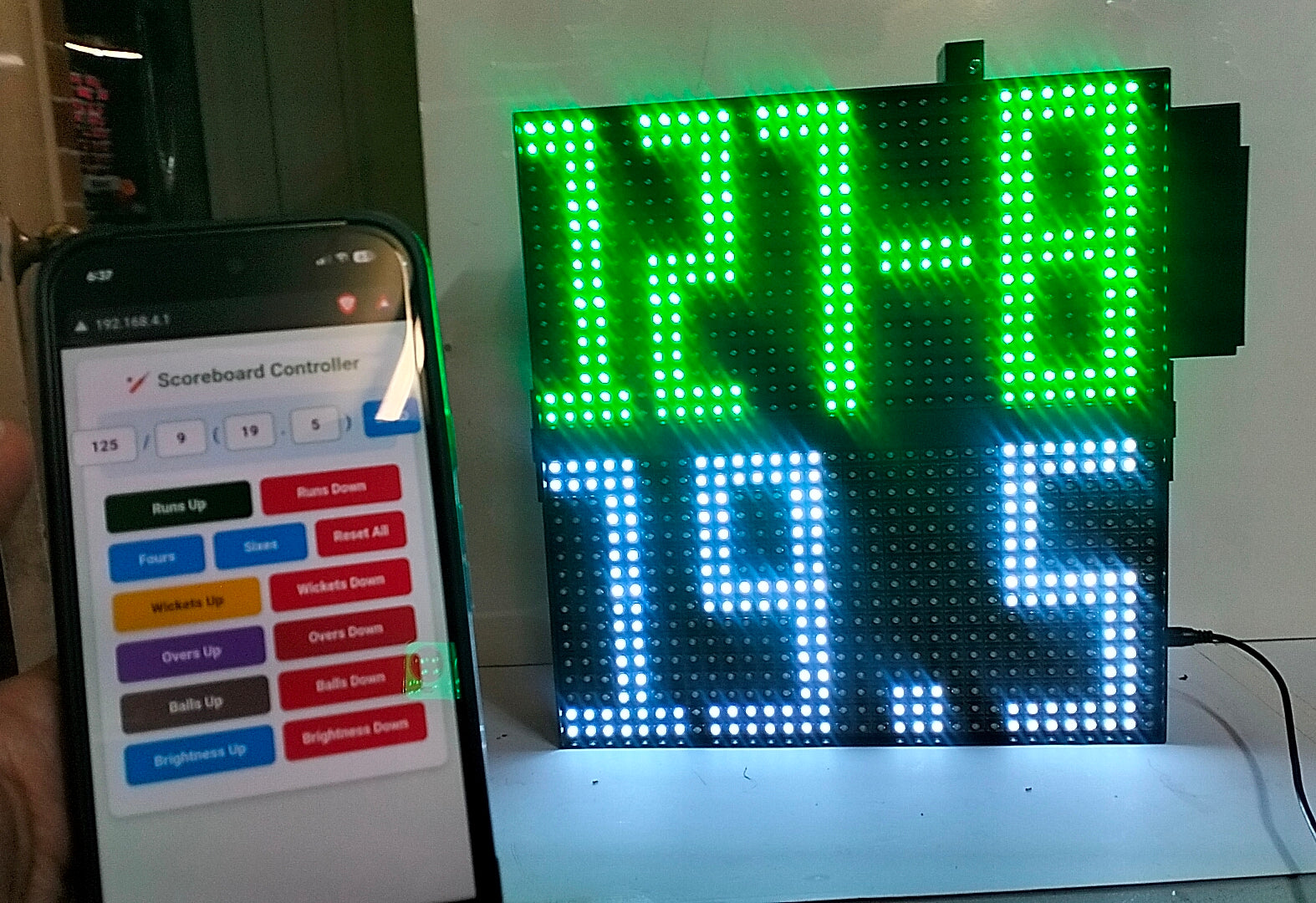

3. WiFi Web-Based Control

• Connect via scoreboard WiFi hotspot

• Open a browser interface on:

  • iPhone

  • Android phones

  • Tablets

  • Computers

• Simple web dashboard for real-time scoring updates

🔋 Remote Power Options

• Remote control powered via:

  • 5V power bank, or

  • 9V rechargeable or non-rechargeable battery

• Flexible power options for match-day convenience

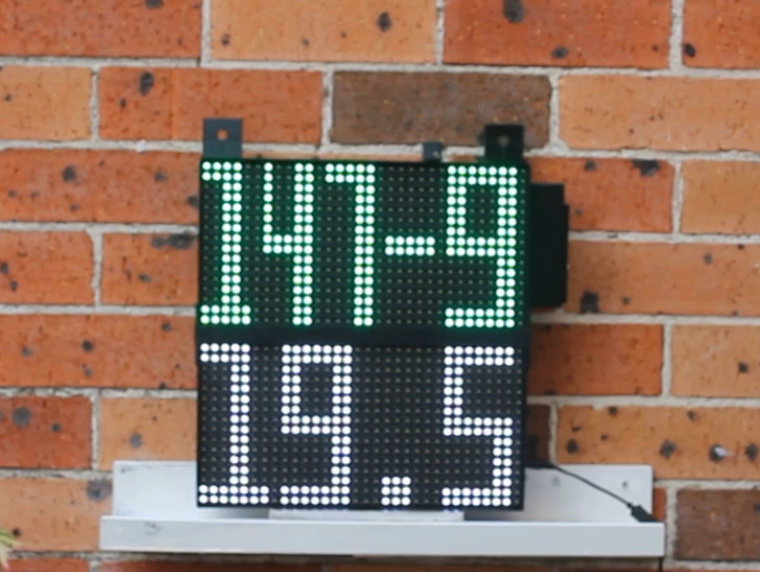

🏗 Installation & Portability

• Can be installed on:

  • Wall mounting setup

  • Custom-built stand

• Lightweight and portable design

• Approximate Weight: 1.5 kg

• Easy to carry, install, and reposition as required

🧱 Enclosure Information (3D Printed PETG Housing)

• Enclosure made using PETG (Polyethylene Terephthalate Glycol) material

• PETG is known for:

  • Good impact resistance

  • Flexibility compared to standard PLA plastics

  • Better heat resistance than basic 3D printing materials

  • Suitable for outdoor electronic housings when protected properly

Important Notes on 3D Printed Enclosure:

• Enclosure is not injection-moulded or metal-finished

• May show:

  • Visible layer lines

  • Minor surface blemishes

  • Glue marks from assembly

• Due to size limitations in 3D printing:

  • The enclosure is printed in multiple parts and assembled

• Functionality is prioritised over cosmetic perfection

• Designed to securely hold components while remaining lightweight and portable

⚡ Power Supply Information (Not Included)

• Power supplies are not included with the scoreboard

• Reason:

  • In high UV and extreme heat environments (e.g., Australia), externally exposed power supplies may degrade or melt if not properly protected

Recommended Usage:

• Install power supply inside a protective box (cardboard or plastic enclosure)

• Avoid direct sunlight and heat exposure

• It is strongly recommended to keep:

  • One backup power supply for uninterrupted operation during matches

📌 Key Highlights

• Dual control system: WiFi + remote + built-in controls

• Long-range remote operation (up to 500m open field)

• Lightweight and portable design

• Clear high-visibility LED display

• Flexible installation options

• Suitable for outdoor cricket environments

ℹ️ Additional Option

If you require a similar scoreboard with integrated target display functionality, a separate model is available. Please visit the provided link to view that version.

Check out all the images at https://photos.app.goo.gl/9bEzoVmbUWQiojLJ9
