DIY Soccer Scoreboard using SCOREDUINO-DMD: Customizable, Indoor/Outdoor, and Bluetooth Controlled

The SCOREDUINO-DMD module, in combination with dual-color and six P10 dot matrix displays, provides an easy-to-setup solution for a basic soccer/football scoreboard.

Features

Display Customization:

• Top Display: Customize team names (e.g., AUS, USA).
• Bottom Display: Shows the timer and scores.

Indoor and Outdoor Use: Designed for both environments, simple to assemble and operate.

Dimensions and Colors:

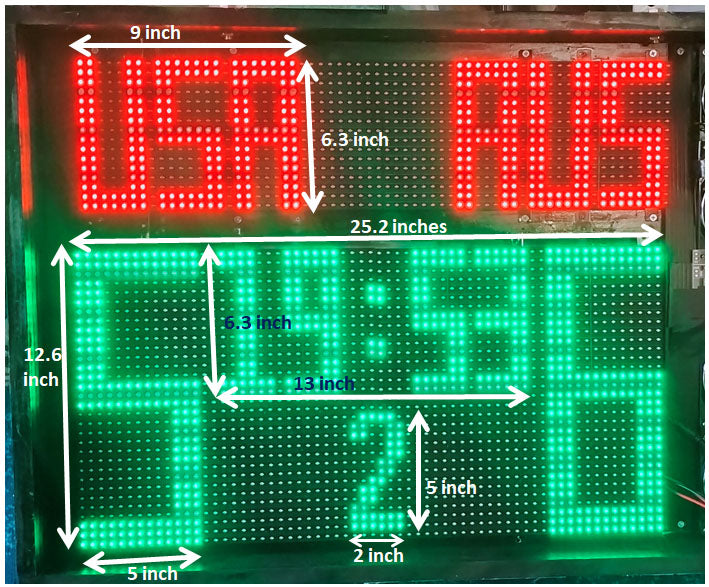

• Dimensions: 64cm x 48cm (25.20 inches x 18.90 inches OR 2.10 feet x 1.57 feet.)
• Available in red, blue, white, green, and yellow.

Control and Connectivity:

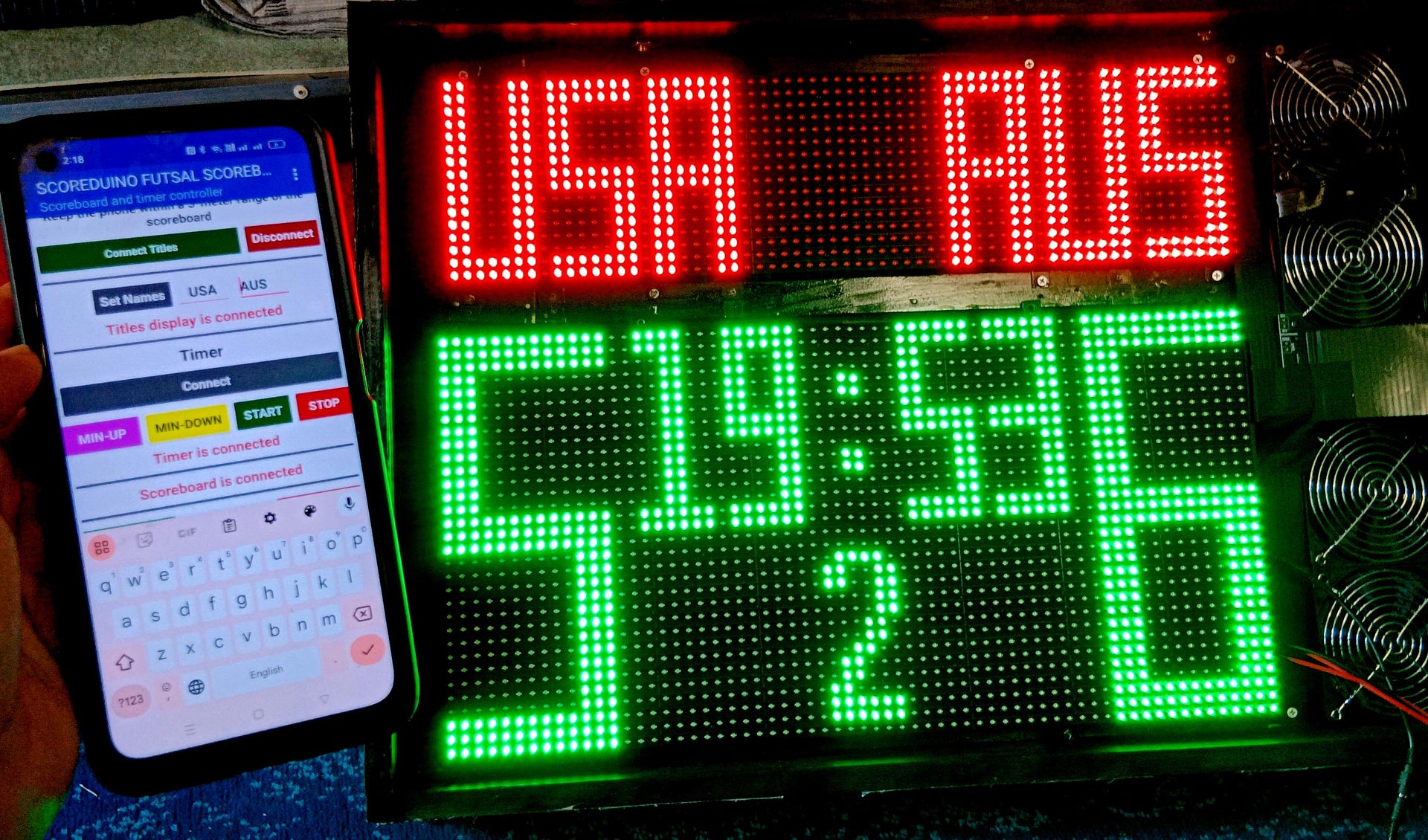

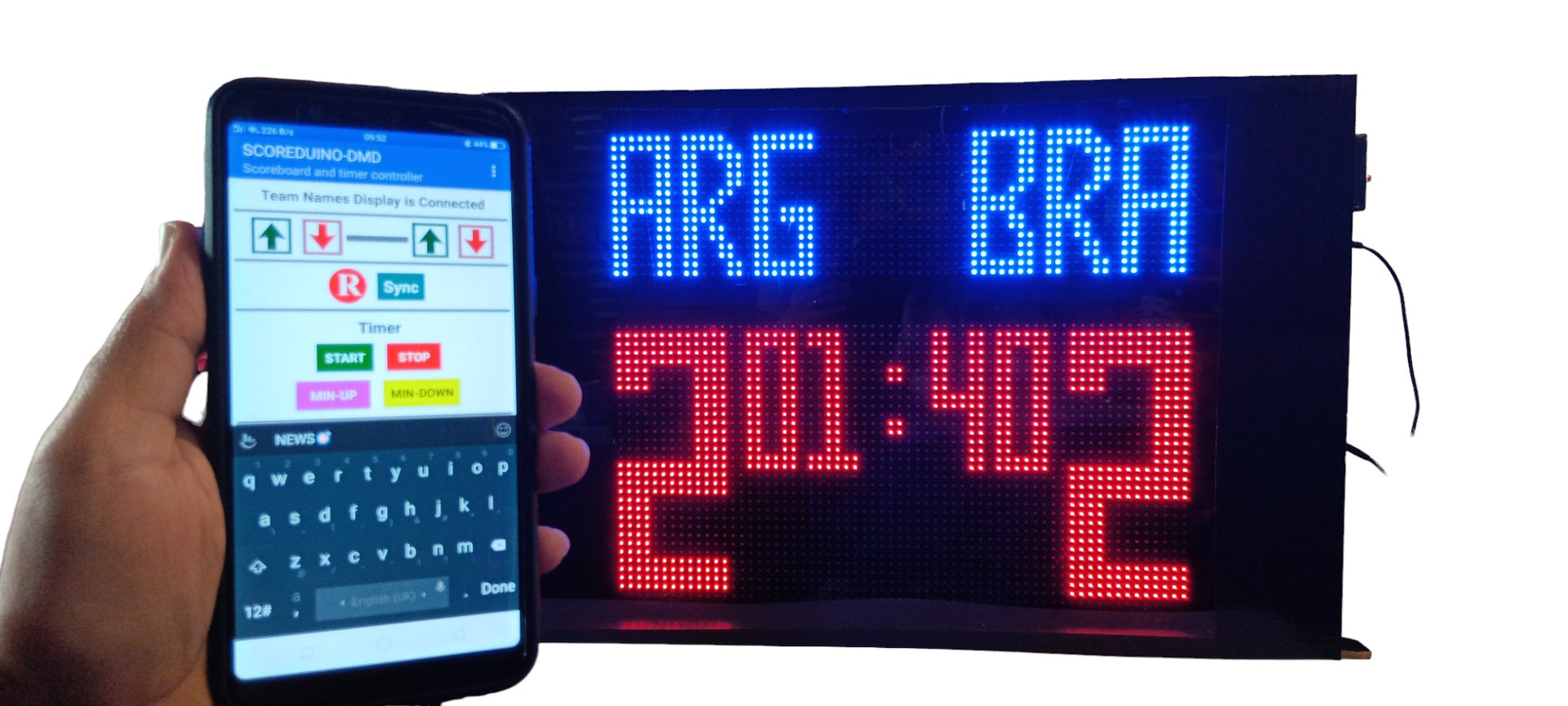

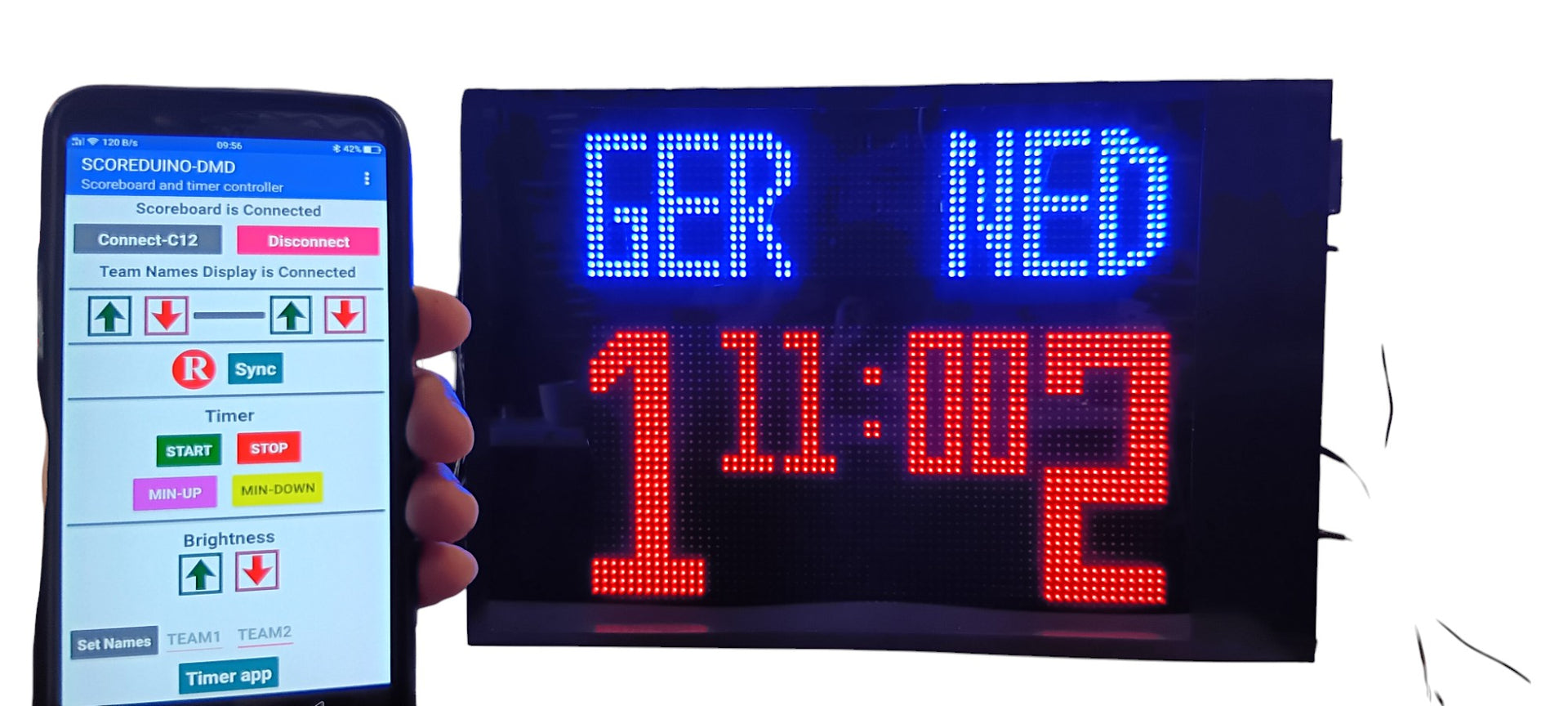

• Controlled via the user-friendly Scoreduino app.
• Bluetooth connectivity for seamless communication.
• App allows easy brightness adjustment.

Note:

• The title display unit includes 2 dot matrix displays.
• The score unit includes 4 matrix displays.
• Each unit requires separate power sources and operates with two distinct DMD modules.
• Bundled in a single box, managed by a unified app that communicates simultaneously with two Bluetooth modules.
• Manual score updates are also possible using the app.

Download Manual Score Update App

Purchasing Options

Option 1:

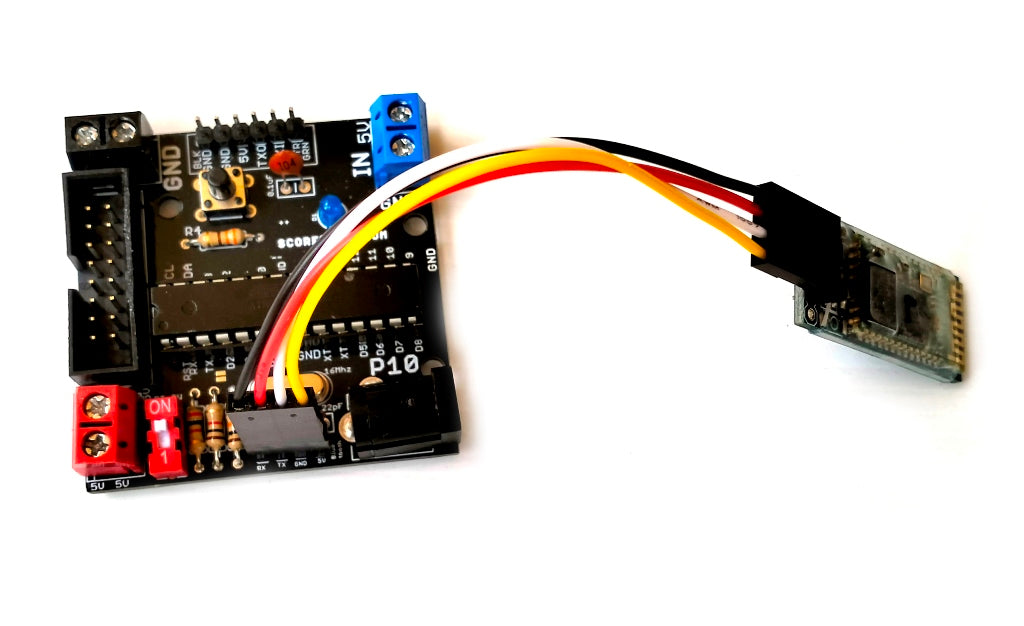

• Includes: 2 Scoreduino P10 DMD Scoreboard Controller modules + 2 Bluetooth modules.
• Note: Customers need to purchase P10 dot matrix displays and other accessories separately.

Option 2:

• Includes: Scoreduino P10 DMD Scoreboard Controller module + Bluetooth module + All accessories (Excludes enclosure and acrylic).

Option 3:

• Fully assembled scoreboard with wooden enclosure and acrylic.
• Note: Handmade enclosure; expect variations in output quality.

Package Includes

• Displays: 6 x Outdoor P10 Dot Matrix Displays (32cm x 16cm- In inches: 12.60 inches x 6.30 inches and In feet: 1.05 feet x 0.52 feet), choose your color.

• Cables: 1 x 80cm long data cable.
• Modules and Boxes: 2 x Scoreduino modules, 2 x Bluetooth modules, 2 x Boxes for Scoreduino modules (108mm x 56mm x 40mm).
• Power Supplies: 2 x 5V-6A power supplies (EU/UK/USA/AU).
• Additional Accessories: Strips to join displays, 4mm screws, DC barrel females

Assembly Tutorial

Customers need to purchase front screen acrylic and timber and build their own wooden enclosure (90cm x 60cm). Required tools: drill machine, cutter, grinder, etc. Follow our tutorial for assembly guidance.

Videos

• Indoor Setup
• Outdoor Setup

Important Notes

• Our source codes are not shared.
• All modules are preprogrammed.
• Check out all the images on Flickr
• Check out all output options
