2 x 50W Class D Bluetooth Audio Amplifier Board - TSA3116B(Apt-X)

2 x 50W Class D Bluetooth Audio Amplifier Board - TSA3116B(Apt-X)

Name: 2 x 50W Class D Bluetooth Audio Amplifier Board - TSA3116B(Apt-X)
Brand: Tinysine
SKU: G583FA053F25EF-1
Price: 39.95 USD
Availability: InStock

US $39.95

Antenna Type: PCB Antenna

PCB Antenna

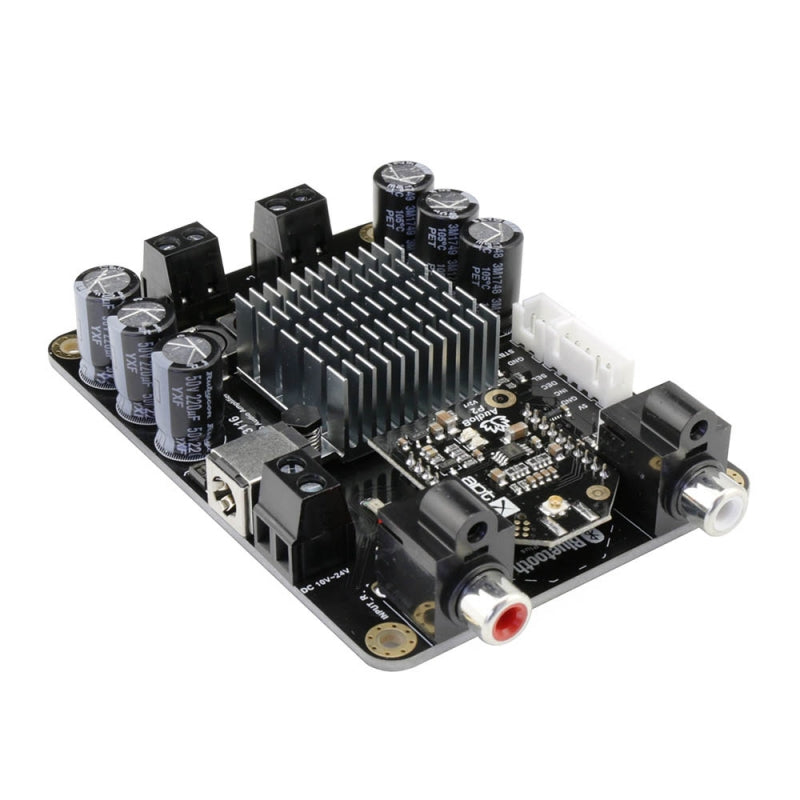

U.FL interface

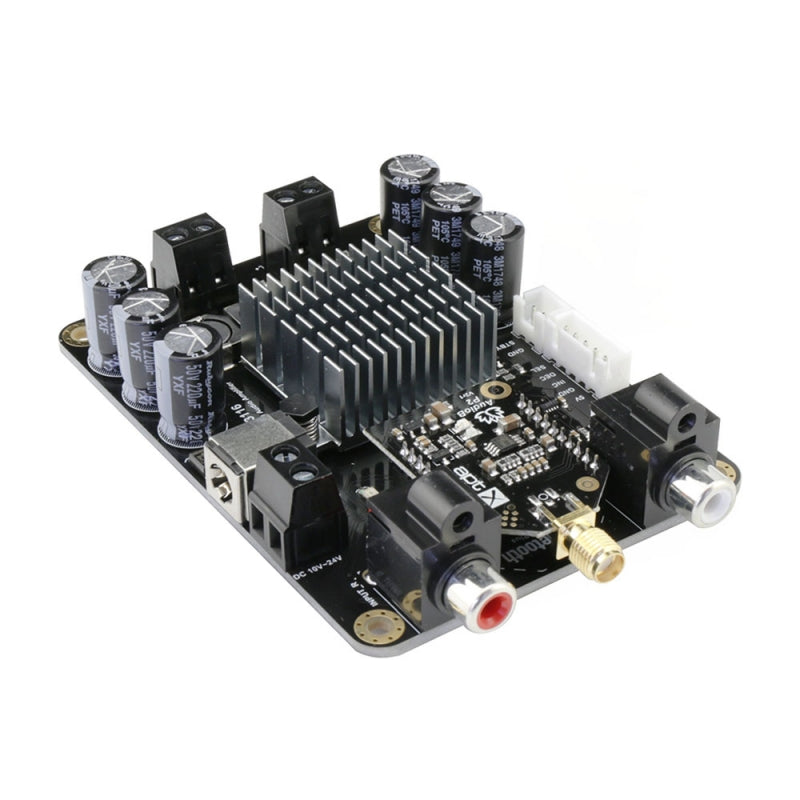

SMA interface (+$1.00)

Hurry Up! Only 100 Left in Stock!

Out of stock

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: Jan 19 - Jan 23

All orders are delivered within 2-4 weeks

Availability: In Stock Unavailable

SKU: G583FA053F25EF-1

Categories:

Bluetooth Audio Amplifier (Apt-X)

Tags:

2 x 50W Class D Bluetooth Audio Amplifier 50W Class D Bluetooth Audio Amplifier Bluetooth Audio Amplifier Bluetooth Audio Amplifier APT-X TSA3116B TSA3116B(Apt-X)

Guarantee safe & Secure checkout

Description
Shipping & Return
Reviews

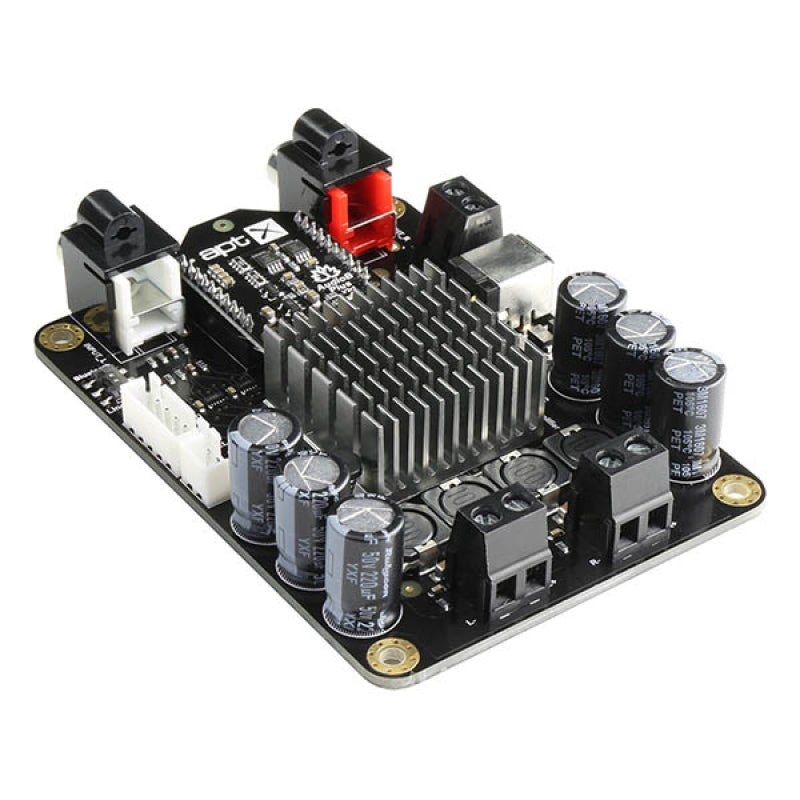

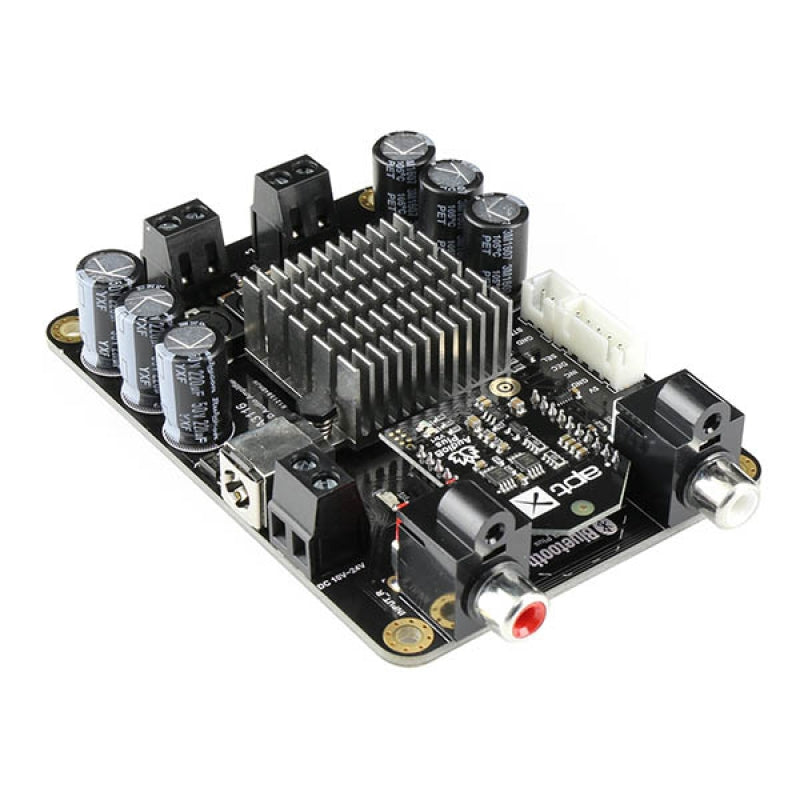

This is a 2x50W audio amplifier board with a new AudioB plus Bluetooth module that supports Apt-X. It has perfect class-D architecture (based on TPA3116D2) and every channel has 50W power output. Both channels are capable of outputting nominal power simultaneously and continuously. This board can be powered by any DC 10V-24V power supply, it can be used to drive any 4Ω or 8Ω passive speakers.

It is perfect for your Hi-Fi application, the audio source can be cable input or Bluetooth. You may wish to pair up the amplifier with a mobile phone or a computer that has Bluetooth function.

Power up the amplifier board, use your phone or PC to search for a new Bluetooth device, the module will appear as "BT Speaker", you can simply pair it up without PIN. Yes, it connects automatically with your device.
You can then play your audio.

*BVC Port: BVC port can connect with our Audio volume controller to control the Bluetooth audio volume.

Specification:

Specifications typical @ +25℃, Powered by 21V DC, unless otherwise noted. Specifications subject to change without notice.

Parameter	Condition	Min	Typ	Max
Supply Voltage (VDC)	-	10	21	24
Idle Power	SD Floating	-	1.3W	2.5W
Standby Power	SD Connected to GND	-	0.1W	0.3W
Maximum Current	100W @ 4Ohm	-	5.29A	-
Efficiency	50W @ 4Ohm	87%	-	92%
Minimum Load Impedance		3.2Ω
Switching Frequency	SD Floating	-	394KHZ	-
Gain		24dB	25dB	26dB
Input Sensitivity(RMS)	@4Ω, 50W, 1KHz	-	808mV	-
Input Impedance	-	-	22KΩ	-
Output Power	@4Ω THD+N 1%	-	36W	-
Output Power	@4Ω THD+N 10%	-	50W	-
Bandwidth @ ±3dB	@4Ω	20Hz	-	20KHz
THD	@4Ω, 1W, 1KHz	-	0.0299%	-
THD	@4Ω, 10W, 1KHz	-	0.073%	-

Features:

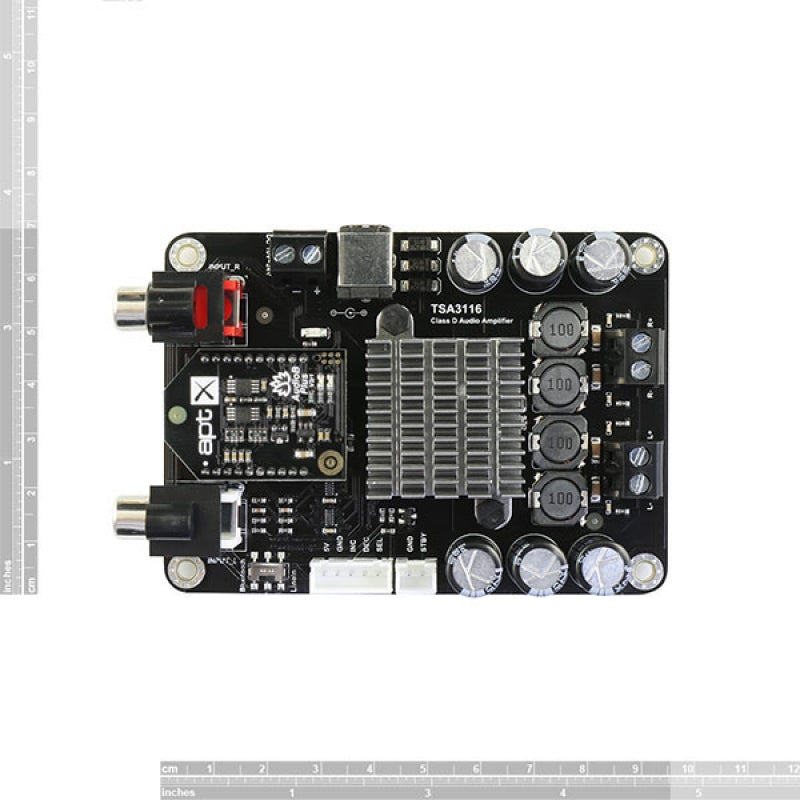

Size: 6.9cm x 9.5cm
aptX, aptX Low Latency, SBC and AAC
Bluetooth 4.0
Bluetooth audio volume control port(BVC)
Working voltage: DC 10V-24V
Over/under voltage protection
Overcurrent protection
Over temperature protection

Applications:

Personal computer
Background music system
Musical instrument amplifiers
Home DIY
Car audio
