Description

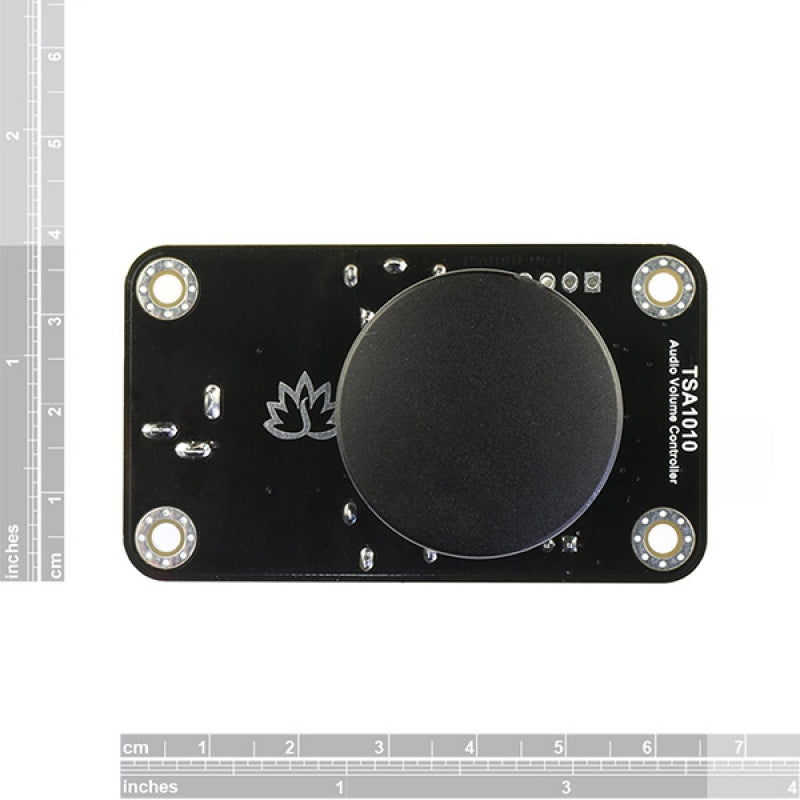

TSA1010 is a digital stereo Bluetooth/Single-ended audio volume controller board. It has two 3.5mm audio jack and a BVC port.
You can use it to control the audio volume of any normal amplifier board. The audio out signal will increase/decrease when a user rotates the knob and Bluetooth audio volume control port will also output an increase/decrease in the control signal.

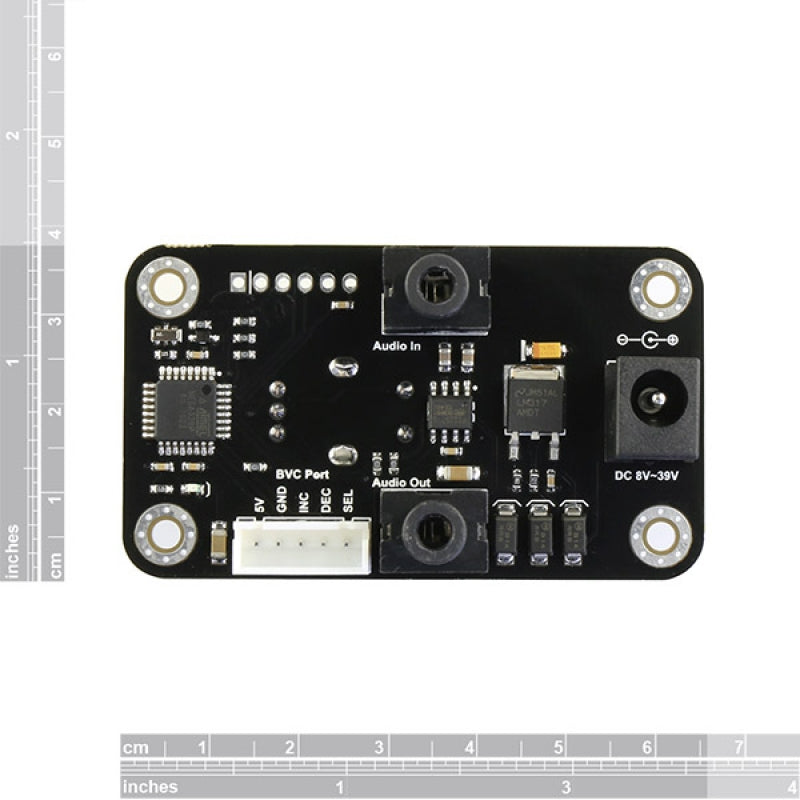

TSA1010 external volume control board
Pins define:
| Port name | Pin name | Direction | Description |
|
BVC Bluetooth volume control
|
5V | - | |
| GND | - | ||
| INC | Digital Out | Bluetooth audio volume + | |
| DEC | Digital Out | Bluetooth audio volume - | |
| SEL | Digital In |
Bluetooth/Single-ended select 1-Bluetooth, 0-Single-ended select |
Features:
- Size: 6.6cm x 3.8cm
- Bluetooth audio volume control
- Singal-ended audio volume control

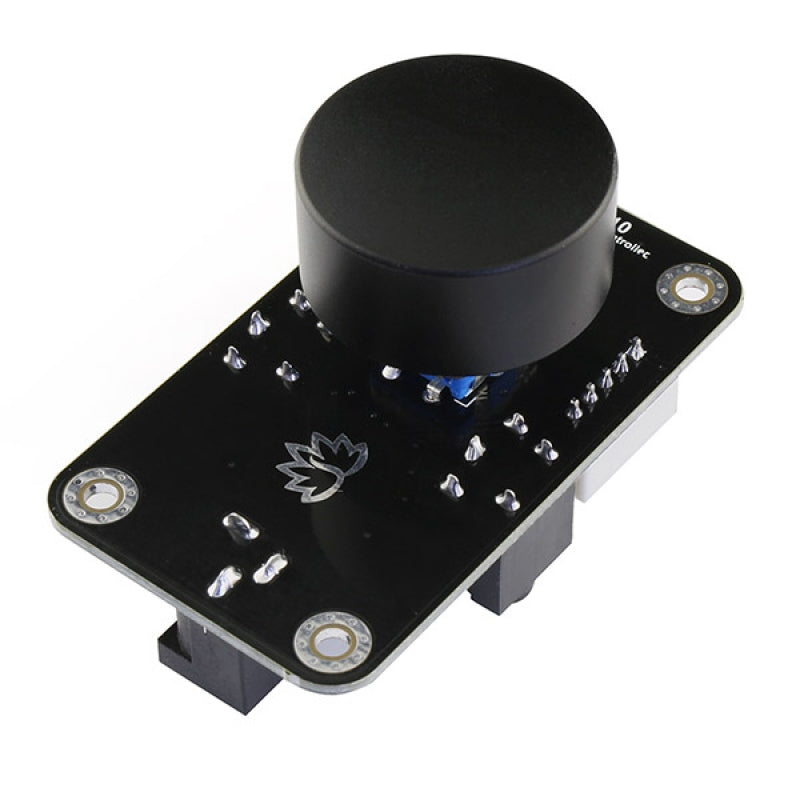

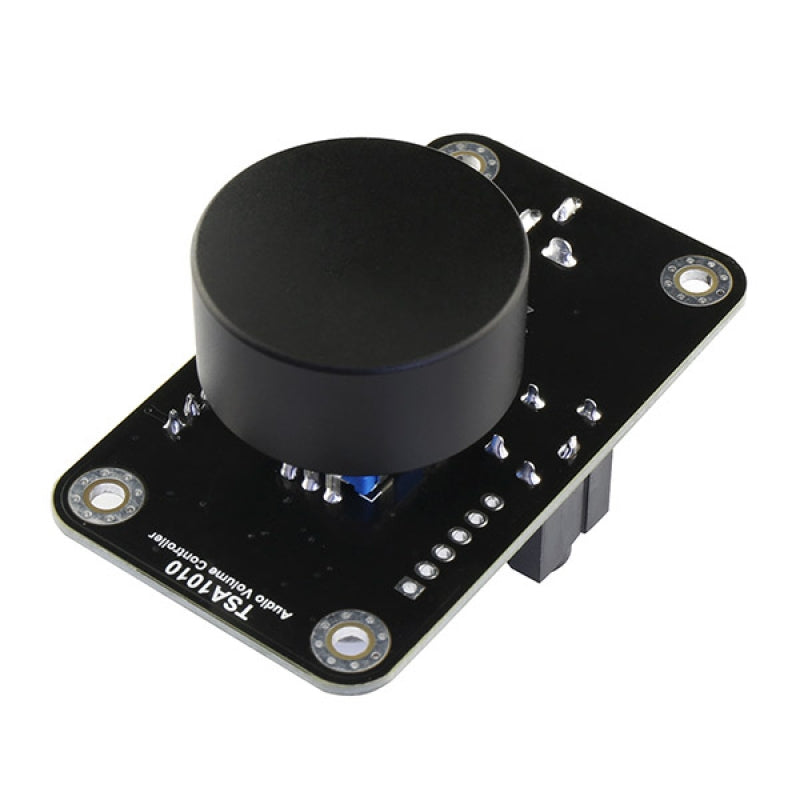

- An external audio volume knob
- Working voltage: DC 8V-39V
