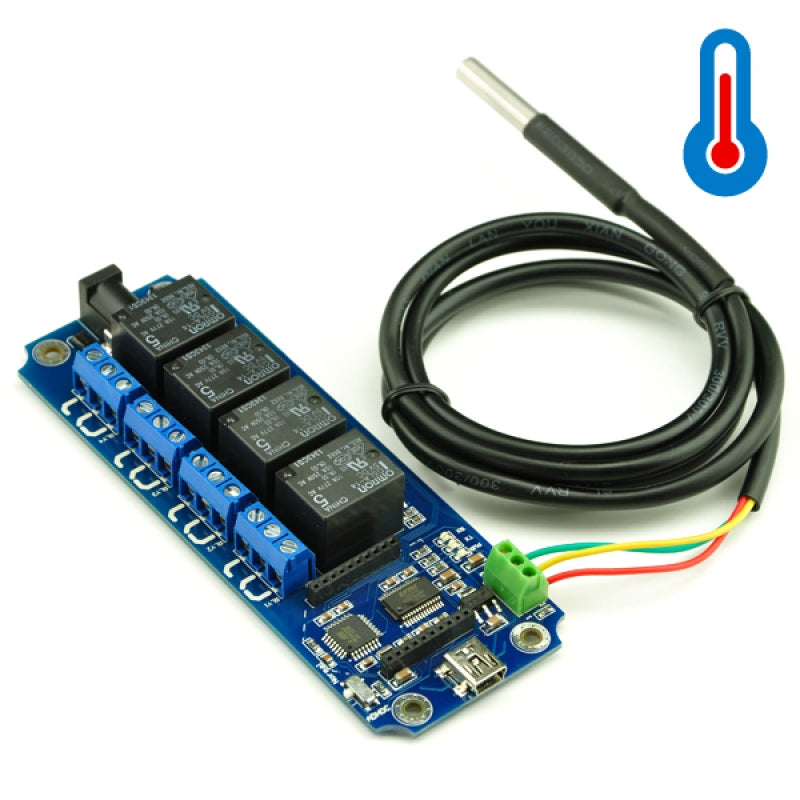

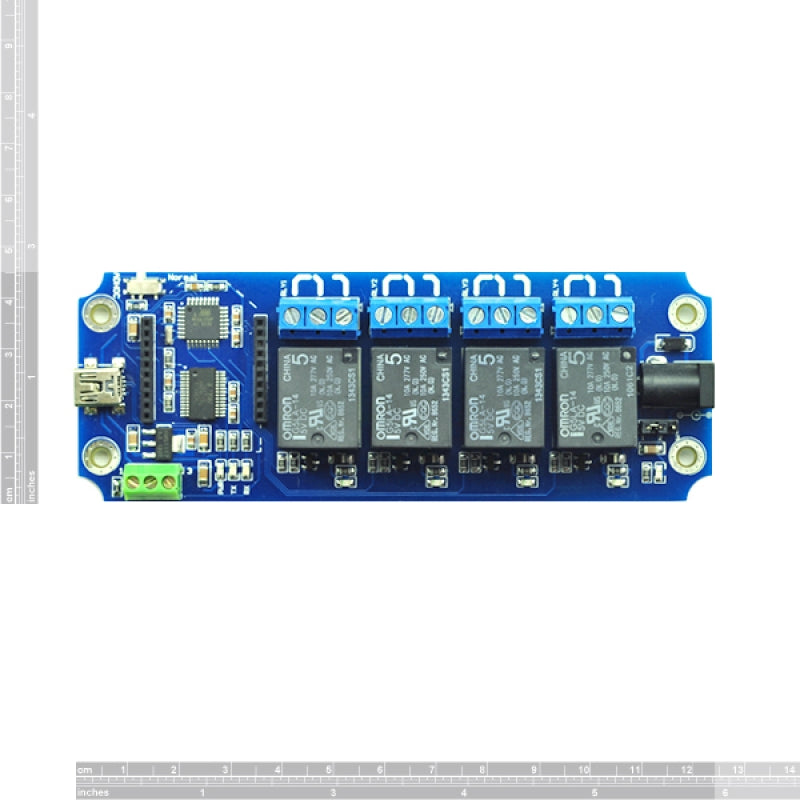

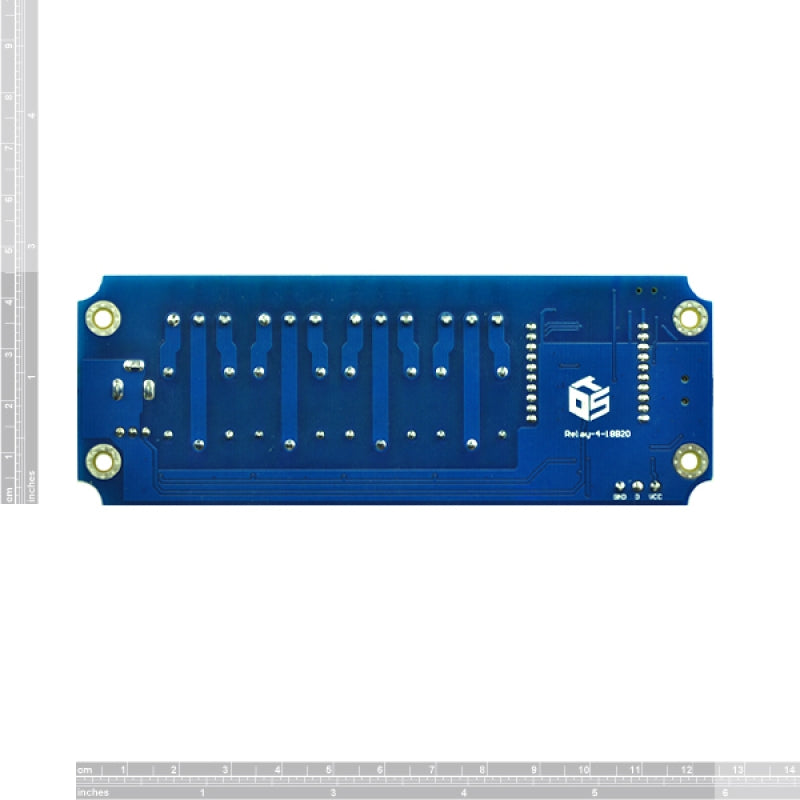

TOSR04-T - 4 Channel USB/Wireless 5V Relay Module with DS18B20

Description: This USB/Wireless relay module allows computer to control switching of external devices by using the USB port of your computer.

It  has a wireless extension port that can work with XBEE or Bluetooth Bee or Wifly modules which means now you can control your device by Zigbee or Bluetooth or Wi-Fi.

The TOSR04-Tmodule can be powered by USB bus or DC power and provides two volt free contact relay outputs with a current rating of up to 10 Amp each.

It also has a DS18B20 temperature sensor port. You can use it make your thermostat or any other similar application by yourself.

Relay power rating
If the relay is used at a voltage or current exceeding this specification, the life of the contacts may be significantly shortened.

A full datasheet for the relays used on the TOSR0x is here: G5LA datasheet

If you use DC Power, the Input voltage should be DC 5V.

First Step - Install the Driver
The TOSR04-T module uses FT232RL USB to UART chip. Before using the TOSR04-T you will need to download the FT232RL Driver.

Connect the TOSR04-T and windows will detect it and ask for the drivers. Point windows to the inf folder and it will install the driver.

The TOSR04-T will now appear as a com port.

Commands
The TOSR04-T operates with an easy to use command set as described in the table below.

TOSR04-T Baud rate : 9600

Test program
To get the TOSR04-T up and running in the minimum amount of time we have put together an example program to demonstrate the functionality of the module.

Bluetooth control

WIFI control
