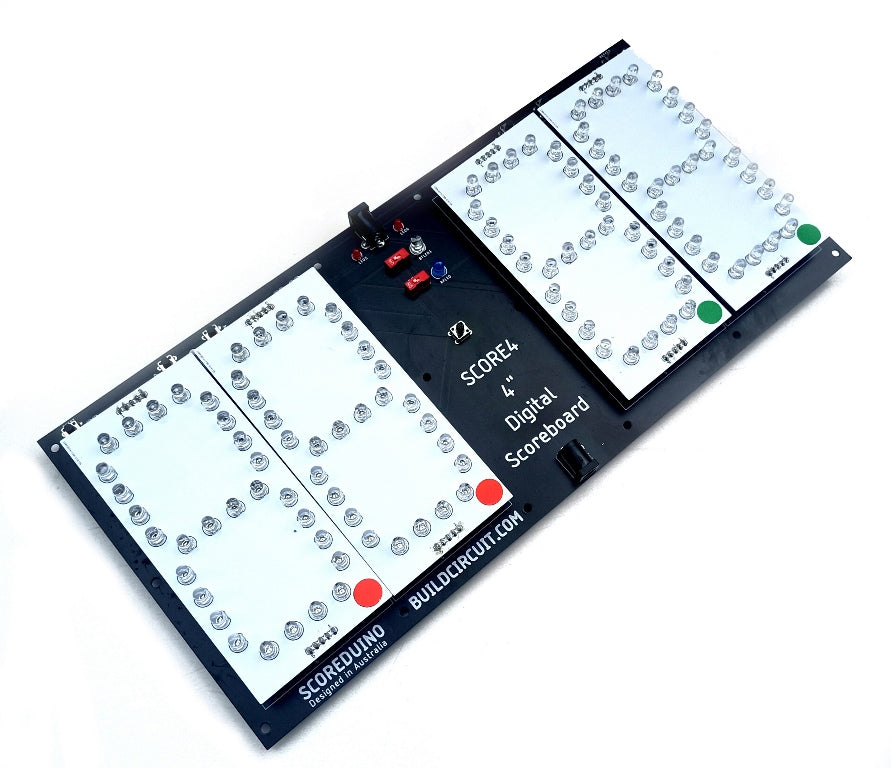

SCORE4- DIY Digital Scoreboard With 4 digits LED displays

Read this page before you place an order

This is a DIY digital scoreboard for indoor games. Unlike other scoreboards, its displays are made with 5mm LEDs All the modules of the scoreboard come fully assembled. You just have to find a way to fix it on a wooden board or make other arrangements to make it beautiful and usable for your sport.

Features:

• 2 players/teams Arduino based digital Scoreboard
• Programmable using FTDI basic breakout board

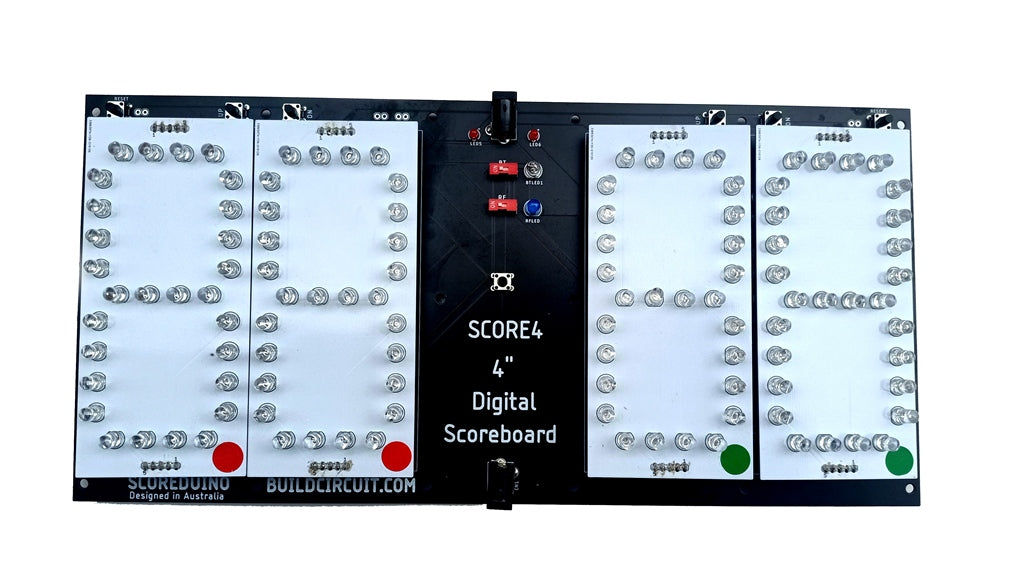

• Common anode LED display size: 10.2cm (4 inches) x 4.8cm(1.8 inches).

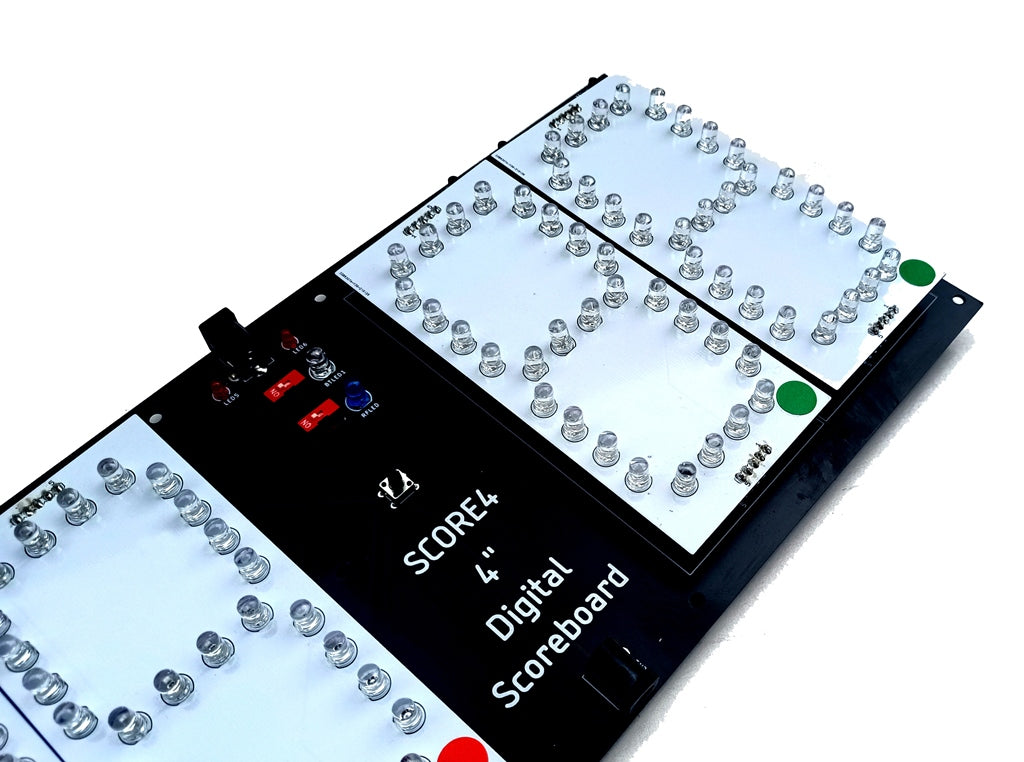

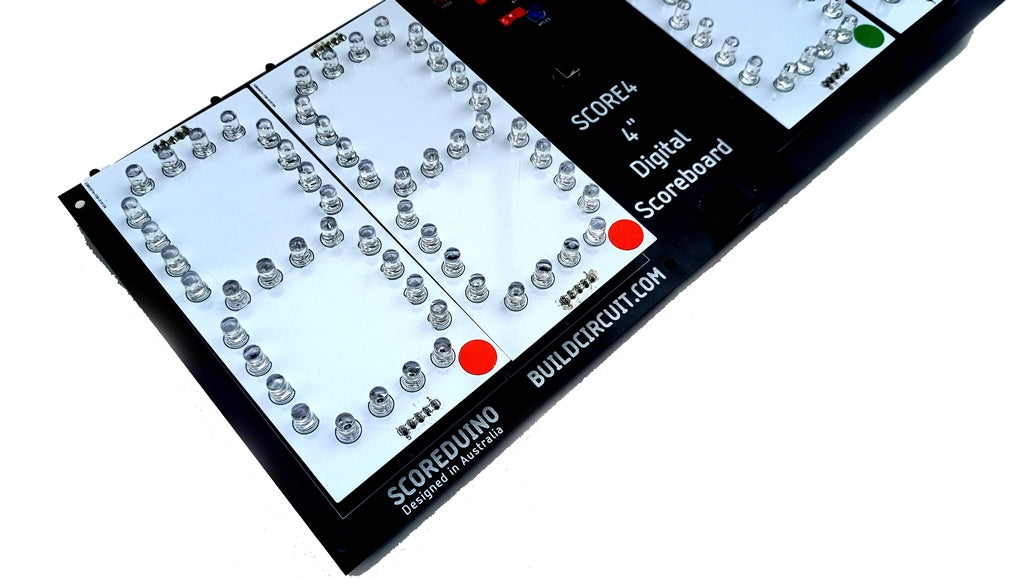

• LED size: 5mm. Colors: RED (left) and GREEN (right)

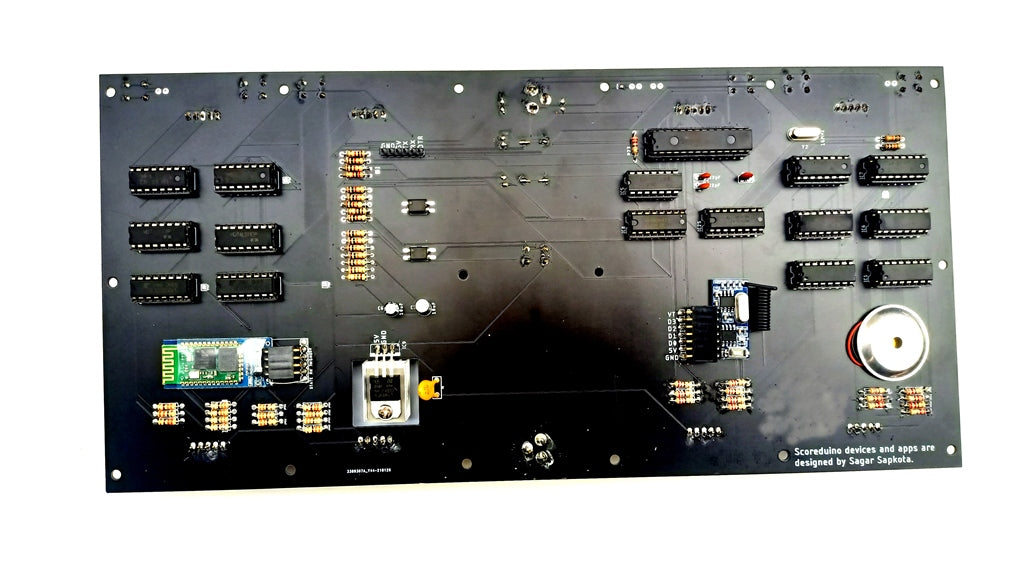

• PCB dimension: 301 mm* 144.8 mm

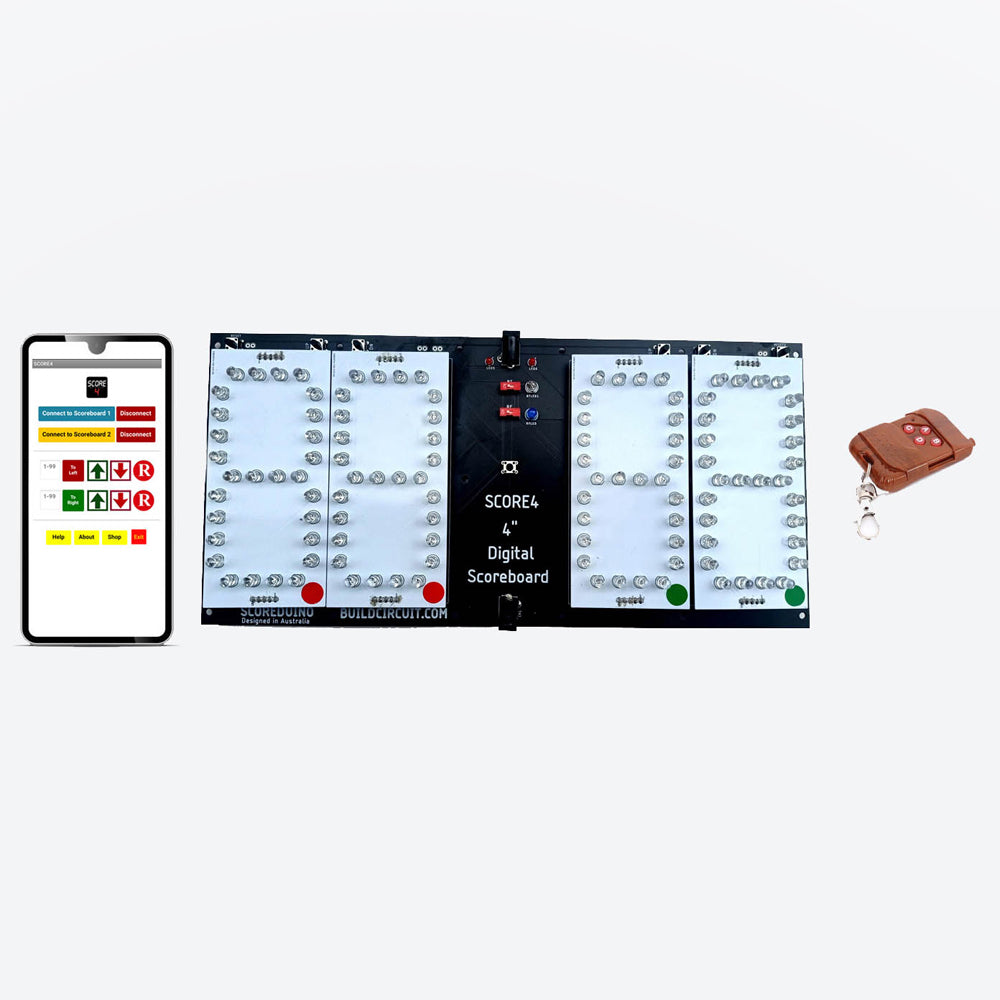

• Works with SCORE4 app and SCORE4T app
• Send specific numbers to the displays using the app
• When scores are displayed from 0-9, the left digit is off. For example, if a team scores a 7, the scoreboard displays only 7, not 07.
• Bluetooth is the communication medium between the Scoreboard and app
• You can send scores to two Scoreboards simultaneously with the app
• The scoreboard does not reset even if the Bluetooth is disconnected.
• Can be controlled with 4CH RF remote control
• Use switches to manually increase or decrease the count
• It works with 12V-1A power supply

To build this scoreboard, we have combined three modules.

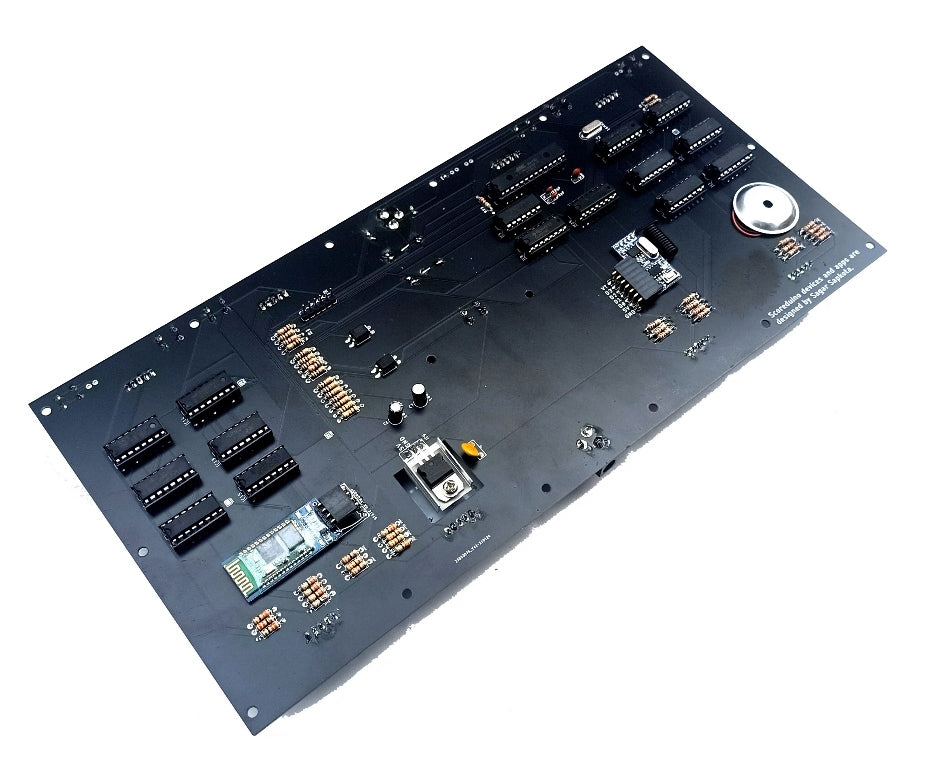

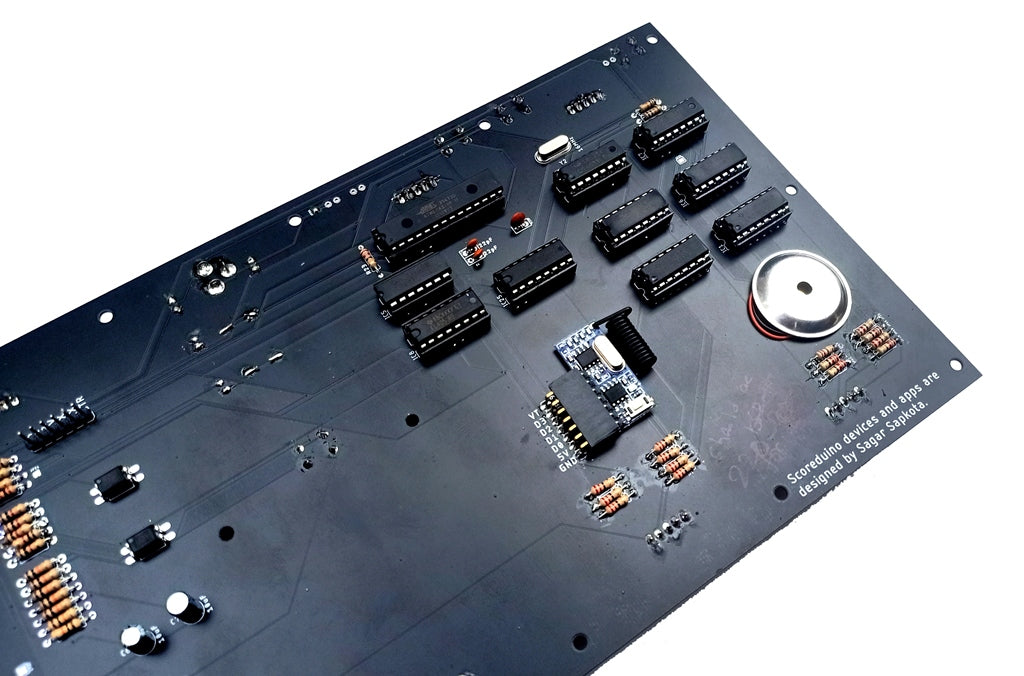

1. SCOREDUINO_B: This is the central module of the Scoreboard. This is an Arduino-based controller supported by a Bluetooth module and an RF module for communicating with the 2 digits displays placed on its two sides. Read more about Scoreduino_B.
2. The right display: The right display gets up and down count commands from the central Scoreduino-B controller. The commands can be sent by RF remote control or SCORE4 module of the Scoreduino app. Specific numbers can also be sent to the right display.
3. The left display: The left display also gets up and down count commands from the central Scoreduino-B controller. The commands can be sent by RF remote control or SCORE4 module of the Scoreduino app. Specific numbers can also be sent to the left display.

Supporting modules:

1. RF receiver and the remote control: It uses the basic 4CH RF module and remote control to send commands.

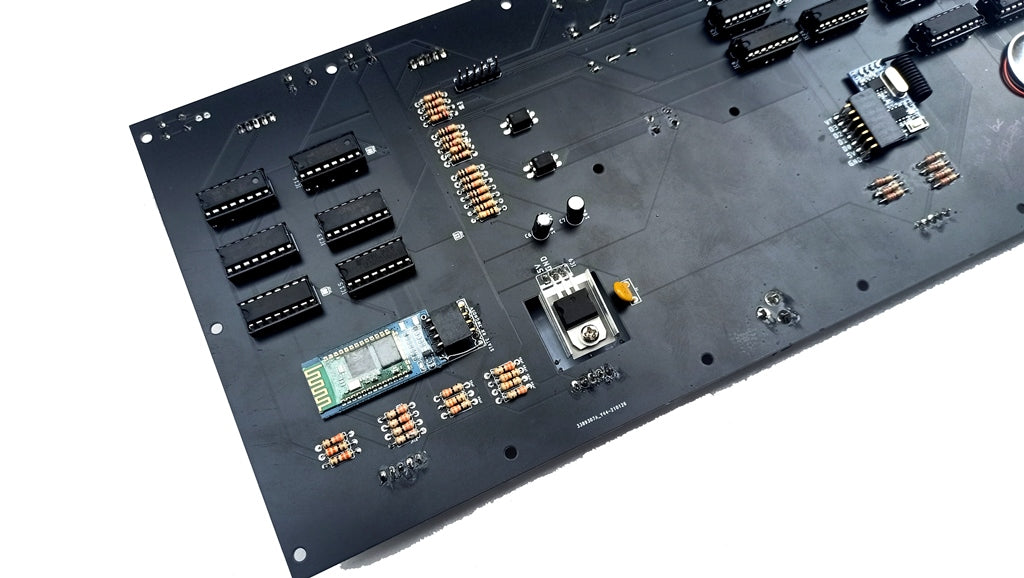

2. Bluetooth module: The scoreboard can be controlled with SCORE4 module of the Scoreduino app and it communicates via Bluetooth. There are two apps designed for this scoreboard.
   • • Score4 app without timer controller function
     • Score4T with timer controller function

Power supply required: 12V-1A

How does it work?

To understand this working principle of Scoreboard, you need to understand two modules:

1. SCOREDUINO_B: This is an Arduino based controller that sends up and down commands to up and down counters. The schematic of SCOREDUINO_B.
2. Single-digit up and down counter module: We have described how 74LS192/CD40192 based up and down counter modules work. You need to combine two of the single-digit counters and connect them to SCOREDUINO_B. The schematic of single-digit counter is here.

You can also read about Scoreduino_A.

Package includes:

1. Fully electronically assembled Scoreboard
2. 12V Power supply(dispatched from third party store)
