DIY table tennis digital scoreboard module- 64cmx32cm

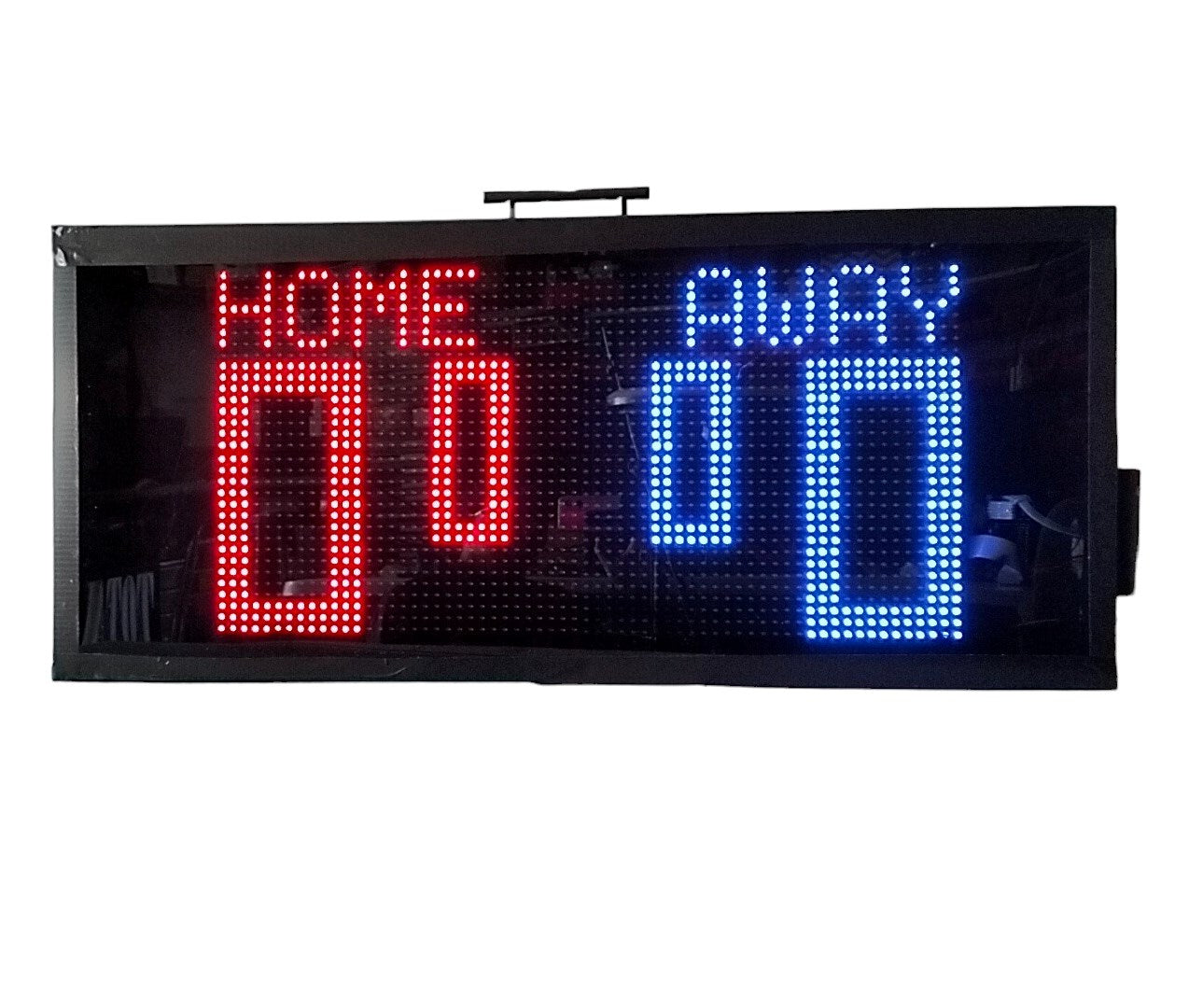

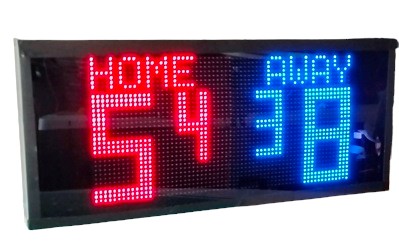

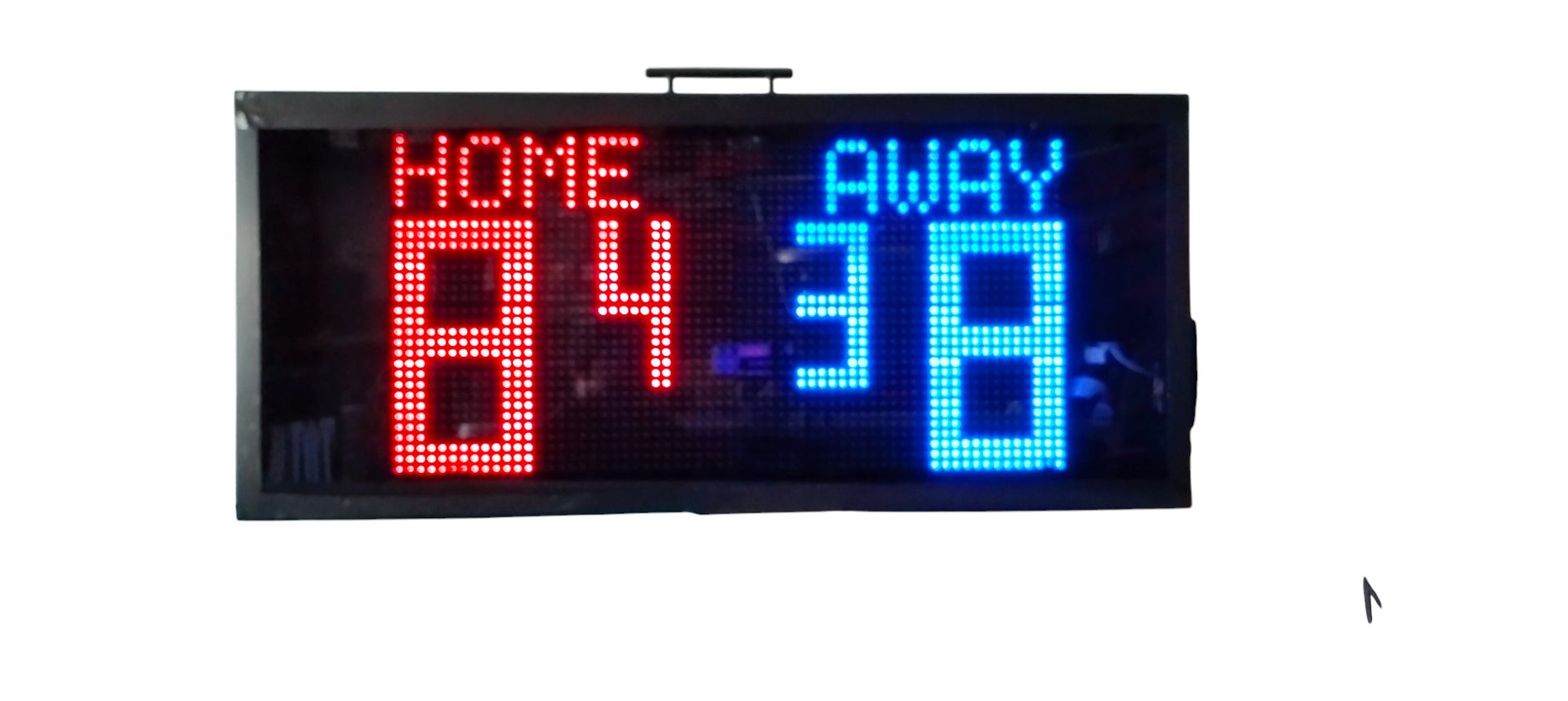

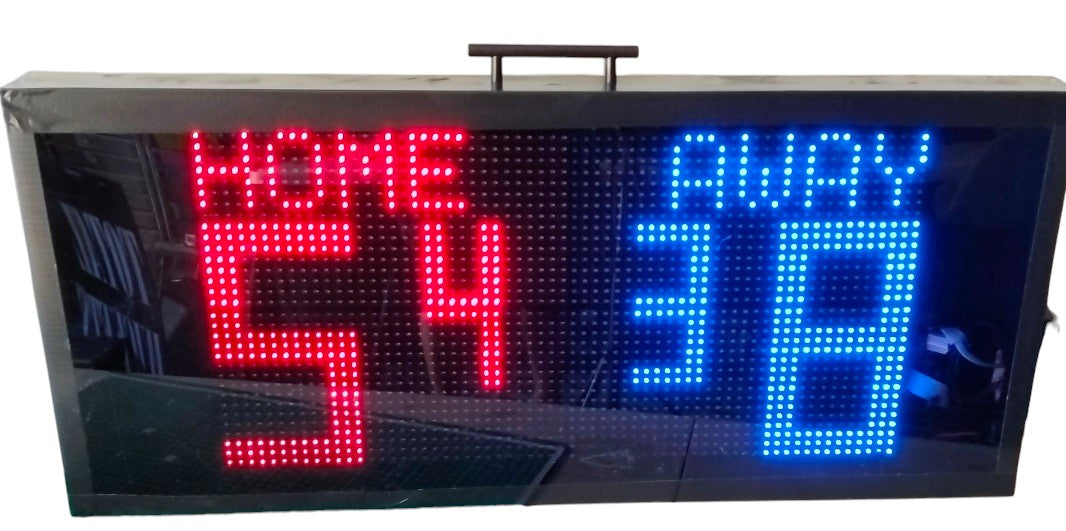

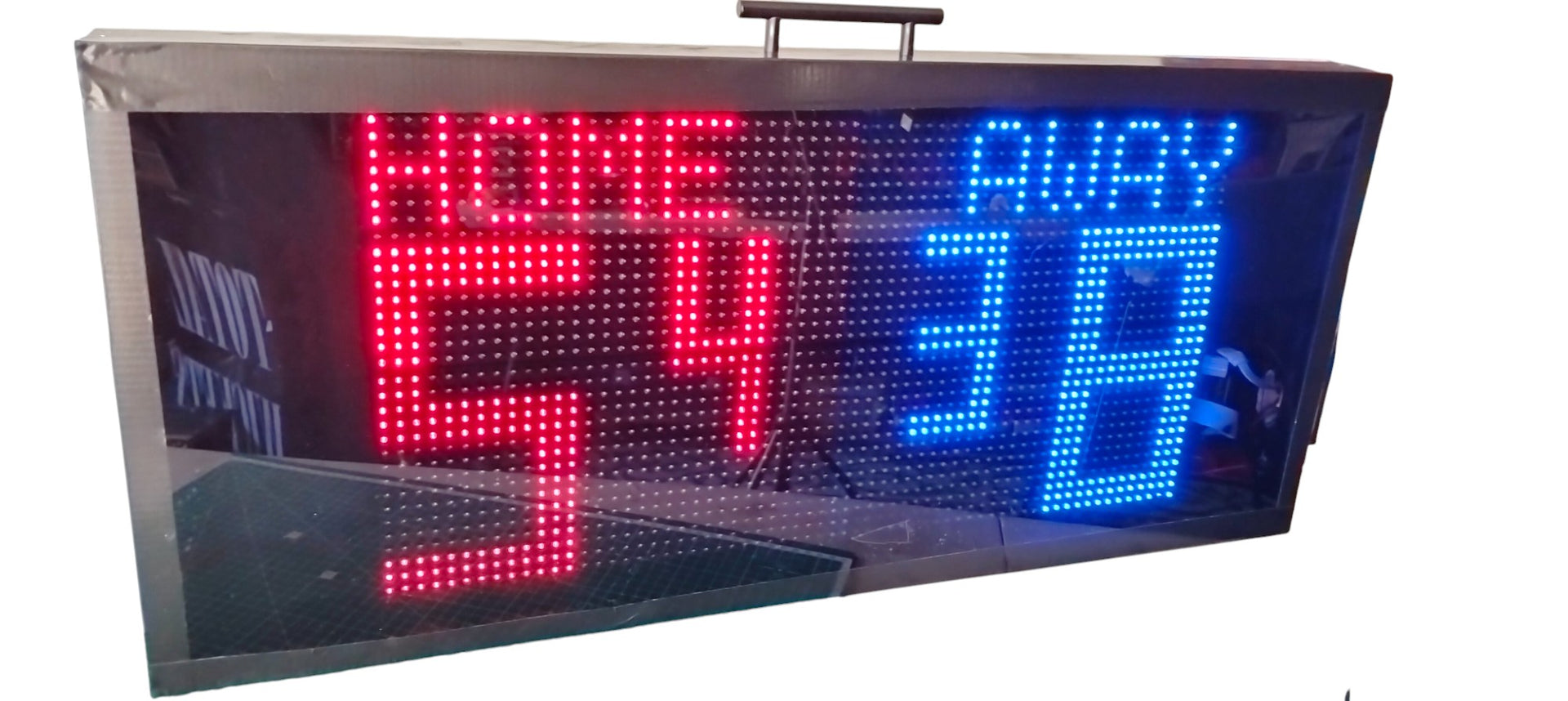

Combining the SCOREDUINO-DMD module with dual-color, 4-display P10 dot matrix displays provides an easy-to-use solution for creating a basic table tennis scoreboard. This setup features fixed team titles labeled HOME and AWAY, which cannot be changed. The scoreboard clearly shows the scores and the number of sets won by each team.

Ideal for both indoor and outdoor use, this scoreboard is straightforward to assemble and operate. Measuring 64cm x 32cm (25.20 inches x 12.60 inches OR 2.10 feet x 1.05 feet), it is available in two color sets: RED-BLUE and RED-GREEN. For other color options, please contact us.

Controlling the table tennis scoreboard is made convenient through the user-friendly Scoreduino app, which utilizes Bluetooth connectivity for seamless communication between the scoreboard and the app. Users can easily adjust the display brightness using the app.

Features:

• Big Display: 640mm x 320mm dot matrix display. In inches: 25.20 inches x 12.60 inches and in feet: 2.10 feet x 1.05 feet.
• Powerful Performance: Powered by a 5V, 6Amp supply for reliable operation.
• Bluetooth Connectivity: Seamless score updates via a dedicated Android app.
• Unlimited Control Range: Manually update scores within 10m via Bluetooth or unlimited range with 4G/WiFi.
• Manual Score Updates: Use the Scoreduino app to manually update scores as needed. Download the app and select the SCORE6 button for control.
• Portability: Compact design ensures easy transportation for on-the-go events.

You can either purchase the Scoreduino-DMD module alone or buy the entire set of components and accessories to build your own scoreboard. The enclosure and front acrylic are not included.

Package Options:

Option 1:

• Scoreduino P10 DMD Scoreboard Controller module
• HC-06 Bluetooth module

Note: Customers need to purchase the P10 dot matrix displays and other accessories separately.

Option 2:

• Scoreduino P10 DMD Scoreboard Controller module
• HC-06 Bluetooth module
• All necessary accessories (excluding enclosure and acrylic)

Included Parts:

• 4 x OUTDOOR P10 Dot Matrix Displays (32cm x 16cm): Two RED and Two GREEN/BLUE. 32cmx16cm: In inches: 12.60 inches x 6.30 inches and In feet: 1.05 feet x 0.52 feet ​
• 1 x 80cm long cable
• 1 x Box for Scoreduino module (108mm x 56mm x 40mm)
• 1 x SCOREDUINO DMD Module
• 1 x 5V-6A Power supply (EU/UK/USA/AU)
• 1 x Strips to join the displays
• 1 x Top carrier/handle
• 1 x HC-06 Bluetooth module
• 1 x DC barrel female
• 4 x Aluminum frames (2 pcs 800mm and 2 pcs 400mm)
• 2 x Metal brackets to hang the scoreboard
• 2 x Nut bolts

Note: Customers need to purchase front screen acrylic and timber to build their own wooden enclosure (80cm x 40cm). You will need a drill machine, cutter, grinder, etc.

Option 3:

• Fully assembled scoreboard with wooden enclosure and acrylic
• Note: The scoreboard enclosure will be handmade, so the output may vary.

Additional Information:

• Download the app to control the table tennis scoreboard (Press the SCORE6 button in the app to open the controller).
• Our source codes are not shared. All modules come preprogrammed.
• Check out all the images on Flickr
• Check out all output options

Check out our indoor video outputs to see the scoreboard in action.
