The scoreboard will be shipped within 10–20 days from the date of your order.

This lead time is required to manufacture, print, and assemble the enclosure to our quality standards. Additionally, we do not keep all components in stock at our Sydney facility. Some parts are imported specifically after an order is placed to ensure you receive the latest and highest-quality components

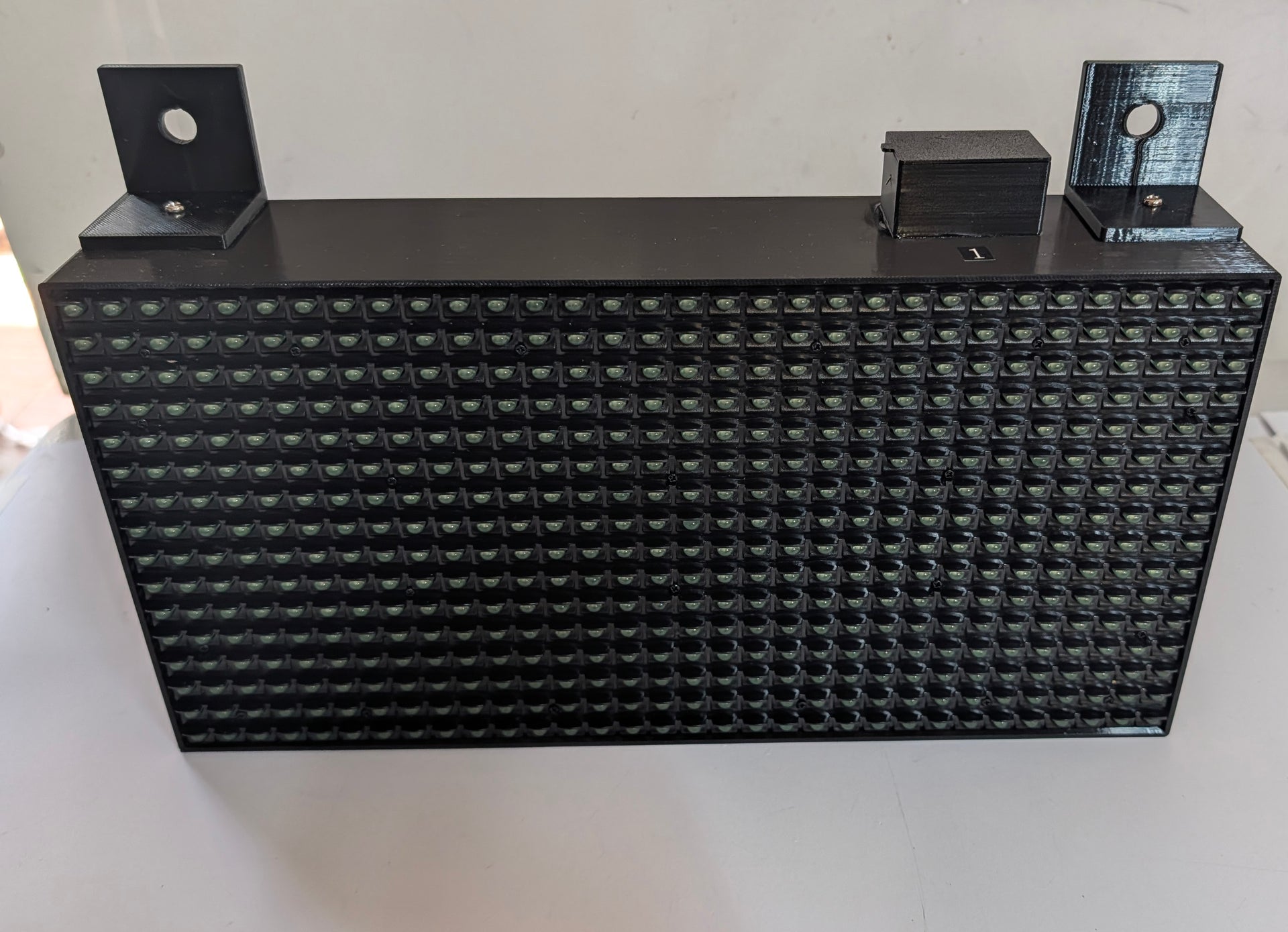

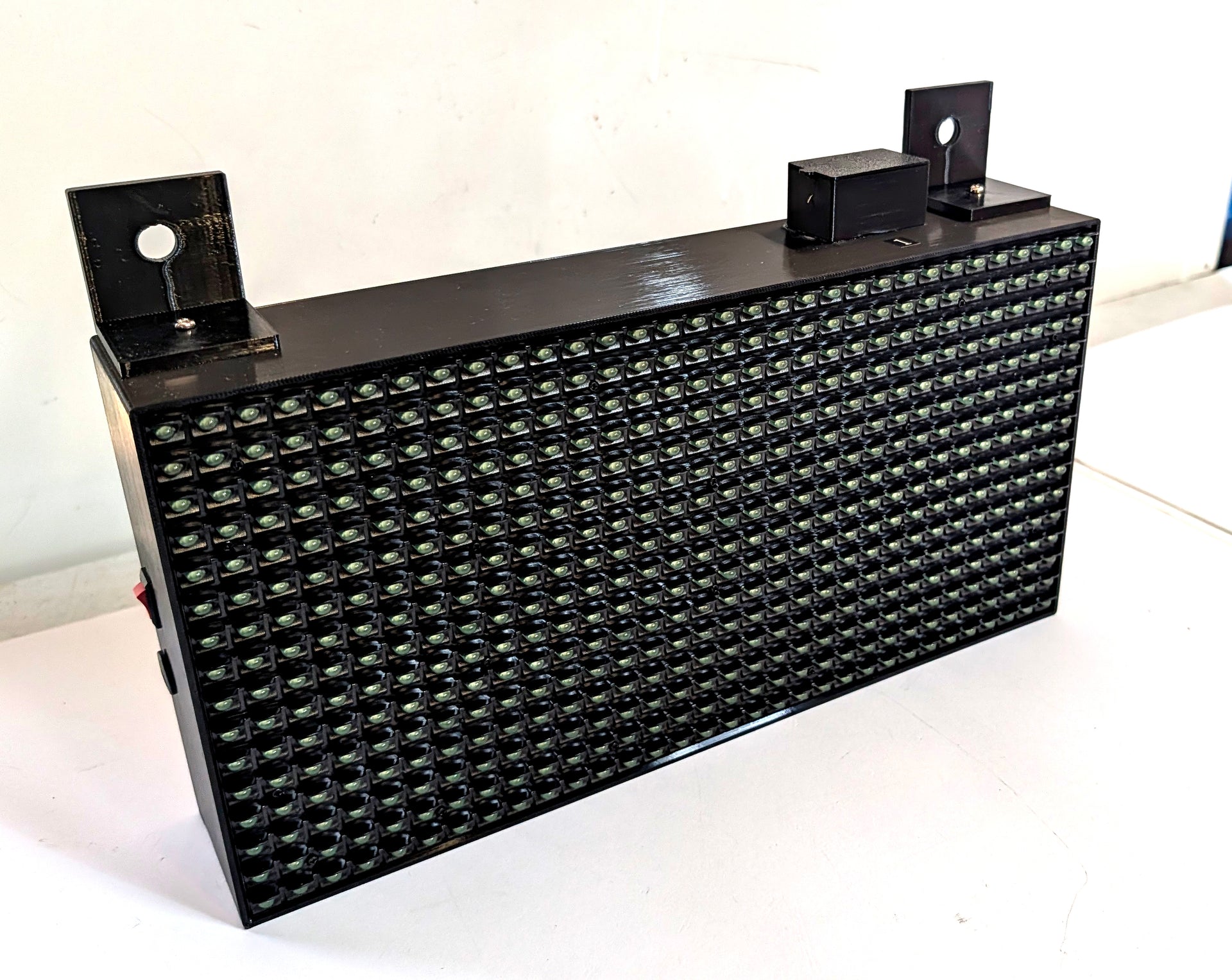

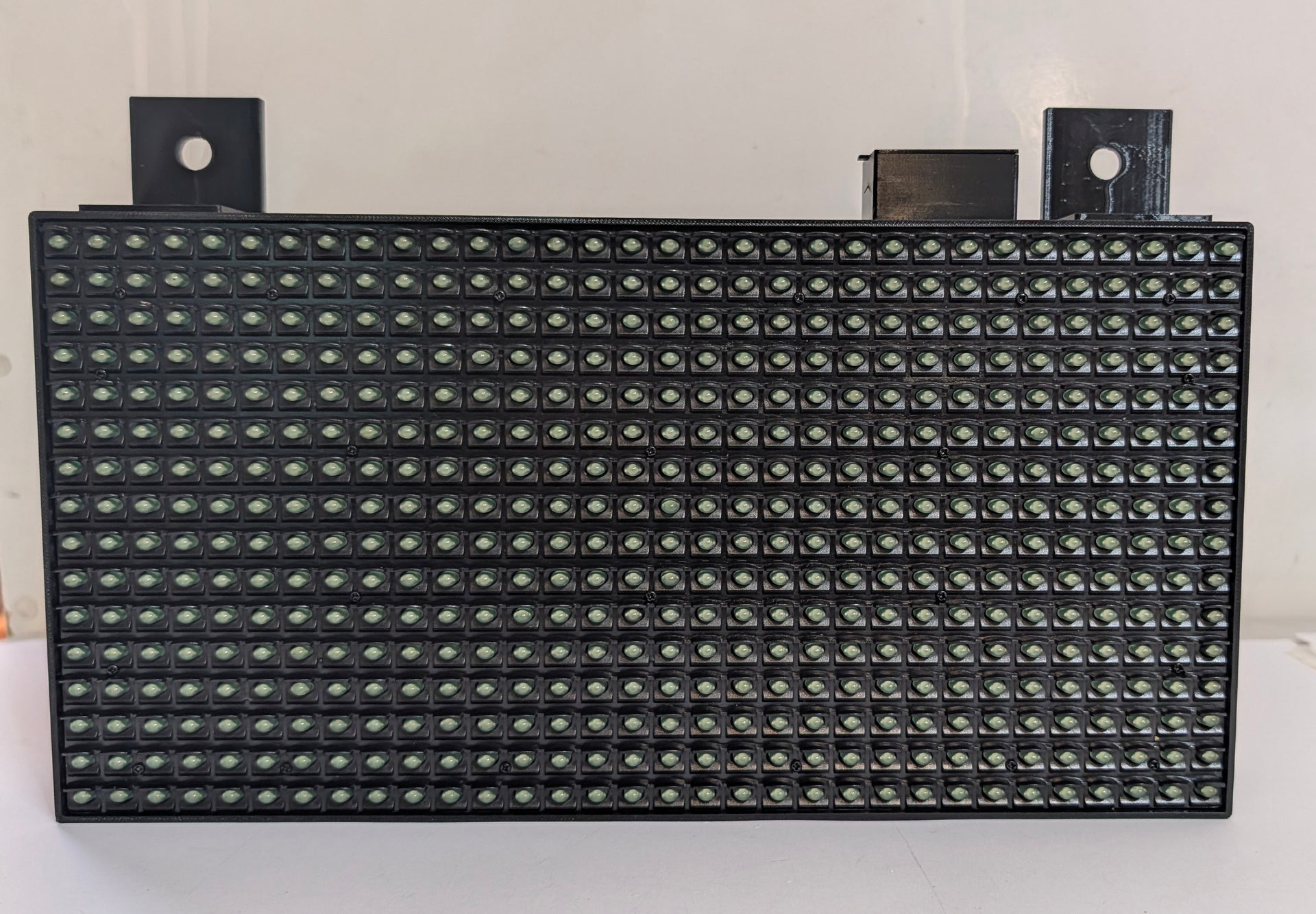

Basic Scoreboard 32cmx16cm

Compact • Portable • Wireless • Browser Controlled

The 32cm × 16cm Basic Digital Scoreboard is a compact, portable scoring solution designed for a wide range of sports. Built using a high-brightness single-colour outdoor P10 LED display, it is ideal for clubs, schools, training sessions, community competitions, and recreational sporting events.

The display shows:

• Team names across the top

• Home and Away scores at the bottom

• Large score digits approximately 3 inches (75mm) high for easy viewing

Its lightweight design makes it easy to transport and install wherever it is needed.

Suitable Sports

This universal scoreboard is ideal for:

• Soccer / Football

• Hockey

• Rugby Union

• Rugby League

• Netball

• Futsal

• Handball

• Water Polo

• Lacrosse

• Dodgeball

• Ultimate Frisbee

• Floorball

• Touch Football

• OzTag

• Indoor Soccer

• School Sports

• Community Sporting Events

• Training Sessions

• Friendly Matches

It is suitable for any sport where only the team names and scores need to be displayed.

Display Features

• Outdoor P10 LED display

• Single-colour high-brightness LEDs

• Display size: 32cm × 16cm

• Team names displayed across the top

• Home and Away scores displayed below

• Approximately 3-inch (75mm) score digits

• Excellent visibility for players, officials and spectators

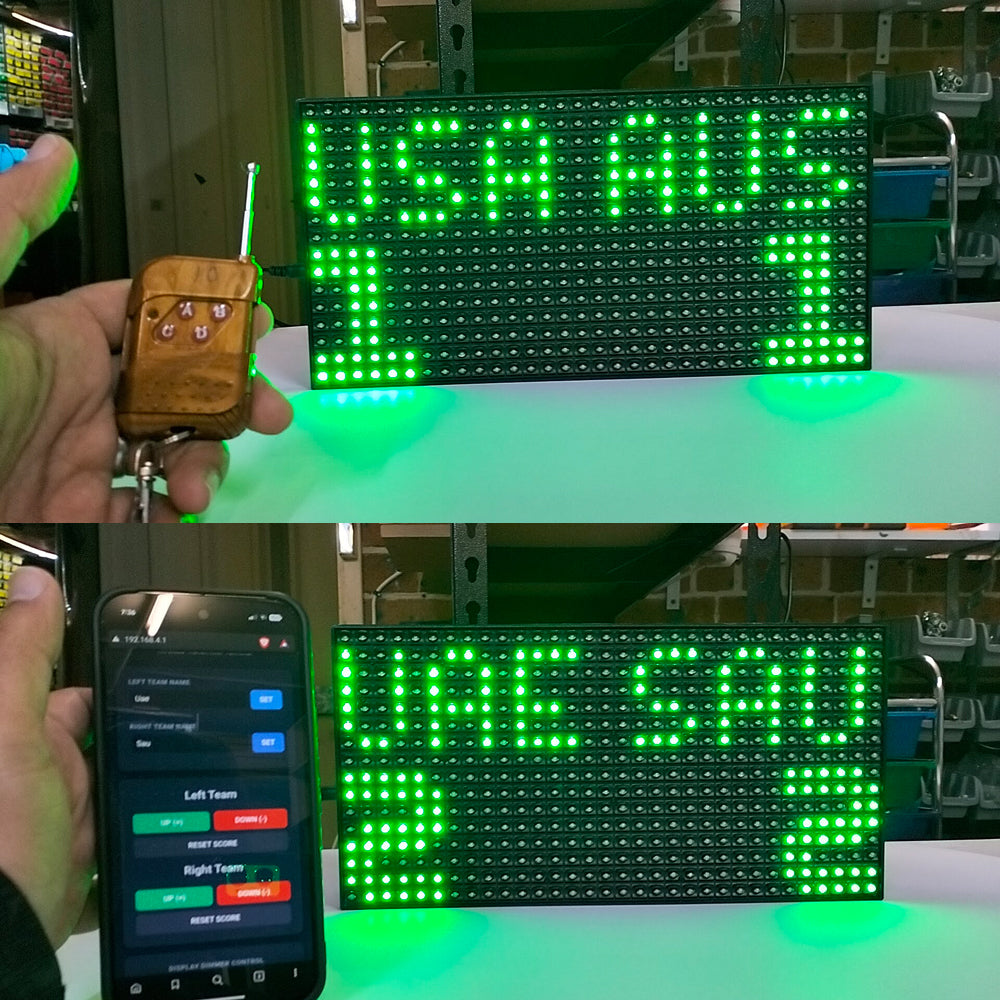

Three Ways to Operate

The scoreboard can be operated in three convenient ways.

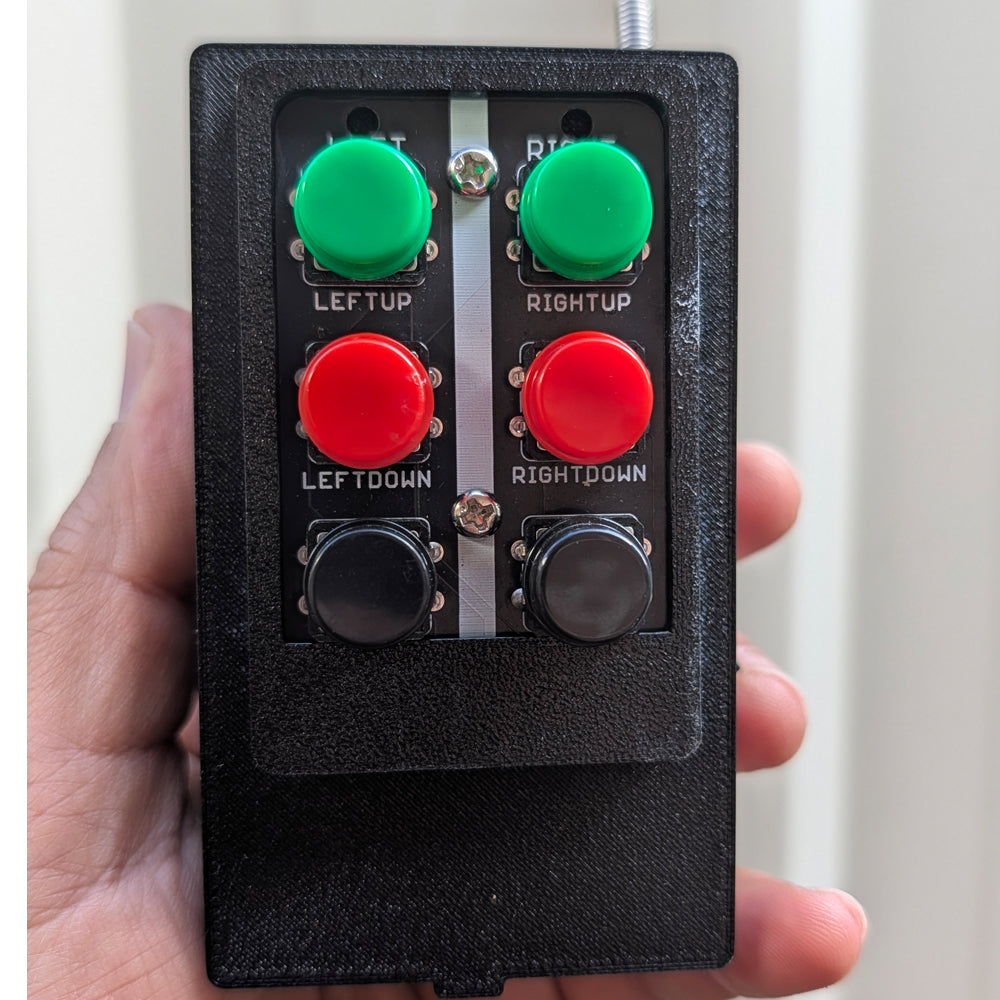

1. Built-in Controller

Buttons installed directly on the scoreboard allow the operator to:

• Increase or decrease scores

• Control the scoreboard without any additional device

Perfect for operators standing next to the scoreboard.

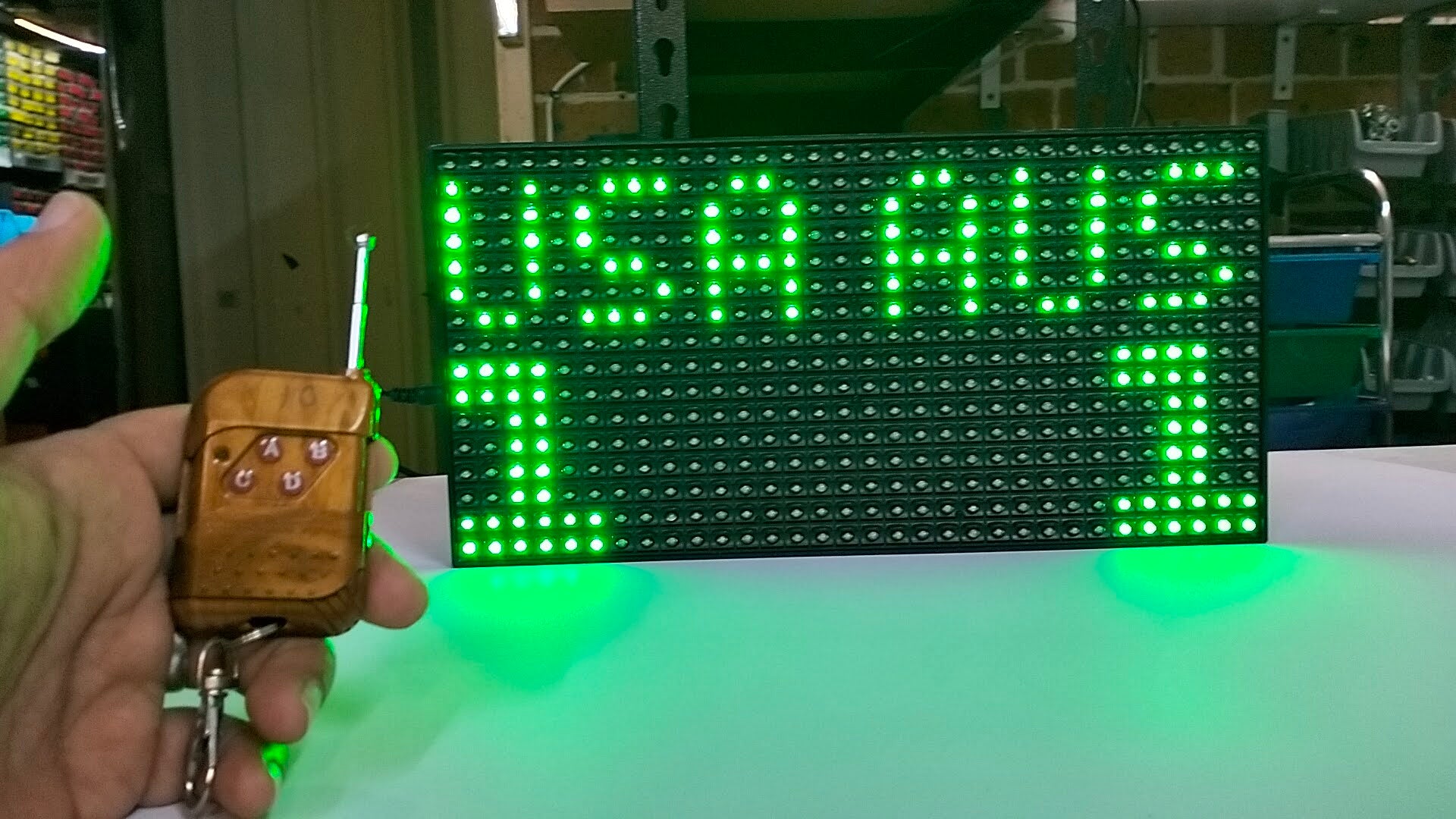

2. Wireless Remote Control

The supplied wireless remote allows score updates from a distance.

Features include:

• Easy score adjustment

• Up to 10 metres operating range in open areas

• Powered by a standard A23 battery

This range is more than adequate for most indoor sporting venues and many outdoor events.

Optional Long-Range Remote

An optional long-range remote control is also available.

• Wireless range up to 500 metres (line of sight)

• Ideal for large outdoor grounds and sporting fields

• Allows the operator to control the scoreboard while remaining in an excellent viewing position

For most indoor sports, the standard remote is sufficient and a long-range remote is generally unnecessary.

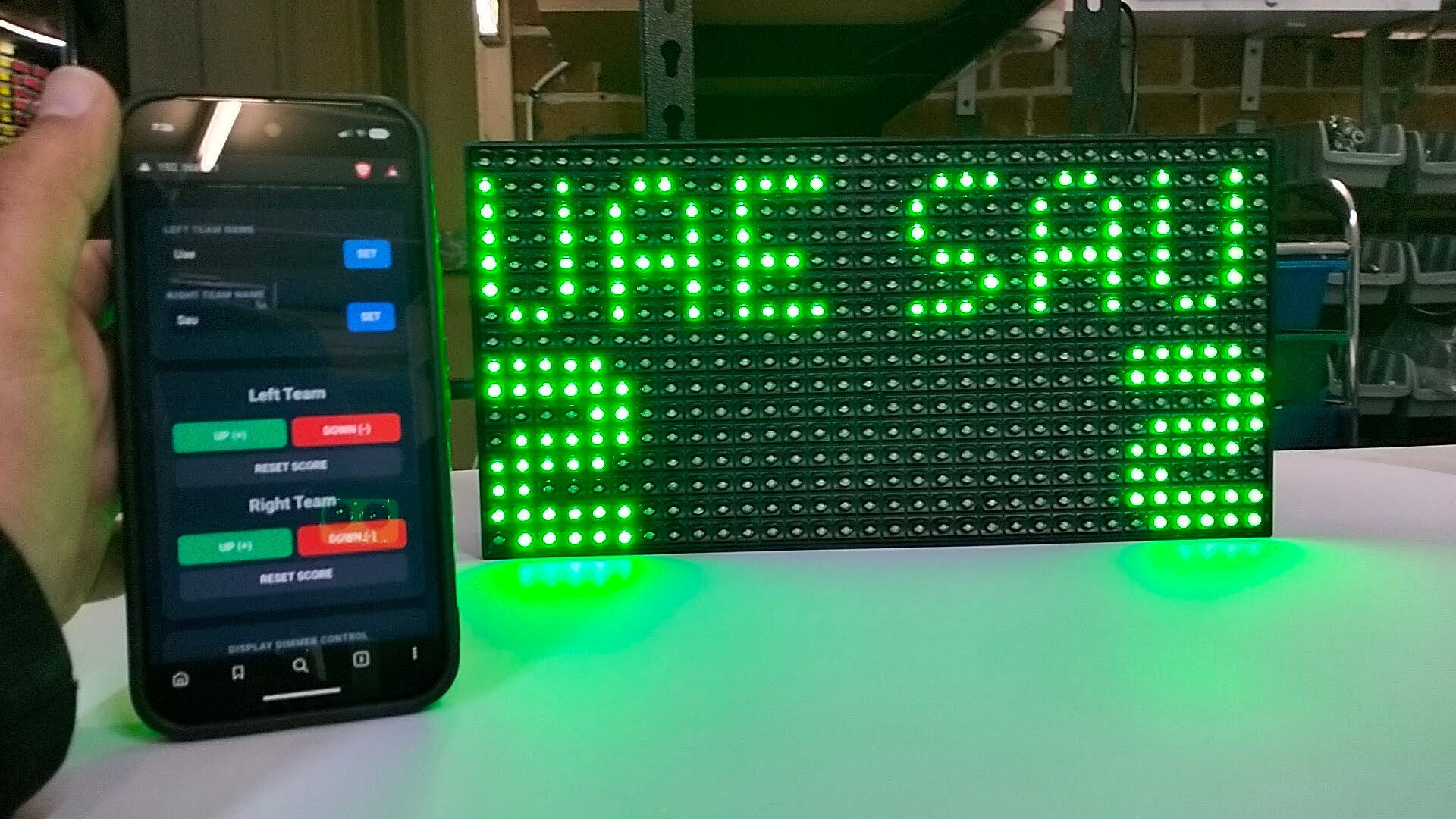

3. Wi-Fi Browser Control

The scoreboard creates its own Wi-Fi network.

Simply:

• Connect any device to the scoreboard's Wi-Fi

• Open a web browser

• Access the built-in control interface

No app installation is required.

Compatible with:

• iPhone

• Android phones

• Tablets

• Windows computers

• Mac computers

• Linux computers

Using the browser interface, users can:

• Update scores

• Change team names

• Operate the scoreboard wirelessly

Portable Design

• Weight: approximately 1 kg

• Easy to transport

• Quick setup

• Suitable for temporary or permanent installations

• Can be wall mounted

• Can also be installed on a custom-made stand

Perfect for clubs that use multiple venues.

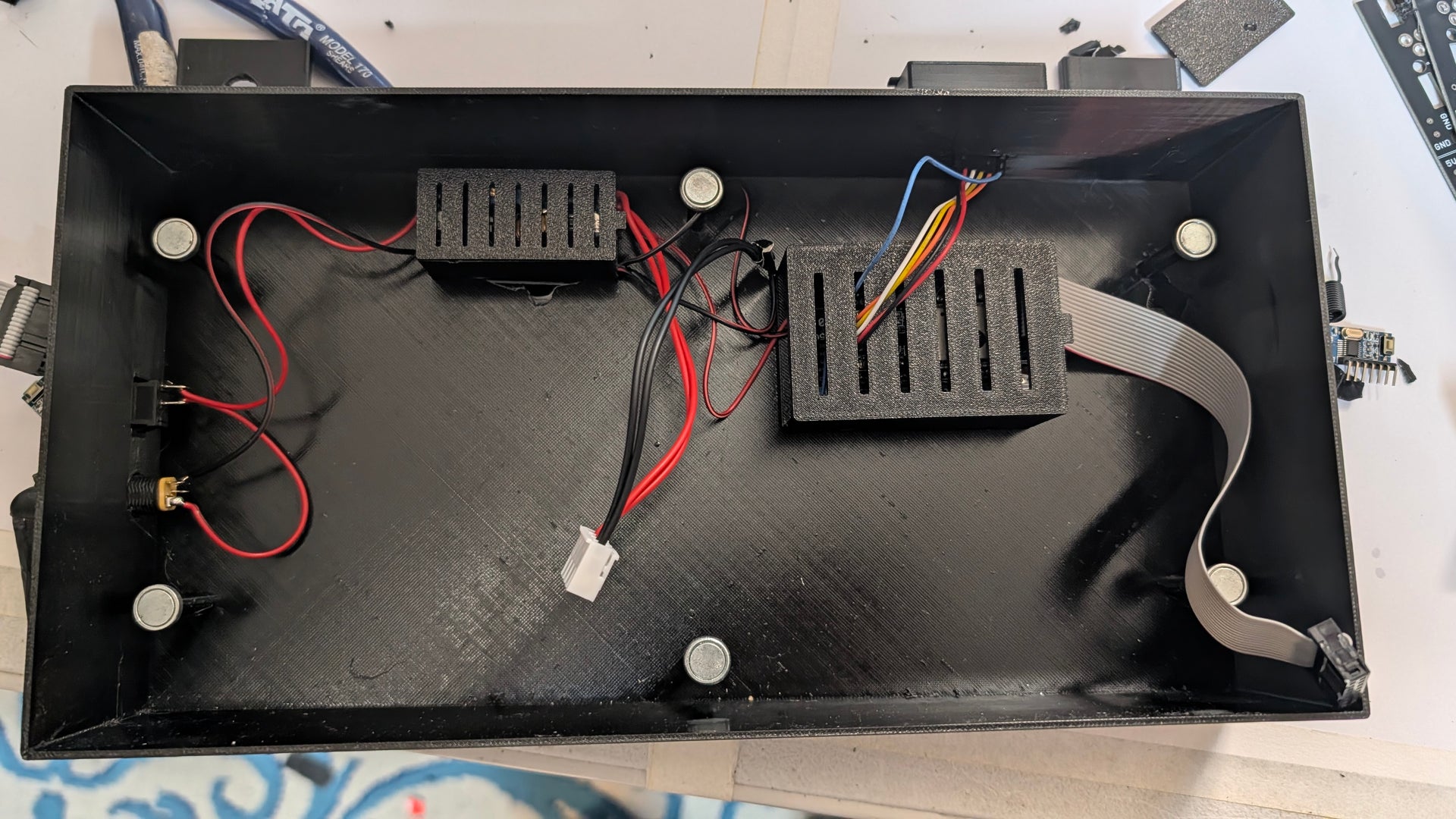

3D Printed PETG Enclosure

The enclosure is manufactured using PETG (Polyethylene Terephthalate Glycol), a durable engineering-grade material widely used for functional parts and outdoor applications.

Advantages of PETG

• Strong and durable

• Good impact resistance

• Better heat resistance than PLA

• Good UV resistance for outdoor use

• Lightweight

• Does not rust or corrode

• Ideal for portable equipment

Appearance

Please note that this product is designed primarily for functionality rather than cosmetic perfection.

Because of the size limitations of consumer 3D printers:

• Large enclosures are printed in multiple sections

• Sections are permanently joined using adhesive

• Minor glue marks, layer lines, seams, or small cosmetic blemishes may be visible

• Surface finish will not be as smooth as a professionally fabricated metal enclosure

These cosmetic imperfections do not affect the performance, strength, or reliability of the scoreboard.

Once installed, the focus is naturally on the displayed scores rather than the enclosure itself. The enclosure is designed to securely protect the electronics while keeping the scoreboard lightweight and portable.

5V 4A Power Supply (Not Included)

Power supplies are not included.

They must be purchased separately.

This allows customers to select a power supply suitable for their own country's electrical standards.

Outdoor Installation Recommendation

In countries such as Australia, outdoor equipment may be exposed to:

• High UV levels

• Extreme summer temperatures

• Direct sunlight

Electronic power supplies can become extremely hot under these conditions and may fail if exposed to prolonged direct heat.

For improved reliability, we recommend:

• Installing the power supply inside a weather-protected enclosure or electrical junction box.

• Avoiding direct sunlight whenever possible.

• Ensuring adequate ventilation around the power supply.

• Keeping one spare compatible power supply available, especially for sporting clubs that rely on the scoreboard during competitions.

Following these recommendations can significantly improve long-term reliability.

Installation Options

• Wall mounted

• Mounted on a custom stand

• Portable freestanding installation

• Indoor or outdoor use (display)

Package Includes

• 32cm × 16cm LED scoreboard

• Built-in control buttons

• Standard wireless remote control

• 3D printed PETG enclosure

Power supply not included.

Key Features

• Compact and portable design

• Outdoor P10 LED display

• Large 3-inch score digits

• Team name display

• Wireless remote operation

• Built-in control buttons

• Wi-Fi browser control

• No mobile app required

• Works with iPhone, Android, Windows and Mac

• Lightweight (approximately 1kg)

• Wall mount or stand mount

• Durable PETG enclosure

• Optional 500m long-range remote available

• Suitable for numerous indoor and outdoor sports

Perfect For

• Sporting clubs

• Schools

• Community organisations

• Indoor sports centres

• Outdoor sporting grounds

• Training sessions

• Social competitions

• Recreational leagues

• Local tournaments

Check out all the images here: https://photos.app.goo.gl/ntUJv2TAEfqHEA3RA
