Description

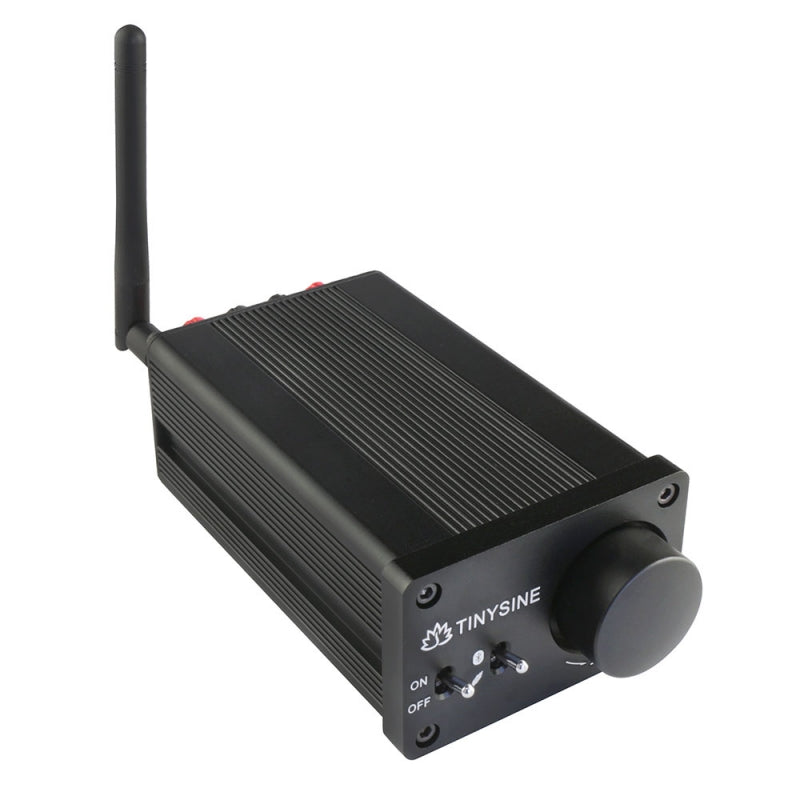

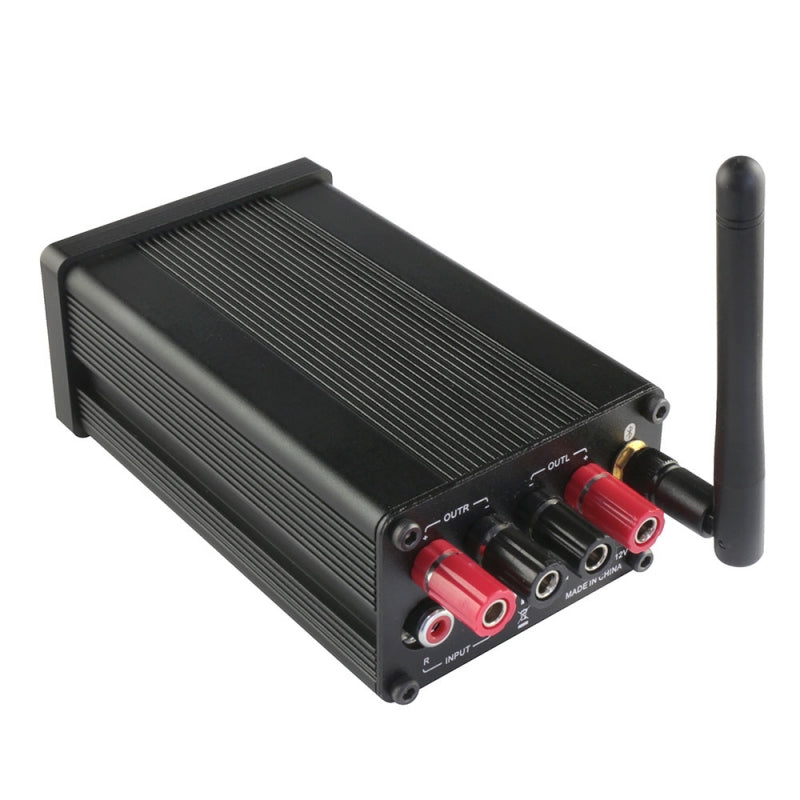

This is a 2x8W audio amplifier that has integrated Bluetooth 4.0. It has perfect class-D architecture and each channel has 8W power output. This board can be powered by any DC 9V-14V power supply. It can be used to drive any 4Ω or 8Ω passive speakers.

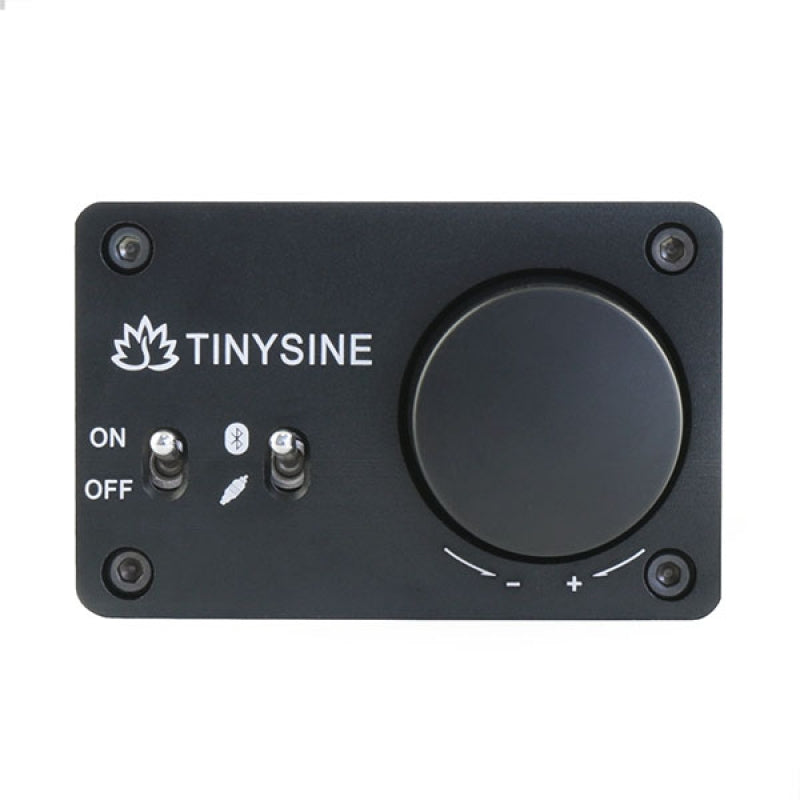

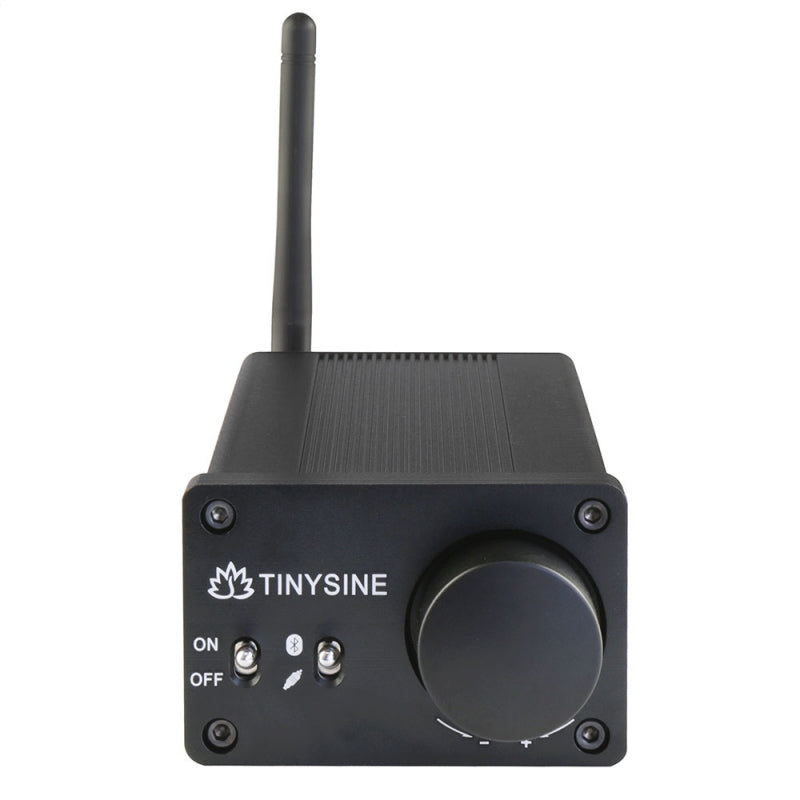

There are 2 toggle switches and a knob on the front panel. One switch is for power on/off and the other one is for RCA input enable/disable. When you use the volume knob to adjust the audio volume, it will also automatically synchronize volume with your iphone.
It is perfect for your Hi-Fi application, the audio source can be RCA input or Bluetooth. You can pair it up with a mobile phone or a computer.
Power up the amplifier board, use your phone or PC to search for a new Bluetooth device, the module will appear as "TSA3510", you can simply pair it up without PIN. Yes, it connects automatically with your device. You can then play your audio.

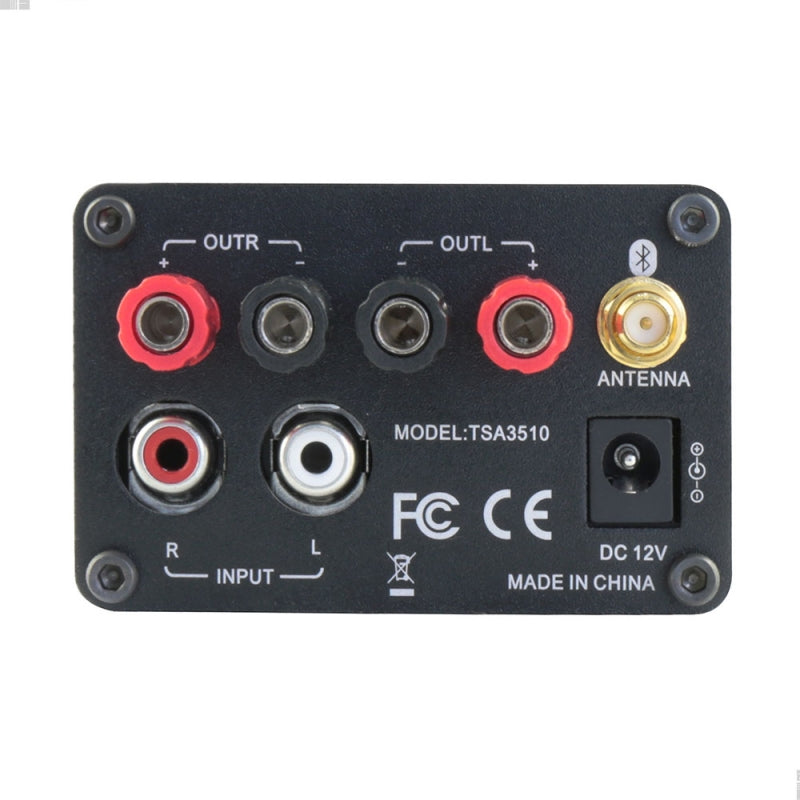

- TSA3510 supports both Bluetooth and RCA audio input. Ultra low background noise and perfect audio quality.
- Audio volume knob can adjust both Bluetooth and cable input audio volume. Very convenient and easy to use.
Specification:
TA = 20℃, fIN = 1 kHz sine wave, RL = 4Ω. (Unless otherwise stated)
Parameter |
Condition |
Min |
Typ |
Max |
Supply Voltage (V) |
- |
8 |
12 |
16 |
Quiescent Current (mA) |
SD = 2V, No load, Vcc = 12V |
- |
20 |
35 |
Input Sensitivity (V) |
Gain = 26dB |
- |
0.283 |
- |
Input Impedance (Kohm) |
- |
- |
30 |
- |
Gain (dB) |
- |
|
26 |
|
Output Power (W rms) |
THD+N = 10%, Vcc = 12V |
- |
8 |
- |
Efficiency (%) |
Vcc = 12V, RL = 8Ω, PO = 5W |
- |
86 |
- |
Minimum Load (ohm) |
- |
3.2 |
4 |
- |
Frequency Response (Hz) |
±3dB |
20 |
- |
22k |
Operating Temperature (℃) |
- |
-40 |
20 |
65 |
Features:

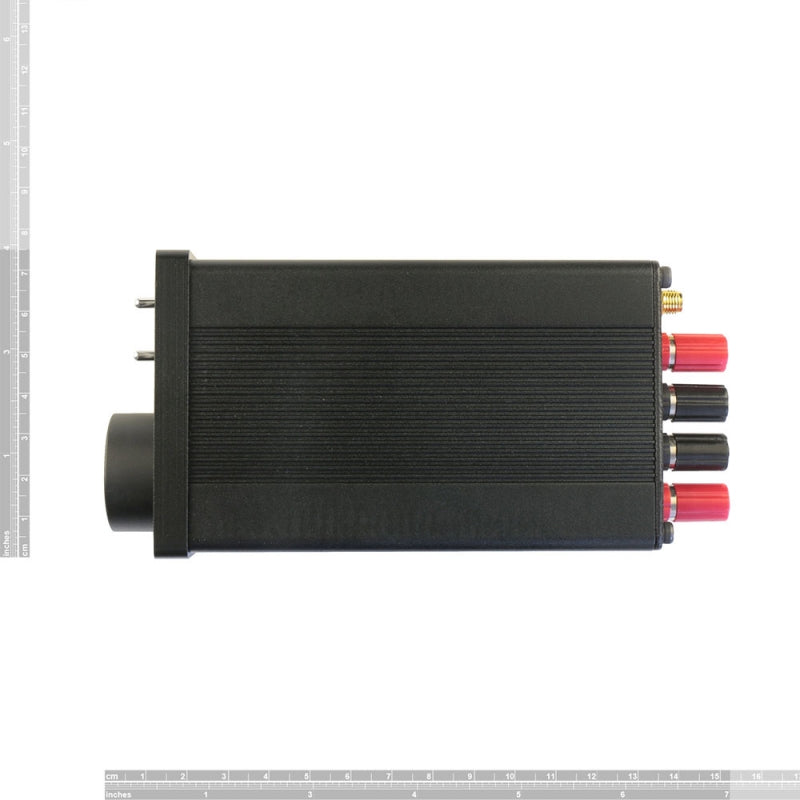

- Dimension: 16cm x 7.5cm x 4.8cm
- Weight: 420g
- Bluetooth audio volume knob
- Working voltage: DC 9V-14V
- Bluetooth 4.0
Applications:
- Personal computer
- Desktop amplifier
- MP3, Video CD output Amplification
- Home Theater
- Powered DVD Systems
