Description
This product is shipped from Sydney, Australia. Worldwide shipping available- we ship to USA, Canada, New Zealand, UK, EU and Non-EU countries.
We are now selling a both fully assembled version of this module with 3D printed enclosure. It comes with a laser module. All included in one package.
You can use this 3 digits digital object counter for counting objects or people entering into a room. It can be used by engineers for learning about digital counters.
This DIY digital object counter works with a photoresistor and there are three seven segment displays displaying numbers from 000 to 999.
Works with a laser module

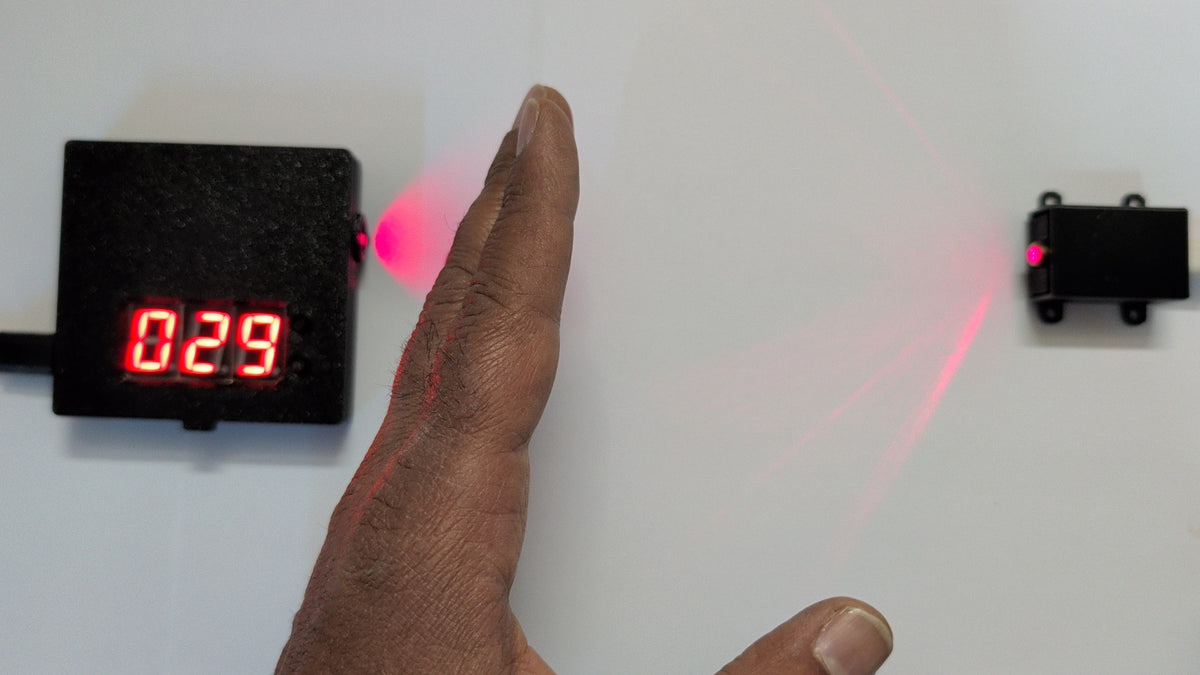

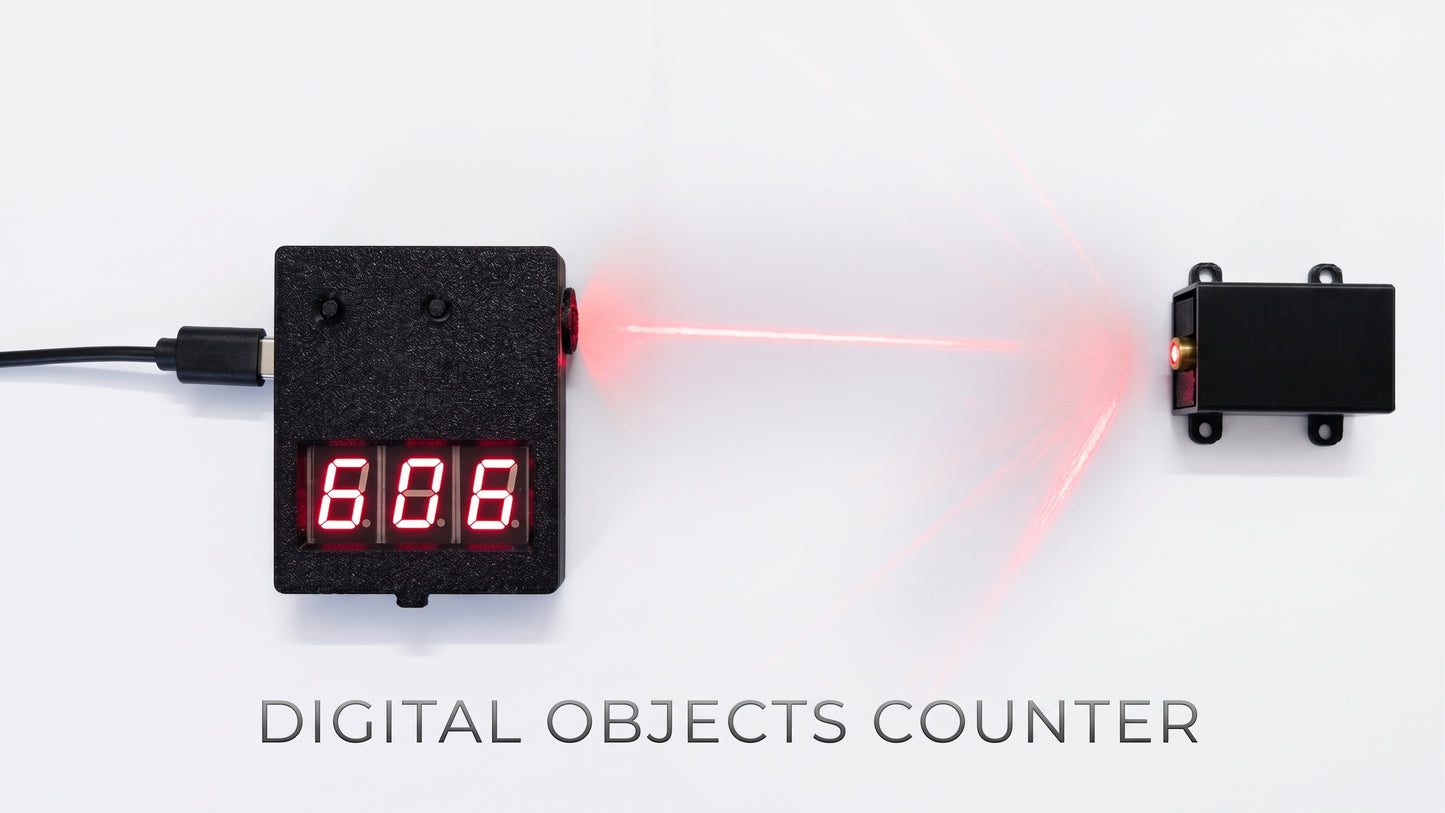

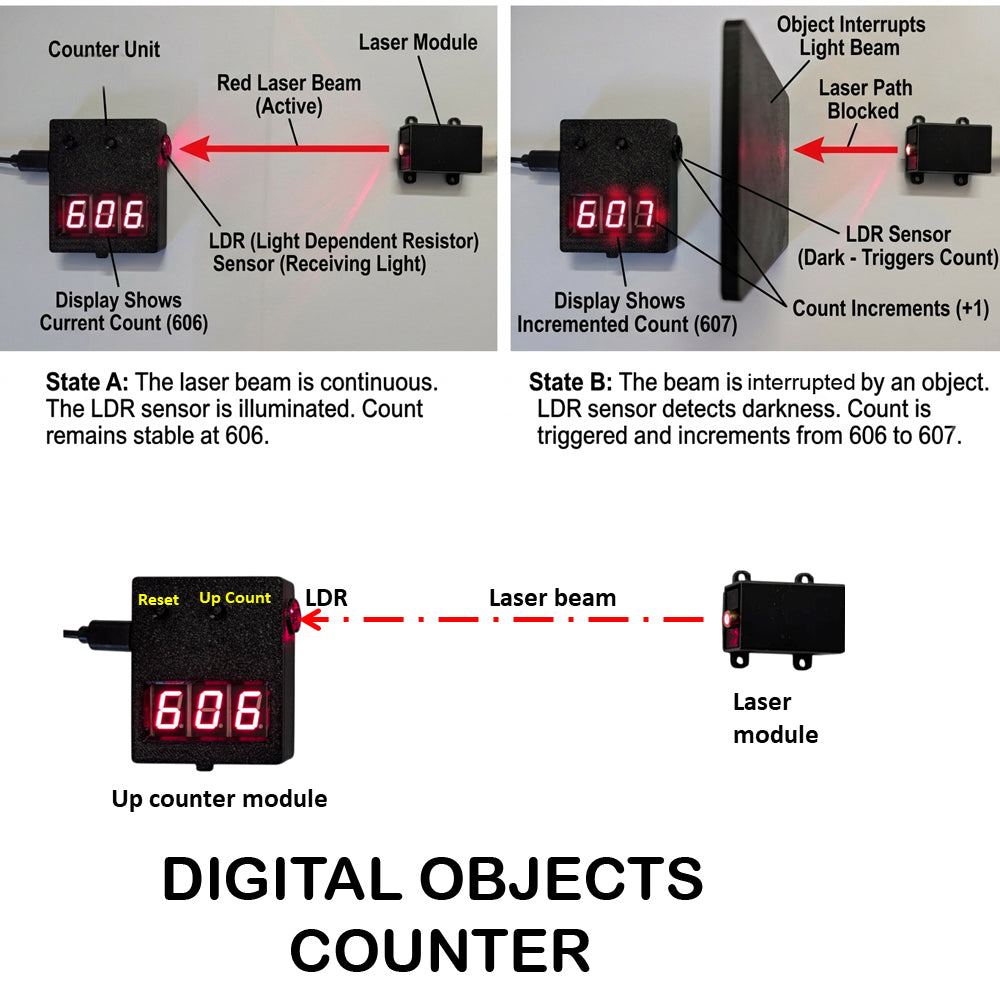

Turn on the laser module and direct it towards the photoresistor and hit the photoresistor with the laser beam so that whenever the laser is blocked, the counter would count.
The counter module works with 5V. You just need to power up the kit using a 5V mobile charger or any other power adapter.
Dimension of the PCB: 43 mm* 58 mm
Features:
- The distance between the transmitter and receiver modules can be around 10 meters.
- The counter module can be reset to 0 at any time and restart the counting.
What’s NEW ?
- The output of the kit is highly stable, there is no false count at all.
- The kit has photoresistor only. We have removed infrared feature.
Package Includes:

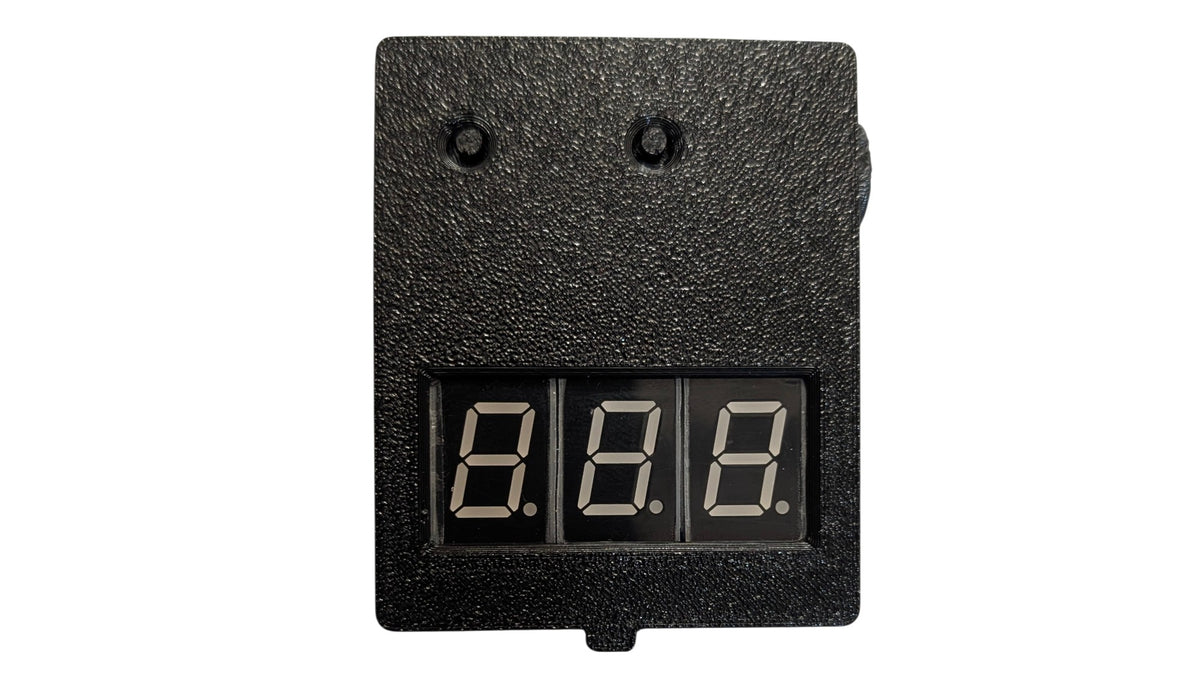

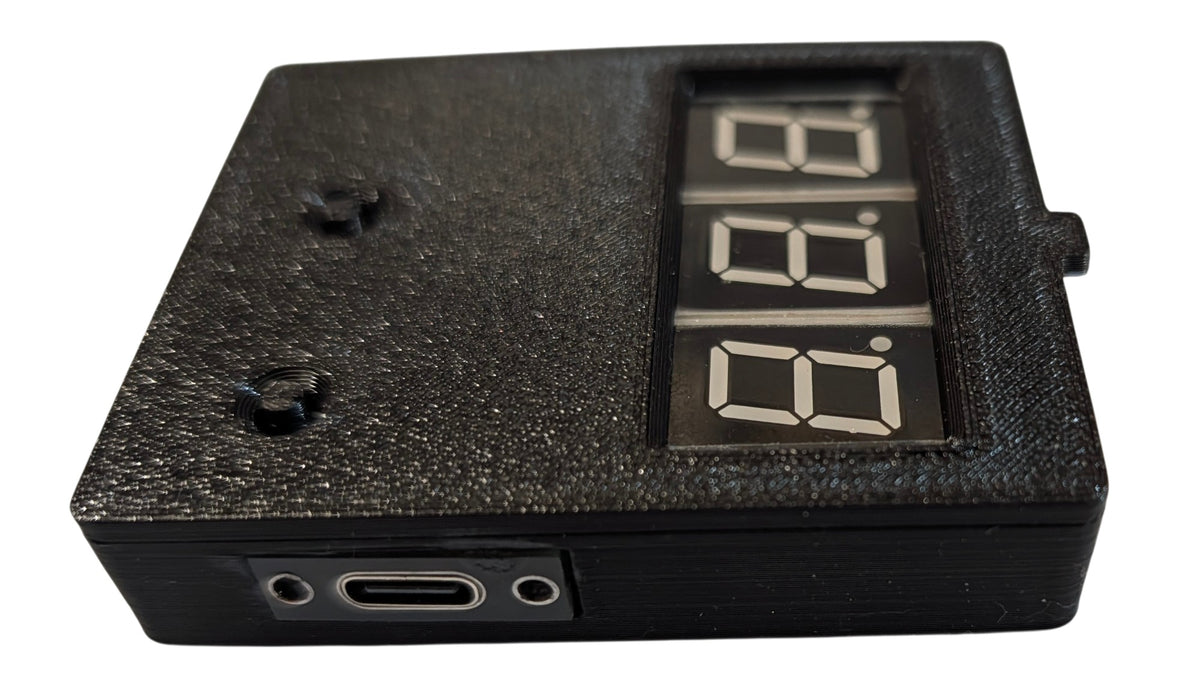

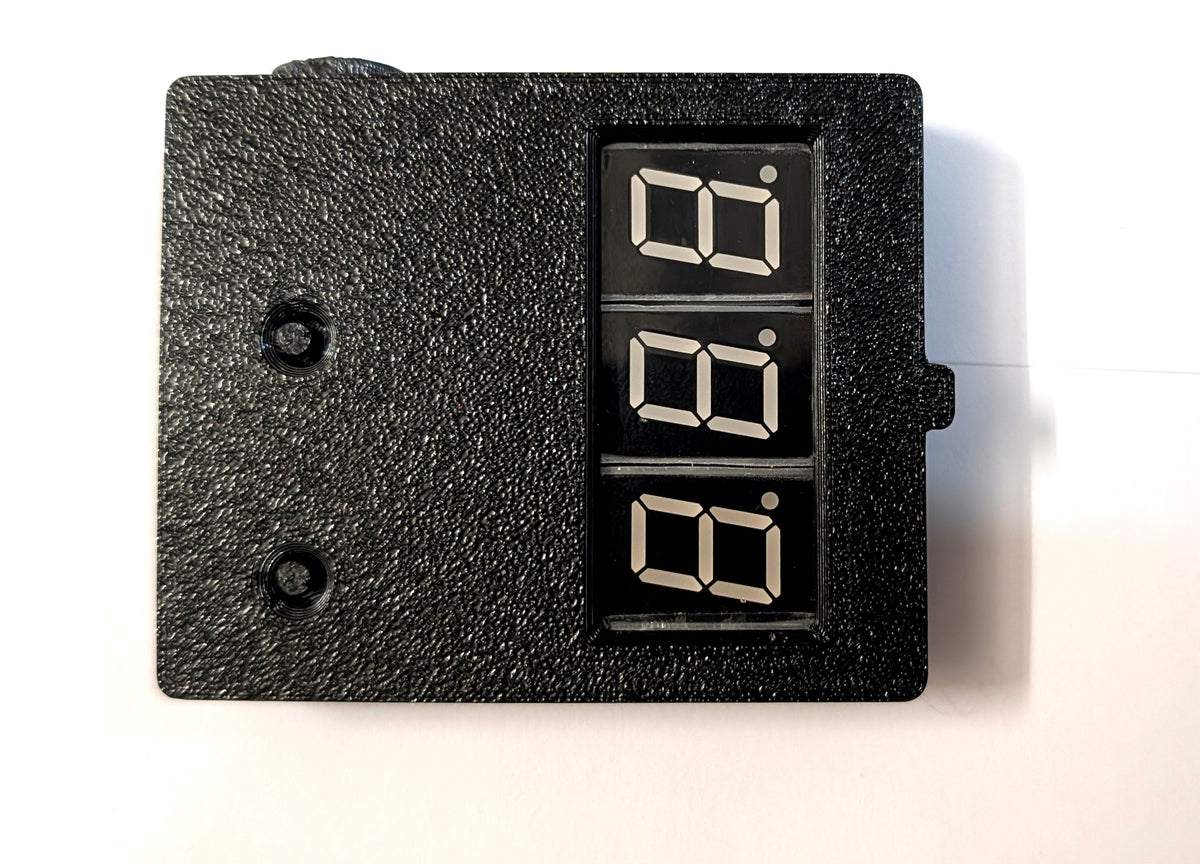

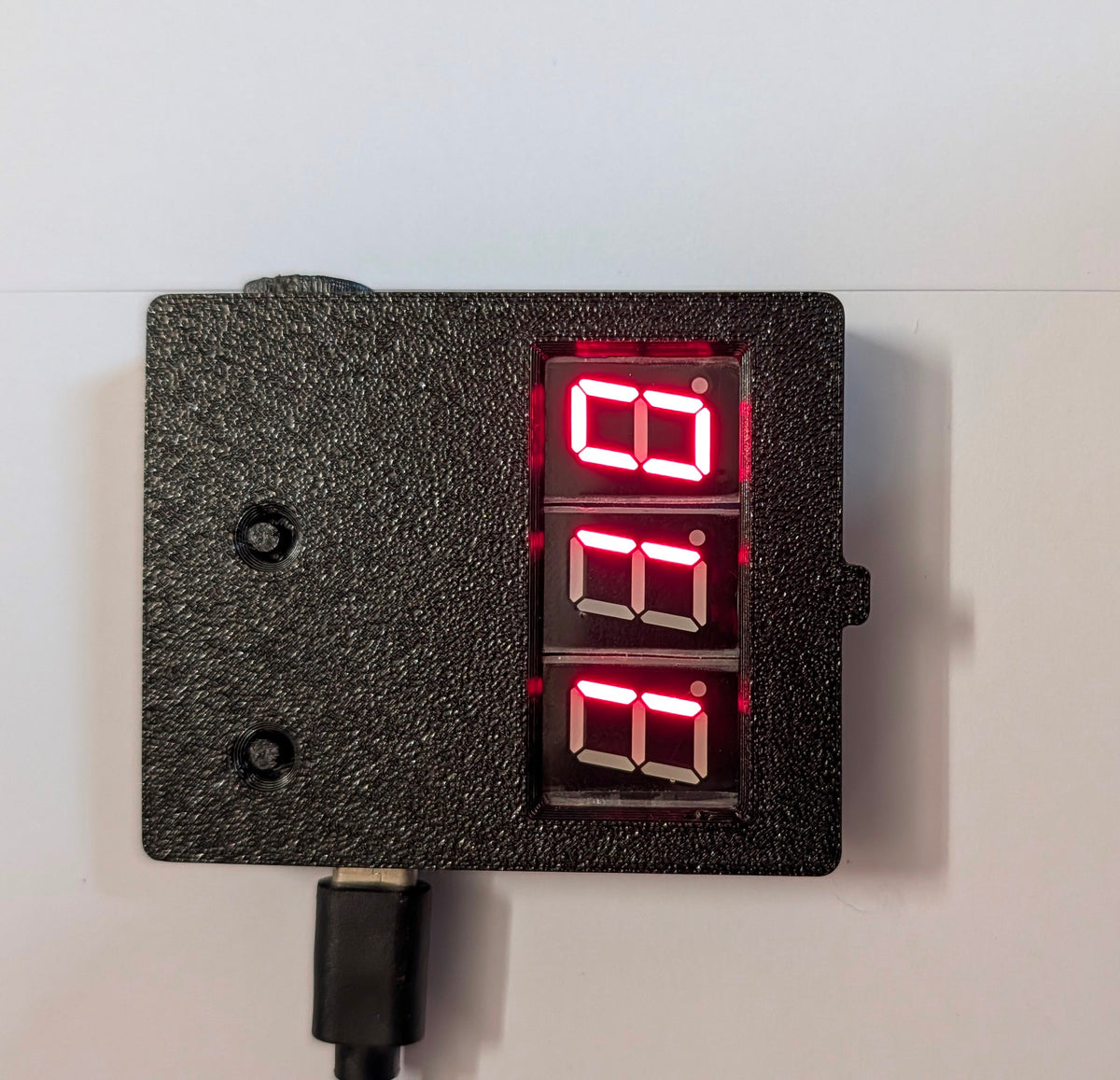

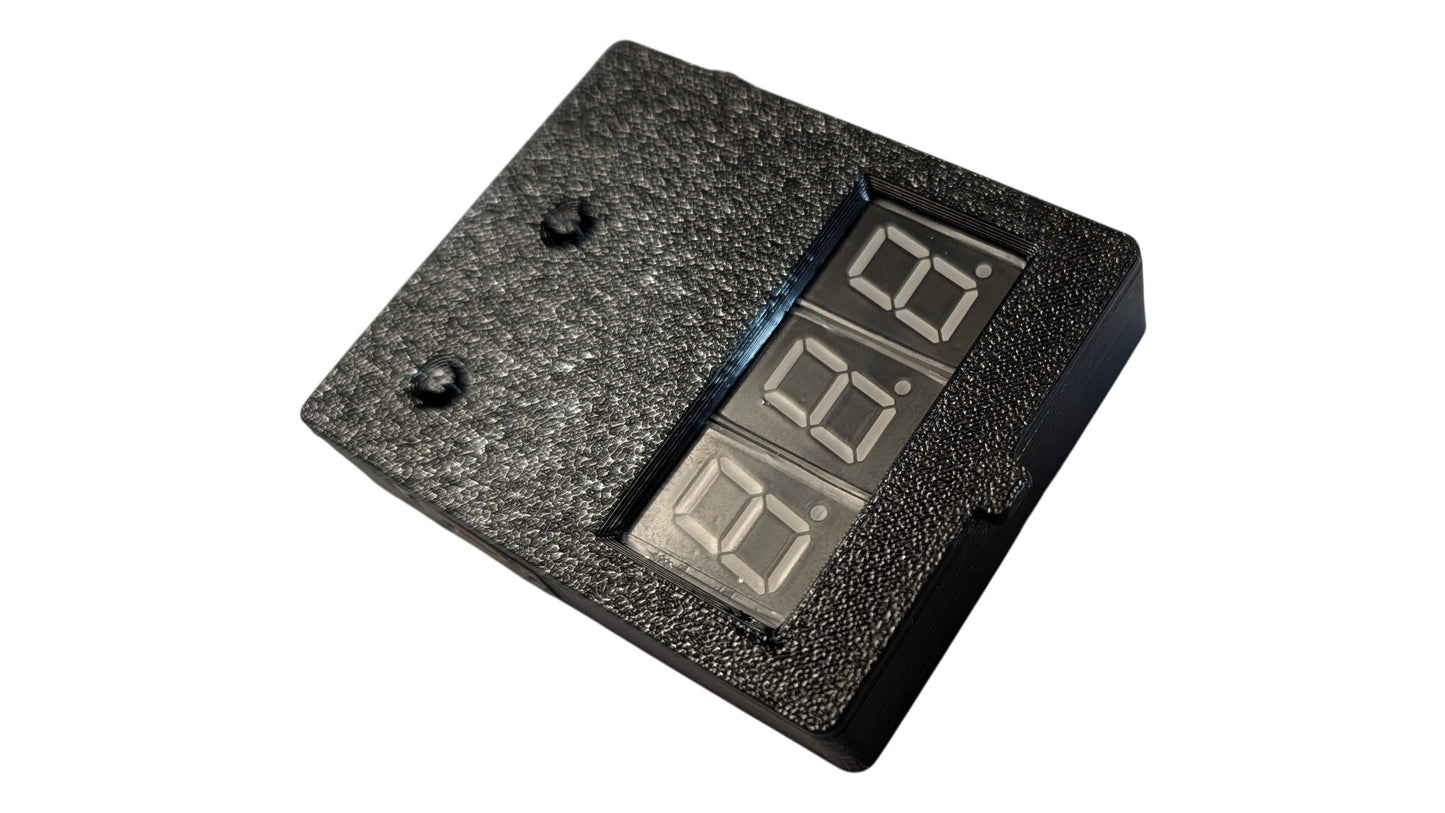

- 1 x 3 digits counter module – Fully assembled- with 3D printed enclosure
- 1 x laser module with 3D printed enclosure.
Document: Schematic
About 3D printed enclosure:
Small layer lines, marks and glue marks are normal characteristics of a 3D printed enclosure. It is not intended to compete with an injection-moulded enclosure in cosmetic perfection; instead, it is designed to work well, hold your electronics securely and give your project a professional finished appearance.
Other new digital objects counters:
1. TM1637 + ESP32-C3 Digital Object Counter
- 4-digit digital display for counting objects.
- Can be used as both an UP counter and DOWN counter.
- Uses a photoresistor (LDR) to detect/count objects.
- ESP32-C3 based controller.
- Operated through a browser-based app using a phone, tablet, or computer.
- Suitable for automatic object counting and general counting applications.
- Compact and simple design.
2. TYPE 1 – ESP32 + P3 RGB Digital Object Counter
- 4-digit digital object counter powered by ESP32.
- Uses a large P3 dot-matrix display measuring approximately 192 × 96 mm.
- Large, bright display designed primarily for indoor use.
- Objects can be counted automatically using a photoresistor/LDR.
- Can also be used as an UP/DOWN counter.
- Controlled through a browser-based app.
- Number colour can be changed using the browser interface.
- Suitable when a larger and more visible counter is required.
3. TYPE 2 – ESP32 + P3 RGB Counter with Remote Control
- Same main features as TYPE 1.
- 4-digit large P3 dot-matrix display, approximately 192 × 96 mm.
- ESP32 powered.
- Automatic object counting using a photoresistor/LDR.
- Can be used as an UP/DOWN counter.
- Controlled through a browser-based app.
- Display number colours can be changed through the browser.
- Additional feature: can also be operated using a 4-channel wireless remote control.
- Suitable for applications where the counter needs to be operated from a distance.
4. TYPE 3 – ESP32 Counter with Automatic Relay Control
- Combines the main features of the ESP32/P3 digital object counter.
- 4-digit large digital display.
- Automatic object counting using a photoresistor/LDR.
- Can be used as an UP/DOWN counter.
- Controlled through a browser-based app.
- Number colours can be changed through the browser interface.
- Includes a relay output for controlling an external device.
- The user can set a specific target count.
- When the counter reaches the preset count, the counting/operation can be stopped and the relay is activated.
- Useful for applications where reaching a specific number should automatically trigger another device or process.
