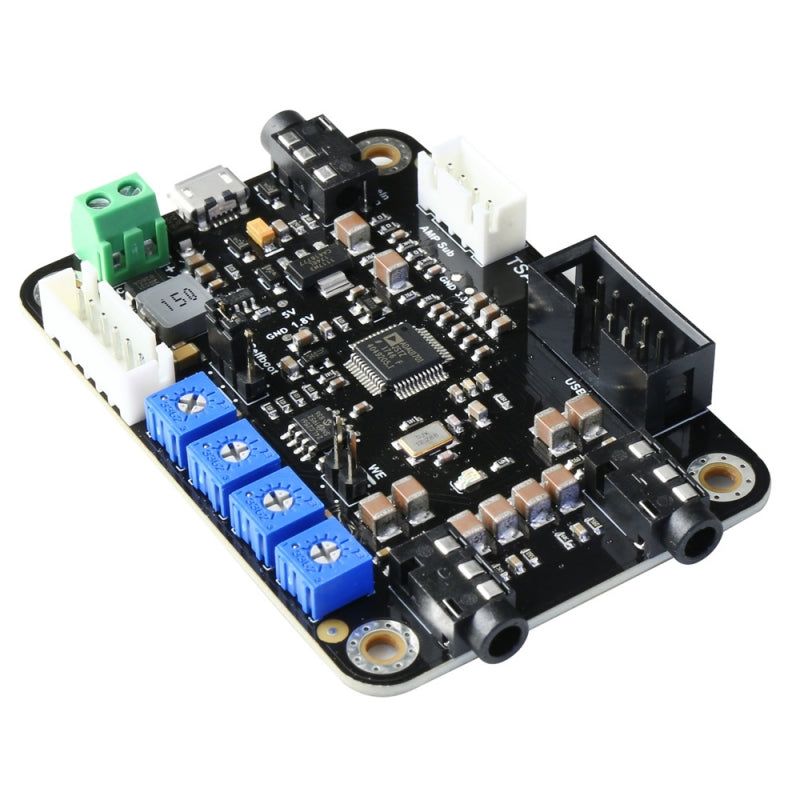

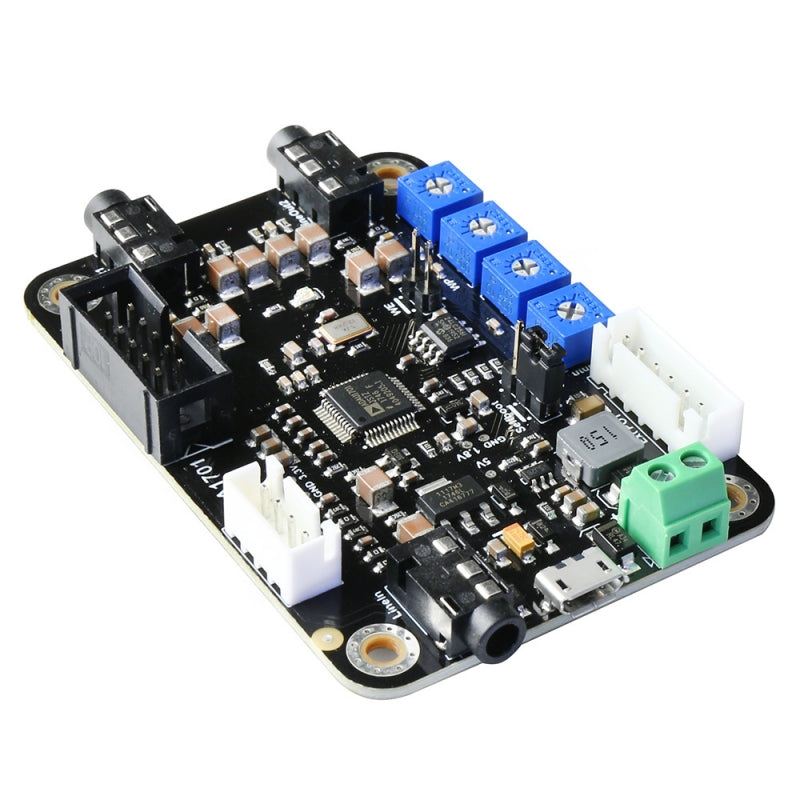

The TSA1701 is a complete audio digital signal processing module. The main DSP chip on this module is ADAU1701. The application range from active loudspeaker concepts (digital 3 way 3 unit, 2 way 2 unit crossover, bass enhancement, etc.) and realize the transformation from 2.0 to 2.1. It also has four potentiometers and with default program loaded. Customers can adjust the gain, bass, midrange and treble.
It also has a debug port for Sigma Studio, users can program this module with our USBi programmer to get more functions which includes equalization, crossover, bass enhancement, multiband dynamics processing, delay compensation, etc.

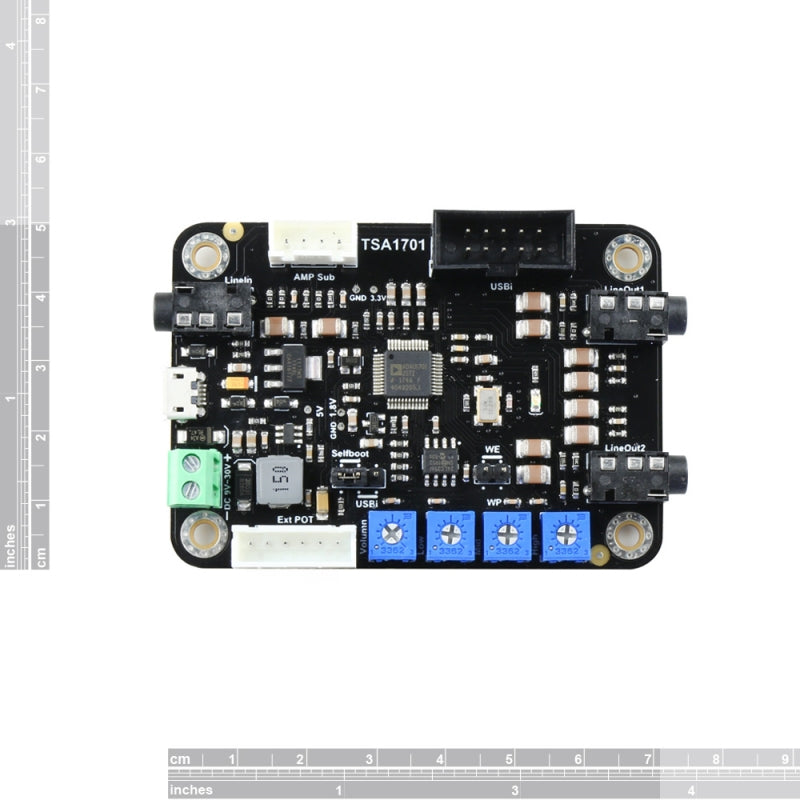

Pins define:
| Port name | Pin name | Direction | Description |
| External Potentiometers port | 3.3V | Power Out | 3.3V Output |
| A_ADC1 | Analog In | Treble control | |
| A_ADC2 | Analog In | Midrange control | |
| A_ADC3 | Analog In | Bass control | |
| A_ADC0 | Analog In | Gain control | |
| GND | - | ||
| Audio Input | GND | - | |
| ADC1 | Analog In | Right channel | |
| ADC0 | Analog In | Left Channel | |
| Audio Out1 | GND | - | |
| DAC0 | Analog Out | Left Channel | |
| DAC1 | Analog Out | Right channel | |
| Audio Out2 | GND | - | |
| DAC2 | Analog Out | Left Channel | |
| DAC3 | Analog Out | Right channel | |
| Tinysine AMP sub control Port | Line Out0 | Analog Out | DAC0 |
| Line In0 | Analog In | ADC0 | |
| GND | - | ||
| GND | - |

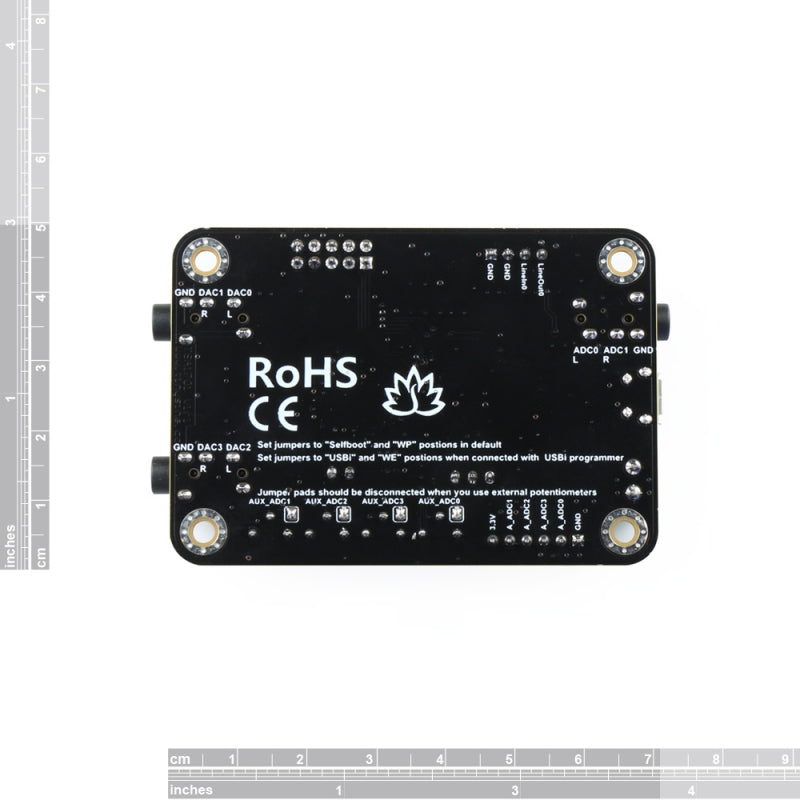

Warning: You need disconnect the soldering pads on the board back side when you connect external potentiometers. Or the ADC port may burned. Potentiometers value: 1Kohm-100Kohm.
TSA1701 controls our 2.1 channel amplifier board subwoofer channel
TSA1701 works with stereo amplifier board
Features:
Documents:
