Description

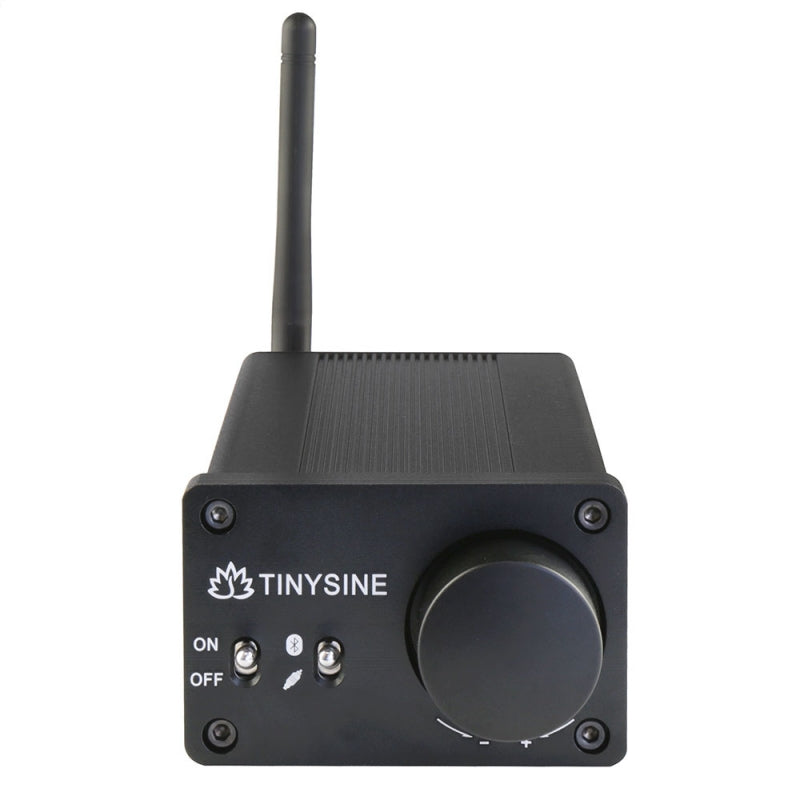

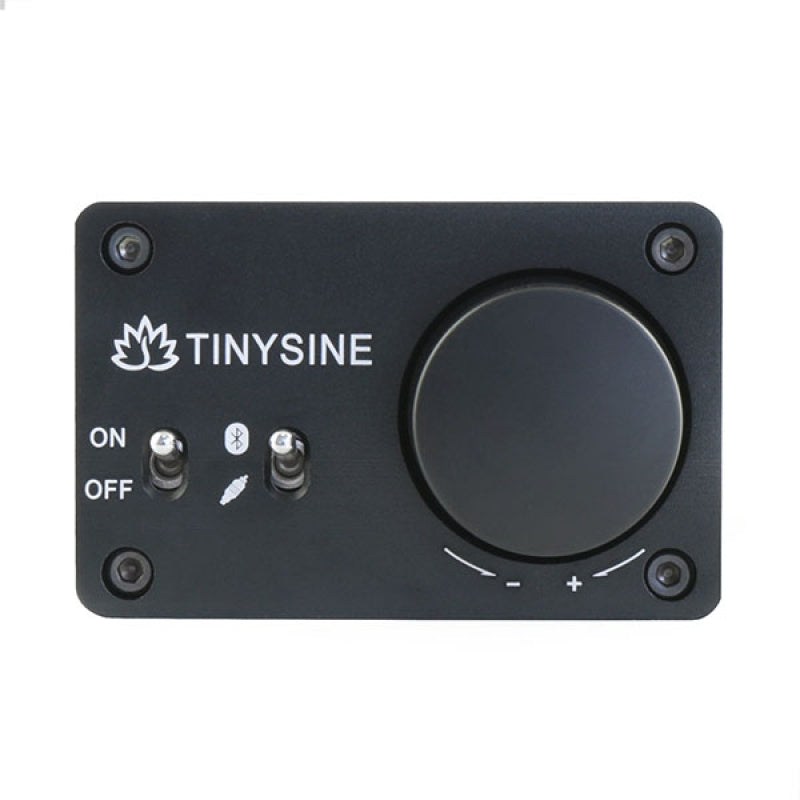

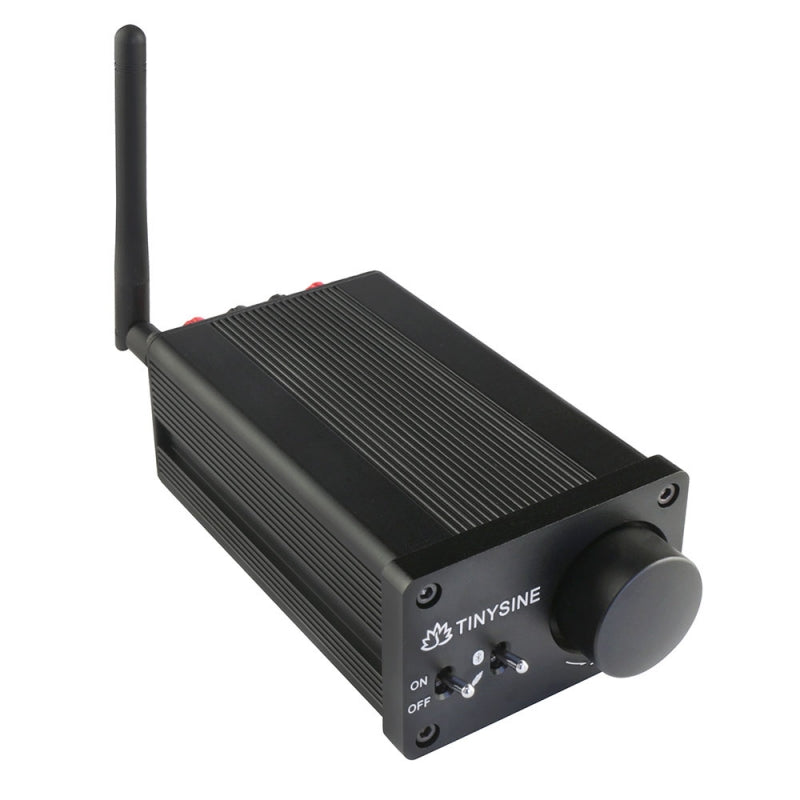

This is a 2x50W audio amplifier that has integrated Bluetooth 4.0. It has perfect class-D architecture and each channel has 50W power output. This board can be powered by any DC 12V-24V power supply. It can be used to drive any 4Ω or 8Ω passive speakers. There are 2 toggle switches and a knob on the front panel. One switch is for power on/off and the other one is for RCA input enable/disable. When you use the volume knob to adjust the audio volume, it will also automatically synchronize volume with your iPhone.
It is perfect for your Hi-Fi application, the audio source can be RCA input or Bluetooth. You can pair it up with a mobile phone or a computer.
Power up the amplifier board, use your phone or PC to search for a new Bluetooth device, the module will appear as
"TSA3610", you can simply pair it up without PIN. Yes, it connects automatically with your device. You can then play your audio.

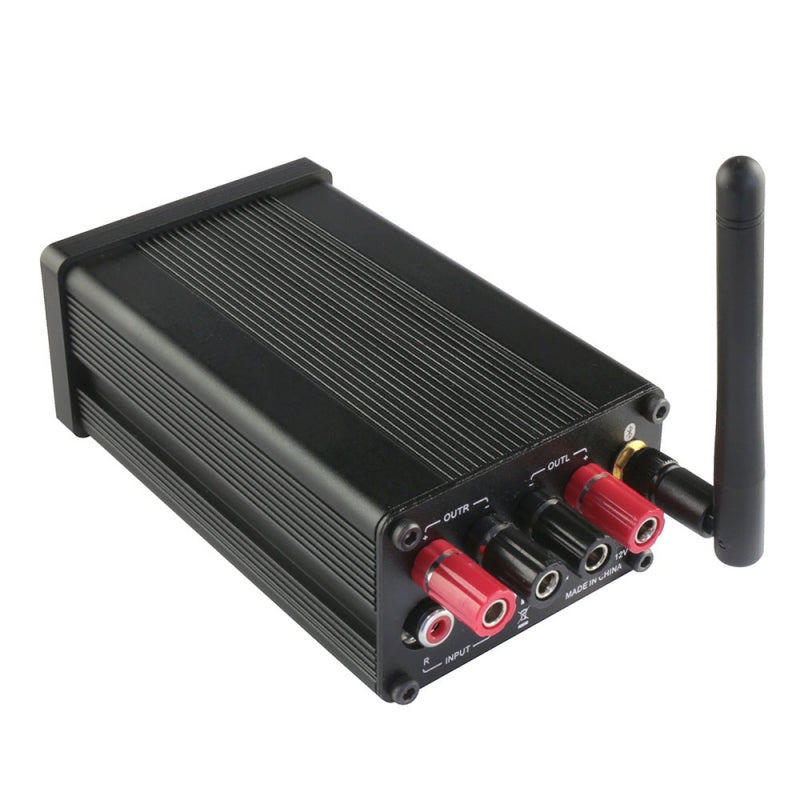

- TSA3610 supports both Bluetooth and RCA audio input. Ultra-low background noise and perfect audio quality.
- The audio volume knob can adjust both Bluetooth and cable input audio volume. Very convenient and easy to use.
Please set the RCA input enable/disable switch to Bluetooth position when you only use Bluetooth.
Specification:
TA = 20℃, fIN = 1 kHz sine wave, RL = 4Ω. (Unless otherwise stated)
Parameter |
Condition |
Min |
Typ |
Max |
Supply Voltage (VDC) |
- |
12 |
21 | 24 |
Idle Power |
SD Floating |
- |
1.3W |
2.5W |
Standby Power |
SD Connected to GND |
- |
0.1W |
0.3W |
Maximum Current |
100W @ 4Ohm |
- |
5.29A |
- |
Efficiency |
50W @ 4Ohm |
87% | - | 92% |
Minimum Load Impedance |
3.2Ω |
|||
Switching Frequency |
SD Floating |
- | 394KHZ | - |
Gain | 24dB | 25dB | 26dB | |
Input Sensitivity(RMS) |
@4Ω, 50W, 1KHz |
- | 808mV | - |
Input Impedance |
- | - | 22KΩ | - |
Output Power |
@4Ω THD+N 1% |
- | 36W | - |
@4Ω THD+N 10% |
- | 50W | - | |
Bandwidth @ ±3dB |
@4Ω |
20Hz |
- | 20KHz |
THD |
@4Ω, 1W, 1KHz |
- |
0.0299% |
- |
@4Ω, 10W, 1KHz |
- |
0.073% |
- |
Features:

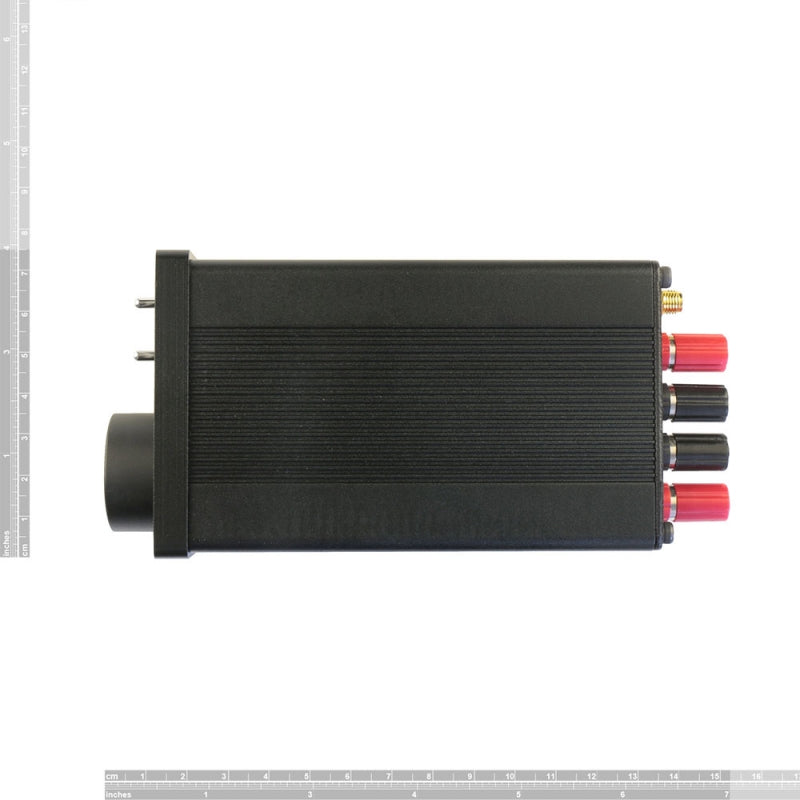

- Dimension: 16cm x 7.5cm x 4.8cm
- Weight: 420g
- Bluetooth audio volume knob
- Working voltage: DC 12V-24V
- Bluetooth 4.0
Applications:
- Personal computer
- Desktop amplifier
- MP3, Video CD output Amplification
- Home Theater
- Powered DVD Systems
Documents:
