Description
Read this page before you place an order
NOTE: This scoreboard doesn’t have BLUETOOTH. It can only be operated with RF remote control

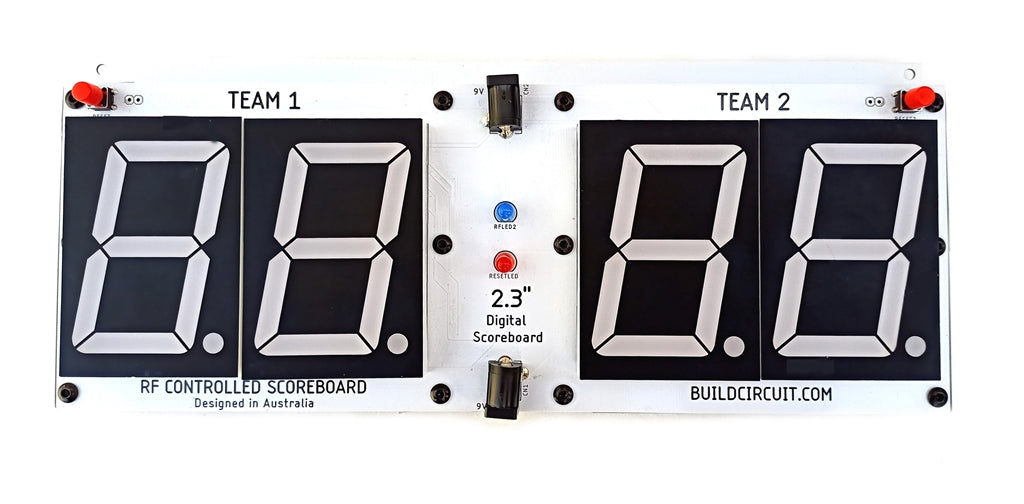

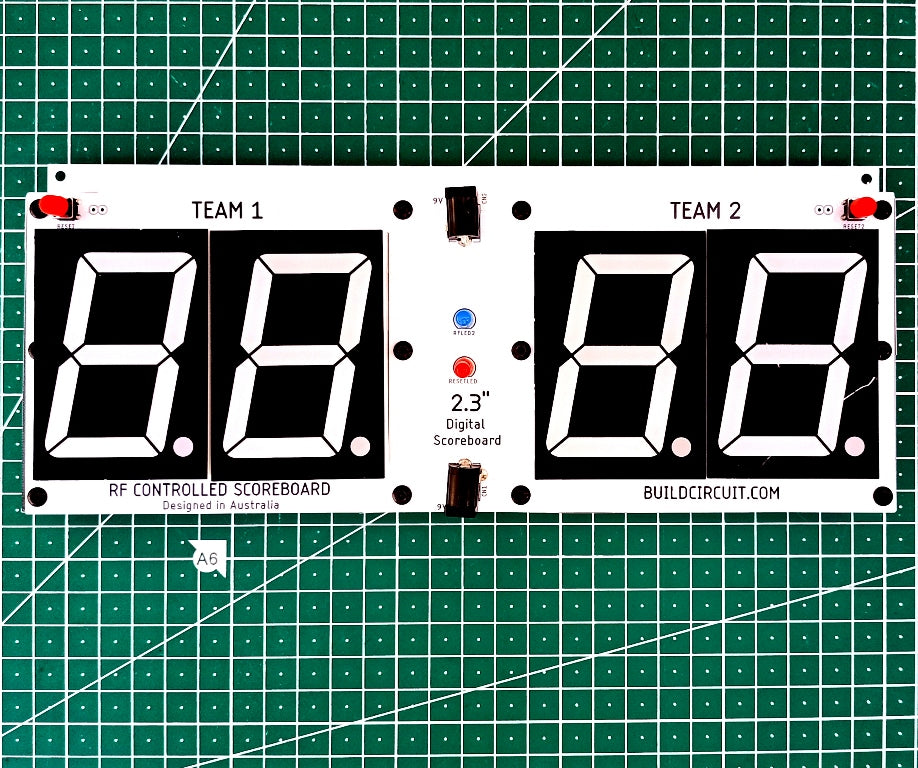

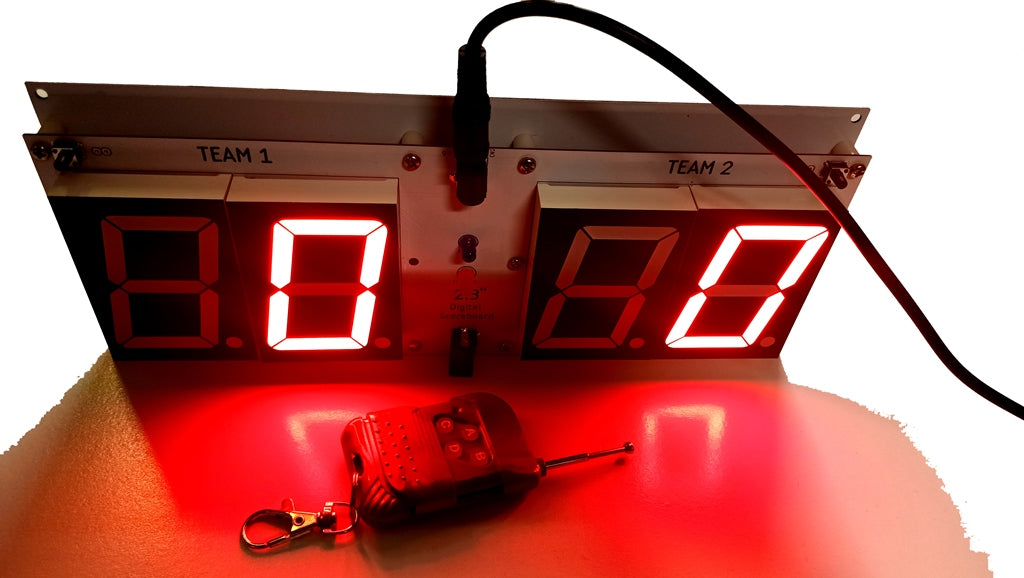

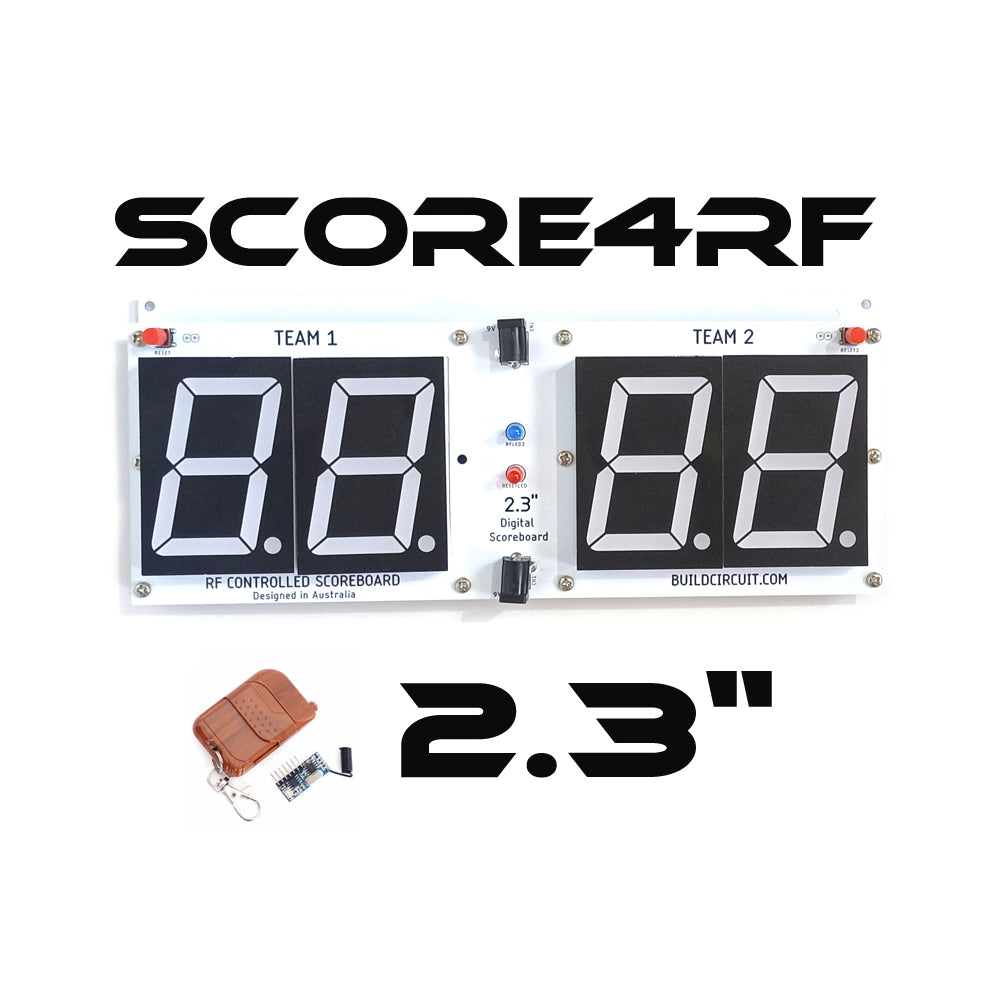

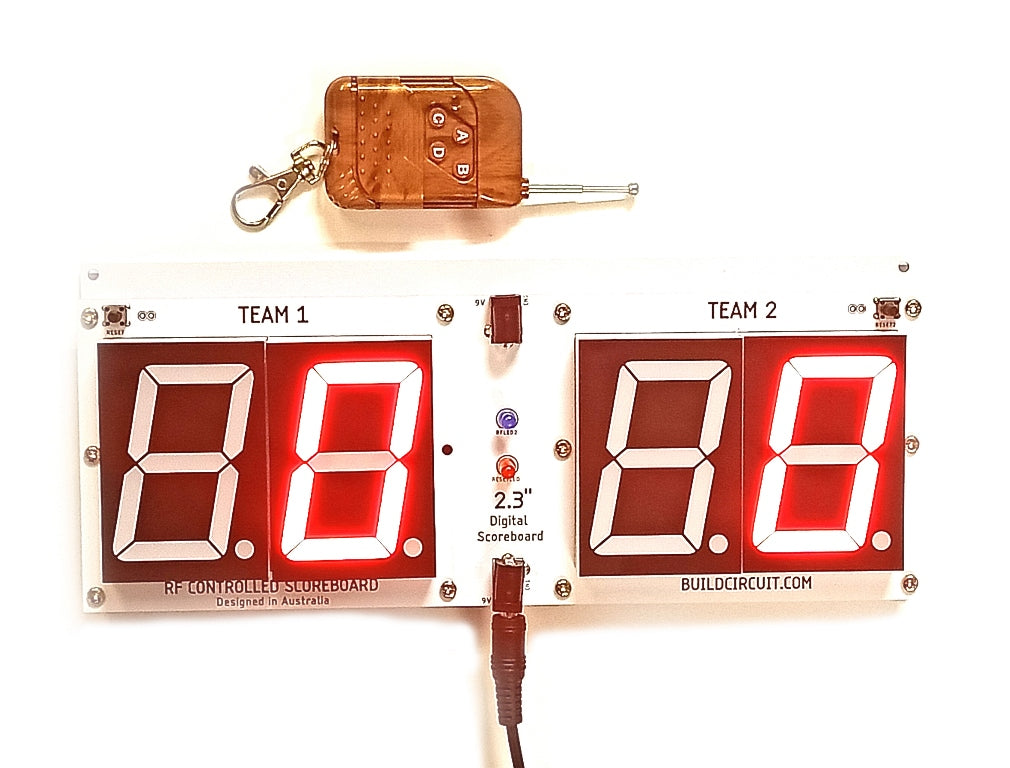

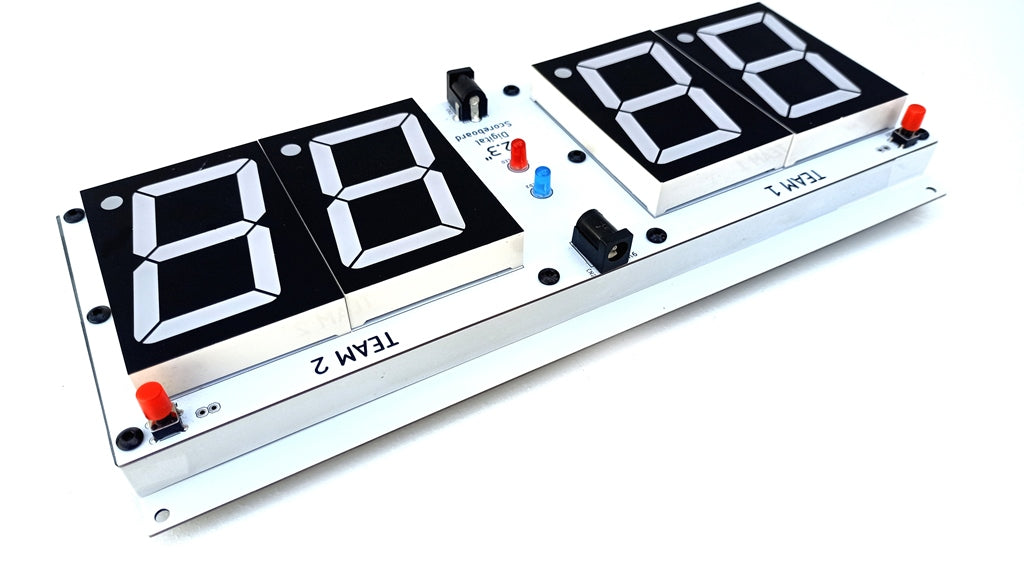

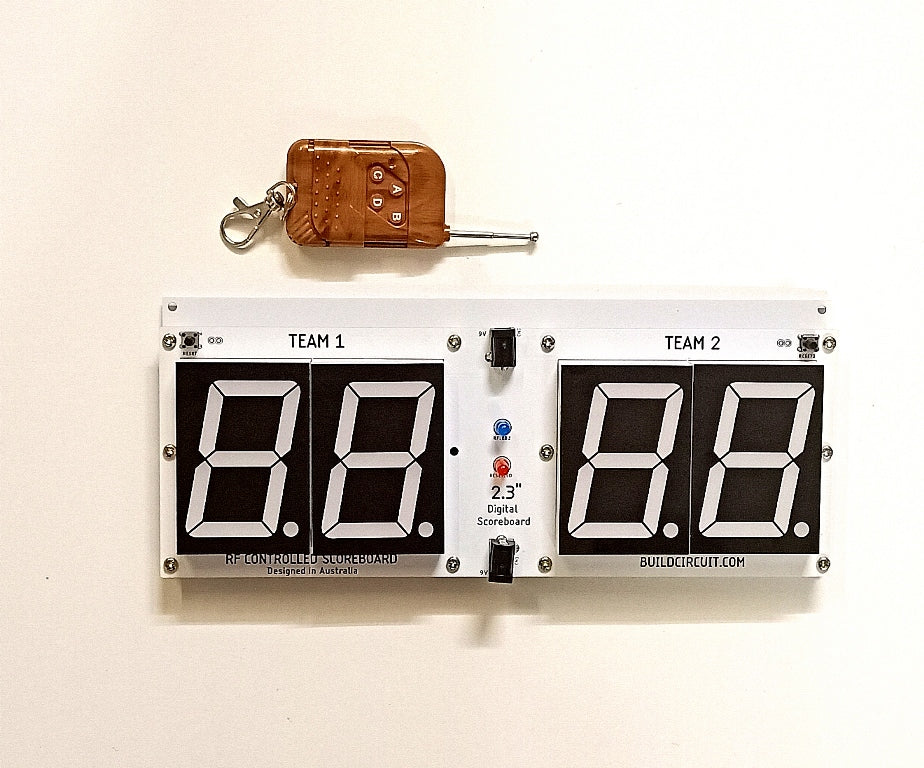

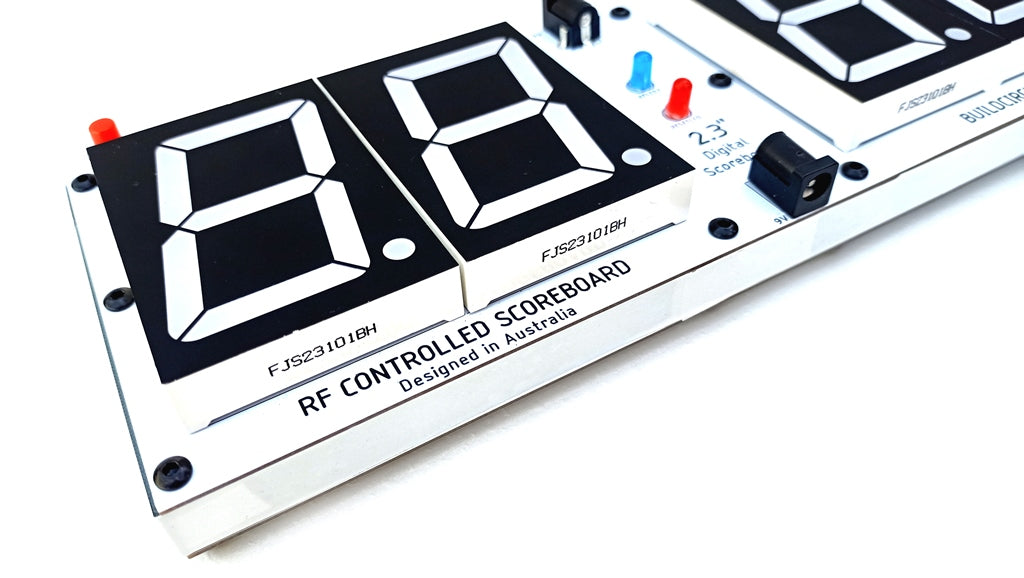

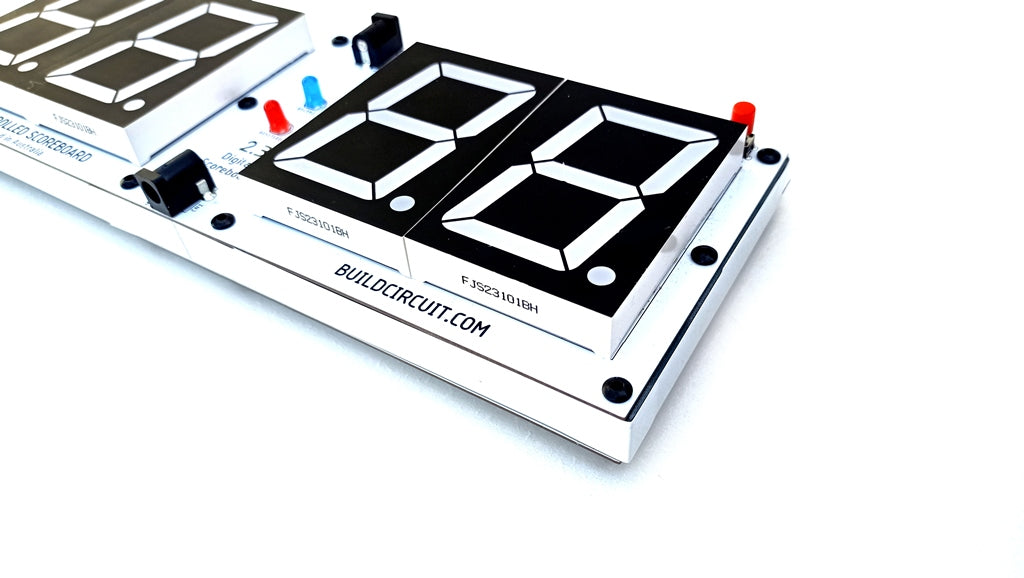

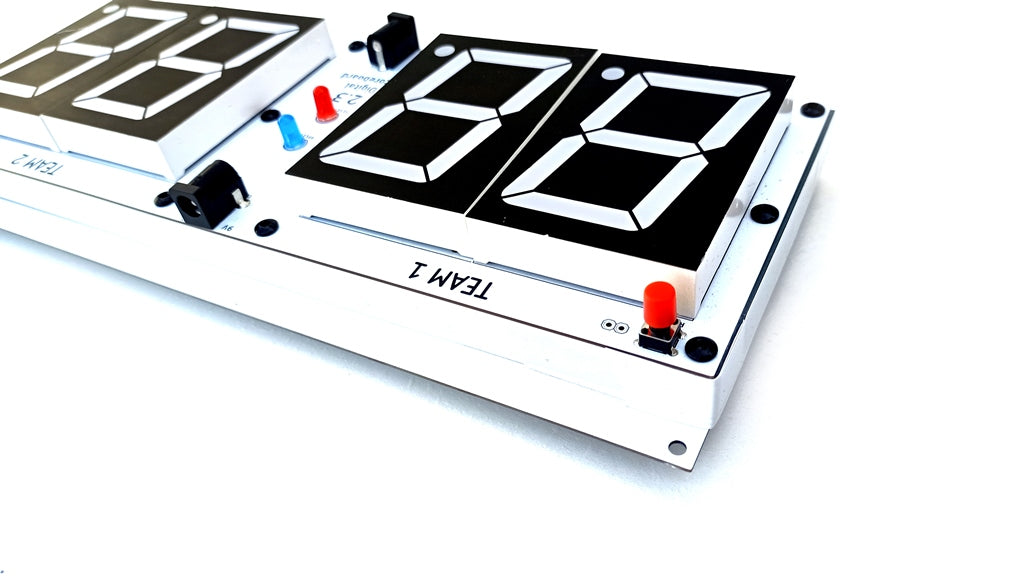

This is a RF remote controlled do-it-yourself (DIY) digital scoreboard for indoor games. You can either order fully assembled scoreboard or DIY kit.
Features:
- 2 players/teams Arduino based digital Scoreboard
- Size of displays: 2.3 inches.
- PCB Dimensions: 250.2 mm* 92.7 mm

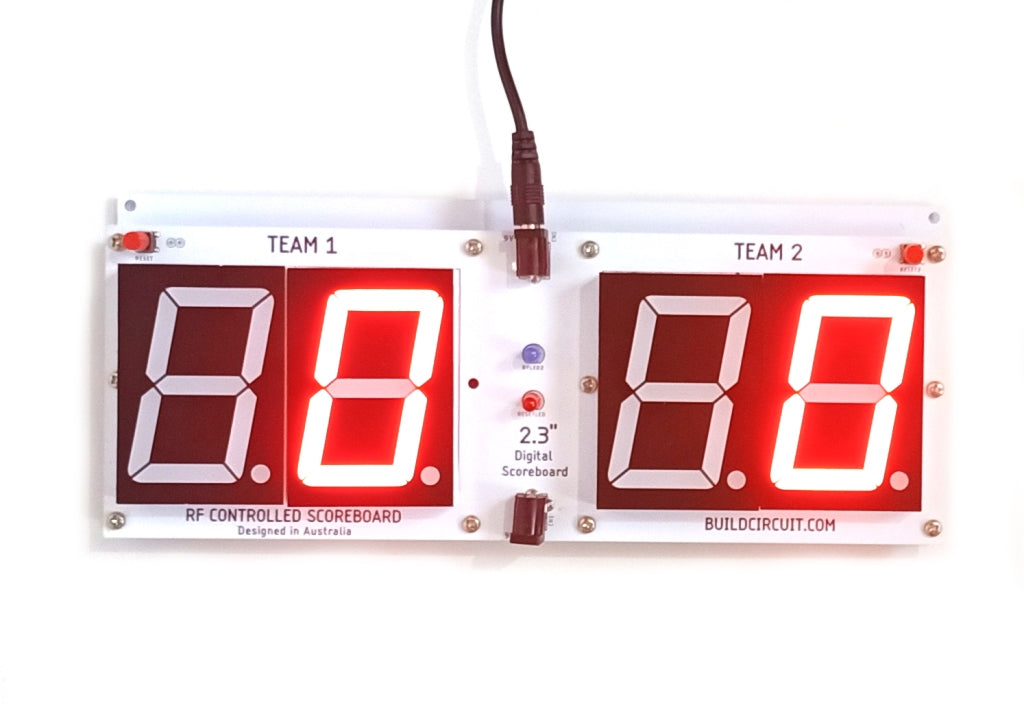

- When scores are displayed from 0-9, the left digit is off. For example, if a team scores a 7, the scoreboard displays only 7, not 07.
- The scoreboard does not reset even if the Bluetooth is disconnected.

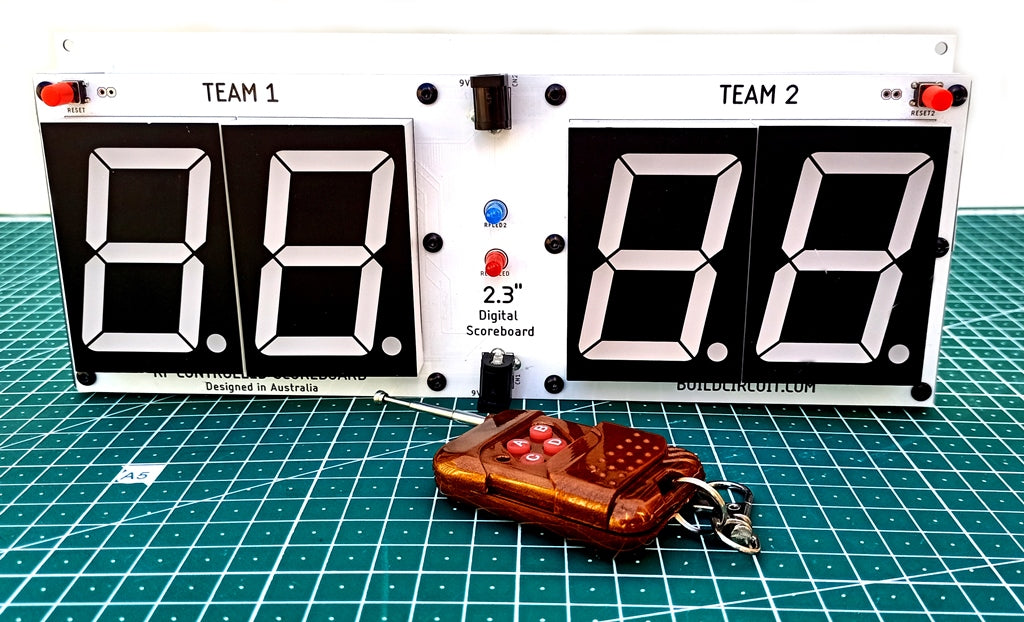

- Can be controlled with 4CH RF remote control
- The scoreboard works with 9V
To build this scoreboard, we have combined three modules.
- RF module based controller: This is the central module of the Scoreboard. It uses a widely used 4CH RF module that communicates with a RF remote control. The central board communicates with two set of displays on its right and left side.
- The right display: The right display gets up and down count commands from the central RF controller.
- The left display: The left display also gets up and down count commands from the central RF controller.
Power supplies:
- 2.3″ Scoreboard works with 9V-1A power adapter
How does it work?
To understand this working principle of Scoreboard, you need to understand two modules:
- RF module based controller: This is a basic RF based controller comprising NE555, CD4049 and few discrete components. It sends up and down commands to up and down counters placed on its right and left.
- Single-digit up and down counter module: I have described how 74LS192/CD40192 based up and down counter modules work. You need to combine two of the single-digit counters and connect them to the RF module based controller. The schematic of single-digit counter is here.
You can also read about Scoreduino_A and Scoreduino B
Package includes:
- Fully electronically assembled/ Not assembled(DIY) Scoreboard (whatever you choose)
- 9V power supply (we will send this from third party supplier)
Shipping & Return
SHIPPING
Our default shipping method is Registered International Post with a tracking code. Alternatively, you may opt for express shipping via DHL or FedEx.
Please note that we endeavor to ship all orders within 24 to 48 hours. The typical delivery time frame ranges between 2 to 4 weeks.
Kindly be aware that unforeseen circumstances, including customs or postal delays, may occasionally affect delivery times beyond our control.
Customers are responsible for any customs charges and should verify their country's customs policy.
RETURNS
If you are dissatisfied with the product, you may initiate a return within one month from the date of delivery. Please ensure that the product is sent back to our address in Sydney, Australia. Kindly note that all shipping charges associated with the return are the responsibility of the customer.
